KDY230-TGPFY3 (2004)
Toyota Dyna/Toyoace
(0408-0708)2KDFTV ; (0709- )1KDFTV

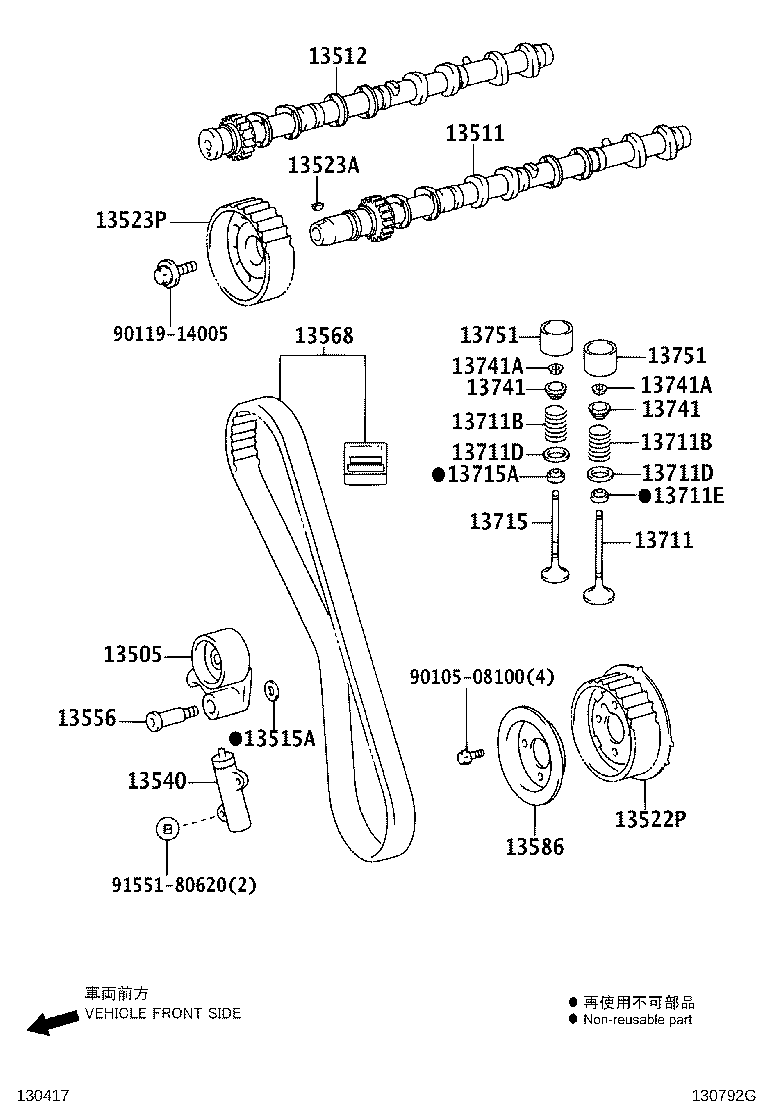

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13511 - CAMSHAFT | ||||
| 13501-30030 |
2KDFTV..KDY220,230,240,270,280,290 |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-30020 |
2KDFTV..KDY220,230,240,270,280,290 |
1 | ||
| 13515A - WASHER, PLATE(FOR DISTRIBUTOR DRIVE GEAR) | ||||
| 90201-10124 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 |
1 | ||
| 13522P - PULLEY, PUMP DRIVE SHAFT | ||||
| 13524-30010 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 |
1 | ||
| 13523A - KEY, WOODRUFF(FOR TIMING GEAR) | ||||
| 90280-05004 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 |
1 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13523-17010 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 |
1 | ||
| 13556 - SHAFT, TIMING BELT IDLER | ||||
| 13556-67010 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 |
1 | ||
| 13586 - FLANGE, CAMSHAFT TIMING PULLEY, NO.2 | ||||
| 13586-17020 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-30040 |
2KDFTV..KDY220,230,240,270,280,290 |
8 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-16023 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 |
16 | ||
| 13711D - WASHER, PLATE(FOR VALVE SPRING SEAT) | ||||
| 90201-16023 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 |
16 | ||
| 13711E - SEAL, INTAKE VALVE STEM OIL | ||||
| 90913-02121 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 |
8 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-30040 |
2KDFTV..KDY220,230,240,270,280,290 |
8 | ||
| 13715A - SEAL, EXHAUST VALVE STEM OIL | ||||
| 90913-02121 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 |
8 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-15020 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 |
16 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-15020 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 |
16 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03021 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03021 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 |
32 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-46050 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.10 |
16 | ||
| 13751-46060 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.12 |
16 | ||
| 13751-46100 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.20 |
16 | ||
| 13751-46110 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.22 |
16 | ||
| 13751-46090 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.18 |
16 | ||
| 13751-46070 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.14 |
16 | ||
| 13751-46130 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.26 |
16 | ||
| 13751-46080 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.16 |
16 | ||
| 13751-46040 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.08 |
16 | ||
| 13751-46030 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.06 |
16 | ||
| 13751-46120 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.24 |
16 | ||
| 13751-46140 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.28 |
16 | ||
| 13751-46220 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.44 |
16 | ||
| 13751-46210 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.42 |
16 | ||
| 13751-46190 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.38 |
16 | ||
| 13751-46230 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.46 |
16 | ||
| 13751-46170 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.34 |
16 | ||
| 13751-46310 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.62 |
16 | ||
| 13751-46290 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.58 |
16 | ||
| 13751-46200 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.40 |
16 | ||
| 13751-46280 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.56 |
16 | ||
| 13751-46180 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.36 |
16 | ||
| 13751-46270 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.54 |
16 | ||
| 13751-46330 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.66 |
16 | ||
| 13751-46250 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.50 |
16 | ||
| 13751-46240 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.48 |
16 | ||
| 13751-46340 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.68 |
16 | ||
| 13751-46160 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.32 |
16 | ||
| 13751-46300 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.60 |
16 | ||
| 13751-46320 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.64 |
16 | ||
| 13751-46350 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.70 |
16 | ||
| 13751-46260 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.52 |
16 | ||
| 13751-46150 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.30 |
16 | ||
| 13751-46370 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.74 |
16 | ||
| 13751-46360 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.72 |
16 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-46050 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.10 |
16 | ||
| 13751-46060 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.12 |
16 | ||
| 13751-46100 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.20 |
16 | ||
| 13751-46110 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.22 |
16 | ||
| 13751-46090 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.18 |
16 | ||
| 13751-46070 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.14 |
16 | ||
| 13751-46130 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.26 |
16 | ||
| 13751-46080 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.16 |
16 | ||
| 13751-46040 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.08 |
16 | ||
| 13751-46030 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.06 |
16 | ||
| 13751-46120 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.24 |
16 | ||
| 13751-46140 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.28 |
16 | ||
| 13751-46220 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.44 |
16 | ||
| 13751-46210 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.42 |
16 | ||
| 13751-46190 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.38 |
16 | ||
| 13751-46230 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.46 |
16 | ||
| 13751-46170 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.34 |
16 | ||
| 13751-46310 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.62 |
16 | ||
| 13751-46290 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.58 |
16 | ||
| 13751-46200 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.40 |
16 | ||
| 13751-46280 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.56 |
16 | ||
| 13751-46180 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.36 |
16 | ||
| 13751-46270 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.54 |
16 | ||
| 13751-46330 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.66 |
16 | ||
| 13751-46250 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.50 |
16 | ||
| 13751-46240 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.48 |
16 | ||
| 13751-46340 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.68 |
16 | ||
| 13751-46160 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.32 |
16 | ||
| 13751-46300 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.60 |
16 | ||
| 13751-46320 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.64 |
16 | ||
| 13751-46350 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.70 |
16 | ||
| 13751-46260 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.52 |
16 | ||
| 13751-46150 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.30 |
16 | ||
| 13751-46370 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.74 |
16 | ||
| 13751-46360 |
1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 厚さ=5.72 |
16 | ||
| Common parts | ||||
| 90105-08100 | ||||
| 90119-14005 | ||||
| 91551-80620 | ||||
