KDY230-TGPFY3 (2004)

Toyota Dyna/Toyoace

Production Aug 2004 - Aug 2007
Engine 2KDFTV
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0408-0708)2KDFTV

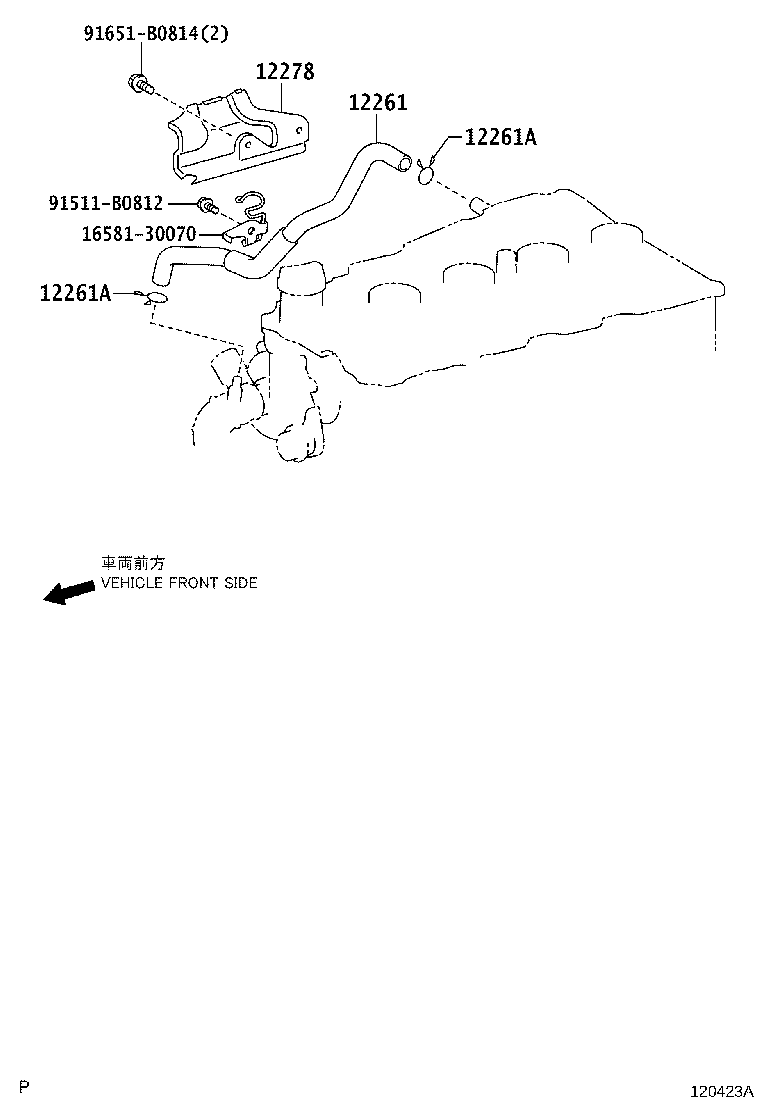

Click highlighted areas on diagram

diagram 12261 12261A 12261A 12278 1658130070 91511B0812 91651B0814
Part # Description Qty Price
12261 - HOSE, VENTILATION
12261-30020

2KDFTV..KDY220,230,240,270,280,290

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-23002

2KDFTV..KDY220,230,240,270,280,290

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-23002

2KDFTV..KDY220,230,240,270,280,290

 2
12278 - INSULATOR, VENTILATION HOSE HEAT
12278-30020

2KDFTV..KDY220,230,240,270,280,290

 1
Common parts
16581-30070
91511-B0812
91651-B0814
