KDY230-TGMFY3 (2004)

Toyota Dyna/Toyoace

Production Aug 2004 - Aug 2007
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0408-0708)2KDFTV

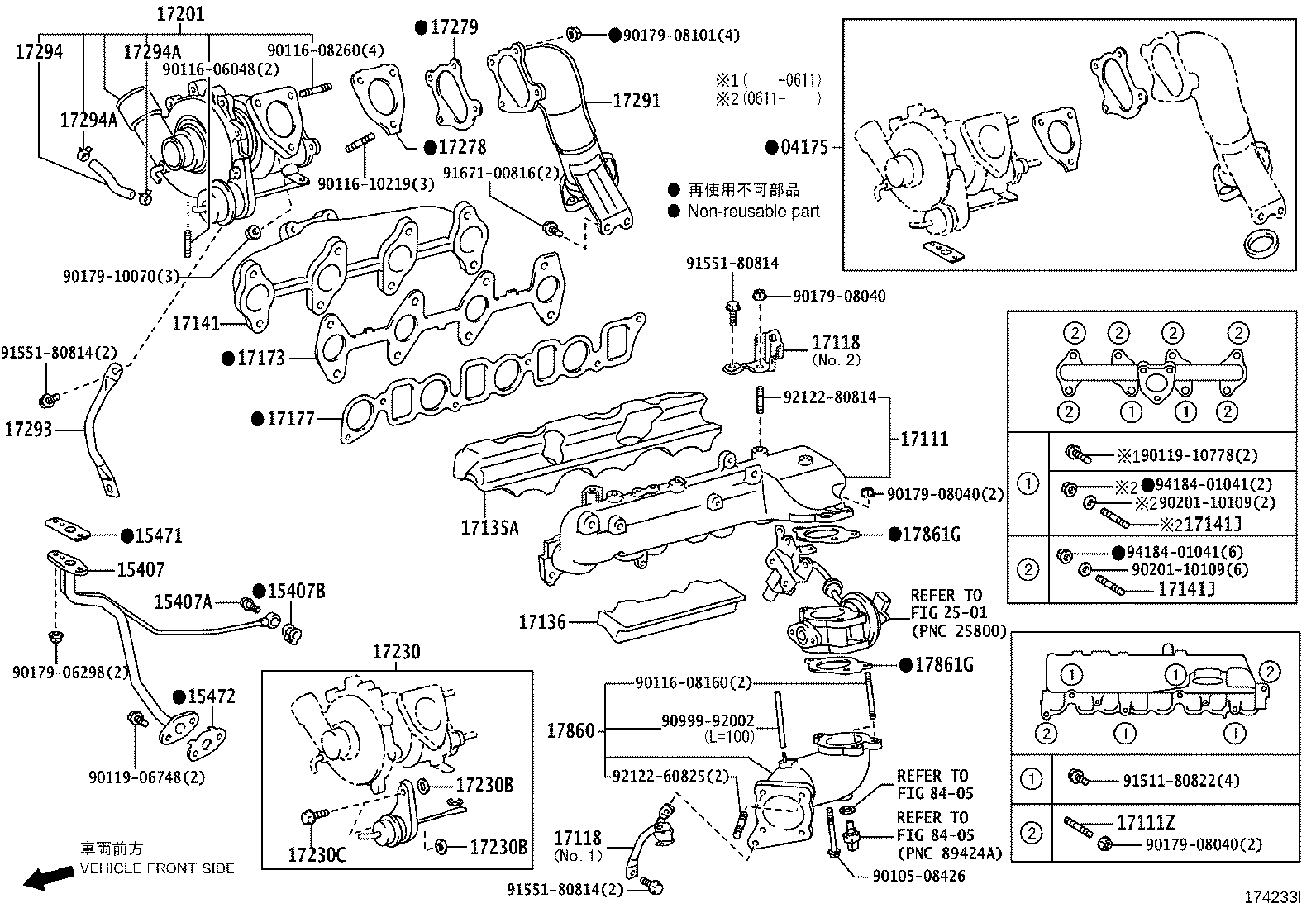

Click highlighted areas on diagram

diagram 04175 15407 15407A 15407B 15471 15472 17111 17111Z 17118 17118 17135A 17136 17141 17141J 17141J 17173 17177 17201 17230 17230B 17230B 17230C 17278 17279 17291 17293 17294 17294A 17294A 17860 17861G 17861G 2501 8405 8405 9010508426 9011606048 9011608160 9011608260 9011610219 9011906748 9011910778 9017906298 9017908040 9017908040 9017908040 9017908101 9017910070 9020110109 9020110109 9099992002 9151180822 9155180814 9155180814 9155180814 9167100816 9212260825 9212280814 9418401041 9418401041
Part # Description Qty Price
04175 - GASKET KIT, TURBOCHARGER
04175-30030

2KDFTV..KDY220,230,240,270,280,290

 1
15407 - PIPE SUB-ASSY, TURBO OIL INLET
15407-30020

2KDFTV..KDY220,230,240,270,280,290

 1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
90401-12097

1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290

 1
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90904-30004

1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290

 1
17111 - MANIFOLD, INTAKE
17101-30020

2KDFTV..KDY220,230,240,270,280,290

 1
17118 - STAY, MANIFOLD
17118-30060

2KDFTV..KDY220,230,240,270,280,290

NO.1

 1
17118-30050

2KDFTV..KDY220,230,240,270,280,290

NO.2

 1
17118 - STAY, MANIFOLD
17118-30060

2KDFTV..KDY220,230,240,270,280,290

NO.1

 1
17118-30050

2KDFTV..KDY220,230,240,270,280,290

NO.2

 1
17135A - INSULATOR, INTAKE MANIFOLD, NO.1
17135-30011

2KDFTV..KDY220,230,240,270,280,290

 1
17136 - INSULATOR, INTAKE MANIFOLD, NO.2
17136-30010

2KDFTV..KDY220,230,240,270,280,290

 1
17141 - MANIFOLD, EXHAUST
17141-30041

2KDFTV..KDY220,230,240,270,280,290

 1
17141J - BOLT, STUD(FOR EXHAUST MANIFOLD, RH)
90126-10017

2KDFTV..KDY220,230,240,270,280,290

 6
90126-10037

2KDFTV..KDY220,230,240,270,280,290

 8
90126-10037

2KDFTV..KDY220,230,240,270,280,290

 6
17141J - BOLT, STUD(FOR EXHAUST MANIFOLD, RH)
90126-10017

2KDFTV..KDY220,230,240,270,280,290

 6
90126-10037

2KDFTV..KDY220,230,240,270,280,290

 8
90126-10037

2KDFTV..KDY220,230,240,270,280,290

 6
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-30020

1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-30011

1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290

 1
17201 - TURBOCHARGER SUB-ASSY
17201-30090

2KDFTV..KDY220,230,240,270,280,290

 1
17230 - ACTUATOR ASSY, W/BRACKET
17230-39065

2KDFTV..KDY220,230,240,270,280,290

 1
17230B - WASHER, PLATE(FOR REPAIR ACTUATOR SET)
90201-06043

2KDFTV..KDY220,230,240,270,280,290

厚さ=1.0

 2
90201-06042

2KDFTV..KDY220,230,240,270,280,290

厚さ=0.5

 2
90201-06045

2KDFTV..KDY220,230,240,270,280,290

厚さ=3.0

 2
90201-06044

2KDFTV..KDY220,230,240,270,280,290

厚さ=2.0

 2
17230B - WASHER, PLATE(FOR REPAIR ACTUATOR SET)
90201-06043

2KDFTV..KDY220,230,240,270,280,290

厚さ=1.0

 2
90201-06042

2KDFTV..KDY220,230,240,270,280,290

厚さ=0.5

 2
90201-06045

2KDFTV..KDY220,230,240,270,280,290

厚さ=3.0

 2
90201-06044

2KDFTV..KDY220,230,240,270,280,290

厚さ=2.0

 2
17230C - BOLT, W/WASHER(FOR REPAIR ACTUATOR SET)
91551-80618

2KDFTV..KDY220,230,240,270,280,290

 2
17278 - GASKET, TURBO TO EXHAUST MANIFOLD
17278-67010

1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290

 1
17279 - GASKET, TURBINE OUTLET ELBOW
17279-30020

2KDFTV..KDY220,230,240,270,280,290

 1
17291 - ELBOW, TURBINE OUTLET
17291-30040

2KDFTV..KDY220,230,240,270,280,290

 1
17293 - STAY, TURBOCHARGER
17293-30020

2KDFTV..KDY220,230,240,270,280,290

 1
17294 - HOSE, ACTUATOR
90445-12158

2KDFTV..KDY220,230,240,270,280,290

 1
17294A - CLIP(FOR ACTUATOR HOSE)
96132-51100

2KDFTV..KDY220,230,240,270,280,290

 2
17294A - CLIP(FOR ACTUATOR HOSE)
96132-51100

2KDFTV..KDY220,230,240,270,280,290

 2
17860 - CONNECTOR ASSY, INTAKE AIR
17860-30060

2KDFTV..KDY220,230,240,270,280,290

 1
17861G - GASKET, INTAKE AIR CONNECTOR
26171-30030

2KDFTV..KDY220,230,240,270,280,290

 2
26171-30013

2KDFTV..KDY220,230,240,270,280,290

 2
17861G - GASKET, INTAKE AIR CONNECTOR
26171-30030

2KDFTV..KDY220,230,240,270,280,290

 2
26171-30013

2KDFTV..KDY220,230,240,270,280,290

 2
Common parts
90105-08426
90116-06048
90116-08160
90116-08260
90116-10219
90119-06748
90119-10778
90179-06298
90179-08040
90179-08101
90179-10070
90201-10109
90999-92002
91511-80822
91551-80814
91671-00816
92122-60825
92122-80814
94184-01041
Linked diagrams
2501
8405
