KDY230-TBPDY (2004)

Toyota Dyna/Toyoace

Production Aug 2004 - Aug 2007
Engine 2KDFTV
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0107-1610)LY230,280..TB..ATM ; (0107-1610)RZY231,281,TRY220,23#,281..ATM

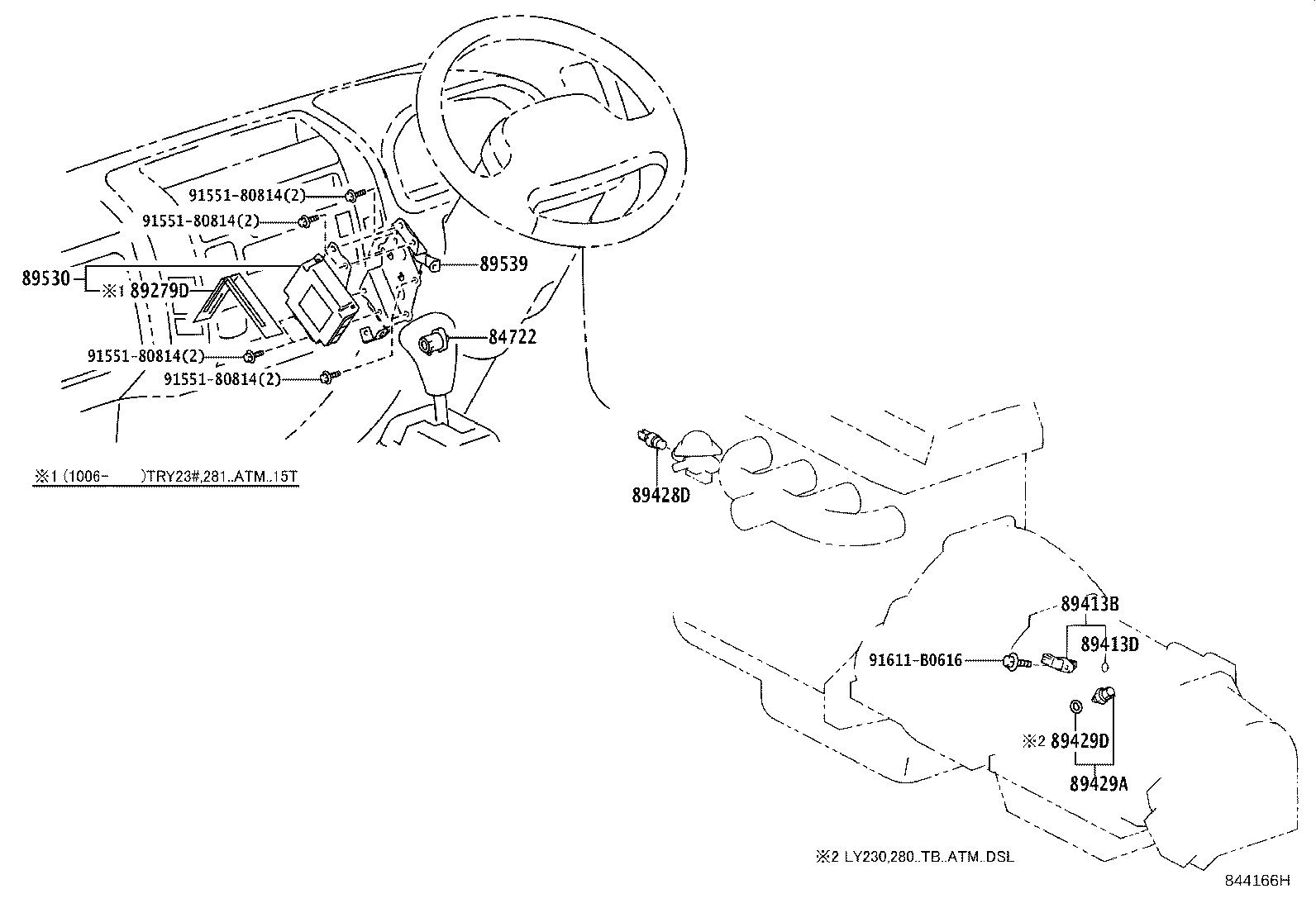

Click highlighted areas on diagram

diagram 84722 89279D 89413B 89413D 89428D 89429A 89429D 89530 89539 9155180814 9155180814 9155180814 9155180814 91611B0616
Part # Description Qty Price
84722 - SWITCH, TRANSMISSION CONTROL
84722-37020B0

KDY221..TS..ATM;KDY231..TB..ATM..125T;KDY231,TRY230..ST..IV6;KDY231,TRY230..(T2,T3,T4)..ATM..(CBU,IV3);KDY220,230,28#,LY220,230,280,RZY220,23#,281,TRY220,231,281..ATM

DK.CHARCOAL,TRIM1#

 1
84722-37020B0

LY220,230,280,RZY220,23#,281,TRY220,230..ATM

DK.CHARCOAL,TRIM1#

 1
89429A - SENSOR, TEMPERATURE
89429-34010

LY230..TB..ATM;KDY231..ATM..15T;TRY230..ATM..125T;LY280..TB..ATM..DSL;KDY231..ATM..125T..WT;KDY220,230,280,RZY220,230,TRY220..ATM

 1
89530 - COMPUTER ASSY, TRANSMISSION CONTROL
89530-25120

KDY220,230..ATM..125T..ST

 1
89539 - BRACKET, TRANSMISSION CONTROL COMPUTER
89539-25010

TRY230..ATM..15T;KDY22#,23#,28#,LY220,230,280,RZY231,281,TRY231,281..ATM

 1
Common parts
91551-80814
91611-B0616
