KDY230-PQMEY3 (2004)

Toyota Dyna/Toyoace

Production Aug 2004 - Aug 2007
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0408- )KDY22#,23#,24#,27#,28#,290

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 1603 1603 1603 8712125040 8712425040 8712425070 8712425070 8712425140 8712425190 8712437090 8714 87245 87245A 87246A 87246B 87246B 87246B 87246C 87246C 87248A 87249A 87251C 87251C 9011908802 9016840006 9016840006 9016840006 9016840006 9046721010 9046721010 9046721010 9046721010 9155180814 9163140614 9165160616 9165160616 9415180600 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
87245 - HOSE, HEATER WATER, INLET
87245-25840

KDY22#,23#,24#,27#,28#,290

 1
87245A - HOSE, HEATER WATER, INLET A
87245-25850

KDY220,230,240,270,280,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-25A00

KDY220,230,240,270,280,290

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-25860

KDY22#,23#,24#,27#,28#,290

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-25870

KDY220,230,270,280..TW1,TW2,TW3,TW4

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-25A10

KDY220,230,270,280

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-25870

KDY220,230,270,280..TW1,TW2,TW3,TW4

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-25A10

KDY220,230,270,280

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-25870

KDY220,230,270,280..TW1,TW2,TW3,TW4

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-25A10

KDY220,230,270,280

 1
87248A - PIPE, HEATER WATER INLET, A
87248-25050

LY220,230,240,270,280,290,RZY231,281

 1
87248-25280

KDY231..1T;KDY231..TB..125T;KDY22#,230,24#,27#,28#,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87248-25310

KDY22#,23#,24#,27#,28#,290

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-25060

LY220,230,240,270,280,290,RZY231,281

 1
87248-25320

KDY22#,23#,24#,27#,28#,290

 1
87248-25300

KDY231..1T;KDY231..TB..125T;KDY22#,230,24#,27#,28#,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
Common parts
87121-25040
87124-25040
87124-25070
87124-25140
87124-25190
87124-37090
90119-08802
90168-40006
90467-21010
91551-80814
91631-40614
91651-60616
94151-80600
96134-42100
Linked diagrams
1603
8714

ILLUST NO. 1 OF 2(0408- )KDY220,230,24#,27#,28#,290

Click highlighted areas on diagram

ﾌﾛﾝﾄ--ｱﾘ(ﾘﾔ ﾋｰﾀ)

diagram 1603 1603 1603 8712 8712125040 8712425040 8712425070 8712425080 8712425140 8712425190 8712437090 87245 87245A 87246A 87246B 87246B 87246B 87246C 87246C 87248A 87249A 87249B 87251C 87251C 87256D 9011908802 9016840006 9016840006 9016840006 9016840006 9046719022 9046719022 9046721010 9046721010 9046721010 9046721010 9155180814 9163140614 9165160616 9165160616 9415180600 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
87245 - HOSE, HEATER WATER, INLET
87245-25840

KDY22#,23#,24#,27#,28#,290

 1
87245-25840

KDY22#,23#,24#,27#,28#,290

 1
87245A - HOSE, HEATER WATER, INLET A
87245-25850

KDY220,230,240,270,280,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-25850

KDY220,230,240,270,280,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-25A00

KDY220,230,240,270,280,290

 1
87245-25A00

KDY220,230,240,270,280,290

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-25860

KDY22#,23#,24#,27#,28#,290

 1
87245-25860

KDY22#,23#,24#,27#,28#,290

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-25870

KDY220,230,270,280..TW1,TW2,TW3,TW4

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-25870

KDY220,230,270,280..TW1,TW2,TW3,TW4

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-25A10

KDY220,230,270,280

 1
87245-25A10

KDY220,230,270,280

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-25870

KDY220,230,270,280..TW1,TW2,TW3,TW4

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-25870

KDY220,230,270,280..TW1,TW2,TW3,TW4

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-25A10

KDY220,230,270,280

 1
87245-25A10

KDY220,230,270,280

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-25870

KDY220,230,270,280..TW1,TW2,TW3,TW4

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-25870

KDY220,230,270,280..TW1,TW2,TW3,TW4

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-25A10

KDY220,230,270,280

 1
87245-25A10

KDY220,230,270,280

 1
87248A - PIPE, HEATER WATER INLET, A
87248-25050

LY220,230,240,270,280,290,RZY231,281

 1
87248-25050

LY220,230,240,270,280,290,RZY231,281

 1
87248-25280

KDY231..1T;KDY231..TB..125T;KDY22#,230,24#,27#,28#,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87248-25280

KDY231..1T;KDY231..TB..125T;KDY22#,230,24#,27#,28#,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87248-25310

KDY22#,23#,24#,27#,28#,290

 1
87248-25310

KDY22#,23#,24#,27#,28#,290

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-25060

LY220,230,240,270,280,290,RZY231,281

 1
87248-25060

LY220,230,240,270,280,290,RZY231,281

 1
87248-25320

KDY22#,23#,24#,27#,28#,290

 1
87248-25320

KDY22#,23#,24#,27#,28#,290

 1
87248-25300

KDY231..1T;KDY231..TB..125T;KDY22#,230,24#,27#,28#,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87248-25300

KDY231..1T;KDY231..TB..125T;KDY22#,230,24#,27#,28#,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87249B - PIPE, HEATER WATER OUTLET, B
87248-25290

KDY231..1T;KDY231..TB..125T;KDY22#,230,24#,27#,28#,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87248-25290

KDY231..1T;KDY231..TB..125T;KDY22#,230,24#,27#,28#,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87248-25210

LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4

 1
87248-25210

LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4

 1
87256D - HOSE, REAR HEATER WATER OUTLET, D
99556-20300

KDY22#,23#,24#,27#,28#,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

*H,L=240

 1
99556-20300

KDY22#,23#,24#,27#,28#,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

*H,L=240

 1
Common parts
87121-25040
87124-25040
87124-25070
87124-25080
87124-25140
87124-25190
87124-37090
90119-08802
90168-40006
90467-19022
90467-21010
91551-80814
91631-40614
91651-60616
94151-80600
96134-42100
Linked diagrams
1603
8712

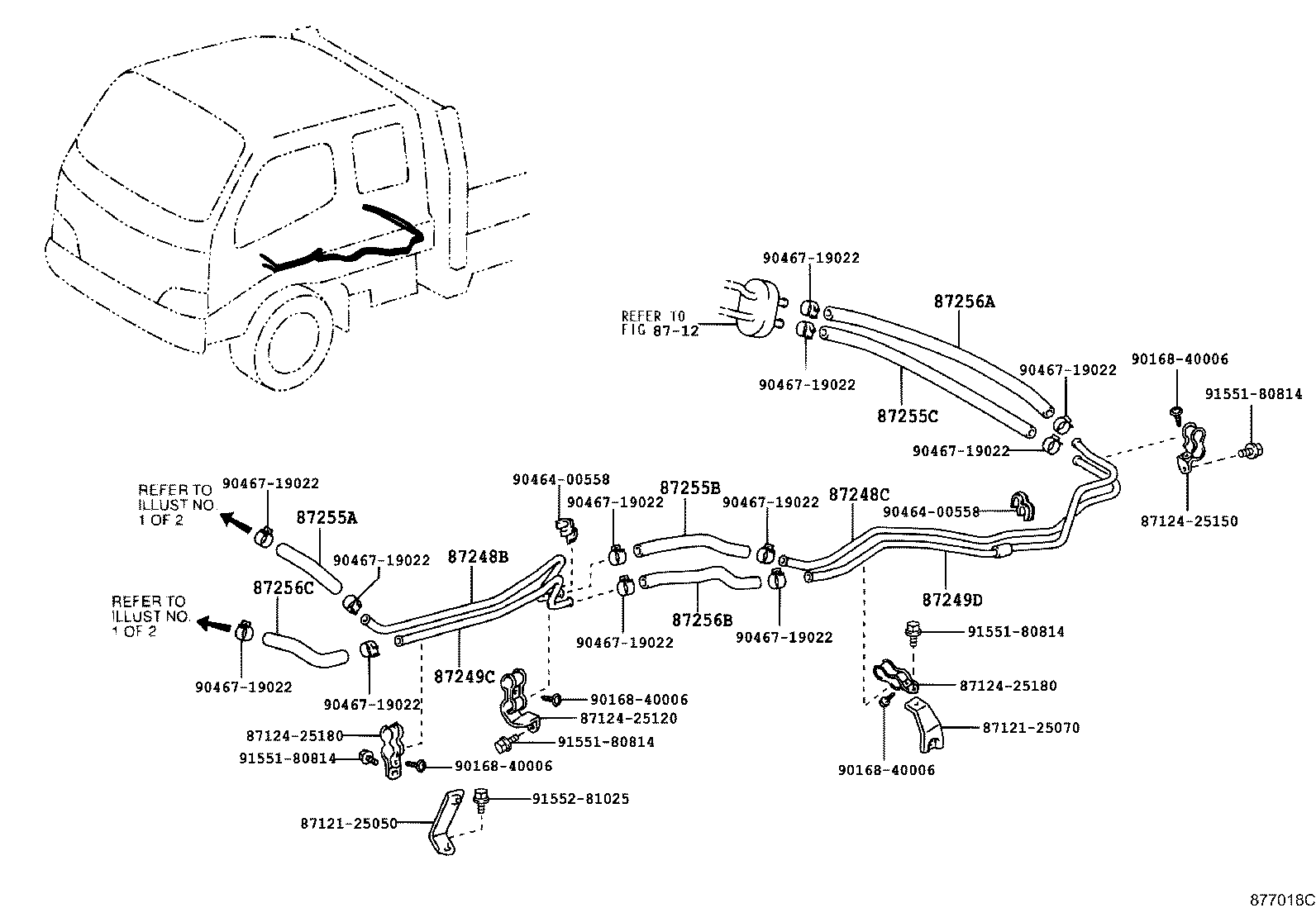

ILLUST NO. 2 OF 2(0408- )KDY22#,23#,27#,28#..TW1,TW2,TW3,TW4

Click highlighted areas on diagram

ﾘﾔ

diagram 8712 8712125050 8712125070 8712425120 8712425150 8712425180 8712425180 87248B 87248C 87249C 87249D 87255A 87255B 87255C 87256A 87256B 87256C 9016840006 9016840006 9016840006 9016840006 9046400558 9046400558 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9155180814 9155180814 9155180814 9155180814 9155281025
Part # Description Qty Price
87248B - PIPE, HEATER WATER INLET, B
87248-25200

LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4

 1
87248-25330

KDY22#,23#,27#,28#..TW1,TW2,TW3,TW4

 1
87248C - PIPE, HEATER WATER INLET, C
87248-25201

KDY22#,23#,27#,28#..TW1,TW2,TW3,TW4

 1
87248-25200

KDY220,230,270,280..TW1,TW2,TW3,TW4

 1
87249C - PIPE, HEATER WATER OUTLET, C
87248-25340

KDY22#,23#,27#,28#..TW1,TW2,TW3,TW4

 1
87249D - PIPE, HEATER WATER OUTLET, D
87248-25210

KDY220,230,270,280..TW1,TW2,TW3,TW4

 1
87248-25211

KDY22#,23#,27#,28#..TW1,TW2,TW3,TW4

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-25640

KDY22#,23#,24#,27#,28#,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

 1
87255B - HOSE, REAR HEATER WATER INLET, B
99556-20500

LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4

*H,L=470

 1
87245-25650

KDY22#,23#,27#,28#..TW1,TW2,TW3,TW4

 1
87255C - HOSE, REAR HEATER WATER INLET, C
99556-20500

KDY22#,23#,27#,28#..TW1,TW2,TW3,TW4

*H,L=470

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
99556-20490

KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4

*H,L=450

 1
87256B - HOSE, REAR HEATER WATER OUTLET, B
87245-25670

KDY22#,23#,27#,28#..TW1,TW2,TW3,TW4

 1
87256C - HOSE, REAR HEATER WATER OUTLET, C
87245-25660

KDY22#,23#,24#,27#,28#,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

 1
Common parts
87121-25050
87121-25070
87124-25120
87124-25150
87124-25180
90168-40006
90464-00558
90467-19022
91551-80814
91552-81025
Linked diagrams
8712

ILLUST NO. 1 OF 2(0408- )KDY220,230,24#,27#,28#,290 ; (0408-)KDY231..T2,T3,T4,TW3,TW4..CBU,IV

Click highlighted areas on diagram

ﾚｲﾄｳｼﾔ

diagram 1603 1603 1603 8712 8712125040 8712425040 8712425070 8712425070 8712425140 8712425190 8712437090 87245 87245A 87245B 87246A 87246B 87246B 87246B 87246C 87246C 87248A 87249A 87251C 87251C 87251C 9011908802 9016840006 9016840006 9016840006 9016840006 9046721010 9046721010 9046721010 9046721010 9163140614 9165160616 9165160616 9415180600 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100 9613442100
Part # Description Qty Price
87245 - HOSE, HEATER WATER, INLET
87245-25840

KDY22#,23#,24#,27#,28#,290

 1
87245-25840

KDY22#,23#,24#,27#,28#,290

 1
87245A - HOSE, HEATER WATER, INLET A
87245-25850

KDY220,230,240,270,280,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-25850

KDY220,230,240,270,280,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-25A00

KDY220,230,240,270,280,290

 1
87245-25A00

KDY220,230,240,270,280,290

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-25860

KDY22#,23#,24#,27#,28#,290

 1
87245-25860

KDY22#,23#,24#,27#,28#,290

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-25870

KDY220,230,270,280..TW1,TW2,TW3,TW4

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-25870

KDY220,230,270,280..TW1,TW2,TW3,TW4

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-25A10

KDY220,230,270,280

 1
87245-25A10

KDY220,230,270,280

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-25870

KDY220,230,270,280..TW1,TW2,TW3,TW4

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-25870

KDY220,230,270,280..TW1,TW2,TW3,TW4

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-25A10

KDY220,230,270,280

 1
87245-25A10

KDY220,230,270,280

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-25870

KDY220,230,270,280..TW1,TW2,TW3,TW4

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-25870

KDY220,230,270,280..TW1,TW2,TW3,TW4

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87245-25A10

KDY220,230,270,280

 1
87245-25A10

KDY220,230,270,280

 1
87248A - PIPE, HEATER WATER INLET, A
87248-25050

LY220,230,240,270,280,290,RZY231,281

 1
87248-25050

LY220,230,240,270,280,290,RZY231,281

 1
87248-25280

KDY231..1T;KDY231..TB..125T;KDY22#,230,24#,27#,28#,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87248-25280

KDY231..1T;KDY231..TB..125T;KDY22#,230,24#,27#,28#,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87248-25310

KDY22#,23#,24#,27#,28#,290

 1
87248-25310

KDY22#,23#,24#,27#,28#,290

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-25060

LY220,230,240,270,280,290,RZY231,281

 1
87248-25060

LY220,230,240,270,280,290,RZY231,281

 1
87248-25320

KDY22#,23#,24#,27#,28#,290

 1
87248-25320

KDY22#,23#,24#,27#,28#,290

 1
87248-25300

KDY231..1T;KDY231..TB..125T;KDY22#,230,24#,27#,28#,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
87248-25300

KDY231..1T;KDY231..TB..125T;KDY22#,230,24#,27#,28#,290..(TW1,TW2,TW3,TW4,VAN)..(06S,TB,TS)

ｱﾘ(ﾘﾔ ﾋ-ﾀ)

 1
Common parts
87121-25040
87124-25040
87124-25070
87124-25140
87124-25190
87124-37090
90119-08802
90168-40006
90467-21010
91631-40614
91651-60616
94151-80600
96134-42100
Linked diagrams
1603
8712
