Toyota Dyna/toyoace KDY230 WIRING & CLAMP

KDY230-PQMEY3 (2004)

Toyota Dyna/Toyoace

Production Aug 2004 - Aug 2007

Engine 2KDFTV

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 2 OF 8(0107-1610)

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ & ｶｳﾙ

Part #	Description	Period	Qty
82131 - WIRE, COWL
82131-25B00	KDY220,230,270,280..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-25B00	08/2004 - 05/2005	1
82131-25B10	KDY220,230,270,280..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-25B10	08/2004 - 05/2005	1
82131-25D21	KDY220,230,270,280..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-25D21	05/2005 - 08/2007	1
82131-25C61	TRY220,230..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-25C61	05/2005 - 08/2007	1
82131-25D31	KDY220,270,280..MTM;KDY230..T4..TB..MTM;KDY230..(T2,T3,TW2,TW3,TW4)..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-25D31	05/2005 - 08/2007	1
82131-25C71	TRY220,230..MTM ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82131-25C71	05/2005 - 08/2007	1
82141 - WIRE, INSTRUMENT PANEL
82141-25091	KDY220,230,270,280,TRY220,230..TW1,TW2,TW3,TW4 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-25091	08/2004 - 08/2007	1
82141-25071	KDY220,230,240,270,280,290,RZY231,281,TRY220,230 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-25071	08/2004 - 05/2005	1
82141-25100	KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-25100	07/2001 - 05/2005	1
82141-25101	KDY220,230,240,270,280,290,RZY231,281,TRY220,230 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-25101	05/2005 - 08/2007	1
82141-25072	KDY220,230,240,270,280,290,RZY231,281,TRY220,230 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82141-25072	05/2005 - 08/2007	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-37110	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 10/2016	2
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-37110	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 10/2016	2
Common parts
82712-37010
88578-25070
88578-25110
88578-30360
90119-06915
90119-06923
Linked diagrams
8401
8601

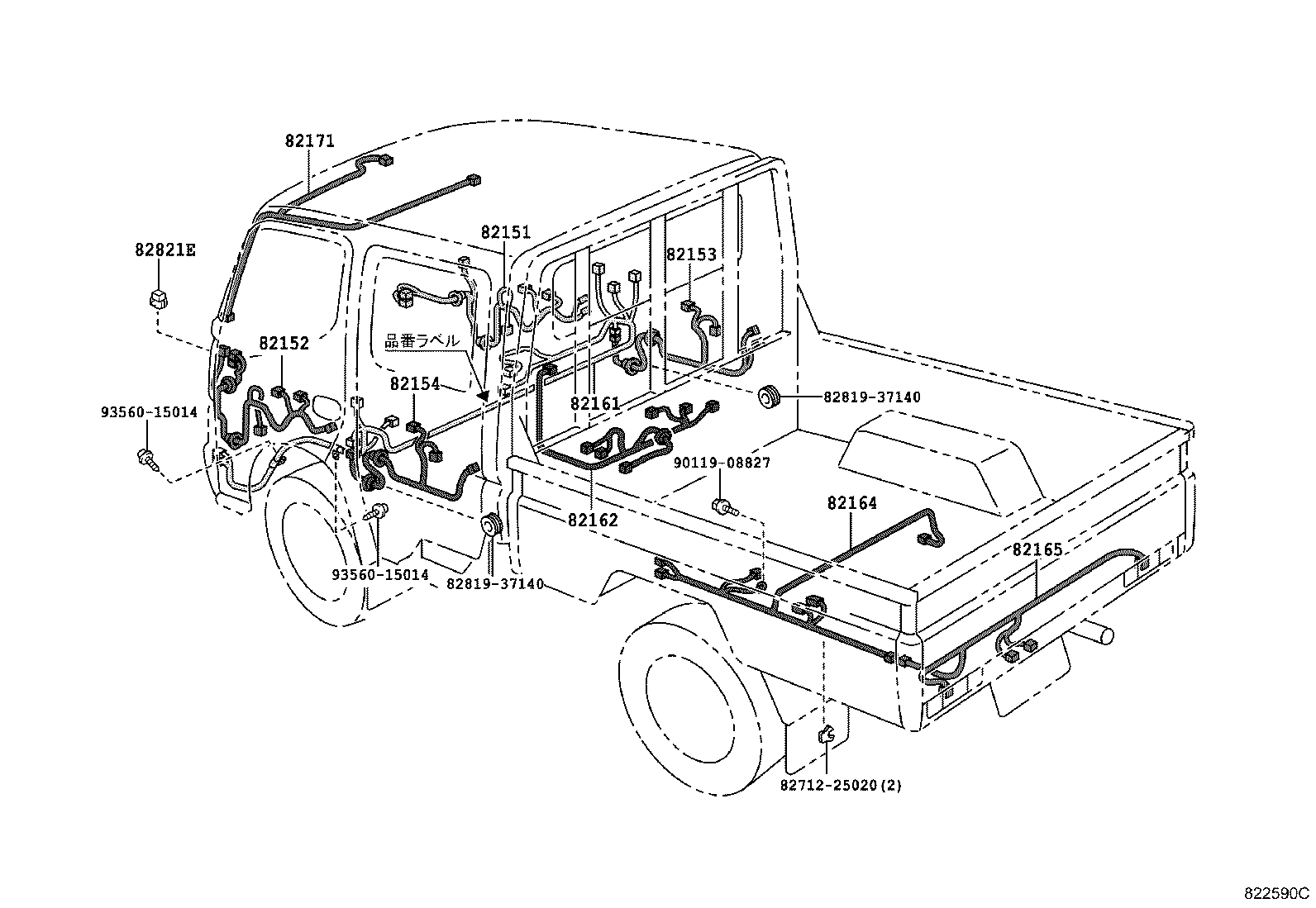

ILLUST NO. 3 OF 8(0107-1610)TW1,TW2,TW3,TW4

Click highlighted areas on diagram

ﾎﾞﾃﾞ-

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-25180	KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛｯｸ & ﾊﾟﾜｰｳｨﾝﾄﾞｳ) & ﾅｼ(ﾃﾞﾝｶｸﾐﾗｰ)	07/2001 - 08/2007	1
82151-25171	RZY231,281,TRY220,230..CBU,IV3 ｱﾘ(ﾜｲﾔﾚｽﾄﾞｱﾛﾂｸ) & ﾅｼ(ﾊﾟﾜｰｳｲﾝﾄﾞｳ)	08/2004 - 08/2007	1
82151-25190	KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛｯｸ & ﾊﾟﾜｰｳｨﾝﾄﾞｳ & ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗｰ(ｼﾞｮｼｭｾｷ))	07/2001 - 08/2007	1
82151-25140	KDY230..T4..TB;KDY230..(T2,T3,TW2,TW3,TW4)..(CBU,IV3);KDY220,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230..CBU,IV3 ﾅｼ(ﾃﾞﾝｼﾞﾄﾞｱﾛｯｸ & ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) & ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗｰ(ｼﾞｮｼｭｾｷ))	07/2001 - 08/2007	1
82151-25150	KDY230..T4..TB;KDY230..(T2,T3,TW2,TW3,TW4)..(CBU,IV3);KDY220,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230..CBU,IV3 ﾅｼ(ﾃﾞﾝｼﾞﾄﾞｱﾛｯｸ) & ｱﾘ(ﾊﾟﾜｰｳｨﾝﾄﾞｳ)	07/2001 - 08/2007	1
82151-25130	KDY230..T4..TB;KDY230..(T2,T3,TW2,TW3,TW4)..(CBU,IV3);KDY220,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230..CBU,IV3 ﾅｼ(ﾃﾞﾝｼﾞﾄﾞｱﾛｯｸ & ﾊﾟﾜ-ｳｲﾝﾄﾞｳ & ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗｰ(ｼﾞｮｼｭｾｷ))	07/2001 - 08/2007	1
82151-25160	KDY230..T4..TB;KDY230..T2,T3,TW2,TW3,TW4;KDY220,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230 ｱﾘ(ﾃﾞﾝｼﾞﾄﾞｱﾛｯｸ) & ﾅｼ(ﾊﾟﾜｰｳｨﾝﾄﾞｳ)	07/2001 - 08/2007	1
82152 - WIRE, FRONT DOOR, LH
82152-25090	KDY230..T4..TB;KDY230..(T2,T3,TW2,TW3,TW4)..(CBU,IV3);KDY220,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230..CBU,IV3 ﾅｼ(ﾃﾞﾝｼﾞﾄﾞｱﾛｯｸ & ﾊﾟﾜ-ｳｲﾝﾄﾞｳ & ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗｰ(ｼﾞｮｼｭｾｷ))	07/2001 - 08/2007	1
82152-25140	KDY230..T4..TB;KDY230..(T2,T3,TW2,TW3,TW4)..(CBU,IV3);KDY220,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230..CBU,IV3 ﾅｼ(ﾃﾞﾝｼﾞﾄﾞｱﾛｯｸ & ﾊﾟﾜ-ｳｲﾝﾄﾞｳ) & ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳﾐﾗｰ(ｼﾞｮｼｭｾｷ))	07/2001 - 08/2007	1
82152-25150	KDY230..T4..TB;KDY230..(T2,T3,TW2,TW3,TW4)..(CBU,IV3);KDY220,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230..CBU,IV3 ﾅｼ(ﾃﾞﾝｼﾞﾄﾞｱﾛｯｸ) & ｱﾘ(ﾊﾟﾜｰｳｨﾝﾄﾞｳ)	07/2001 - 08/2007	1
82153 - WIRE, REAR DOOR, NO.1
82153-25020	KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ﾅｼ(ﾘﾔﾊﾟﾜ- ｳｲﾝﾄﾞｳ)	07/2001 - 12/2999	1
82153-25010	KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ﾅｼ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ)	07/2001 - 12/2999	1
82153-25030	KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4	07/2001 - 12/2999	1
82154 - WIRE, REAR DOOR, NO.2
82153-25010	KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ﾅｼ(ﾃﾞﾝｼﾞﾄﾞｱﾛﾂｸ)	07/2001 - 12/2999	1
82153-25020	KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ﾅｼ(ﾘﾔﾊﾟﾜ- ｳｲﾝﾄﾞｳ)	07/2001 - 12/2999	1
82153-25030	KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4	07/2001 - 12/2999	1
82162 - WIRE, FLOOR, NO.2
82162-25010	KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4	07/2001 - 10/2016	1
82162-25040	KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ﾘﾔｸ-ﾗ & ﾘﾔﾋ-ﾀ)	07/2001 - 05/2015	1
82162-25020	KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ﾘﾔﾋ-ﾀ)	07/2001 - 10/2016	1
82165 - WIRE, FRAME, NO.2
82165-25080	KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281..IV3,IV6	07/2001 - 11/2011	1
82821E - COVER, CONNECTOR
82821-37080	KDY220,230,240,270,280,290,RZY231,281	10/2006 - 08/2007	1
Common parts
82712-25020
82819-37140
90119-08827
93560-15014

ILLUST NO. 1 OF 8(0408- )KDY22#,23#,27#,28#

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙｰﾑ

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-25B40	KDY220,230,270,280..(TW1,TW2,TW3,TW4)..MTM	08/2004 - 03/2006	1
82111-25B50	KDY220,230,270,280..(TW1,TW2,TW3,TW4)..MTM ｱﾘ(ABS)	08/2004 - 03/2006	1
82111-25B51	KDY220,230,270,280..(TW1,TW2,TW3,TW4)..MTM ｱﾘ(ABS)	03/2006 - 08/2007	1
82111-25B41	KDY220,230,270,280..(TW1,TW2,TW3,TW4)..MTM	03/2006 - 08/2007	1
82112 - WIRE, ENGINE ROOM, NO.2
82112-25010	KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..DCR,DSL,EFI	07/2001 - 05/2005	1
82112-25040	KDY221,23#..T4..TB;KDY221,23#..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3);KDY220,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..CBU,IV3 ﾅｼ(ﾌﾛﾝﾄﾌｵｸﾞﾗﾝﾌﾟ)	07/2001 - 10/2016	1
82112 - WIRE, ENGINE ROOM, NO.2
82112-25010	KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..DCR,DSL,EFI	07/2001 - 05/2005	1
82112-25040	KDY221,23#..T4..TB;KDY221,23#..(T2,T3,TW1,TW2,TW3,TW4)..(CBU,IV3);KDY220,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..CBU,IV3 ﾅｼ(ﾌﾛﾝﾄﾌｵｸﾞﾗﾝﾌﾟ)	07/2001 - 10/2016	1
82113 - WIRE, ENGINE ROOM, NO.3
82113-25010	KDY231..WT..IV6;KDY231..(TW2,TW3)..TS;KDY221,241..(T3,TW1,VAN)..(06S,TB,TS);KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230	07/2001 - 12/2999	1
82121 - WIRE, ENGINE
82121-25531	KDY220,230,240,270,280,290	01/2005 - 08/2007	1
82121-25530	KDY220,230,240,270,280,290	08/2004 - 01/2005	1
82122 - WIRE, ENGINE, NO.2
82122-25390	KDY220,230,280;KDY270..T3,TW1 ｱﾘ(ﾊﾞﾂﾃﾘ=85D26L X 2)	08/2004 - 08/2007	1
82122-25490	KDY220,230,270,280..(TW1,TW2,TW3,TW4)..MTM	08/2004 - 08/2007	1
82123 - WIRE, ENGINE, NO.3
82123-25060	KDY220,230,240,270,280,290	08/2004 - 08/2007	1
82125 - WIRE, TRANSMISSION
82125-25070	KDY23#,LY230,RZY230,TRY230..MTM..(12T,15T,175T);KDY22#,24#,LY220,240,RZY220,231,TRY220,231..MTM..WT;KDY23#,LY230,RZY230,TRY230..(TW1,TW2,TW4)..MTM..125T	07/2001 - 12/2999	1
82666B - HOLDER, CONNECTOR NO.3
82666-25020	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,230..DCR,DSL,EFI	07/2001 - 12/2999	1
82666C - HOLDER, CONNECTOR NO.4
82666-25030	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
82666D - HOLDER, CONNECTOR NO.5
82666-25040	KDY220,230,240,270,280,290,LY230,280,RZY220,23#,281..DCR,EFI,LPG	07/2001 - 12/2999	1
82666E - HOLDER, CONNECTOR NO.6
82666-25050	RZY220,230,TRY220,230;KDY22#,23#,27#,28#,LY230,280,RZY231,281,TRY231,281..(T2,T3,T4)..(DCR,LPG)	07/2001 - 12/2999	1
82672 - COVER, JUNKTION BLOCK
82672-25010	KDY220,230,240,270,280,290,RZY231,281	07/2001 - 08/2007	1
82673 - BRACKET, JUNCTION BLOCK
82673-25021	KDY220,230,240,270,280,290,RZY231,281	08/2004 - 08/2007	1
82674B - COVER, JUNCTION BLOCK, LOWER
82674-25010	KDY220,230,240,270,280,290,RZY231,281	07/2001 - 08/2007	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
Common parts
82821-10050
88895-95708
90119-06915
90119-08375
90119-08827
90179-04030
90179-06074
90189-04024
91551-80820
91651-60614
91651-60816
91651-B0822
91651-B0825
94130-61200
94151-80600
Linked diagrams
8401

KDY230-PQMEY3 (2004)

ILLUST NO. 2 OF 8(0107-1610)

ILLUST NO. 3 OF 8(0107-1610)TW1,TW2,TW3,TW4

ILLUST NO. 1 OF 8(0408- )KDY22#,23#,27#,28#
