Toyota Dyna/toyoace KDY230 SEAT & SEAT TRACK

KDY230-PQMEY3 (2004)

Toyota Dyna/Toyoace

Production Aug 2004 - Aug 2007

Engine 2KDFTV

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

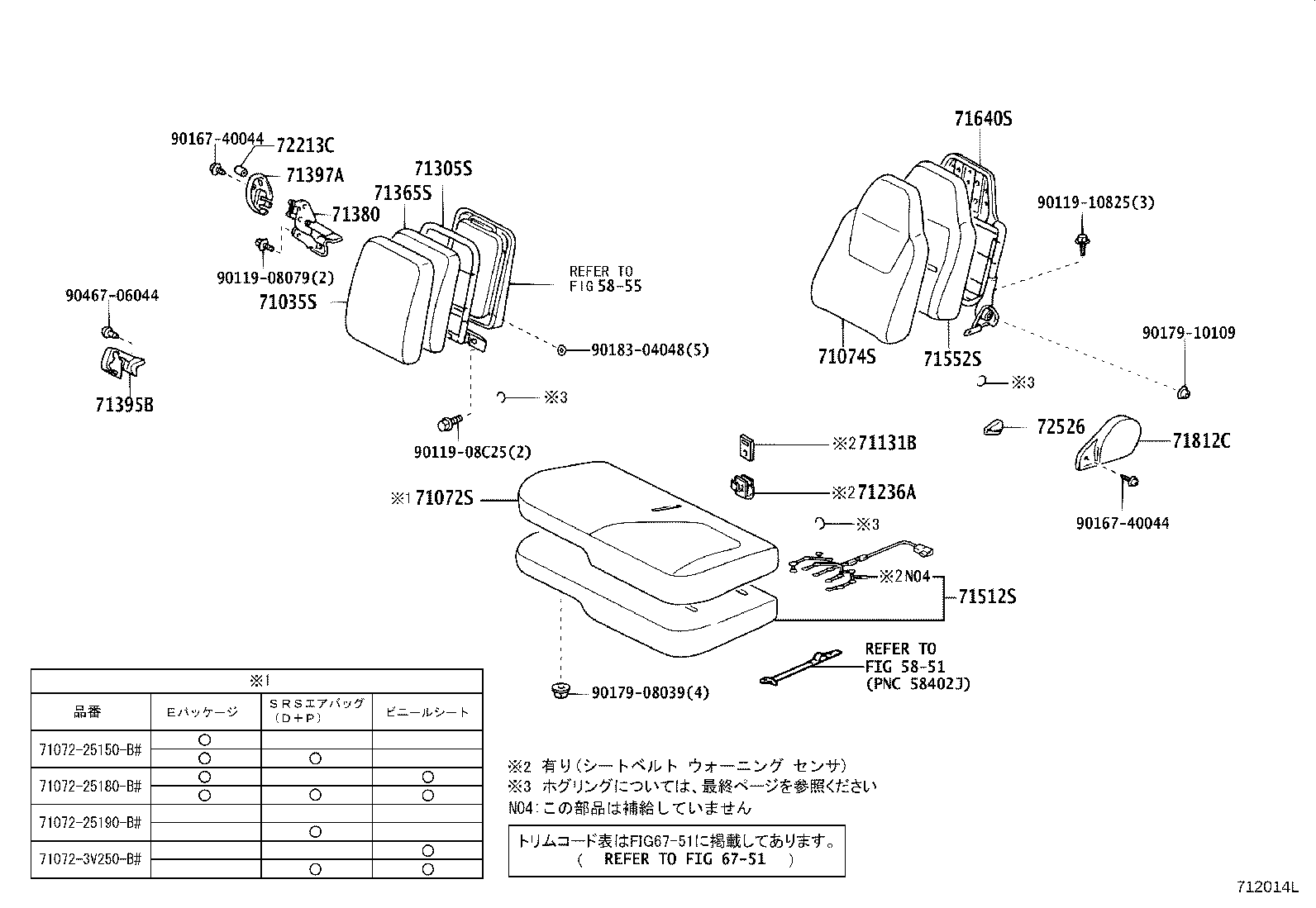

ILLUST NO. 2 OF 3(0107-0709)T3,TW1,TW2,TW3,TW4

Click highlighted areas on diagram

ｼﾞﾖｼﾕｾｷ (ｾﾊﾟﾚ-ﾄﾀｲﾌﾟ, ｱﾘ(ﾘｸﾗｲﾆﾝｸﾞ))

Part #	Description	Period	Qty
71035S - COVER, FRONT SEAT BACK, CENTER
71095-25060B1	KDY230,280,TRY230..IV6;KDY220,230,270,280,TRY220,230..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE A-*104,MEDIUM CHARCOAL,TRIM1#	08/2004 - 08/2007	1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-25270B1	KDY220,230,240,270,280,290,TRY220,230..TW1,TW2,TW3,TW4,VAN ｼ-ﾄ = TYPE A-*104,MEDIUM CHA,TRIM1#	08/2004 - 08/2007	1
71072-25280B1	KDY230,280,TRY230..IV6;KDY220,230,270,280,TRY220,230..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ),MEDIUM CHA,TRIM1#	08/2004 - 08/2007	1
71072-3V250B1	KDY220,230,270,280..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE B-*104;ｲﾗｽﾄｻﾝｼﾖｳ,MEDIUM CHARCOAL,TRIM1#	10/2005 - 08/2007	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-25320B1	KDY230,280,TRY230..IV6;KDY220,230,270,280,TRY220,230..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ),MEDIUM CHA,TRIM1#	08/2004 - 08/2007	1
70169-37180B2	KDY220,230,240,270,280,290..TW1,TW2,TW3,TW4,VAN ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	10/2005 - 08/2007	1
71074-25310B1	KDY220,230,240,270,280,290,TRY220,230..TW1,TW2,TW3,TW4,VAN ｼ-ﾄ = TYPE A-*104,MEDIUM CHA,TRIM1#	08/2004 - 08/2007	1
71131B - PLATE, FRONT SEAT CUSHION, NO.1
71131-37030	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
71236A - CLAMP, REAR SEAT CUSHION SPRING
71236-37010	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
71305S - FRAME SUB-ASSY, CENTER SEAT BACK
71305-37060	KDY230,280,LY230,280,TRY230..IV6;RZY230..(T3,TW1,TW2,TW3,TW4)..(125T,1T);KDY220,230,270,280,LY220,230,270,280,RZY220,TRY220,230..TW1,TW2,TW3,TW4	07/2001 - 08/2007	1
71365S - PAD, CENTER SEAT BACK
71365-37050	KDY230,280,LY230,280,TRY230..IV6;RZY230..(T3,TW1,TW2,TW3,TW4)..(125T,1T);KDY220,230,270,280,LY220,230,270,280,RZY220,TRY220,230..TW1,TW2,TW3,TW4	07/2001 - 08/2007	1
71380 - HINGE ASSY, CENTER SEAT, RH
71380-37010	KDY23#,28#,LY230,280,TRY230..IV6;RZY230..(T3,TW1,TW2,TW3,TW4)..(125T,1T);KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,TRY220,230..TW1,TW2,TW3,TW4	07/2001 - 12/2999	1
71395B - COVER, CENTER SEAT HINGE, RH
71395-37010B0	KDY23#,28#,LY230,280,TRY230..IV6;RZY230..(T3,TW1,TW2,TW3,TW4)..(125T,1T);KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,TRY220,230..TW1,TW2,TW3,TW4 MD.CHARCOAL,TRIM1#	07/2001 - 05/2015	1
71397A - COVER, CENTER SEAT HINGE
71397-37010B0	KDY23#,28#,LY230,280,TRY230..IV6;RZY230..(T3,TW1,TW2,TW3,TW4)..(125T,1T);KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,TRY220,230..TW1,TW2,TW3,TW4 MD.CHARCOAL,TRIM1#	07/2001 - 05/2015	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71052-37020	KDY230,280,LY230,280,TRY230..IV6;RZY230..(T3,TW1,TW2,TW3,TW4)..(125T,1T);KDY220,230,270,280,LY220,230,270,280,RZY220,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ｼﾞﾖｼﾕｾｷｼ-ﾄﾍﾞﾙﾄｳｵ-ﾆﾝｸﾞｾﾝｻ & ﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ)	07/2001 - 08/2007	1
71502-25020	KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4,VAN	07/2001 - 08/2007	1
71502-37140	KDY230,280,LY230,280,TRY230..IV6;RZY230..(T3,TW1,TW2,TW3,TW4)..(125T,1T);KDY220,230,270,280,LY220,230,270,280,RZY220,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ﾘｸﾗｲﾆﾝｸﾞﾘﾔｼ-ﾄ)	07/2001 - 08/2007	1
71052-25010	KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4,VAN ｱﾘ(ｼﾞﾖｼﾕｾｷｼ-ﾄﾍﾞﾙﾄｳｵ-ﾆﾝｸﾞｾﾝｻ)	07/2001 - 08/2007	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-37080	LY230,280,TRY230..IV6;RZY230..(T3,TW1,TW2,TW3,TW4)..(125T,1T);KDY220,230,270,280,LY220,230,270,280,RZY220,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ)	07/2001 - 08/2007	1
71552-37090	KDY230..T4..TB;KDY230..(T2,T3,TW2,TW3,TW4)..(CBU,IV3);KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4;KDY220,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281..CBU,IV3 E ﾊﾟﾂｹ-ｼﾞ	07/2001 - 06/2012	1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71630-37040	KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4,VAN ｱﾘ(ｼﾞﾖｼﾕｾｷｲﾂﾀｲﾀｲﾌﾟ)	07/2001 - 08/2007	1
71014-37080	KDY230,280,LY230,280,TRY230..IV6;RZY230..(T3,TW1,TW2,TW3,TW4)..(125T,1T);KDY220,230,270,280,LY220,230,270,280,RZY220,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ)	07/2001 - 08/2007	1
71812C - COVER, RECLINING ADJUSTER, LH
71812-37020B0	KDY23#,28#,LY230,280,TRY230..IV6;RZY230..(T3,TW1,TW2,TW3,TW4)..(125T,1T);KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,TRY220,230..TW1,TW2,TW3,TW4 MD.CHARCOAL,TRIM1#	07/2001 - 08/2009	1
72213C - KNOB, SEAT TRACK ADJUSTING HANDLE, LH
72213-95J00B2	KDY23#,28#,LY230,280,TRY230..IV6;RZY230..(T3,TW1,TW2,TW3,TW4)..(125T,1T);KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,TRY220,230..TW1,TW2,TW3,TW4 MD.CHARCOAL,TRIM1#	07/2001 - 05/2015	1
72526 - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-37010B0	KDY23#,28#,LY230,280,TRY230..IV6;RZY230..(T3,TW1,TW2,TW3,TW4)..(125T,1T);KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,TRY220,230..TW1,TW2,TW3,TW4 MD.CHARCOAL,TRIM1#	07/2001 - 05/2015	1
Common parts
90119-08079
90119-08C25
90119-10825
90167-40044
90179-08039
90179-10109
90183-04048
90467-06044
Linked diagrams
5851
5855
6751

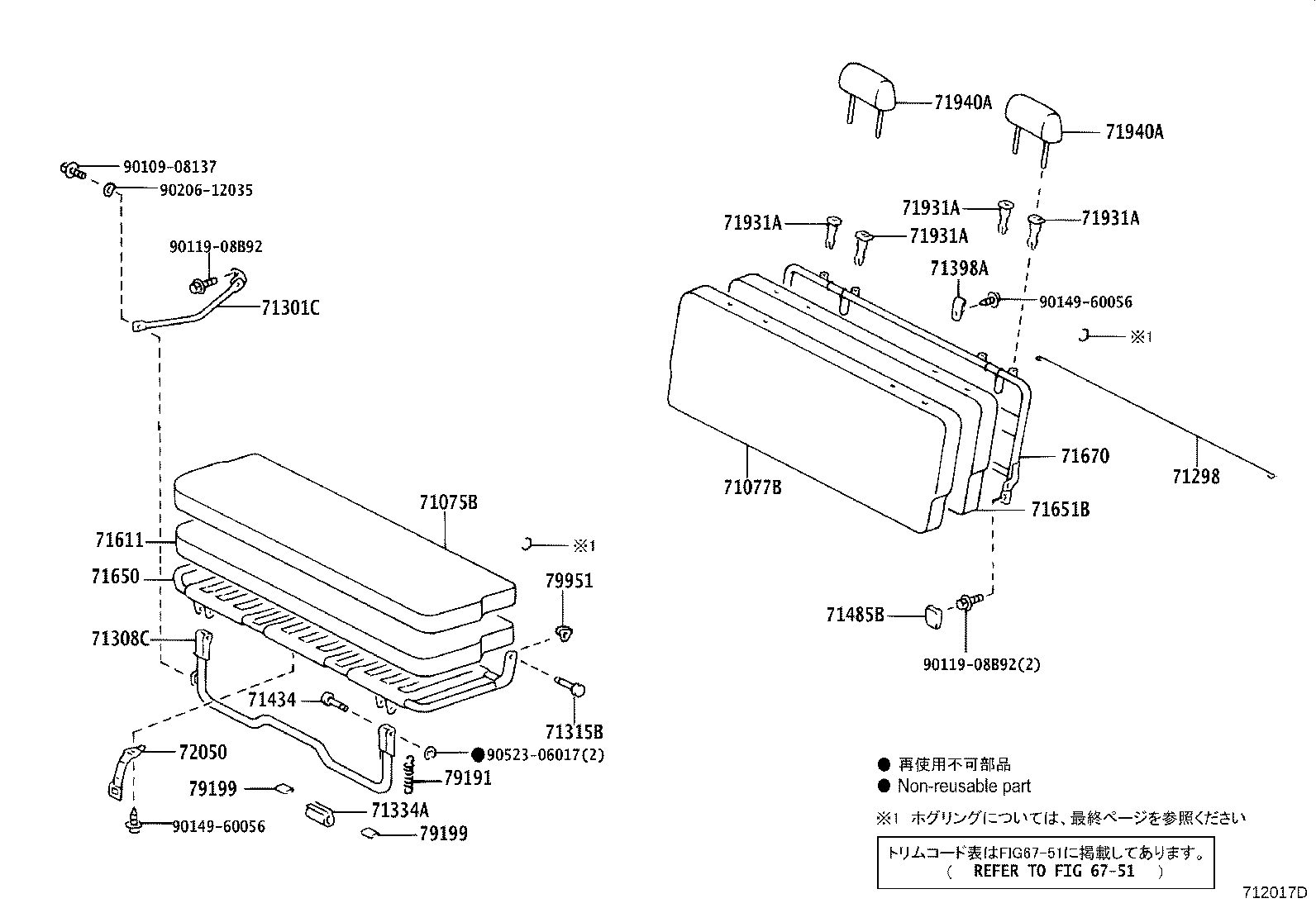

ILLUST NO. 3 OF 3(0107-0709)TW1,TW2,TW3,TW4

Click highlighted areas on diagram

ﾘﾔ - ﾀﾞﾌﾞﾙｷﾔﾌﾞ

Part #	Description	Period	Qty
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-25060B1	KDY220,230,270,280,TRY220,230..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE A-*104,MEDIUM CHA,TRIM1#	08/2004 - 08/2007	1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-25100B1	KDY220,230,270,280,TRY220,230..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE A-*104 & ﾅｼ(ﾘﾔﾍﾂﾄﾞﾚｽﾄ),MEDIUM CHA,TRIM1#	08/2004 - 08/2007	1
71077-25080B1	KDY220,230,270,280,TRY220,230..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE A-*104,MEDIUM CHA,TRIM1#	08/2004 - 08/2007	1
71298 - WIRE, REAR SEAT BACK, LOWER
71298-37010	KDY220,230,270,280..TW1,TW2,TW3,TW4	07/2001 - 08/2007	1
71301C - LINK SUB-ASSY, REAR SEAT CUSHION
71301-37010	KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4	07/2001 - 12/2999	1
71308C - LEG SUB-ASSY, REAR SEAT, FRONT
71308-37030	KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4	07/2001 - 12/2999	1
71315B - PIN, REAR SEAT HINGE
90109-10175	KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4	07/2001 - 12/2999	2
71334A - STOPPER, REAR SEAT LEG
79189-95J00	KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4	07/2001 - 12/2999	2
71398A - HOLDER, REAR SEAT BACK
71398-95702B1	KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 MD.CHARCOAL,TRIM1#	07/2001 - 05/2015	1
71434 - PIN, REAR SEAT CUSHION LEG, REAR
79939-26040	KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4	07/2001 - 12/2999	2
71485B - COVER, REAR SEAT HINGE
71485-37010B0	KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 MD.CHARCOAL,TRIM1#	07/2001 - 08/2009	2
71611 - PAD, REAR SEAT CUSHION
71611-37030	KDY220,230,270,280,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4	07/2001 - 08/2007	1
71650 - SPRING ASSY, REAR SEAT CUSHION
71650-37020	KDY220,230,270,280,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4	07/2001 - 08/2007	1
71651B - PAD, REAR SEAT BACK(FOR BENCH TYPE)
71651-37020	KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4	07/2001 - 12/2999	1
71670 - SPRING ASSY, REAR SEAT BACK(FOR BENCH SEAT)
71670-37030	KDY220,230,270,280,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 E ﾊﾟﾂｹ-ｼﾞ	07/2001 - 08/2007	1
71670-37020	KDY220,230,270,280,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4	07/2001 - 08/2007	1
71931A - SUPPORT, REAR SEAT HEADREST
71930-28030B8	KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ﾛｯｸ付,MD.CHARCOAL,TRIM1#	07/2001 - 05/2015	2
71931-28030B8	KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ﾛｯｸ無,MD.CHARCOAL,TRIM1#	07/2001 - 05/2015	2
71931A - SUPPORT, REAR SEAT HEADREST
71930-28030B8	KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ﾛｯｸ付,MD.CHARCOAL,TRIM1#	07/2001 - 05/2015	2
71931-28030B8	KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ﾛｯｸ無,MD.CHARCOAL,TRIM1#	07/2001 - 05/2015	2
71931A - SUPPORT, REAR SEAT HEADREST
71930-28030B8	KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ﾛｯｸ付,MD.CHARCOAL,TRIM1#	07/2001 - 05/2015	2
71931-28030B8	KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ﾛｯｸ無,MD.CHARCOAL,TRIM1#	07/2001 - 05/2015	2
71931A - SUPPORT, REAR SEAT HEADREST
71930-28030B8	KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ﾛｯｸ付,MD.CHARCOAL,TRIM1#	07/2001 - 05/2015	2
71931-28030B8	KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 ﾛｯｸ無,MD.CHARCOAL,TRIM1#	07/2001 - 05/2015	2
71940A - HEADREST ASSY, REAR SEAT
71910-95J34B2	KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 MD.CHARCOAL,TRIM1#	07/2001 - 08/2009	2
71940A - HEADREST ASSY, REAR SEAT
71910-95J34B2	KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 MD.CHARCOAL,TRIM1#	07/2001 - 08/2009	2
72050 - BELT ASSY, REAR SEAT HOOK
72050-37020B0	KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 MD.CHARCOAL,TRIM1#	07/2001 - 05/2015	1
79191 - SPRING, NO.1 SEAT CUSHION, NO.1
90506-23053	KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4	07/2001 - 12/2999	2
79199 - HOLDER, NO.1 SEAT LEG STOPPER
79199-95J00	KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4	07/2001 - 12/2999	2
79199 - HOLDER, NO.1 SEAT LEG STOPPER
79199-95J00	KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4	07/2001 - 12/2999	2
79951 - COVER, NO.1 SEAT CUSHION
79951-37010	KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4	07/2001 - 12/2999	2
Common parts
90109-08137
90119-08B92
90149-60056
90206-12035
90523-06017
Linked diagrams
6751

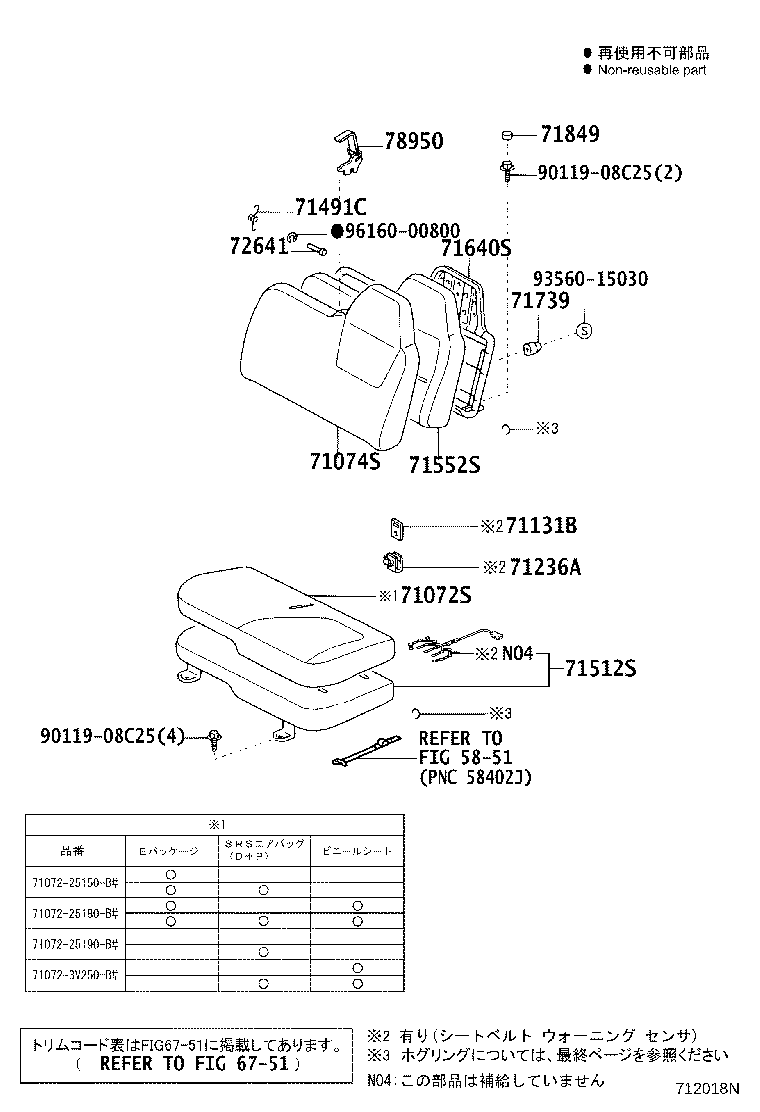

ILLUST NO. 2 OF 3(0107-0709)TW1,TW2,TW3,TW4,VAN

Click highlighted areas on diagram

ｼﾞﾖｼﾕｾｷ (ｲﾂﾀｲﾀｲﾌﾟ),E-PKG

Part #	Description	Period	Qty
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-25270B1	KDY220,230,240,270,280,290,TRY220,230..TW1,TW2,TW3,TW4,VAN ｼ-ﾄ = TYPE A-*104,MEDIUM CHA,TRIM1#	08/2004 - 08/2007	1
71072-25280B1	KDY230,280,TRY230..IV6;KDY220,230,270,280,TRY220,230..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ),MEDIUM CHA,TRIM1#	08/2004 - 08/2007	1
71072-3V250B1	KDY220,230,270,280..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE B-*104;ｲﾗｽﾄｻﾝｼﾖｳ,MEDIUM CHARCOAL,TRIM1#	10/2005 - 08/2007	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-25320B1	KDY230,280,TRY230..IV6;KDY220,230,270,280,TRY220,230..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ),MEDIUM CHA,TRIM1#	08/2004 - 08/2007	1
70169-37180B2	KDY220,230,240,270,280,290..TW1,TW2,TW3,TW4,VAN ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	10/2005 - 08/2007	1
71074-25310B1	KDY220,230,240,270,280,290,TRY220,230..TW1,TW2,TW3,TW4,VAN ｼ-ﾄ = TYPE A-*104,MEDIUM CHA,TRIM1#	08/2004 - 08/2007	1
71131B - PLATE, FRONT SEAT CUSHION, NO.1
71131-37030	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
71236A - CLAMP, REAR SEAT CUSHION SPRING
71236-37010	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
71491C - SPRING, REAR SEAT SET
71491-89101	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..CBU,IV3	07/2001 - 12/2999	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71052-37020	KDY230,280,LY230,280,TRY230..IV6;RZY230..(T3,TW1,TW2,TW3,TW4)..(125T,1T);KDY220,230,270,280,LY220,230,270,280,RZY220,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ｼﾞﾖｼﾕｾｷｼ-ﾄﾍﾞﾙﾄｳｵ-ﾆﾝｸﾞｾﾝｻ & ﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ)	07/2001 - 08/2007	1
71502-25020	KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4,VAN	07/2001 - 08/2007	1
71502-37140	KDY230,280,LY230,280,TRY230..IV6;RZY230..(T3,TW1,TW2,TW3,TW4)..(125T,1T);KDY220,230,270,280,LY220,230,270,280,RZY220,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ﾘｸﾗｲﾆﾝｸﾞﾘﾔｼ-ﾄ)	07/2001 - 08/2007	1
71052-25010	KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4,VAN ｱﾘ(ｼﾞﾖｼﾕｾｷｼ-ﾄﾍﾞﾙﾄｳｵ-ﾆﾝｸﾞｾﾝｻ)	07/2001 - 08/2007	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-37080	LY230,280,TRY230..IV6;RZY230..(T3,TW1,TW2,TW3,TW4)..(125T,1T);KDY220,230,270,280,LY220,230,270,280,RZY220,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ)	07/2001 - 08/2007	1
71552-37090	KDY230..T4..TB;KDY230..(T2,T3,TW2,TW3,TW4)..(CBU,IV3);KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4;KDY220,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281..CBU,IV3 E ﾊﾟﾂｹ-ｼﾞ	07/2001 - 06/2012	1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71630-37040	KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4,VAN ｱﾘ(ｼﾞﾖｼﾕｾｷｲﾂﾀｲﾀｲﾌﾟ)	07/2001 - 08/2007	1
71014-37080	KDY230,280,LY230,280,TRY230..IV6;RZY230..(T3,TW1,TW2,TW3,TW4)..(125T,1T);KDY220,230,270,280,LY220,230,270,280,RZY220,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ)	07/2001 - 08/2007	1
71739 - CUSHION, SEAT SUPPORT
71739-37010	KDY22#,23#,240,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..CBU,IV3	07/2001 - 12/2999	2
71849 - CAP, SEAT ADJUSTER COVER, LH
71848-89101	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4,VAN	07/2001 - 04/2011	2
72641 - PIN, REAR SEAT BACK LOCK
72641-37010	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..CBU,IV3	07/2001 - 12/2999	1
Common parts
90119-08C25
93560-15030
96160-00800
Linked diagrams
5851
6751

ILLUST NO. 1 OF 3(0107-0709)

Click highlighted areas on diagram

ｳﾝﾃﾝｾｷ

Part #	Description	Period	Qty
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-25150B1	KDY230..T4..TB;KDY230..T2,T3,TW2,TW3,TW4;KDY220,240,270,280,290,RZY231,281,TRY220,230 ｼ-ﾄ = TYPE A-*104,MEDIUM CHA,TRIM1#	08/2004 - 08/2007	1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-25270B1	KDY230,280,TRY230..IV6;KDY220,230,240,270,280,290,TRY220,230..TW1,TW2,TW3,TW4,VAN ｼ-ﾄ = TYPE A-*104,MEDIUM CHA,TRIM1#	08/2004 - 08/2007	1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-37080	KDY221,231..T4..TB;KDY221,231..T2,T3,TW1,TW2,TW3,TW4;KDY220,230,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-37110	KDY220,230,270,280,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 E ﾊﾟﾂｹ-ｼﾞ	07/2001 - 08/2007	1
71551-37100	KDY230,280,LY230,280,TRY230..IV6;RZY230..(T3,TW1,TW2,TW3,TW4)..(125T,1T);KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220..TW1,TW2,TW3,TW4,VAN	07/2001 - 08/2007	1
71587 - PROTECTOR, FRONT SEAT BACK EDGE
71587-37030	KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230	07/2001 - 08/2007	1
71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71610-37010	KDY221,231..T4..TB;KDY221,231..T2,T3,TW1,TW2,TW3,TW4;KDY220,230,24#,27#,28#,290,RZY231,281,TRY220,23#,281	04/2005 - 12/2999	1
71610-37030	KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,230	07/2001 - 04/2005	1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-37020	KDY230..T4..TB;KDY230..(T2,T3,TW2,TW3,TW4)..(CBU,IV3);KDY220,270,280,RZY231,281,TRY220,230..CBU,IV3 E ﾊﾟﾂｹ-ｼﾞ	04/2005 - 08/2007	1
71630-37060	KDY220,230,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230..CBU,IV3 E ﾊﾟﾂｹ-ｼﾞ	07/2001 - 04/2005	1
71630-37050	KDY220,230,270,280,LY220,230,270,280,RZY220,23#,281,TRY220,230	07/2001 - 04/2005	1
71811C - COVER, RECLINING ADJUSTER, RH
71811-37010B0	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 MD.CHARCOAL,TRIM1#	07/2001 - 08/2009	1
72110A - TRACK ASSY, FRONT SEAT, OUTER RH
72110-37020	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
72130A - TRACK ASSY, FRONT SEAT, INNER RH
72130-37020	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
72213C - KNOB, SEAT TRACK ADJUSTING HANDLE, LH
72213-95J00B2	KDY23#,28#,LY230,280,TRY230..IV6;RZY230..(T3,TW1,TW2,TW3,TW4)..(125T,1T);KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,TRY220,230..TW1,TW2,TW3,TW4 MD.CHARCOAL,TRIM1#	07/2001 - 05/2015	1
72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH
72301-37030	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH
72510-37020	KDY221,231..T4..TB;KDY221,231..T2,T3,TW1,TW2,TW3,TW4;KDY220,230,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-37010B0	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 MD.CHARCOAL,TRIM1#	07/2001 - 05/2015	1
73178B - CAP, SEAT BELT ANCHOR COVER
72137-37010B0	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 DK.CHARCOAL,TRIM1#	07/2001 - 05/2015	1
Common parts
90119-08134
90119-10111
90119-10229
90119-10825
90167-40044
90179-08149
90179-11010
91651-60614
Linked diagrams
6751

ILLUST NO. 2 OF 3(0605- )

Click highlighted areas on diagram

ｼﾞｮｼｭｾｷ(ﾋﾄﾘｶﾞｹ)

Part #	Description	Period	Qty
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-25270B1	KDY220,230,240,270,280,290,TRY220,230..TW1,TW2,TW3,TW4,VAN ｼ-ﾄ = TYPE A-*104,MEDIUM CHA,TRIM1#	08/2004 - 08/2007	1
71072-25280B1	KDY230,280,TRY230..IV6;KDY220,230,270,280,TRY220,230..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ),MEDIUM CHA,TRIM1#	08/2004 - 08/2007	1
71072-3V250B1	KDY220,230,270,280..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE B-*104;ｲﾗｽﾄｻﾝｼﾖｳ,MEDIUM CHARCOAL,TRIM1#	10/2005 - 08/2007	1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-25320B1	KDY230,280,TRY230..IV6;KDY220,230,270,280,TRY220,230..TW1,TW2,TW3,TW4 ｼ-ﾄ = TYPE A-*104 & ｱﾘ(ﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ),MEDIUM CHA,TRIM1#	08/2004 - 08/2007	1
70169-37180B2	KDY220,230,240,270,280,290..TW1,TW2,TW3,TW4,VAN ｼ-ﾄ = TYPE B-*104,MEDIUM CHARCOAL,TRIM1#	10/2005 - 08/2007	1
71074-25310B1	KDY220,230,240,270,280,290,TRY220,230..TW1,TW2,TW3,TW4,VAN ｼ-ﾄ = TYPE A-*104,MEDIUM CHA,TRIM1#	08/2004 - 08/2007	1
71131B - PLATE, FRONT SEAT CUSHION, NO.1
71131-37030	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
71236A - CLAMP, REAR SEAT CUSHION SPRING
71236-37010	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281	07/2001 - 12/2999	1
71491C - SPRING, REAR SEAT SET
71491-89101	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..CBU,IV3	07/2001 - 12/2999	1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71052-37020	KDY230,280,LY230,280,TRY230..IV6;RZY230..(T3,TW1,TW2,TW3,TW4)..(125T,1T);KDY220,230,270,280,LY220,230,270,280,RZY220,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ｼﾞﾖｼﾕｾｷｼ-ﾄﾍﾞﾙﾄｳｵ-ﾆﾝｸﾞｾﾝｻ & ﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ)	07/2001 - 08/2007	1
71502-25020	KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4,VAN	07/2001 - 08/2007	1
71502-37140	KDY230,280,LY230,280,TRY230..IV6;RZY230..(T3,TW1,TW2,TW3,TW4)..(125T,1T);KDY220,230,270,280,LY220,230,270,280,RZY220,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ﾘｸﾗｲﾆﾝｸﾞﾘﾔｼ-ﾄ)	07/2001 - 08/2007	1
71052-25010	KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4,VAN ｱﾘ(ｼﾞﾖｼﾕｾｷｼ-ﾄﾍﾞﾙﾄｳｵ-ﾆﾝｸﾞｾﾝｻ)	07/2001 - 08/2007	1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-37080	LY230,280,TRY230..IV6;RZY230..(T3,TW1,TW2,TW3,TW4)..(125T,1T);KDY220,230,270,280,LY220,230,270,280,RZY220,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ)	07/2001 - 08/2007	1
71552-37090	KDY230..T4..TB;KDY230..(T2,T3,TW2,TW3,TW4)..(CBU,IV3);KDY221,231,271,281,TRY220,230..TW1,TW2,TW3,TW4;KDY220,240,270,280,290,LY220,230,240,270,280,290,RZY220,23#,281..CBU,IV3 E ﾊﾟﾂｹ-ｼﾞ	07/2001 - 06/2012	1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71630-37040	KDY220,230,240,270,280,290,LY220,230,240,270,280,290,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4,VAN ｱﾘ(ｼﾞﾖｼﾕｾｷｲﾂﾀｲﾀｲﾌﾟ)	07/2001 - 08/2007	1
71014-37080	KDY230,280,LY230,280,TRY230..IV6;RZY230..(T3,TW1,TW2,TW3,TW4)..(125T,1T);KDY220,230,270,280,LY220,230,270,280,RZY220,TRY220,230..TW1,TW2,TW3,TW4 ｱﾘ(ﾘｸﾗｲﾆﾝｸﾞｼ-ﾄ)	07/2001 - 08/2007	1
71739 - CUSHION, SEAT SUPPORT
71739-37010	KDY22#,23#,240,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..CBU,IV3	07/2001 - 12/2999	2
72641 - PIN, REAR SEAT BACK LOCK
72641-37010	KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..CBU,IV3	07/2001 - 12/2999	1
Common parts
90119-08C25
93560-15030
96160-00800
Linked diagrams
6751
7152

KDY230-PQMEY3 (2004)

ILLUST NO. 2 OF 3(0107-0709)T3,TW1,TW2,TW3,TW4

ILLUST NO. 3 OF 3(0107-0709)TW1,TW2,TW3,TW4

ILLUST NO. 2 OF 3(0107-0709)TW1,TW2,TW3,TW4,VAN

ILLUST NO. 1 OF 3(0107-0709)

ILLUST NO. 2 OF 3(0605- )

Part Price Details
