KDY230-PQMEY3 (2004)
Toyota Dyna/Toyoace

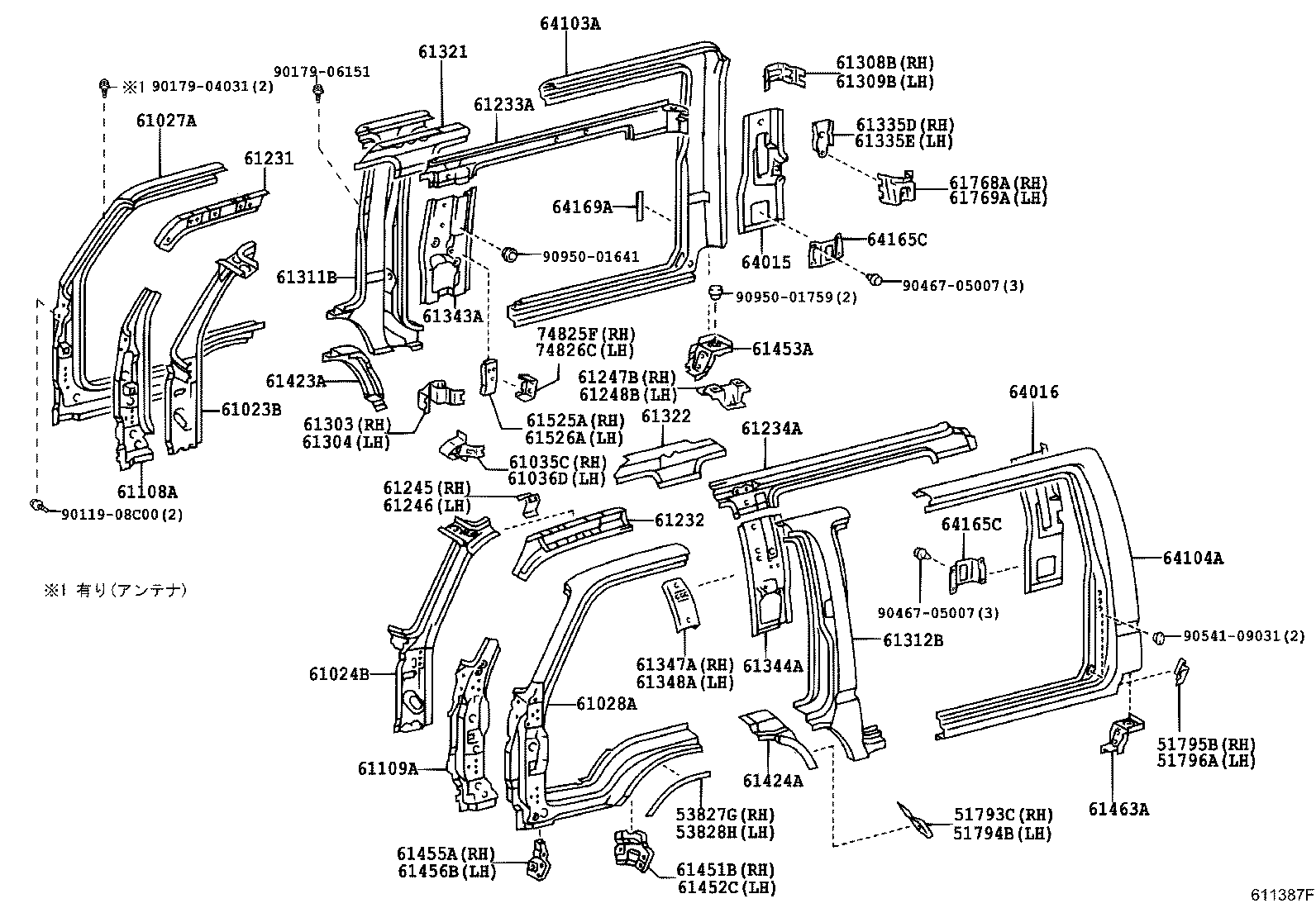

ILLUST NO. 1 OF 2(0107-1610)TW1,TW2,TW3,TW4
ﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51793C - BRACKET, SIDE STEP, NO.1 RH | ||||
| 51793-37040 |
LY280..(TW1,TW3,TW4)..CBU;LY280..MTM..125T..WT..IV3;KDY22#,23#,27#,28#,LY220,230,270,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 51794B - BRACKET, SIDE STEP, NO.1 LH | ||||
| 51794-37030 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 51795B - BRACKET, SIDE STEP, NO.2 RH | ||||
| 51795-37020 |
LY280..(TW1,TW3,TW4)..CBU;LY280..MTM..125T..WT..IV3;KDY22#,23#,27#,28#,LY220,230,270,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 51796A - BRACKET, SIDE STEP, NO.2 LH | ||||
| 51796-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 53827G - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 53828H - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53827-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-37040 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-37090 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 61035C - RETAINER SUB-ASSY, PILLAR LOWER HINGE, RH | ||||
| 61035-37040 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 61036D - RETAINER SUB-ASSY, PILLAR LOWER HINGE, LH | ||||
| 61036-37040 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-37031 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-37011 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-37050 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-37050 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 61233A - RAIL, ROOF SIDE, INNER NO.2 RH | ||||
| 61233-37050 |
KDY220,230,270,280,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61234-37050 |
KDY220,230,270,280,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 61245 - REINFORCEMENT, ROOF SIDE RAIL, OUTER RH | ||||
| 61245-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 61246 - REINFORCEMENT, ROOF SIDE RAIL, OUTER LH | ||||
| 61245-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 61247B - REINFORCEMENT, ROOF SIDE RAIL, INNER RH | ||||
| 61247-37020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 61248B - REINFORCEMENT, ROOF SIDE RAIL, INNER LH | ||||
| 61247-37020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 61303 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH | ||||
| 61303-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 61304 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH | ||||
| 61304-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 61308B - RETAINER SUB-ASSY, DOOR LOCK STRIKER, RH | ||||
| 61309-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 61309B - RETAINER SUB-ASSY, DOOR LOCK STRIKER, LH | ||||
| 61309-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-37090 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-37080 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 61321 - REINFORCEMENT, CENTER BODY PILLAR, UPPER RH | ||||
| 61321-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 61322 - REINFORCEMENT, CENTER BODY PILLAR, UPPER LH | ||||
| 61322-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 61335D - RETAINER, SEAT BELT ANCHOR | ||||
| 61335-37030 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 61335E - RETAINER, SEAT BELT ANCHOR | ||||
| 61335-37030 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-37150 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 61343-37040 |
KDY231,TRY230..TW1,TW3;KDY231,TRY230..TB..125T;KDY22#,230,27#,28#,LY220,230,270,280,RZY220,230,TRY220..TW1,TW2,TW3,TW4 E ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 61343-37030 |
KDY231,TRY230..TW1,TW3;KDY231,TRY230..TB..125T;KDY22#,230,27#,28#,LY220,230,270,280,RZY220,230,TRY220..TW1,TW2,TW3,TW4 E ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾘﾔﾋ-ﾀ) |
1 | ||
| 61343-37140 |
KDY231,TRY230..TW1,TW3;KDY231,TRY230..TB..125T;KDY22#,230,27#,28#,LY220,230,270,280,RZY220,230,TRY220..TW1,TW2,TW3,TW4 ｱﾘ(ﾘﾔ ﾋ-ﾀ) |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-25040 |
KDY231,TRY230..TW1,TW3;KDY231,TRY230..TB..125T;KDY22#,230,27#,28#,TRY220..TW1,TW2,TW3,TW4 E ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 61344-25050 |
KDY22#,23#,27#,28#,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 61347A - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, RH | ||||
| 61347-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 61348A - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LH | ||||
| 61348-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4,VAN |
1 | ||
| 61423A - PANEL, FENDER, INNER LOWER RH | ||||
| 61423-37030 |
LY280..(TW1,TW3,TW4)..CBU;LY280..MTM..125T..WT..IV3;KDY22#,23#,27#,28#,LY220,230,270,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 61424A - PANEL, FENDER, INNER LOWER LH | ||||
| 61424-37030 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 61451B - PLATE, STEP, LOWER RH | ||||
| 61451-37010 |
LY280..125T..WT..CBU;LY280..T2,T3,T4,TW1,TW3;LY280..MTM..125T..WT..IV3;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 61452C - PLATE, STEP, LOWER LH | ||||
| 61452-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 61453A - PANEL, ROCKER INNER, REAR RH | ||||
| 61453-37010 |
LY280..(TW1,TW3,TW4)..CBU;LY280..MTM..125T..WT..IV3;KDY22#,23#,27#,28#,LY220,230,270,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 61455A - RETAINER, FRONT STEP, RH | ||||
| 61455-37010 |
LY280..125T..WT..CBU;LY280..T2,T3,T4,TW1,TW3;LY280..MTM..125T..WT..IV3;KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 61456B - RETAINER, FRONT STEP, LH | ||||
| 61456-37010 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281 |
1 | ||
| 61463A - PANEL, ROCKER, INNER REAR LH | ||||
| 61463-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 61525A - RETAINER, SEPARATOR BAR BRACKET, RH | ||||
| 61525-37020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 61526A - RETAINER, SEPARATOR BAR BRACKET, LH | ||||
| 61526-37020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 61768A - REINFORCEMENT, SEAT BELT ANCHOR, NO.2 RH | ||||
| 61768-37050 |
LY280..(TW1,TW3,TW4)..CBU;LY280..MTM..125T..WT..IV3;KDY22#,23#,27#,28#,LY220,230,270,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 61769A - REINFORCEMENT, SEAT BELT ANCHOR, NO.2 LH | ||||
| 61769-37050 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 64015 - PANEL SUB-ASSY, BACK CORNER, INNER RH | ||||
| 64123-37140 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 64016 - PANEL SUB-ASSY, BACK CORNER, INNER LH | ||||
| 64124-37160 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 64103A - PANEL SUB-ASSY, BACK CORNER, OUTER RH | ||||
| 61611-37060 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 64104A - PANEL SUB-ASSY, BACK CORNER, OUTER LH | ||||
| 61612-37050 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 64165C - COVER, BACK CORNER, INNER REAR | ||||
| 64165-37020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
2 | ||
| 64165C - COVER, BACK CORNER, INNER REAR | ||||
| 64165-37020 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
2 | ||
| 64169A - PROTECTOR, FUEL INLET | ||||
| 64169-37010 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 74825F - BRACKET, SEPARATOR, RH | ||||
| 74825-95400 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| 74826C - BRACKET, SEPARATOR, LH | ||||
| 74826-95400 |
KDY22#,23#,27#,28#,LY220,230,270,280,RZY220,230,TRY220,230..TW1,TW2,TW3,TW4 |
1 | ||
| Common parts | ||||
| 90119-08C00 | ||||
| 90179-04031 | ||||
| 90179-06151 | ||||
| 90467-05007 | ||||
| 90541-09031 | ||||
| 90950-01641 | ||||
| 90950-01759 | ||||
