KDY230-PQMEY3 (2004)

Toyota Dyna/Toyoace

Production Aug 2004 - Aug 2007
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0408- )KDY220,230,240,270,280,290..MTM

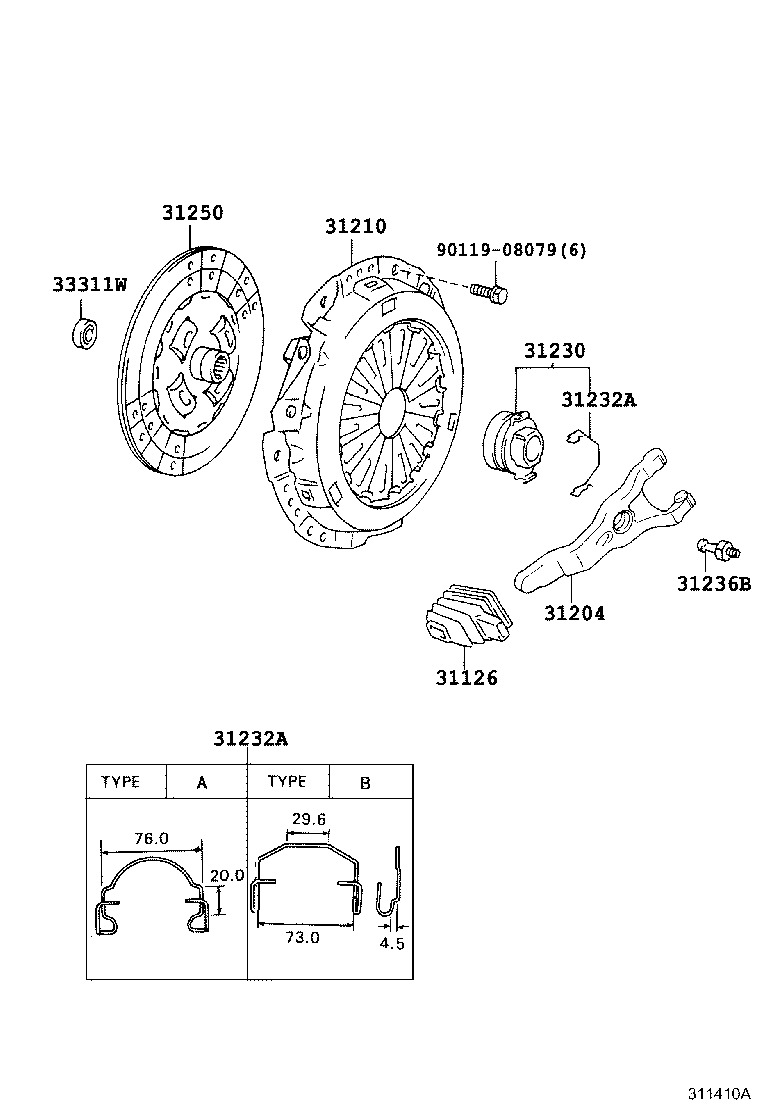

Click highlighted areas on diagram

diagram 31126 31204 31210 31230 31232A 31232A 31236B 31250 33311W 9011908079
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-60081

KDY22#,23#,24#,27#,28#,290..MTM

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-60090

KDY22#,23#,24#,27#,28#,290..MTM

 1
31210 - COVER ASSY, CLUTCH
31210-26131

KDY220,230,240,270,280,290..MTM

 1
31210-35280

TRY220,230..MTM

 1
31210-26130

KDY220,230,240,270,280,290..MTM

 1
31210-30241

TRY220,230..MTM

 1
31210-35281

TRY220,23#,281..MTM

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-60170

KDY220,230,240,270,280,290..MTM

 1
31232A - CLIP, RELEASE BEARING HUB
31232-60030

KDY220,230,240,270,280,290..MTM

TYPE B:ｲﾗｽﾄ参照

 1
31232-36030

KDY220,230,240,270,280,290..MTM

TYPE A:ｲﾗｽﾄ参照

 1
31232-35020

LY230,280..MTM..DSL;TRY230..T2..TS..MTM;TRY230..T2..TB..MTM..WT;TRY230..(T3,T4,TW2,TW3)..MTM;LY220,240,270,290,RZY220,230,281,TRY220,231,281..MTM

TYPE A:ｲﾗｽﾄ参照

 1
31232A - CLIP, RELEASE BEARING HUB
31232-60030

KDY220,230,240,270,280,290..MTM

TYPE B:ｲﾗｽﾄ参照

 1
31232-36030

KDY220,230,240,270,280,290..MTM

TYPE A:ｲﾗｽﾄ参照

 1
31232-35020

LY230,280..MTM..DSL;TRY230..T2..TS..MTM;TRY230..T2..TB..MTM..WT;TRY230..(T3,T4,TW2,TW3)..MTM;LY220,240,270,290,RZY220,230,281,TRY220,231,281..MTM

TYPE A:ｲﾗｽﾄ参照

 1
31236B - SUPPORT, RELEASE FORK
31236-60060

KDY22#,23#,24#,27#,28#,290..MTM

 1
31250 - DISC ASSY, CLUTCH
31250-26210

KDY220,230,240,270,280,290..MTM

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-12002

KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290..MTM..(DCR,DSL)

 1
Common parts
90119-08079
