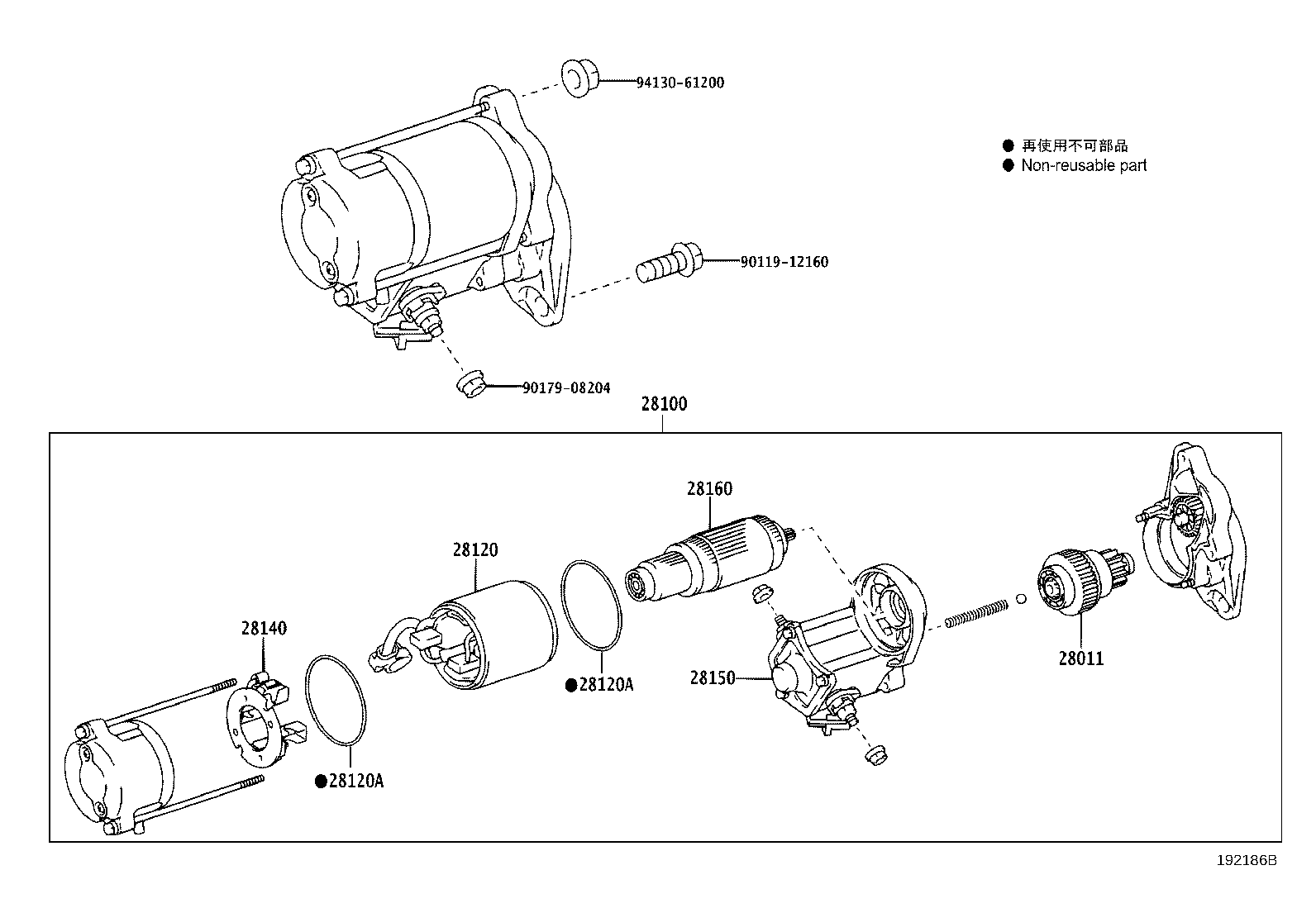

KDY230-PQMEY3 (2004)
Toyota Dyna/Toyoace
(0408-0708)2KDFTV..MTM
12V 2.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-30050 |
1KDFTV..KDY221..T3..TS;1KDFTV..KDY231..TW2..TB;1KDFTV..KDY231..ST..IV6;1KDFTV..KDY221..T2,T4,TW1;1KDFTV,2KDFTV..KDY220,230,24#,27#,28#,290;1KDFTV..KDY231..(T2,T3,T4,TW3,TW4)..(CBU,IV3) 12V 2.7KW,3.0KW |
1 | ||
| 28011-30040 |
2KDFTV..KDY220,230,240,270,280,290..MTM 12V 2.0KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-30040 |
2KDFTV..KDY220,230,240,270,280,290..MTM 12V 2.0KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-54380 |
2KDFTV..KDY220,230,240,270,280,290..MTM 12V 2.0KW |
1 | ||
| 28120-67020 |
1KDFTV..KDY221..T3..TS;1KDFTV..KDY231..TW2..TB;1KDFTV..KDY231..ST..IV6;1KDFTV..KDY221..T2,T4,TW1;1KDFTV,2KDFTV..KDY220,230,24#,27#,28#,290;1KDFTV..KDY231..(T2,T3,T4,TW3,TW4)..(CBU,IV3) 12V 2.7KW |
1 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
1TRFE..TRY230..WT..IV6;1TRFE..TRY230..TS..125T..WT;2KDFTV..KDY220,230,240,270,280,290..MTM 12V 1.4KW |
2 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
1TRFE..TRY230..WT..IV6;1TRFE..TRY230..TS..125T..WT;2KDFTV..KDY220,230,240,270,280,290..MTM 12V 1.4KW |
2 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-54380 |
2KDFTV..KDY220,230,240,270,280,290..MTM 12V 2.0KW |
1 | ||
| 28140-77090 |
1KDFTV..KDY221..T3..TS;1KDFTV..KDY231..TW2..TB;1KDFTV..KDY231..ST..IV6;1KDFTV..KDY221..T2,T4,TW1;1KDFTV..KDY231..(T2,T3,T4,TW3,TW4)..(CBU,IV3);1KDFTV,2KDFTV,5L..KDY220,230,24#,27#,28#,290,LY220,230,240,270,280,290 12V 2.7KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-30050 |
1KDFTV..KDY221..T3..TS;1KDFTV..KDY231..TW2..TB;1KDFTV..KDY231..ST..IV6;1KDFTV..KDY221..T2,T4,TW1;1KDFTV,2KDFTV..KDY220,230,24#,27#,28#,290;1KDFTV..KDY231..(T2,T3,T4,TW3,TW4)..(CBU,IV3) 12V 2.7KW |
1 | ||
| 28150-30040 |
2KDFTV..KDY220,230,240,270,280,290..MTM 12V 2.0KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-54380 |
2KDFTV..KDY220,230,240,270,280,290..MTM 12V 2.0KW |
1 | ||
| 28160-54160 |
1KDFTV..KDY221..T3..TS;1KDFTV..KDY231..TW2..TB;1KDFTV..KDY231..ST..IV6;1KDFTV..KDY221..T2,T4,TW1;1KDFTV..KDY231..(T2,T3,T4,TW3,TW4)..(CBU,IV3);1KDFTV,2KDFTV,5L..KDY220,230,24#,27#,28#,290,LY220,230,240,270,280,290 12V 2.7KW |
1 | ||
| Common parts | ||||
| 90119-12160 | ||||
| 90179-08204 | ||||
| 94130-61200 | ||||
(0408- )1KDFTV,2KDFTV
12V 2.7KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-30050 |
1KDFTV..KDY221..T3..TS;1KDFTV..KDY231..TW2..TB;1KDFTV..KDY231..ST..IV6;1KDFTV..KDY221..T2,T4,TW1;1KDFTV,2KDFTV..KDY220,230,24#,27#,28#,290;1KDFTV..KDY231..(T2,T3,T4,TW3,TW4)..(CBU,IV3) 12V 2.7KW,3.0KW |
1 | ||
| 28011-30040 |
2KDFTV..KDY220,230,240,270,280,290..MTM 12V 2.0KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-30040 |
2KDFTV..KDY220,230,240,270,280,290..MTM 12V 2.0KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-54380 |
2KDFTV..KDY220,230,240,270,280,290..MTM 12V 2.0KW |
1 | ||
| 28120-67020 |
1KDFTV..KDY221..T3..TS;1KDFTV..KDY231..TW2..TB;1KDFTV..KDY231..ST..IV6;1KDFTV..KDY221..T2,T4,TW1;1KDFTV,2KDFTV..KDY220,230,24#,27#,28#,290;1KDFTV..KDY231..(T2,T3,T4,TW3,TW4)..(CBU,IV3) 12V 2.7KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-54380 |
2KDFTV..KDY220,230,240,270,280,290..MTM 12V 2.0KW |
1 | ||
| 28140-77090 |
1KDFTV..KDY221..T3..TS;1KDFTV..KDY231..TW2..TB;1KDFTV..KDY231..ST..IV6;1KDFTV..KDY221..T2,T4,TW1;1KDFTV..KDY231..(T2,T3,T4,TW3,TW4)..(CBU,IV3);1KDFTV,2KDFTV,5L..KDY220,230,24#,27#,28#,290,LY220,230,240,270,280,290 12V 2.7KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-30050 |
1KDFTV..KDY221..T3..TS;1KDFTV..KDY231..TW2..TB;1KDFTV..KDY231..ST..IV6;1KDFTV..KDY221..T2,T4,TW1;1KDFTV,2KDFTV..KDY220,230,24#,27#,28#,290;1KDFTV..KDY231..(T2,T3,T4,TW3,TW4)..(CBU,IV3) 12V 2.7KW |
1 | ||
| 28150-30040 |
2KDFTV..KDY220,230,240,270,280,290..MTM 12V 2.0KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-54380 |
2KDFTV..KDY220,230,240,270,280,290..MTM 12V 2.0KW |
1 | ||
| 28160-54160 |
1KDFTV..KDY221..T3..TS;1KDFTV..KDY231..TW2..TB;1KDFTV..KDY231..ST..IV6;1KDFTV..KDY221..T2,T4,TW1;1KDFTV..KDY231..(T2,T3,T4,TW3,TW4)..(CBU,IV3);1KDFTV,2KDFTV,5L..KDY220,230,24#,27#,28#,290,LY220,230,240,270,280,290 12V 2.7KW |
1 | ||
| Common parts | ||||
| 90119-12160 | ||||
| 90179-10195 | ||||
| 91619-61260 | ||||
| 94130-61200 | ||||
(0408- )1KDFTV..KDY231..TW2..TB..MTM ; (0408-)1KDFTV,2KDFTV..KDY220,230,24#,
12V 3.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-30050 |
1KDFTV..KDY221..T3..TS;1KDFTV..KDY231..TW2..TB;1KDFTV..KDY231..ST..IV6;1KDFTV..KDY221..T2,T4,TW1;1KDFTV,2KDFTV..KDY220,230,24#,27#,28#,290;1KDFTV..KDY231..(T2,T3,T4,TW3,TW4)..(CBU,IV3) 12V 2.7KW,3.0KW |
1 | ||
| 28011-30050 |
1KDFTV..KDY221..T3..TS;1KDFTV..KDY231..TW2..TB;1KDFTV..KDY231..ST..IV6;1KDFTV..KDY221..T2,T4,TW1;1KDFTV,2KDFTV..KDY220,230,24#,27#,28#,290;1KDFTV..KDY231..(T2,T3,T4,TW3,TW4)..(CBU,IV3) 12V 2.7KW,3.0KW |
1 | ||
| 28011-30050 |
1KDFTV..KDY221..T3..TS;1KDFTV..KDY231..TW2..TB;1KDFTV..KDY231..ST..IV6;1KDFTV..KDY221..T2,T4,TW1;1KDFTV,2KDFTV..KDY220,230,24#,27#,28#,290;1KDFTV..KDY231..(T2,T3,T4,TW3,TW4)..(CBU,IV3) 12V 2.7KW,3.0KW |
1 | ||
| 28011-30040 |
2KDFTV..KDY220,230,240,270,280,290..MTM 12V 2.0KW |
1 | ||
| 28011-30040 |
2KDFTV..KDY220,230,240,270,280,290..MTM 12V 2.0KW |
1 | ||
| 28011-30040 |
2KDFTV..KDY220,230,240,270,280,290..MTM 12V 2.0KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-30040 |
2KDFTV..KDY220,230,240,270,280,290..MTM 12V 2.0KW |
1 | ||
| 28100-30040 |
2KDFTV..KDY220,230,240,270,280,290..MTM 12V 2.0KW |
1 | ||
| 28100-30040 |
2KDFTV..KDY220,230,240,270,280,290..MTM 12V 2.0KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-54380 |
2KDFTV..KDY220,230,240,270,280,290..MTM 12V 2.0KW |
1 | ||
| 28120-54380 |
2KDFTV..KDY220,230,240,270,280,290..MTM 12V 2.0KW |
1 | ||
| 28120-54380 |
2KDFTV..KDY220,230,240,270,280,290..MTM 12V 2.0KW |
1 | ||
| 28120-67020 |
1KDFTV..KDY221..T3..TS;1KDFTV..KDY231..TW2..TB;1KDFTV..KDY231..ST..IV6;1KDFTV..KDY221..T2,T4,TW1;1KDFTV,2KDFTV..KDY220,230,24#,27#,28#,290;1KDFTV..KDY231..(T2,T3,T4,TW3,TW4)..(CBU,IV3) 12V 2.7KW |
1 | ||
| 28120-67020 |
1KDFTV..KDY221..T3..TS;1KDFTV..KDY231..TW2..TB;1KDFTV..KDY231..ST..IV6;1KDFTV..KDY221..T2,T4,TW1;1KDFTV,2KDFTV..KDY220,230,24#,27#,28#,290;1KDFTV..KDY231..(T2,T3,T4,TW3,TW4)..(CBU,IV3) 12V 2.7KW |
1 | ||
| 28120-67020 |
1KDFTV..KDY221..T3..TS;1KDFTV..KDY231..TW2..TB;1KDFTV..KDY231..ST..IV6;1KDFTV..KDY221..T2,T4,TW1;1KDFTV,2KDFTV..KDY220,230,24#,27#,28#,290;1KDFTV..KDY231..(T2,T3,T4,TW3,TW4)..(CBU,IV3) 12V 2.7KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-54380 |
2KDFTV..KDY220,230,240,270,280,290..MTM 12V 2.0KW |
1 | ||
| 28140-54380 |
2KDFTV..KDY220,230,240,270,280,290..MTM 12V 2.0KW |
1 | ||
| 28140-54380 |
2KDFTV..KDY220,230,240,270,280,290..MTM 12V 2.0KW |
1 | ||
| 28140-77090 |
1KDFTV..KDY221..T3..TS;1KDFTV..KDY231..TW2..TB;1KDFTV..KDY231..ST..IV6;1KDFTV..KDY221..T2,T4,TW1;1KDFTV..KDY231..(T2,T3,T4,TW3,TW4)..(CBU,IV3);1KDFTV,2KDFTV,5L..KDY220,230,24#,27#,28#,290,LY220,230,240,270,280,290 12V 2.7KW |
1 | ||
| 28140-77090 |
1KDFTV..KDY221..T3..TS;1KDFTV..KDY231..TW2..TB;1KDFTV..KDY231..ST..IV6;1KDFTV..KDY221..T2,T4,TW1;1KDFTV..KDY231..(T2,T3,T4,TW3,TW4)..(CBU,IV3);1KDFTV,2KDFTV,5L..KDY220,230,24#,27#,28#,290,LY220,230,240,270,280,290 12V 2.7KW |
1 | ||
| 28140-77090 |
1KDFTV..KDY221..T3..TS;1KDFTV..KDY231..TW2..TB;1KDFTV..KDY231..ST..IV6;1KDFTV..KDY221..T2,T4,TW1;1KDFTV..KDY231..(T2,T3,T4,TW3,TW4)..(CBU,IV3);1KDFTV,2KDFTV,5L..KDY220,230,24#,27#,28#,290,LY220,230,240,270,280,290 12V 2.7KW |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-30050 |
1KDFTV..KDY221..T3..TS;1KDFTV..KDY231..TW2..TB;1KDFTV..KDY231..ST..IV6;1KDFTV..KDY221..T2,T4,TW1;1KDFTV,2KDFTV..KDY220,230,24#,27#,28#,290;1KDFTV..KDY231..(T2,T3,T4,TW3,TW4)..(CBU,IV3) 12V 2.7KW |
1 | ||
| 28150-30050 |
1KDFTV..KDY221..T3..TS;1KDFTV..KDY231..TW2..TB;1KDFTV..KDY231..ST..IV6;1KDFTV..KDY221..T2,T4,TW1;1KDFTV,2KDFTV..KDY220,230,24#,27#,28#,290;1KDFTV..KDY231..(T2,T3,T4,TW3,TW4)..(CBU,IV3) 12V 2.7KW |
1 | ||
| 28150-30050 |
1KDFTV..KDY221..T3..TS;1KDFTV..KDY231..TW2..TB;1KDFTV..KDY231..ST..IV6;1KDFTV..KDY221..T2,T4,TW1;1KDFTV,2KDFTV..KDY220,230,24#,27#,28#,290;1KDFTV..KDY231..(T2,T3,T4,TW3,TW4)..(CBU,IV3) 12V 2.7KW |
1 | ||
| 28150-30040 |
2KDFTV..KDY220,230,240,270,280,290..MTM 12V 2.0KW |
1 | ||
| 28150-30040 |
2KDFTV..KDY220,230,240,270,280,290..MTM 12V 2.0KW |
1 | ||
| 28150-30040 |
2KDFTV..KDY220,230,240,270,280,290..MTM 12V 2.0KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-54380 |
2KDFTV..KDY220,230,240,270,280,290..MTM 12V 2.0KW |
1 | ||
| 28160-54380 |
2KDFTV..KDY220,230,240,270,280,290..MTM 12V 2.0KW |
1 | ||
| 28160-54380 |
2KDFTV..KDY220,230,240,270,280,290..MTM 12V 2.0KW |
1 | ||
| 28160-54160 |
1KDFTV..KDY221..T3..TS;1KDFTV..KDY231..TW2..TB;1KDFTV..KDY231..ST..IV6;1KDFTV..KDY221..T2,T4,TW1;1KDFTV..KDY231..(T2,T3,T4,TW3,TW4)..(CBU,IV3);1KDFTV,2KDFTV,5L..KDY220,230,24#,27#,28#,290,LY220,230,240,270,280,290 12V 2.7KW |
1 | ||
| 28160-54160 |
1KDFTV..KDY221..T3..TS;1KDFTV..KDY231..TW2..TB;1KDFTV..KDY231..ST..IV6;1KDFTV..KDY221..T2,T4,TW1;1KDFTV..KDY231..(T2,T3,T4,TW3,TW4)..(CBU,IV3);1KDFTV,2KDFTV,5L..KDY220,230,24#,27#,28#,290,LY220,230,240,270,280,290 12V 2.7KW |
1 | ||
| 28160-54160 |
1KDFTV..KDY221..T3..TS;1KDFTV..KDY231..TW2..TB;1KDFTV..KDY231..ST..IV6;1KDFTV..KDY221..T2,T4,TW1;1KDFTV..KDY231..(T2,T3,T4,TW3,TW4)..(CBU,IV3);1KDFTV,2KDFTV,5L..KDY220,230,24#,27#,28#,290,LY220,230,240,270,280,290 12V 2.7KW |
1 | ||
| Common parts | ||||
| 90119-12160 | ||||
| 90179-10195 | ||||
| 91619-61260 | ||||
| 94130-61200 | ||||
