KDY221-PSMBY3 (2007)
Toyota Dyna/Toyoace

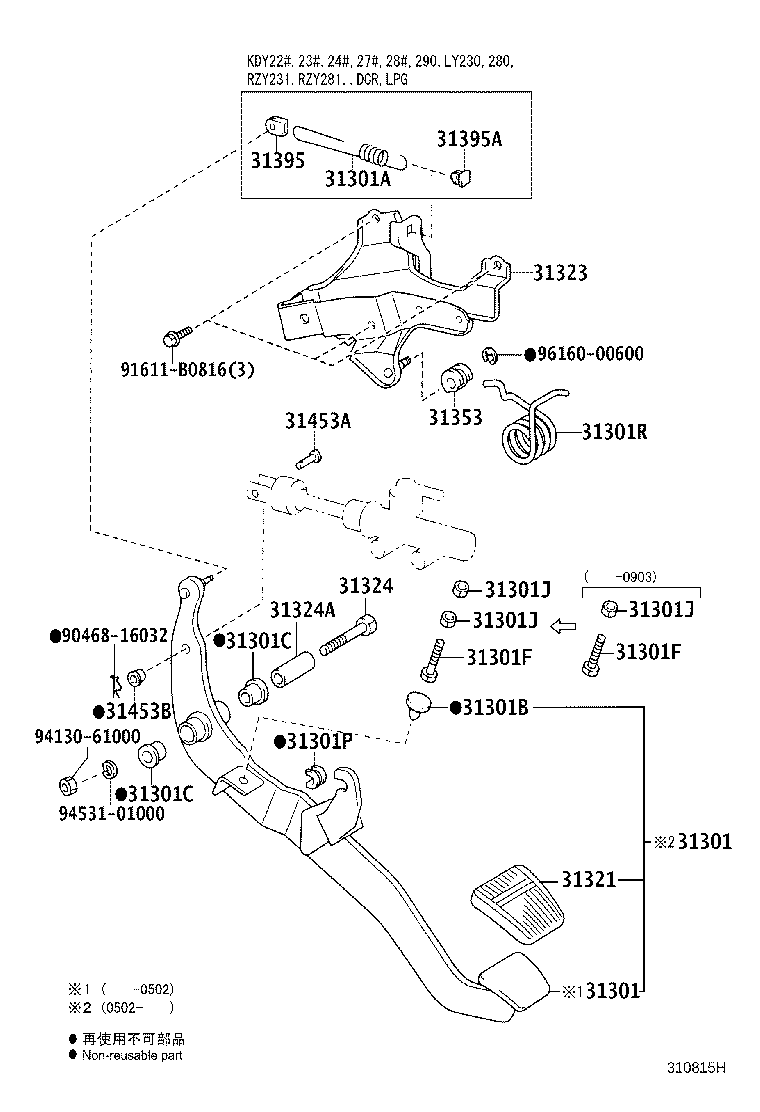

ILLUST NO. 1 OF 3(0107-1008)MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06036 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13007 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-08052 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM |
1 | ||
| 91111-41035 |
KDY221,231,241,271,281..MTM |
1 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-08052 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM |
1 | ||
| 91111-41035 |
KDY221,231,241,271,281..MTM |
1 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 94130-60800 |
KDY221,231,241,271,281,TRY220,23#,281..MTM |
1 | ||
| 94120-41000 |
KDY221,231,241,271,281..MTM |
2 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 94130-60800 |
KDY221,231,241,271,281,TRY220,23#,281..MTM |
1 | ||
| 94120-41000 |
KDY221,231,241,271,281..MTM |
2 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 94130-60800 |
KDY221,231,241,271,281,TRY220,23#,281..MTM |
1 | ||
| 94120-41000 |
KDY221,231,241,271,281..MTM |
2 | ||
| 31301P - BUSH(FOR CLUTCH PEDAL TURNOVER) | ||||
| 90386-05017 |
LY230,280..MTM..DSL;KDY22#,23#,24#,27#,28#,290,LY220,240,270,290,RZY220,23#,281,TRY220,23#,281..MTM |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM |
1 | ||
| 31323 - BRACKET, CLUTCH PEDAL | ||||
| 55107-25030 |
KDY221,231,241,271,281,TRY220,23#,281..MTM |
1 | ||
| 55107-25040 |
KDY221..(T3,TW1)..MTM;KDY231,241,TRY220,230..(TW1,TW3,VAN)..(06S,TS)..(15T,1T) |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 91112-61070 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10004 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM |
1 | ||
| 31353 - HOLDER, CLUTCH PEDAL SPRING | ||||
| 31353-14010 |
LY230,280..MTM..DSL;KDY22#,23#,24#,27#,28#,290,LY220,240,270,290,RZY220,23#,281,TRY220,23#,281..MTM |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90240-08006 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM 長さ=23.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08002 |
KDY22#,23#,24#,27#,28#,290,LY220,230,240,270,280,290,RZY220,23#,281,TRY220,23#,281..MTM |
1 | ||
| Common parts | ||||
| 90468-16032 | ||||
| 91611-B0816 | ||||
| 94130-61000 | ||||
| 94531-01000 | ||||
| 96160-00600 | ||||
