KDY220-TLPDY3 (2004)

Toyota Dyna/Toyoace

Production Aug 2004 - Aug 2007
Engine 2KDFTV
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0408-0708)2KDFTV

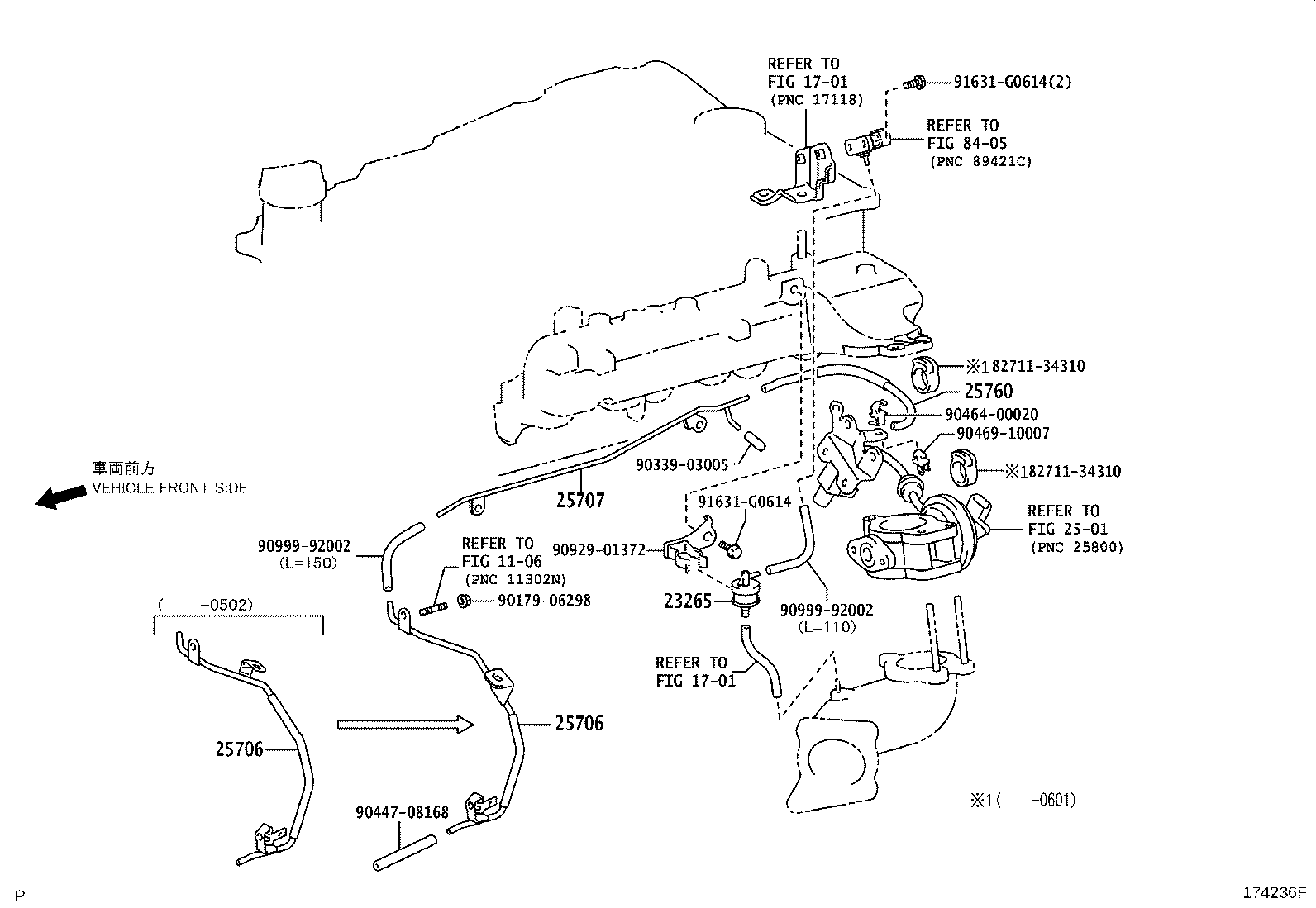

Click highlighted areas on diagram

diagram 1106 1701 1701 23265 2501 25706 25706 25707 25760 8271134310 8271134310 8405 9017906298 9033903005 9044708168 9046400020 9046910007 9092901372 9099992002 9099992002 91631G0614 91631G0614
Part # Description Qty Price
23265 - FILTER, GAS, NO.1
90917-11038

1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-30030

2KDFTV..KDY220,230,240,270,280,290

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-30030

2KDFTV..KDY220,230,240,270,280,290

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-67011

2KDFTV..KDY220,230,240,270,280,290

 1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-30050

2KDFTV..KDY220,230,240,270,280,290

 1
Common parts
82711-34310
90179-06298
90339-03005
90447-08168
90464-00020
90469-10007
90929-01372
90999-92002
91631-G0614
Linked diagrams
1106
1701
2501
8405
