KDY220-TLMDY3 (2004)

Toyota Dyna/Toyoace

Production Aug 2004 - Aug 2007
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0408-0708)2KDFTV

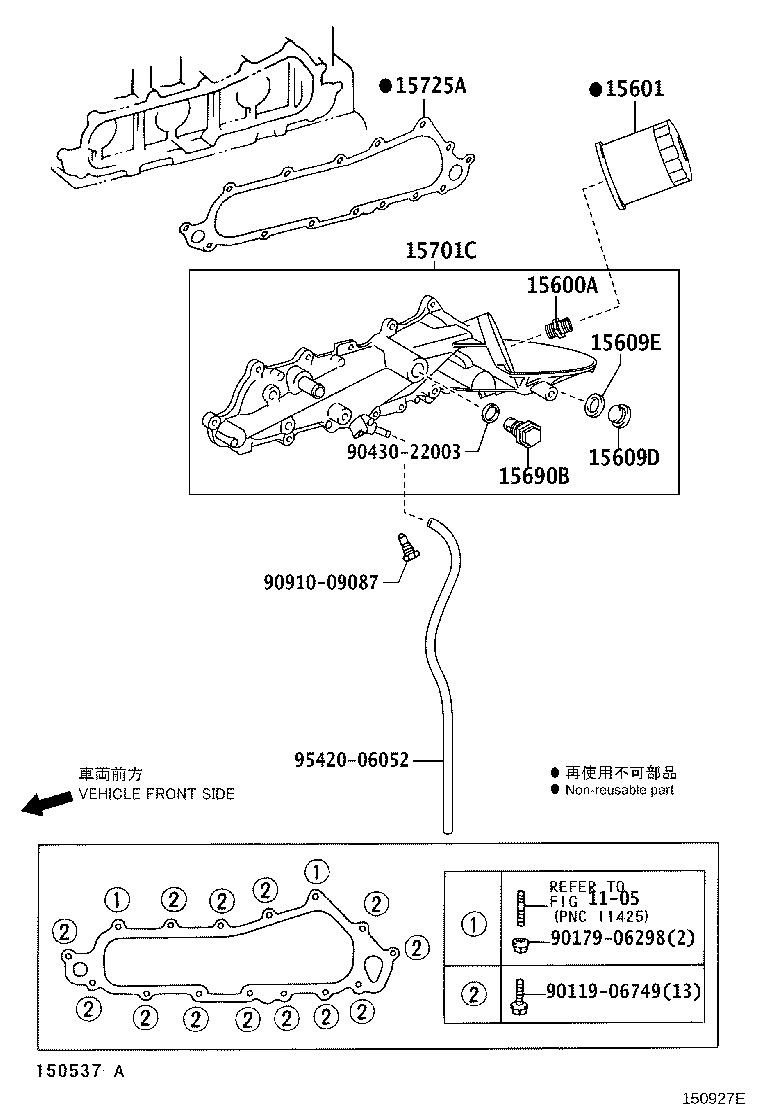

Click highlighted areas on diagram

diagram 1105 15600A 15601 15609D 15609E 15690B 15701C 15725A 9011906749 9017906298 9043022003 9091009087 9542006052
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
90404-19002

1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290

 1
15609D - PLUG, W/HEAD STRAIGHT SCREW(FOR OIL FILTER BRACKET)
90341-20002

2KDFTV..KDY220,230,240,270,280,290

 1
15701C - COVER SUB-ASSY, OIL COOLER
15701-30060

2KDFTV..KDY220,230,240,270,280,290

 1
15725A - GASKET, OIL COOLER COVER
15725-67010

1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290

 1
Common parts
90119-06749
90179-06298
90430-22003
90910-09087
95420-06052
Linked diagrams
1105
