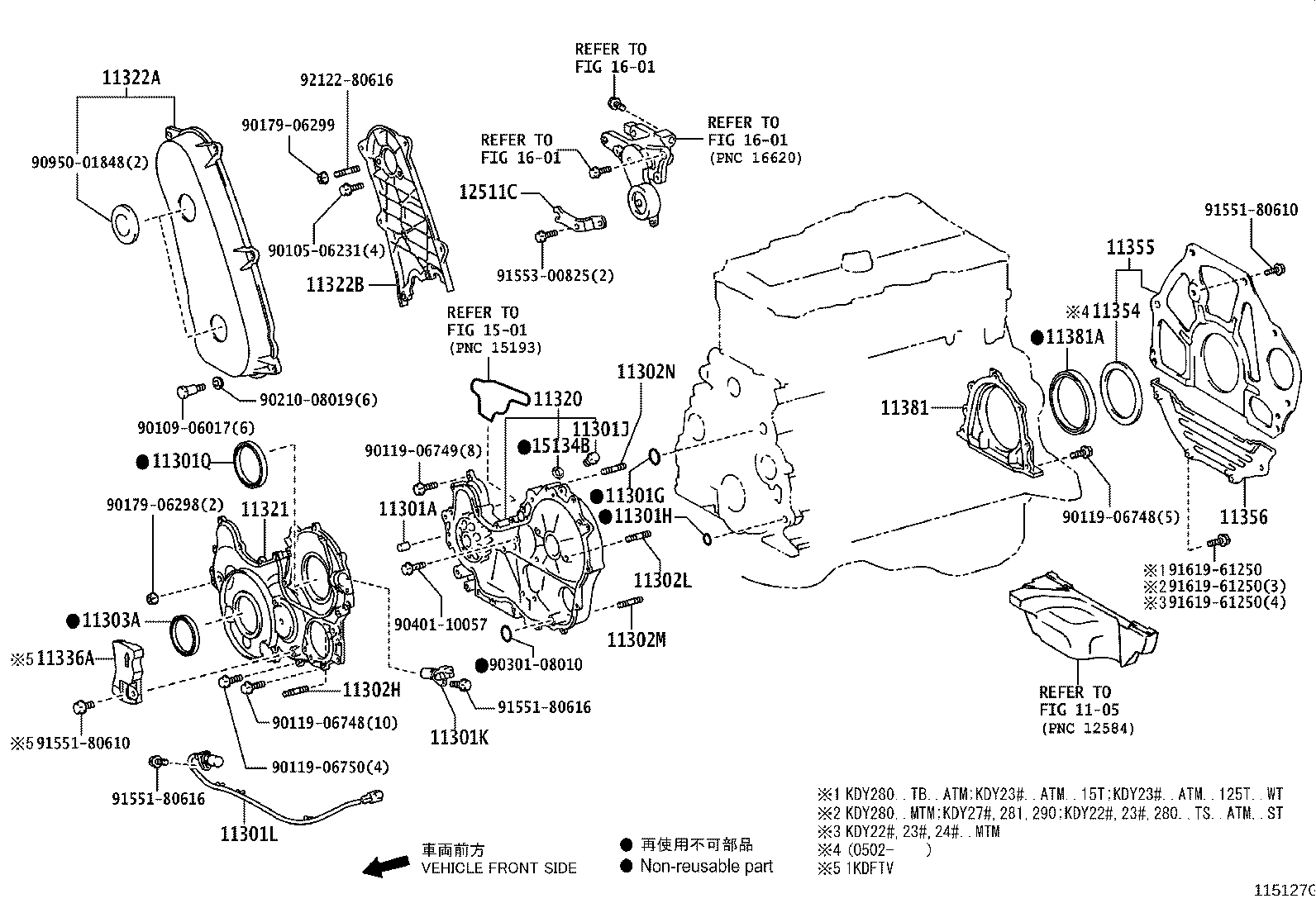

Toyota Dyna/toyoace KDY220 TIMING GEAR COVER & REAR END PLATE

Part #	Description	Period	Qty
11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE)
90250-08120	1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290 長さ=18,外径=8	08/2004 - 12/2999	1
11301G - RING, O(FOR TIMING GEAR CASE, UPPER)
90301-22007	1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290	08/2004 - 12/2999	1
11301H - RING, O(FOR TIMING GEAR CASE, LOWER)
90301-09018	1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290	08/2004 - 12/2999	1
11301J - PLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE)
90341-18015	1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290	08/2004 - 12/2999	1
11302H - BOLT, STUD(FOR TIMING GEAR COVER)
90116-08376	2KDFTV..KDY220,230,240,270,280,290	08/2004 - 07/2006	2
11302M - BOLT, STUD(FOR POWER STEERING VANE PUMP)
90116-10160	1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290	08/2004 - 12/2999	2
11320 - CASE ASSY, TIMING GEAR
11320-30021	2KDFTV..KDY220,230,240,270,280,290	08/2004 - 08/2007	1
11322B - COVER, TIMING BELT, NO.2
11322-30010	1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290	08/2004 - 12/2999	1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-30010	1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290	02/2005 - 12/2999	1
11355 - PLATE, REAR END
11355-67010	2KDFTV..KDY220,230,240,270,280,290	08/2004 - 02/2005	1
11355-67011	1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290	02/2005 - 12/2999	1
12511C - BRACKET, ALTERNATOR
12511-30031	1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290	08/2004 - 12/2999	1
15134B - GASKET, OIL PUMP RELIEF VALVE
15134-67010	1KDFTV,2KDFTV..KDY22#,23#,24#,27#,28#,290	08/2004 - 12/2999	1
Common parts
90105-06231
90109-06017
90119-06748
90119-06749
90119-06750
90179-06298
90179-06299
90210-08019
90301-08010
90401-10057
90950-01848
91551-80610
91551-80616
91553-00825
91619-61250
92122-80616
Linked diagrams
1105
1501
1601

KDY220-TBPDY3 (2004)

(0408-0708)2KDFTV ; (0709-1008)1KDFTV
