JU20-QRD3 (1977)

Toyota Dyna/Toyoace

Production Aug 1977 - Apr 1979
Engine 2J
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

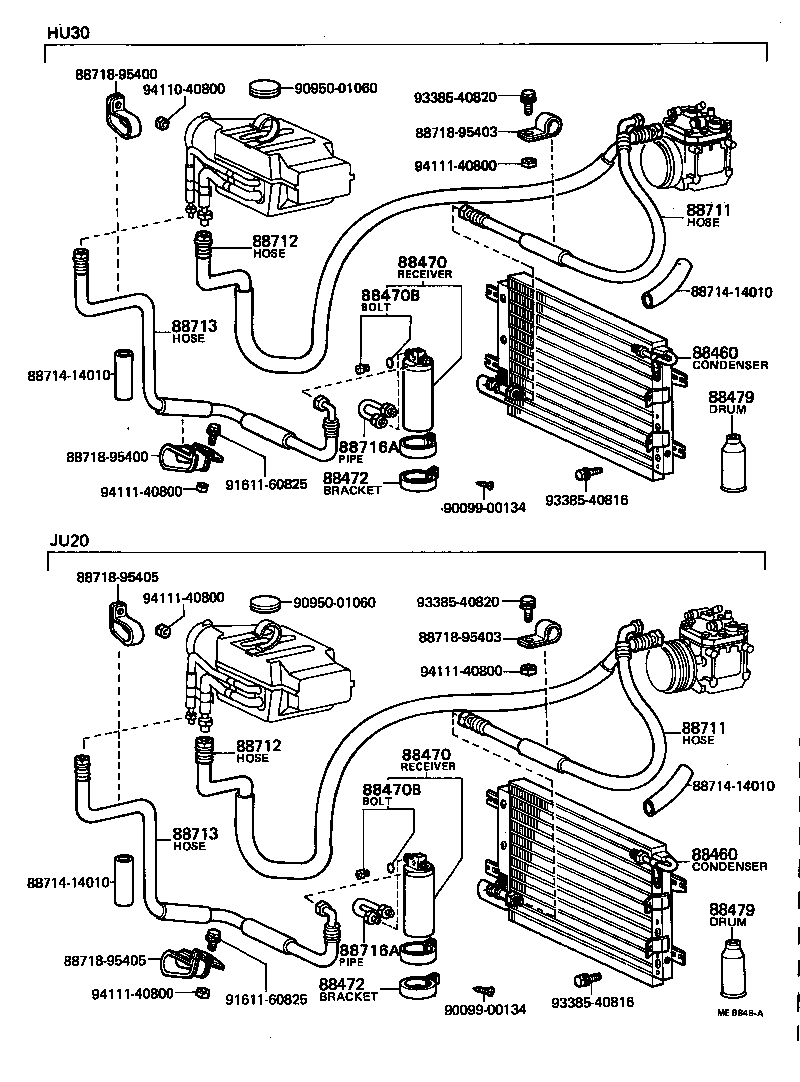

(7708-8008)HU30,JU20

Click highlighted areas on diagram

diagram 88460 88460 88470 88470 88470B 88470B 88472 88472 88479 88479 88711 88711 88712 88712 88713 88713 8871414010 8871414010 8871414010 8871414010 88716A 88716A 8871895400 8871895400 8871895403 8871895403 8871895405 8871895405 9009900134 9009900134 9095001060 9095001060 9161160825 9161160825 9338540816 9338540816 9338540820 9338540820 9411040800 9411140800 9411140800 9411140800 9411140800 9411140800
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-95400

HU30,JU20,RU20,30

 1
88460 - CONDENSER ASSY, COOLER
88460-95400

HU30,JU20,RU20,30

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-95400

HU30,JU20,RU20,30

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-95400

HU30,JU20,RU20,30

 1
88470B - BOLT, FUSE
90099-04579

HU26,30,40,50,JU20,RU2#,3#,WU26,40,50

 1
88470B - BOLT, FUSE
90099-04579

HU26,30,40,50,JU20,RU2#,3#,WU26,40,50

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-30250

HU26,30,40,50,JU20,RU2#,3#,WU26,40,50

 2
88472 - BRACKET, RECEIVER TANK, NO.1
88473-30250

HU26,30,40,50,JU20,RU2#,3#,WU26,40,50

 2
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

HU26,30,40,50,JU20,RU2#,3#,WU26,40,50

400G

 2
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

HU26,30,40,50,JU20,RU2#,3#,WU26,40,50

400G

 2
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95400

HU30,JU20

 1
88711-60010

RU2#,3#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95400

HU30,JU20

 1
88711-60010

RU2#,3#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95402

HU30,JU20

 1
88712-95400

RU2#,3#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95402

HU30,JU20

 1
88712-95400

RU2#,3#

 1
88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2
88721-95400

HU30,JU20,RU2#,3#

 1
88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2
88721-95400

HU30,JU20,RU2#,3#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95400

HU30,JU20,RU2#,3#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95400

HU30,JU20,RU2#,3#

 1
Common parts
88714-14010
88718-95400
88718-95403
88718-95405
90099-00134
90950-01060
91611-60825
93385-40816
93385-40820
94110-40800
94111-40800

(7708- )RU2#,3#

Click highlighted areas on diagram

diagram 88460 88470 88470B 88472 88479 88711 88712 88713 8871414010 8871495401 8871495401 8871495402 8871495403 88716A 8871822170 8871895400 8871895402 8871895403 8871895404 8871895406 8889995405 9095001060 9331514012 9331516016 9331540616 9338518016 9338518020 9338518020 9338540820 9411040800 9411040800 9411040800 9461210601 9461210800
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-95400

HU30,JU20,RU20,30

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-95400

HU30,JU20,RU20,30

 1
88470B - BOLT, FUSE
90099-04579

HU26,30,40,50,JU20,RU2#,3#,WU26,40,50

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-30250

HU26,30,40,50,JU20,RU2#,3#,WU26,40,50

 2
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

HU26,30,40,50,JU20,RU2#,3#,WU26,40,50

400G

 2
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95400

HU30,JU20

 1
88711-60010

RU2#,3#

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95402

HU30,JU20

 1
88712-95400

RU2#,3#

 1
88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2
88721-95400

HU30,JU20,RU2#,3#

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95400

HU30,JU20,RU2#,3#

 1
Common parts
88714-14010
88714-95401
88714-95402
88714-95403
88718-22170
88718-95400
88718-95402
88718-95403
88718-95404
88718-95406
88899-95405
90950-01060
93315-14012
93315-16016
93315-40616
93385-18016
93385-18020
93385-40820
94110-40800
94612-10601
94612-10800
