JU20-QRB3 (1977)
Toyota Dyna/Toyoace
Production
Aug 1977
-
Apr 1979
Engine
2J
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7708-8008)H

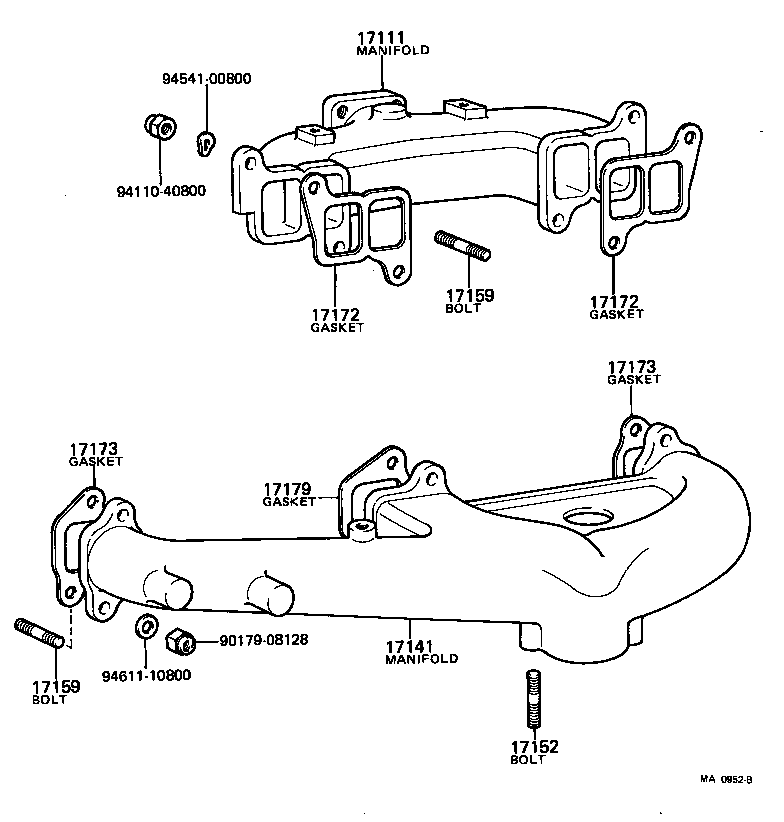

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-48020 |
2J..JU20 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-48010 |
2J..JU20 |
1 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10029 |
2J..JU20 L=42,S=16&23 |
2 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08017 |
2J..JU20 L=42,S=10&21 |
12 | ||
| 90116-08013 |
2J..JU20 L=34.5,S=9&16 |
8 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08017 |
2J..JU20 L=42,S=10&21 |
12 | ||
| 90116-08013 |
2J..JU20 L=34.5,S=9&16 |
8 | ||
| 17172 - GASKET, MANIFOLD TO CYLINDER HEAD | ||||
| 17172-46010 |
2J..JU20 |
2 | ||
| 17172 - GASKET, MANIFOLD TO CYLINDER HEAD | ||||
| 17172-46010 |
2J..JU20 |
2 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-48010 |
2J..JU20 |
2 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-48010 |
2J..JU20 |
2 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-48010 |
2J..JU20 |
2 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-48010 |
2J..JU20 |
2 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-48010 |
2J..JU20 |
2 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-48010 |
2J..JU20 |
2 | ||
| Common parts | ||||
| 90179-08012 | ||||
| 94110-40800 | ||||
| 94541-00800 | ||||
| 94611-10800 | ||||
(7708-8008)2J
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-48020 |
2J..JU20 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-48010 |
2J..JU20 |
1 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10029 |
2J..JU20 L=42,S=16&23 |
2 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08017 |
2J..JU20 L=42,S=10&21 |
12 | ||
| 90116-08013 |
2J..JU20 L=34.5,S=9&16 |
8 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-08017 |
2J..JU20 L=42,S=10&21 |
12 | ||
| 90116-08013 |
2J..JU20 L=34.5,S=9&16 |
8 | ||
| 17172 - GASKET, MANIFOLD TO CYLINDER HEAD | ||||
| 17172-46010 |
2J..JU20 |
2 | ||
| 17172 - GASKET, MANIFOLD TO CYLINDER HEAD | ||||
| 17172-46010 |
2J..JU20 |
2 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-48010 |
2J..JU20 |
2 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-48010 |
2J..JU20 |
2 | ||
| 17179 - GASKET, EXHAUST MANIFOLD, NO.2 | ||||
| 17179-48010 |
2J..JU20 |
1 | ||
| Common parts | ||||
| 90179-08128 | ||||
| 94110-40800 | ||||
| 94541-00800 | ||||
| 94611-10800 | ||||
