JU20-QRB (1977)
Toyota Dyna/Toyoace
(7708-8008)2J
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11012-46020 |
2J..JU20 O/S 0.125 |
1 | ||
| 11013-46020 |
2J..JU20 O/S 0.250 |
1 | ||
| 11011-46020 |
2J..JU20 STD |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11705-48012 |
2J..JU20 U/S 0.50 |
1 | ||
| 11706-48012 |
2J..JU20 U/S 0.75 |
1 | ||
| 11702-48012 |
2J..JU20 STD |
1 | ||
| 11704-48012 |
2J..JU20 U/S 0.25 |
1 | ||
| 11703-48012 |
2J..JU20 U/S 0.05 |
1 | ||
| 11707-48012 |
2J..JU20 U/S 1.00 |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-48023 |
2J..JU20 STD |
1 | ||
| 13015-48023 |
2J..JU20 O/S 1.00 |
1 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13085-48014 |
2J..JU20 O/S 1.00 |
1 | ||
| 13081-48014 |
2J..JU20 STD |
1 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-31068 |
2J..JU20 |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-48010 |
2J..JU20 |
6 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73069 |
2J..JU20 |
6 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13202-48010 |
2J..JU20 STD |
1 | ||
| 13205-48010 |
2J..JU20 U/S 0.50 |
1 | ||
| 13203-48010 |
2J..JU20 U/S 0.05 |
1 | ||
| 13207-48010 |
2J..JU20 U/S 1.00 |
1 | ||
| 13204-48010 |
2J..JU20 U/S 0.25 |
1 | ||
| 13206-48010 |
2J..JU20 U/S 0.75 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-49035 |
2J..JU20 |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-11112 |
2J..JU20 |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-49145 |
2J..JU20 N=117 |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90205-08054 |
2J..JU20 L=23,OD=8 |
2 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-12039 |
2J..JU20 *12-1.25PX32-22 |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-48012 |
2J..JU20 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-48010 |
2J..JU20 N=105 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13471-48020 |
2J..JU20 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-05010 |
2J..JU20 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-16020 |
2J..JU20 *16-1.5PX29-24 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-46010 |
2J..JU20 N=25 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-05010 |
2J..JU20 |
1 | ||
| 13525 - GEAR, IDLE, NO.1 | ||||
| 13525-46010 |
2J..JU20 N=24 |
1 | ||
| 13572 - PLATE, IDLE GEAR THRUST | ||||
| 13572-48011 |
2J..JU20 |
1 | ||
| 13577A - BOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK) | ||||
| 91611-61045 |
2J..JU20 |
2 | ||
| 13581 - SHAFT, IDLE GEAR, NO.1 | ||||
| 13581-48011 |
2J..JU20 |
1 | ||

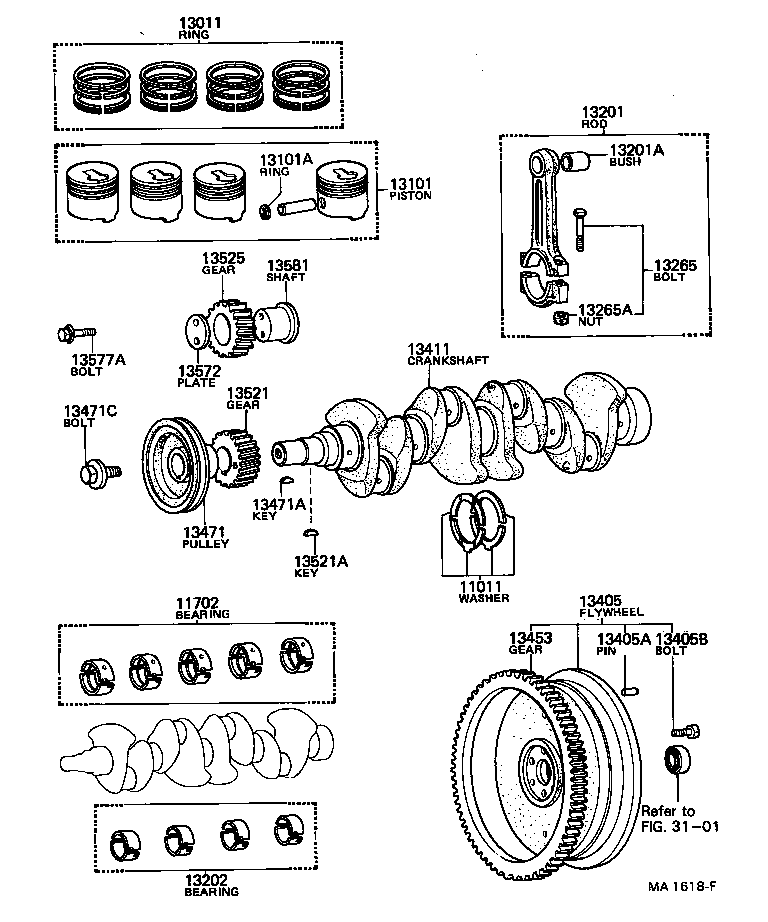

| Linked diagrams | ||||
| 3101 | ||||
(7708-8008)H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11012-46020 |
2J..JU20 O/S 0.125 |
1 | ||
| 11013-46020 |
2J..JU20 O/S 0.250 |
1 | ||
| 11011-46020 |
2J..JU20 STD |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11705-48012 |
2J..JU20 U/S 0.50 |
1 | ||
| 11706-48012 |
2J..JU20 U/S 0.75 |
1 | ||
| 11702-48012 |
2J..JU20 STD |
1 | ||
| 11704-48012 |
2J..JU20 U/S 0.25 |
1 | ||
| 11703-48012 |
2J..JU20 U/S 0.05 |
1 | ||
| 11707-48012 |
2J..JU20 U/S 1.00 |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-48023 |
2J..JU20 STD |
1 | ||
| 13015-48023 |
2J..JU20 O/S 1.00 |
1 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13085-48014 |
2J..JU20 O/S 1.00 |
1 | ||
| 13081-48014 |
2J..JU20 STD |
1 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-31068 |
2J..JU20 |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-48010 |
2J..JU20 |
6 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73069 |
2J..JU20 |
6 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13202-48010 |
2J..JU20 STD |
1 | ||
| 13205-48010 |
2J..JU20 U/S 0.50 |
1 | ||
| 13203-48010 |
2J..JU20 U/S 0.05 |
1 | ||
| 13207-48010 |
2J..JU20 U/S 1.00 |
1 | ||
| 13204-48010 |
2J..JU20 U/S 0.25 |
1 | ||
| 13206-48010 |
2J..JU20 U/S 0.75 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-49035 |
2J..JU20 |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-11112 |
2J..JU20 |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-49145 |
2J..JU20 N=117 |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90205-08054 |
2J..JU20 L=23,OD=8 |
2 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-12039 |
2J..JU20 *12-1.25PX32-22 |
6 | ||
| 13411 - CRANKSHAFT | ||||
| 13411-48012 |
2J..JU20 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-48010 |
2J..JU20 N=105 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13471-48020 |
2J..JU20 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-05010 |
2J..JU20 |
1 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-46010 |
2J..JU20 N=25 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 90280-05010 |
2J..JU20 |
1 | ||
| 13525 - GEAR, IDLE, NO.1 | ||||
| 13525-46010 |
2J..JU20 N=24 |
1 | ||
| 13572 - PLATE, IDLE GEAR THRUST | ||||
| 13572-48011 |
2J..JU20 |
1 | ||
| 13577A - BOLT, HEXAGON(FOR IDLE GEAR BOLT LOCK) | ||||
| 91611-61045 |
2J..JU20 |
2 | ||
| 13581 - SHAFT, IDLE GEAR, NO.1 | ||||
| 13581-48011 |
2J..JU20 |
1 | ||
| Linked diagrams | ||||
| 3101 | ||||
