JU20-QR3 (1977)
Toyota Dyna/Toyoace
Production
Aug 1977
-
Apr 1979
Engine
2J
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

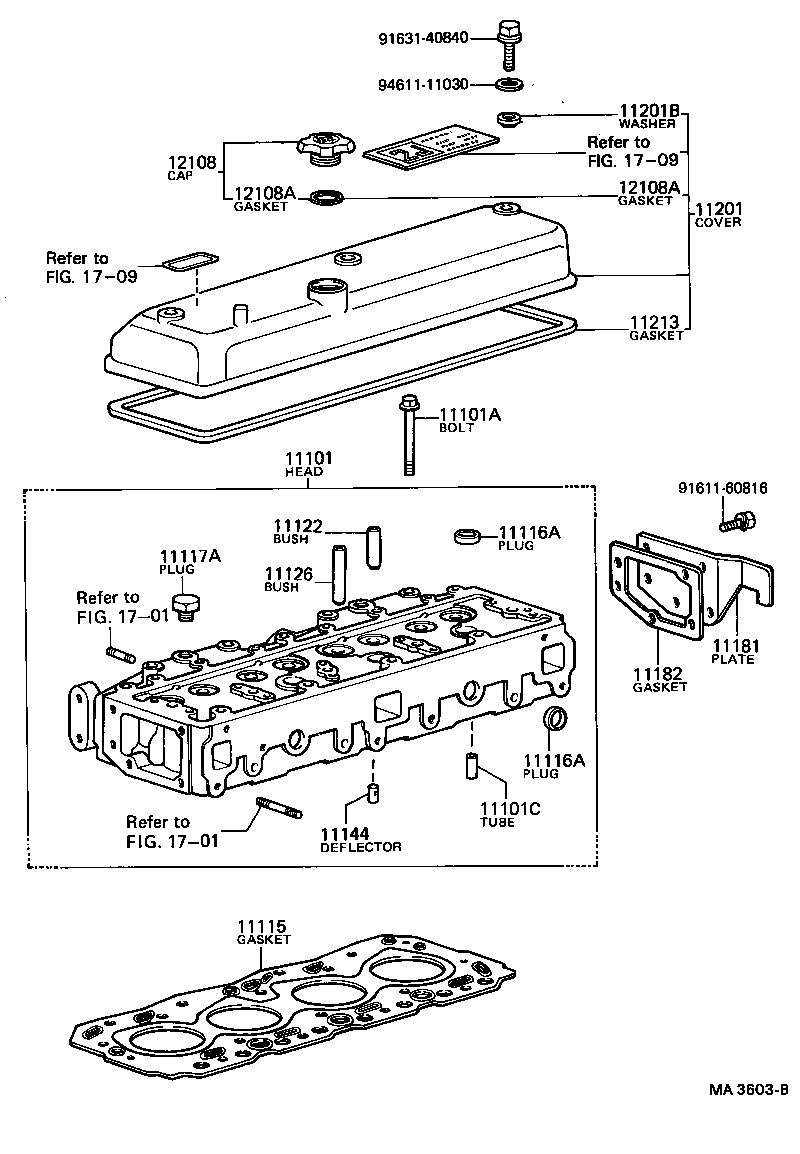

(7708-8008)2J
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-49146 |
2J..JU20 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02049 |
2J..JU20 *12-1.25PX110-25 |
18 | ||
| 11101C - TUBE(FOR CYLINDER HEAD) | ||||
| 90440-15141 |
2J..JU20 |
4 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-48025 |
2J..JU20 |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-43000 |
2J..JU20 OD=30 |
9 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-43000 |
2J..JU20 OD=30 |
9 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-54021 |
2J..JU20 |
1 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-46010 |
2J..JU20 |
6 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11126-46010 |
2J..JU20 |
6 | ||
| 11144 - DEFLECTOR, CYLINDER HEAD WATER, NO.1 | ||||
| 11144-46012 |
2J..JU20 |
1 | ||
| 11181 - PLATE, CYLINDER HEAD, REAR | ||||
| 11181-48010 |
2J..JU20 |
1 | ||
| 11182 - GASKET, CYLINDER HEAD REAR PLATE | ||||
| 11182-48010 |
2J..JU20 |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11211-49035 |
2J..JU20 |
1 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-08007 |
2J..JU20 |
4 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-48011 |
2J..JU20 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12181-12903 |
2J..JU20 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
2J..JU20 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
2J..JU20 |
1 | ||
| Common parts | ||||
| 91611-60816 | ||||
| 91631-40840 | ||||
| 94611-11030 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 1709 | ||||
(7708-8008)H
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-49146 |
2J..JU20 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02049 |
2J..JU20 *12-1.25PX110-25 |
18 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-48025 |
2J..JU20 |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-43000 |
2J..JU20 OD=30 |
9 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-43000 |
2J..JU20 OD=30 |
9 | ||
| 11117A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-54021 |
2J..JU20 |
1 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-46010 |
2J..JU20 |
6 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11126-46010 |
2J..JU20 |
6 | ||
| 11181 - PLATE, CYLINDER HEAD, REAR | ||||
| 11181-48010 |
2J..JU20 |
1 | ||
| 11182 - GASKET, CYLINDER HEAD REAR PLATE | ||||
| 11182-48010 |
2J..JU20 |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11211-49035 |
2J..JU20 |
1 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-08007 |
2J..JU20 |
4 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-48011 |
2J..JU20 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12181-12903 |
2J..JU20 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
2J..JU20 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
2J..JU20 |
1 | ||
| Common parts | ||||
| 91611-60816 | ||||
| 94110-40800 | ||||
| 94612-10800 | ||||
| Linked diagrams | ||||
| 1302 | ||||
| 1701 | ||||
| 1709 | ||||
