JU20-QR (1977)
Toyota Dyna/Toyoace
Production
Aug 1977
-
Apr 1979
Engine
2J
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(7708-8008)H

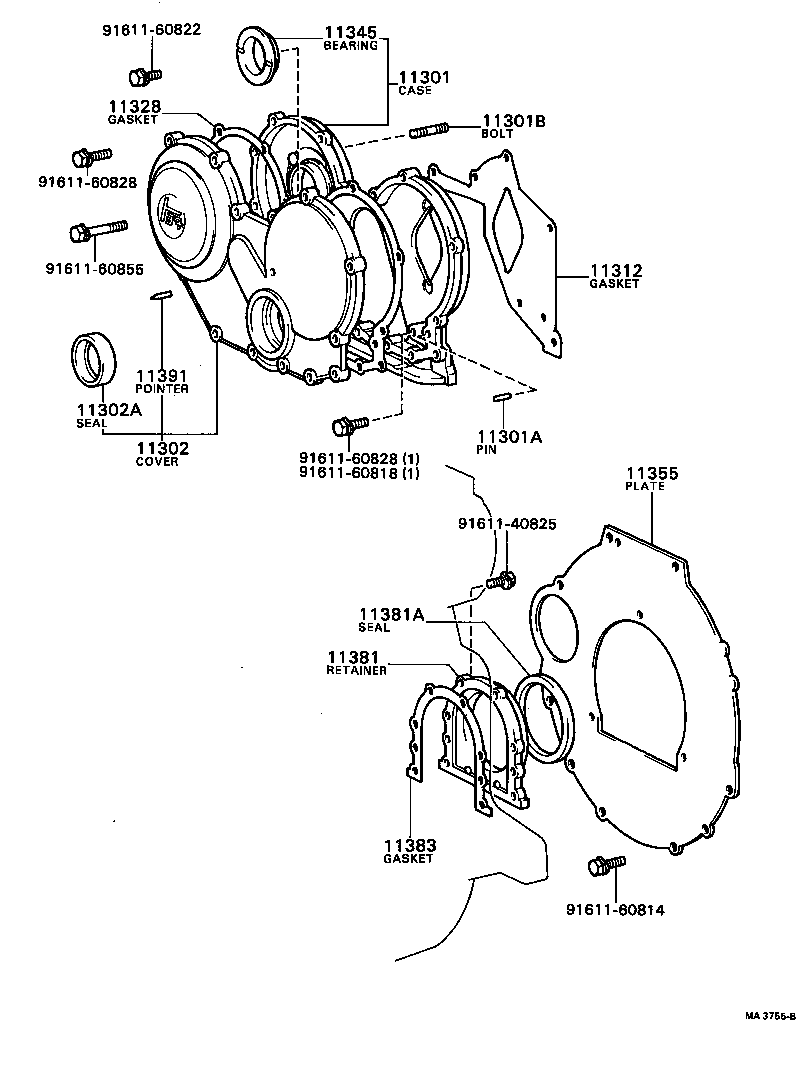

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11301 - CASE SUB-ASSY, TIMING GEAR | ||||
| 11301-48013 |
2J..JU20 |
1 | ||
| 11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE) | ||||
| 90250-08120 |
2J..JU20 長さ=18,外径=8,L=18,OD=8 |
2 | ||
| 11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE) | ||||
| 90250-08120 |
2J..JU20 長さ=18,外径=8,L=18,OD=8 |
2 | ||
| 11301B - BOLT,STUD(FOR TIMING GEAR CASE) | ||||
| 90116-10134 |
2J..JU20 L=39,S=10&20 |
3 | ||
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11302-48011 |
2J..JU20 |
1 | ||
| 11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER) | ||||
| 90311-50049 |
2J..JU20 TC3 50 72 12 |
1 | ||
| 11312 - GASKET, FRONT END PLATE | ||||
| 11312-48011 |
2J..JU20 |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-48010 |
2J..JU20 |
1 | ||
| 11345 - BEARING, INJECTION PUMP GEAR THRUST | ||||
| 11345-48010 |
2J..JU20 |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-47012 |
2J..JU20 |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-95091 |
2J..JU20 |
1 | ||
| 11383 - GASKET, ENGINE REAR OIL SEAL RETAINER | ||||
| 11383-47010 |
2J..JU20 |
1 | ||
| 11391 - POINTER, TIMING | ||||
| 11391-46010 |
2J..JU20 |
1 | ||
| Common parts | ||||
| 91161-51245 | ||||
| 91611-60818 | ||||
| 91611-60822 | ||||
| 91611-60825 | ||||
| 91611-60828 | ||||
| 91611-60855 | ||||
| 91619-61230 | ||||
| 94512-01200 | ||||
| 95381-03018 | ||||
(7708-8008)2J
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11301 - CASE SUB-ASSY, TIMING GEAR | ||||
| 11301-48013 |
2J..JU20 |
1 | ||
| 11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE) | ||||
| 90250-08120 |
2J..JU20 長さ=18,外径=8,L=18,OD=8 |
2 | ||
| 11301B - BOLT,STUD(FOR TIMING GEAR CASE) | ||||
| 90116-10134 |
2J..JU20 L=39,S=10&20 |
3 | ||
| 11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT | ||||
| 11302-48011 |
2J..JU20 |
1 | ||
| 11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER) | ||||
| 90311-50049 |
2J..JU20 TC3 50 72 12 |
1 | ||
| 11312 - GASKET, FRONT END PLATE | ||||
| 11312-48011 |
2J..JU20 |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-48010 |
2J..JU20 |
1 | ||
| 11345 - BEARING, INJECTION PUMP GEAR THRUST | ||||
| 11345-48010 |
2J..JU20 |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-48010 |
2J..JU20 |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-47012 |
2J..JU20 |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-95091 |
2J..JU20 |
1 | ||
| 11383 - GASKET, ENGINE REAR OIL SEAL RETAINER | ||||
| 11383-47010 |
2J..JU20 |
1 | ||
| 11391 - POINTER, TIMING | ||||
| 11391-46010 |
2J..JU20 |
1 | ||
| Common parts | ||||
| 91611-40825 | ||||
| 91611-60814 | ||||
| 91611-60818 | ||||
| 91611-60822 | ||||
| 91611-60828 | ||||
| 91611-60855 | ||||
