HU50-MRDHT3 (1982)
Toyota Dyna/Toyoace
Production
Apr 1982
-
Apr 1983
Engine
2H
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

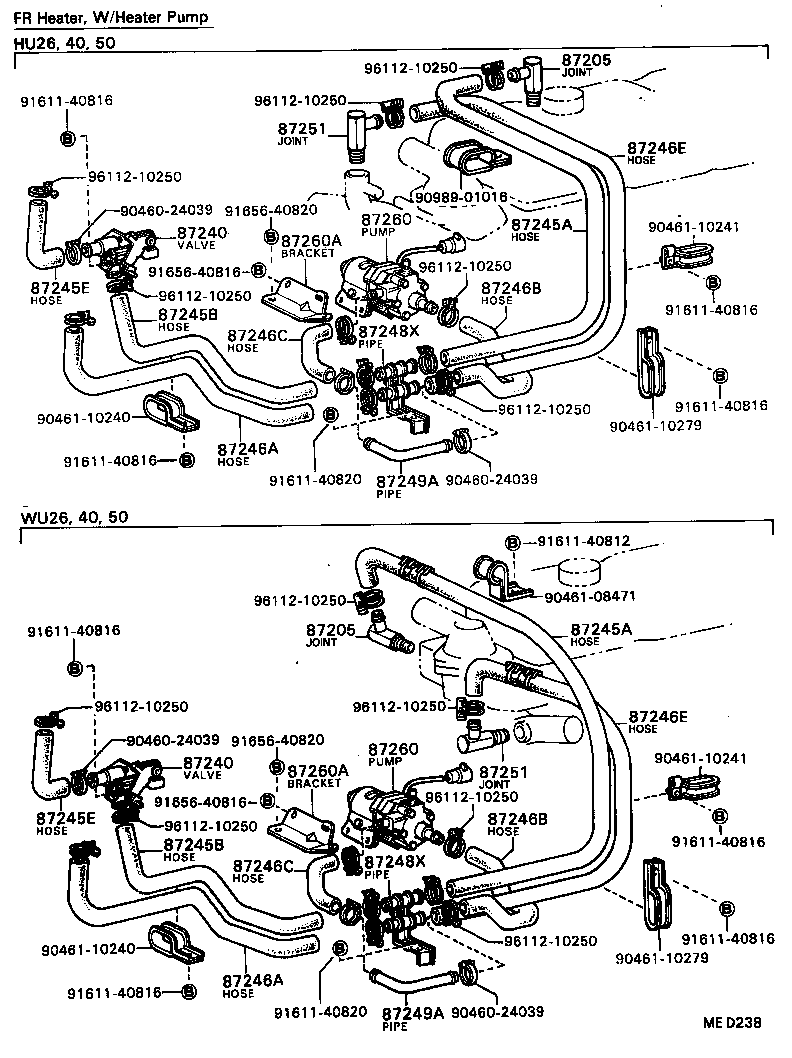

ILLUST NO. 1 OF 2(8204- )HU26,40,50,WU26,40,50
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV | ||||
| 87251-95400 |
RU2#,3# FR HEATER |
1 | ||
| 87251-60010 |
HU26,40,50 FR HEATER |
1 | ||
| 87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV | ||||
| 87251-95400 |
RU2#,3# FR HEATER |
1 | ||
| 87251-60010 |
HU26,40,50 FR HEATER |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-95400 |
HU30,JU20,RU2#,3# |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-95400 |
HU30,JU20,RU2#,3# |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-95426 |
HU26,40,50 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-95426 |
HU26,40,50 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-95405 |
HU26,30,40,50,JU20,RU2#,3#,WU26,40,50 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-95405 |
HU26,30,40,50,JU20,RU2#,3#,WU26,40,50 |
1 | ||
| 87246C - HOSE, HEATER WATER, OUTLET C | ||||
| 87245-95427 |
HU26,40,50 W/HEATER PUMP |
1 | ||
| 87246C - HOSE, HEATER WATER, OUTLET C | ||||
| 87245-95427 |
HU26,40,50 W/HEATER PUMP |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 99552-32000 |
HU26,40,50 *H,L=1120,W/HEATER PUMP |
1 | ||
| 99552-32000 |
HU26,40,50 *H,L=1320 |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 99552-32000 |
HU26,40,50 *H,L=1120,W/HEATER PUMP |
1 | ||
| 99552-32000 |
HU26,40,50 *H,L=1320 |
1 | ||
| Common parts | ||||
| 90460-24039 | ||||
| 90461-08471 | ||||
| 90461-10240 | ||||
| 90461-10241 | ||||
| 90461-10279 | ||||
| 90989-01016 | ||||
| 91611-40812 | ||||
| 91611-40816 | ||||
| 91611-40820 | ||||
| 91656-40816 | ||||
| 91656-40820 | ||||
| 96112-10250 | ||||
