HU30-QRDTY3 (1979)

Toyota Dyna/Toyoace

Production Apr 1979 - Aug 1980
Engine H
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7708-8008)HU30

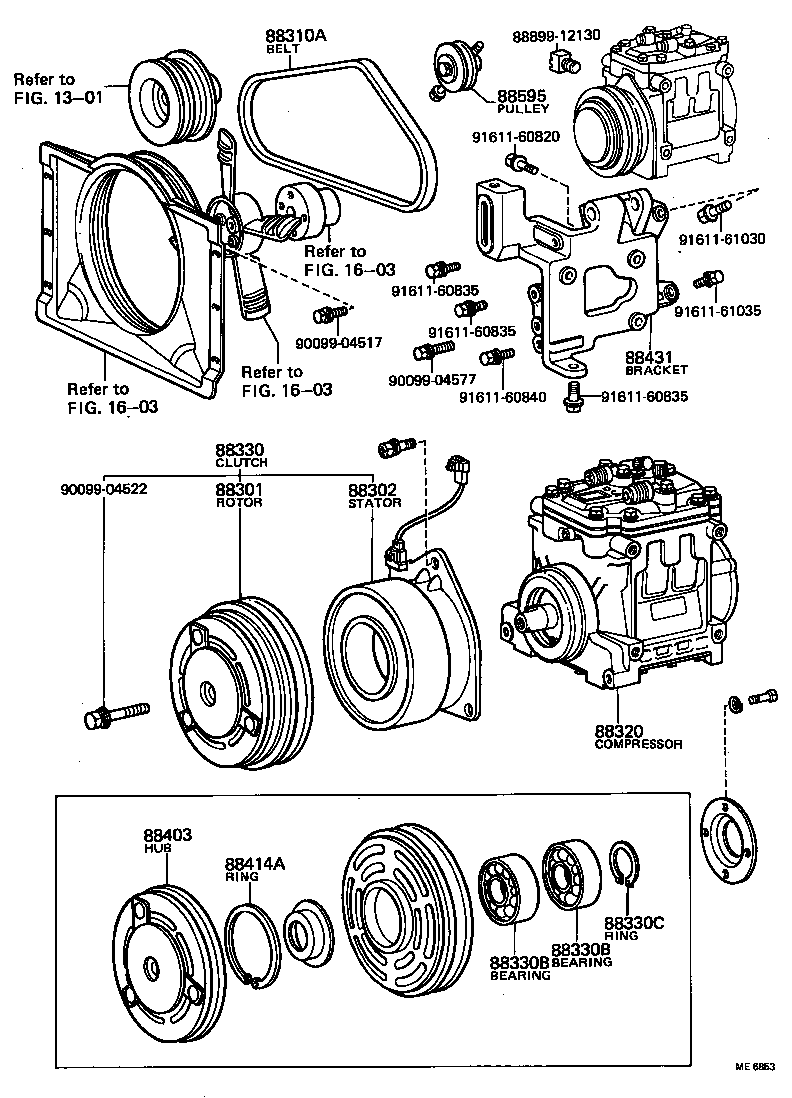

Click highlighted areas on diagram

diagram 1301 1603 1603 1603 88301 88302 88310A 88320 88330 88330B 88330B 88330C 88403 88414A 88431 88595 8889912130 9009904517 9009904522 9009904577 9161160820 9161160835 9161160835 9161160835 9161160840 9161161030 9161161035
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88401-36070

HU30

 1
88401-14040

RU2#,3#

 1
88401-14060

HU30

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-36070

HU30,JU20

24V

 1
88411-12050

JU20,RU2#,3#

12V

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99322-01000

HU30

 1
99322-01050

RU2#,3#

長さ=1050

 1
88320 - COMPRESSOR ASSY, COOLER
88320-37020

HU30,JU20

 1
88320-22110

RU2#,3#

 1
88330 - CLUTCH ASSY, MAGNET
88410-36100

HU30

 1
88410-14050

RU2#,3#

 1
88330B - BEARING, MAGNET CLUTCH
90099-10083

HU30,JU20,RU2#,3#

 2
88330B - BEARING, MAGNET CLUTCH
90099-10083

HU30,JU20,RU2#,3#

 2
88330C - RING, SNAP (FOR MAGNET CLUTCH)
90096-90015

HU30

 1
90096-90007

RU2#,3#

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-20031

HU30,JU20,RU2#,3#

 1
88414A - RING, SHIELD SNAP
90096-90005

HU30,JU20,RU2#,3#

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-36090

RU2#,3#

 1
88431-36120

HU30

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-30250

HU30,JU20,RU20,30

 1
88440-30250

HU30,JU20,RU20,30

 1
Common parts
88899-12130
90099-04517
90099-04522
90099-04577
91611-60820
91611-60835
91611-60840
91611-61030
91611-61035
