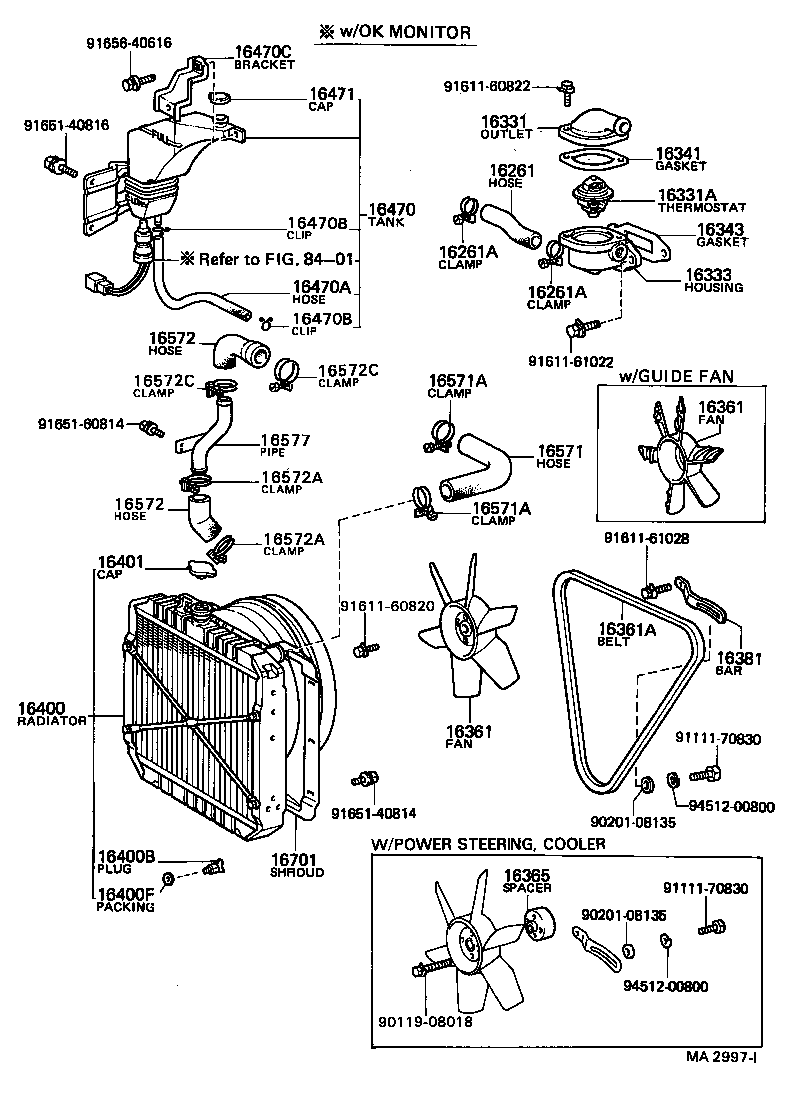

HU30-QRDTY3 (1979)
Toyota Dyna/Toyoace
(7708-8008)H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 90910-06014 |
H..HU30 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10270 |
H..HU30 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10270 |
H..HU30 |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-56010 |
H..HU30 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03026 |
H..HU30 *WAX 82−95,*(F) |
1 | ||
| 90916-03050 |
H..HU30 COLD SPEC,*WAX 88-100,KUZEH |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-47012 |
H..HU30 |
1 | ||
| 16333-47011 |
H..HU30 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-51010 |
H..HU30 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-47010 |
H..HU30 |
1 | ||
| 16361 - FAN | ||||
| 16361-56040 |
H..HU30 W/COOLER,6 BLADES,OD=410 |
1 | ||
| 16361-47010 |
H..HU30 6 BLADES,OD=410 |
1 | ||
| 16361 - FAN | ||||
| 16361-56040 |
H..HU30 W/COOLER,6 BLADES,OD=410 |
1 | ||
| 16361-47010 |
H..HU30 6 BLADES,OD=410 |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 90916-02030 |
H..HU30 |
1 | ||
| 16365 - SPACER, FAN | ||||
| 16365-47010 |
H..HU30 W/COOLER |
1 | ||
| 16365-48010 |
H..HU30 W/PS |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-47012 |
H..HU30 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-47041 |
H..HU30 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-24200 |
H,2H..HU26,30,40,50 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
H,2H..HU26,30,40,50 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-41020 |
H..HU30 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-48040 |
H..HU30 W/O OK MONITOR |
1 | ||
| 16470-48050 |
H..HU30 W/OK MONITOR |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12005 |
H..HU30 *H,L=550 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
H,2H..HU26,30,40,50 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
H,2H..HU26,30,40,50 |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16611-48030 |
H..HU30 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-34030 |
H..HU30 |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-47020 |
H..HU30 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96111-10500 |
H..HU30 ID=50 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96111-10500 |
H..HU30 ID=50 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-47010 |
H..HU30 PUMP SIDE |
1 | ||
| 16573-47010 |
H..HU30 RADIATOR SIDE |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-47010 |
H..HU30 PUMP SIDE |
1 | ||
| 16573-47010 |
H..HU30 RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10500 |
H..HU30 RADIATOR SIDE |
2 | ||
| 96111-10560 |
H..HU30 WATER PUMP SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10500 |
H..HU30 RADIATOR SIDE |
2 | ||
| 96111-10560 |
H..HU30 WATER PUMP SIDE |
1 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 96111-10560 |
H..HU30 PIPE SIDE |
1 | ||
| 96111-10500 |
H..HU30 ID=50 |
1 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 96111-10560 |
H..HU30 PIPE SIDE |
1 | ||
| 96111-10500 |
H..HU30 ID=50 |
1 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16507-47020 |
H..HU30 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16701-47010 |
H..HU30 |
1 | ||
| 16701-47020 |
H..HU30 W/COOLER |
1 | ||
| Common parts | ||||
| 90119-08018 | ||||
| 90201-08135 | ||||
| 91111-70830 | ||||
| 91611-60820 | ||||
| 91611-60822 | ||||
| 91611-61022 | ||||
| 91611-61028 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91651-60814 | ||||
| 91656-40616 | ||||
| 94512-00800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
