BZU600A-TYMMP5 (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - Sep 9999
Engine 1BZFPE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )BZU600

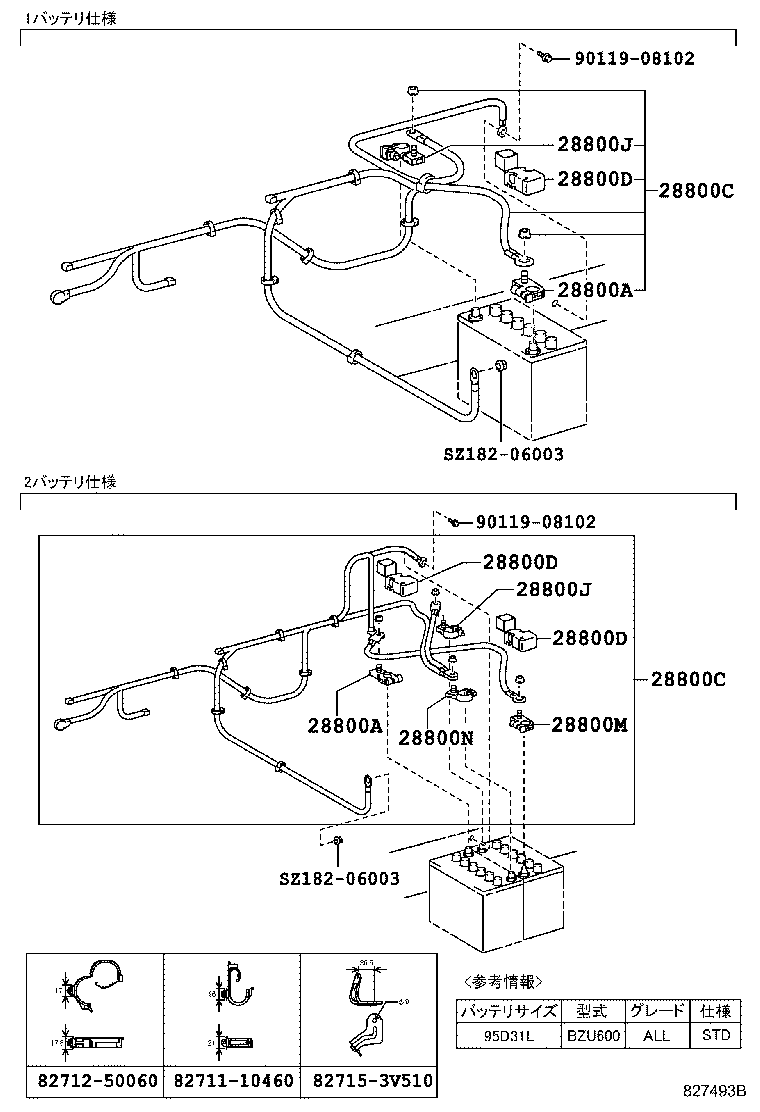

Click highlighted areas on diagram

diagram 28800A 28800A 28800C 28800C 28800D 28800D 28800D 28800J 28800J 28800M 28800N 8271110460 8271250060 827153V510 9011908102 9011908102 SZ18206003 SZ18206003
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05065

1BZFPE..BZU600..DM6,T4

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05065

1BZFPE..BZU600..DM6,T4

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82122-37J20

1BZFPE..BZU600..DM6,T4

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82122-37J20

1BZFPE..BZU600..DM6,T4

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-37071

1BZFPE..BZU600..DM6,T4

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-37071

1BZFPE..BZU600..DM6,T4

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-37071

1BZFPE..BZU600..DM6,T4

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06056

1BZFPE..BZU600

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06056

1BZFPE..BZU600

 1
Common parts
82711-10460
82712-50060
82715-3V510
90119-08102
SZ182-06003
