Toyota Dyna/toyoace BZU600 HEATING & AIR CONDITIONING - COMPRESSOR

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
BZU600-TQMQP3 (2011)
8719 - HEATING & AIR CONDITIONING - COMPRESSOR

BZU600-TQMQP3 (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - Sep 9999

Engine 1BZFPE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

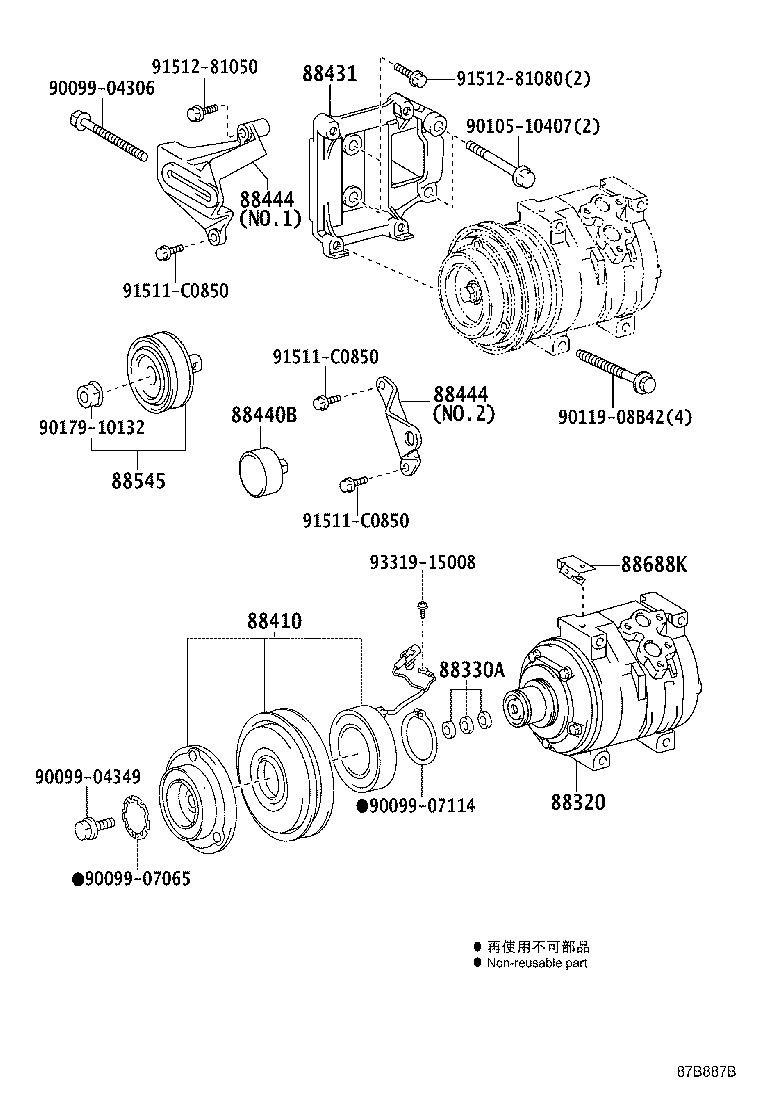

(1107- )BZU600

Click highlighted areas on diagram

Part #	Description	Period	Qty
88320 - COMPRESSOR ASSY, COOLER
88320-37070	BZU600	07/2011 - 12/2999	1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020	BZU600	07/2011 - 12/2999	1
88410 - CLUTCH ASSY, MAGNET
88410-37100	BZU600	07/2011 - 12/2999	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-37090	BZU600	07/2011 - 12/2999	1
88440B - PULLEY ASSY, IDLE
88440-26070	BZU600	07/2011 - 12/2999	1
88444 - BRACKET, IDLE PULLEY
88444-37040	BZU600 NO.2	07/2011 - 12/2999	1
88444-37060	BZU600..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)	07/2011 - 12/2999	1
88444-37060	BZU600..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)	07/2011 - 12/2999	1
88444-37030	BZU600 NO.1	07/2011 - 12/2999	1
88444 - BRACKET, IDLE PULLEY
88444-37040	BZU600 NO.2	07/2011 - 12/2999	1
88444-37060	BZU600..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)	07/2011 - 12/2999	1
88444-37060	BZU600..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)	07/2011 - 12/2999	1
88444-37030	BZU600 NO.1	07/2011 - 12/2999	1
88545 - PULLEY ASSY, IDLE
88440-26090	BZU600	07/2011 - 12/2999	1
88688K - BRACKET, COOLER COMPRESSOR
88688-2D770	BZU600	07/2011 - 12/2999	1
Common parts
90099-04306
90099-04349
90099-07065
90099-07114
90105-10407
90119-08B42
90179-10132
91511-C0850
91512-81050
91512-81080
93319-15008

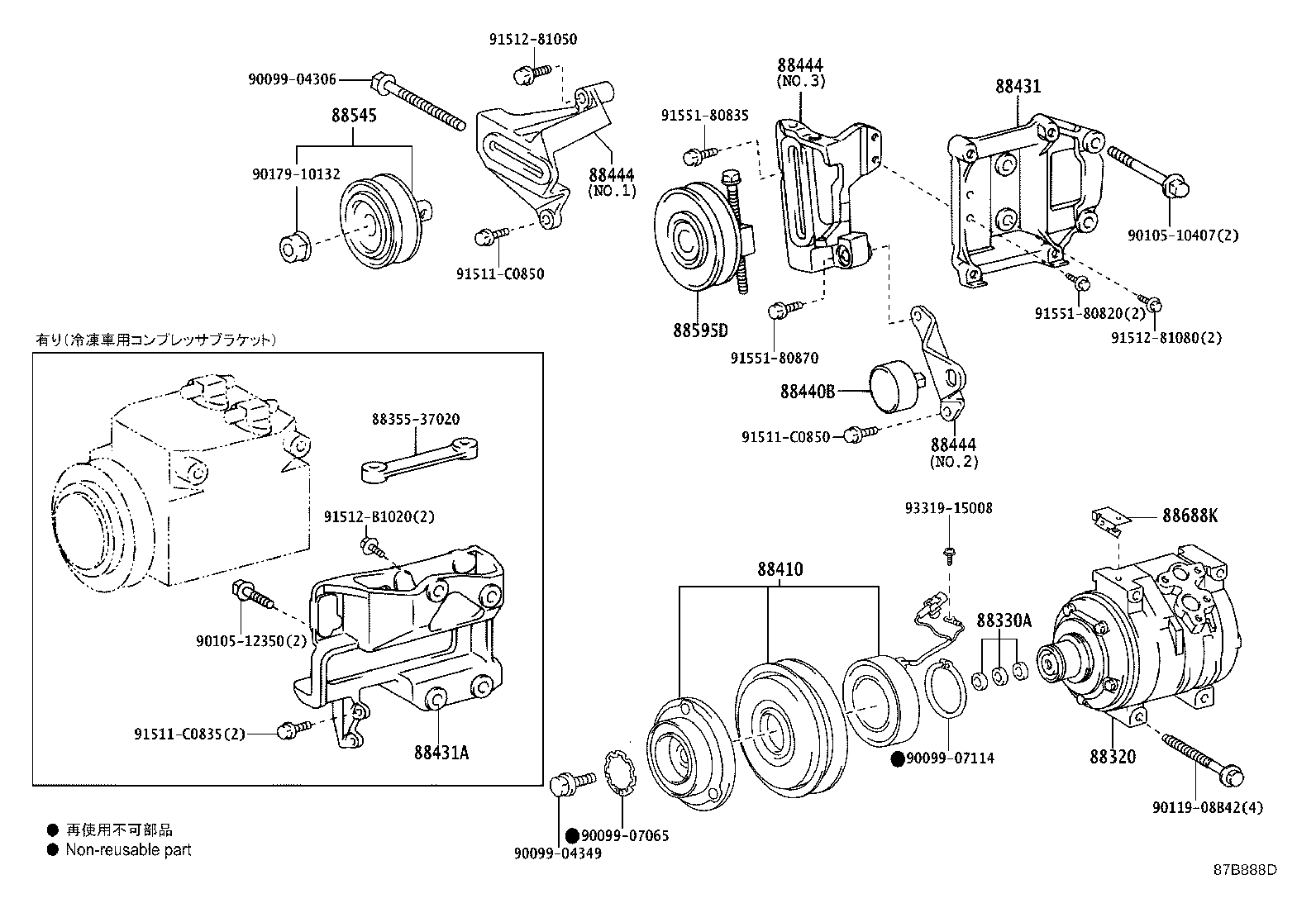

(1107- )BZU600

Click highlighted areas on diagram

ﾚｲﾄｳｼｬ

Part #	Description	Period	Qty
88320 - COMPRESSOR ASSY, COOLER
88320-37070	BZU600	07/2011 - 12/2999	1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020	BZU600	07/2011 - 12/2999	1
88410 - CLUTCH ASSY, MAGNET
88410-37100	BZU600	07/2011 - 12/2999	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-37090	BZU600	07/2011 - 12/2999	1
88431A - BRACKET, COMPRESSOR MOUNTING, NO.2
88345-37010	BZU600..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)	07/2011 - 12/2999	1
88440B - PULLEY ASSY, IDLE
88440-26070	BZU600	07/2011 - 12/2999	1
88444 - BRACKET, IDLE PULLEY
88444-37040	BZU600 NO.2	07/2011 - 12/2999	1
88444-37060	BZU600..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)	07/2011 - 12/2999	1
88444-37060	BZU600..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)	07/2011 - 12/2999	1
88444-37030	BZU600 NO.1	07/2011 - 12/2999	1
88444 - BRACKET, IDLE PULLEY
88444-37040	BZU600 NO.2	07/2011 - 12/2999	1
88444-37060	BZU600..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)	07/2011 - 12/2999	1
88444-37060	BZU600..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)	07/2011 - 12/2999	1
88444-37030	BZU600 NO.1	07/2011 - 12/2999	1
88444 - BRACKET, IDLE PULLEY
88444-37040	BZU600 NO.2	07/2011 - 12/2999	1
88444-37060	BZU600..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)	07/2011 - 12/2999	1
88444-37060	BZU600..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)	07/2011 - 12/2999	1
88444-37030	BZU600 NO.1	07/2011 - 12/2999	1
88545 - PULLEY ASSY, IDLE
88440-26090	BZU600	07/2011 - 12/2999	1
88595D - PULLEY ASSY, IDLE
88440-37011	BZU600..IV3 冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)	07/2011 - 12/2999	1
88440-37011	BZU600..IV3 冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)	07/2011 - 12/2999	1
88688K - BRACKET, COOLER COMPRESSOR
88688-2D770	BZU600	07/2011 - 12/2999	1
Common parts
88355-37020
90099-04306
90099-04349
90099-07065
90099-07114
90105-10407
90105-12350
90119-08B42
90179-10132
91511-C0835
91511-C0850
91512-81050
91512-81080
91512-B1020
91551-80820
91551-80835
91551-80870
93319-15008

BZU600-TQMQP3 (2011)

(1107- )BZU600

(1107- )BZU600
