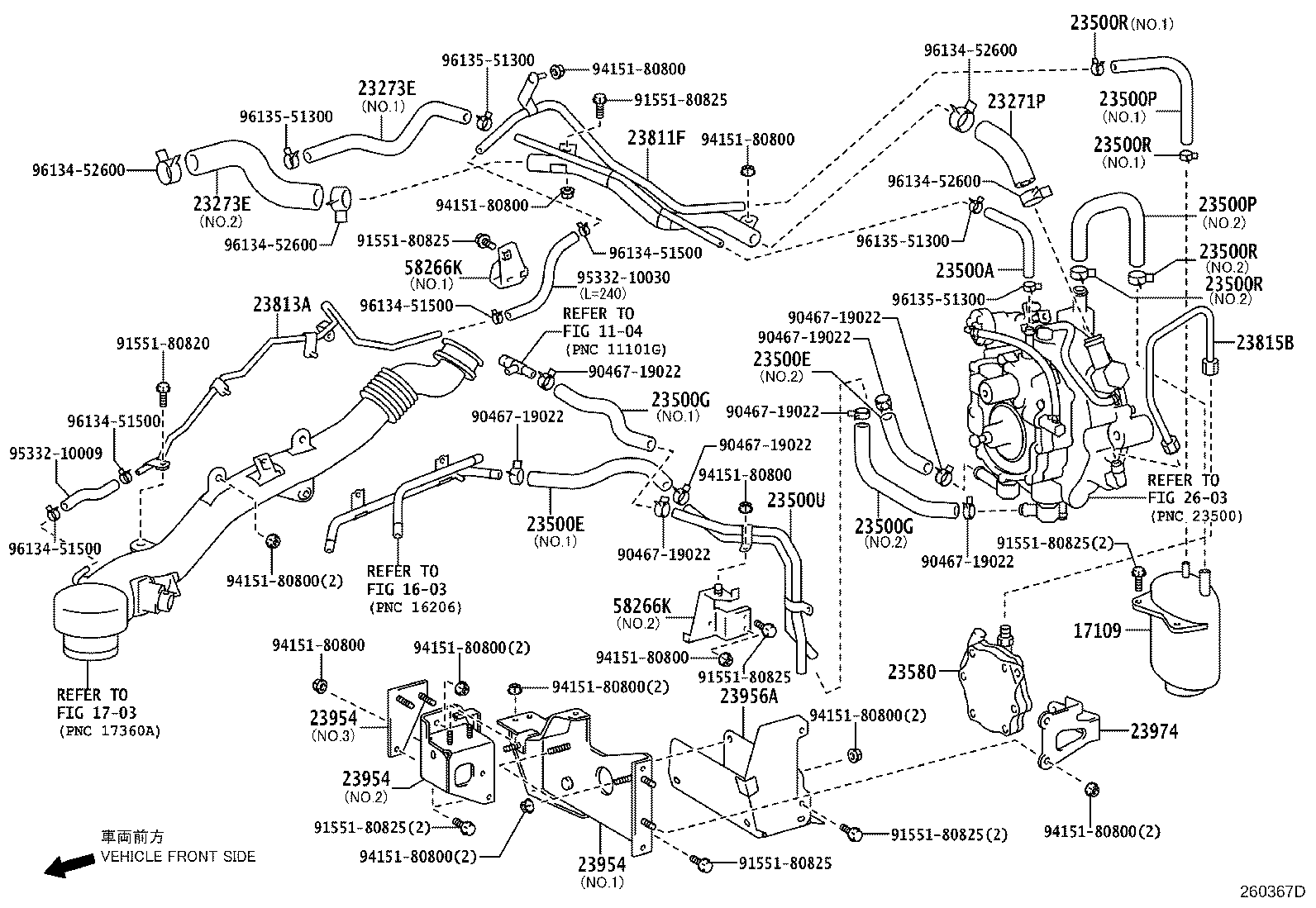

Toyota Dyna/toyoace BZU600 LPG(CARBURETOR) FUEL PIPE

Part #	Description	Period	Qty
17109 - TANK SUB-ASSY, INTAKE AIR SURGE
17109-58010	1BZFPE..BZU600	07/2011 - 12/2999	1
23271P - HOSE, FUEL, NO.1(FOR REGULATOR TO FUEL PIPE)
23271-75050	1BZFPE..BZU600	07/2011 - 12/2999	1
23273E - HOSE, FUEL, NO.3(FOR LPG REGULATOR TO LPG CARBURETOR)
23273-78170	1BZFPE..BZU600 NO.2	07/2011 - 12/2999	1
23273-78161	1BZFPE..BZU600 NO.1	07/2011 - 08/2014	1
23273-78162	1BZFPE..BZU600 NO.1	09/2014 - 12/2999	1
23273E - HOSE, FUEL, NO.3(FOR LPG REGULATOR TO LPG CARBURETOR)
23273-78170	1BZFPE..BZU600 NO.2	07/2011 - 12/2999	1
23273-78161	1BZFPE..BZU600 NO.1	07/2011 - 08/2014	1
23273-78162	1BZFPE..BZU600 NO.1	09/2014 - 12/2999	1
23500A - HOSE, NO.1(FOR LPG REGULATOR TO LPG CARBURETOR)
23271-78140	1BZFPE..BZU600	07/2011 - 12/2999	1
23500E - HOSE, WATER(FOR LPG REGULATOR INLET)
16267-78010	1BZFPE..BZU600 NO.2	07/2011 - 12/2999	1
16281-78010	1BZFPE..BZU600 NO.1	07/2011 - 12/2999	1
23500E - HOSE, WATER(FOR LPG REGULATOR INLET)
16267-78010	1BZFPE..BZU600 NO.2	07/2011 - 12/2999	1
16281-78010	1BZFPE..BZU600 NO.1	07/2011 - 12/2999	1
23500G - HOSE, WATER(FOR LPG REGULATOR OUTLET)
16264-78011	1BZFPE..BZU600 NO.2	07/2011 - 12/2999	1
16261-78020	1BZFPE..BZU600 NO.1	07/2011 - 12/2999	1
23500G - HOSE, WATER(FOR LPG REGULATOR OUTLET)
16264-78011	1BZFPE..BZU600 NO.2	07/2011 - 12/2999	1
16261-78020	1BZFPE..BZU600 NO.1	07/2011 - 12/2999	1
23500P - HOSE, NO.2(FOR LPG REGULATOR TO LPG CARBURETOR)
23273-78180	1BZFPE..BZU600 NO.1	07/2011 - 12/2999	1
23273-78190	1BZFPE..BZU600 NO.2	07/2011 - 12/2999	1
23500P - HOSE, NO.2(FOR LPG REGULATOR TO LPG CARBURETOR)
23273-78180	1BZFPE..BZU600 NO.1	07/2011 - 12/2999	1
23273-78190	1BZFPE..BZU600 NO.2	07/2011 - 12/2999	1
23500R - CLAMP OR CLIP, NO.2(FOR LPG REGULATOR TO LPG CARBURETOR
96134-51500	1BZFPE..BZU600 NO.1	07/2011 - 12/2999	2
90467-19022	1BZFPE..BZU600 NO.2	07/2011 - 12/2999	2
23500R - CLAMP OR CLIP, NO.2(FOR LPG REGULATOR TO LPG CARBURETOR
96134-51500	1BZFPE..BZU600 NO.1	07/2011 - 12/2999	2
90467-19022	1BZFPE..BZU600 NO.2	07/2011 - 12/2999	2
23500R - CLAMP OR CLIP, NO.2(FOR LPG REGULATOR TO LPG CARBURETOR
96134-51500	1BZFPE..BZU600 NO.1	07/2011 - 12/2999	2
90467-19022	1BZFPE..BZU600 NO.2	07/2011 - 12/2999	2
23500R - CLAMP OR CLIP, NO.2(FOR LPG REGULATOR TO LPG CARBURETOR
96134-51500	1BZFPE..BZU600 NO.1	07/2011 - 12/2999	2
90467-19022	1BZFPE..BZU600 NO.2	07/2011 - 12/2999	2
23500U - PIPE, WATER BY-PASS, NO.2(FOR LPG)
16278-78011	1BZFPE..BZU600	07/2011 - 12/2999	1
23580 - PREHEATER ASSY, LPG
23587-75040	1BZFPE..BZU600	07/2011 - 12/2999	1
23811F - PIPE, FUEL, NO.1
23813-78021	1BZFPE..BZU600	07/2011 - 12/2999	1
23813A - PIPE, LPG FUEL
23813-58021	1BZFPE..BZU600	07/2011 - 12/2999	1
23815B - PIPE, FUEL, NO.3
23813-78030	1BZFPE..BZU600	07/2011 - 12/2999	1
23954 - BRACKET, LPG REGULATOR
23954-78021	1BZFPE..BZU600 NO.2	07/2011 - 12/2999	1
23954-78010	1BZFPE..BZU600 NO.1	07/2011 - 12/2999	1
23954-78030	1BZFPE..BZU600 NO.3	07/2011 - 12/2999	1
23954 - BRACKET, LPG REGULATOR
23954-78021	1BZFPE..BZU600 NO.2	07/2011 - 12/2999	1
23954-78010	1BZFPE..BZU600 NO.1	07/2011 - 12/2999	1
23954-78030	1BZFPE..BZU600 NO.3	07/2011 - 12/2999	1
23954 - BRACKET, LPG REGULATOR
23954-78021	1BZFPE..BZU600 NO.2	07/2011 - 12/2999	1
23954-78010	1BZFPE..BZU600 NO.1	07/2011 - 12/2999	1
23954-78030	1BZFPE..BZU600 NO.3	07/2011 - 12/2999	1
23956A - COVER, LPG REGULATOR
23956-78010	1BZFPE..BZU600	07/2011 - 12/2999	1
23974 - BRACKET, PREHEATER
23974-78010	1BZFPE..BZU600	07/2011 - 12/2999	1
58266K - BRACKET, FUEL TUBE CLAMP
58266-37210	BZU600 NO.1	07/2011 - 12/2999	1
58266-37220	BZU600 NO.2	07/2011 - 12/2999	1
58266K - BRACKET, FUEL TUBE CLAMP
58266-37210	BZU600 NO.1	07/2011 - 12/2999	1
58266-37220	BZU600 NO.2	07/2011 - 12/2999	1
Common parts
90467-19022
91551-80820
91551-80825
94151-80800
95332-10009
95332-10030
96134-51500
96134-52600
96135-51300
Linked diagrams
1104
1603
1703
2603

BZU600-TQMQP3 (2011)

(1107- )1BZFPE
