BZU600-TQMQP3 (2011)
Toyota Dyna/Toyoace
Production
Jul 2011
-
Sep 9999
Engine
1BZFPE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1107- )1BZFPE

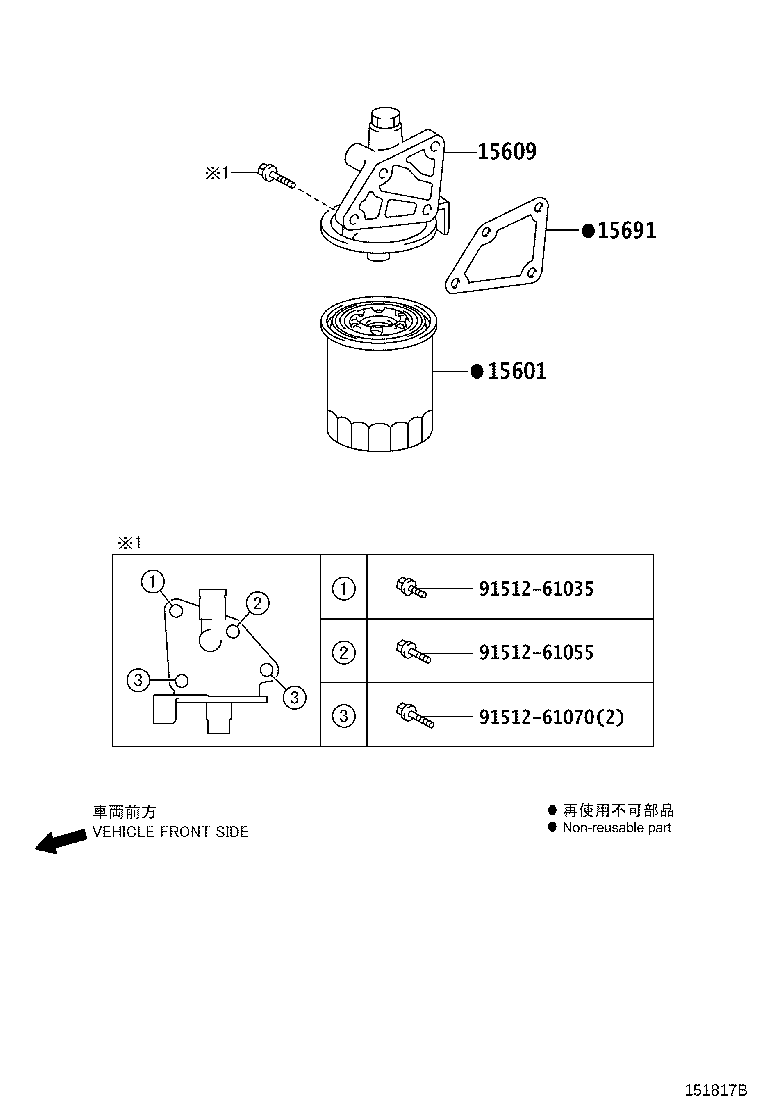

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15601 - FILTER SUB-ASSY, OIL | ||||
| 90915-30002 |
1BZFPE..BZU600 |
1 | ||
| 15609 - BRACKET SUB-ASSY, OIL FILTER | ||||
| 15609-56060 |
1BZFPE..BZU600 |
1 | ||
| 15691 - GASKET, OIL FILTER | ||||
| 15691-56041 |
1BZFPE..BZU600 |
1 | ||
| Common parts | ||||
| 91512-61035 | ||||
| 91512-61055 | ||||
| 91512-61070 | ||||
