BZU600-TQMQP (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - Sep 9999
Engine 1BZFPE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )1BZFPE

Click highlighted areas on diagram

12V 150A

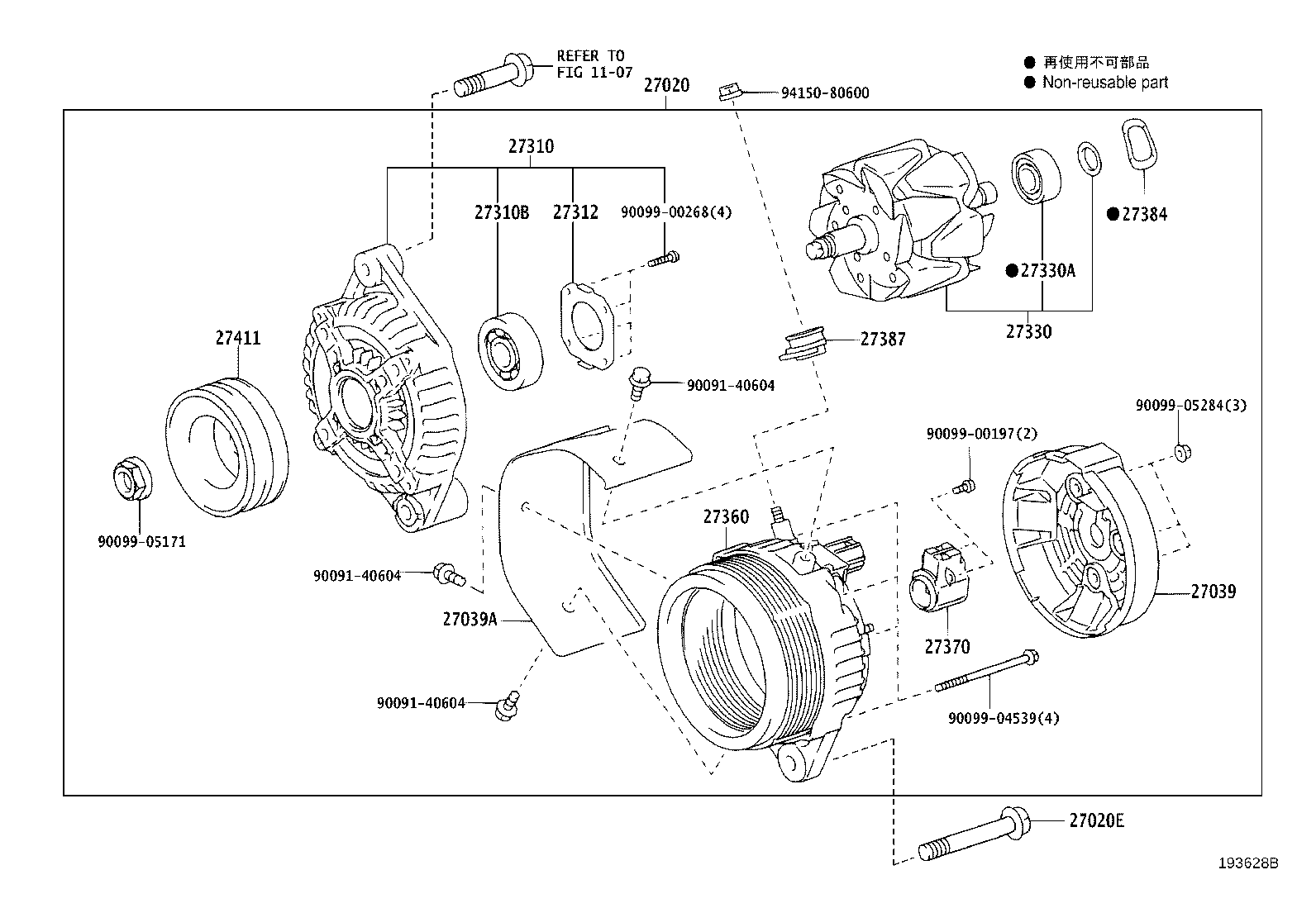

diagram 1107 27020 27020E 27039 27039A 27310 27310B 27312 27330 27330A 27360 27370 27384 27387 27411 9009140604 9009140604 9009140604 9009900197 9009900268 9009904539 9009905171 9009905284 9415080600
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-58440

1BZFPE..BZU600

12V 150A

 1
27020E - BOLT(FOR ALTERNATOR)
90148-10001

1BZFPE..BZU600

 1
27039 - COVER, ALTERNATOR REAR END
27039-50370

1BZFPE..BZU600

 1
27039A - COVER, ALTERNATOR REAR END, NO.2
27041-58460

1BZFPE..BZU600

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-58460

1BZFPE..BZU600

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10223

1BZFPE..BZU600

 1
27312 - PLATE, RETAINER
27312-72100

1BZFPE..BZU600

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-58460

1BZFPE..BZU600

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-00197

1BZFPE..BZU600

 2
27360 - COIL ASSY, ALTERNATOR
27360-58460

1BZFPE..BZU600

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-58460

1BZFPE..BZU600

 1
27384 - WASHER
27384-50030

1BZFPE..BZU600

 1
27387 - INSULATOR, TERMINAL
27387-20130

1BZFPE..BZU600

 1
27411 - PULLEY, ALTERNATOR
27411-58460

1BZFPE..BZU600

 1
Common parts
90091-40604
90099-00197
90099-00268
90099-04539
90099-05171
90099-05284
94150-80600
Linked diagrams
1107

(1107- )N04C..XZU600..5F..20T..IV6 ; (1107-)N04C..XZU685..SCB..DCRTJ,DCRTK ;

Click highlighted areas on diagram

24V 80A

diagram 27020 27020E 27352 27370 27387 27411 9415180600 S273171580 S273911110 S282311210
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-58440

1BZFPE..BZU600

12V 150A

 1
27060-58440

1BZFPE..BZU600

12V 150A

 1
27060-58440

1BZFPE..BZU600

12V 150A

 1
27060-58440

1BZFPE..BZU600

12V 150A

 1
27020E - BOLT(FOR ALTERNATOR)
90148-10001

1BZFPE..BZU600

 1
90148-10001

1BZFPE..BZU600

 1
90148-10001

1BZFPE..BZU600

 1
90148-10001

1BZFPE..BZU600

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-58460

1BZFPE..BZU600

 1
27370-58460

1BZFPE..BZU600

 1
27370-58460

1BZFPE..BZU600

 1
27370-58460

1BZFPE..BZU600

 1
27387 - INSULATOR, TERMINAL
27387-20130

1BZFPE..BZU600

 1
27387-20130

1BZFPE..BZU600

 1
27387-20130

1BZFPE..BZU600

 1
27387-20130

1BZFPE..BZU600

 1
27411 - PULLEY, ALTERNATOR
27411-58460

1BZFPE..BZU600

 1
27411-58460

1BZFPE..BZU600

 1
27411-58460

1BZFPE..BZU600

 1
27411-58460

1BZFPE..BZU600

 1
Common parts
94151-80600
S2731-71580
S2739-11110
S2823-11210
