BZU600-TQMMP3 (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - Sep 9999
Engine 1BZFPE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

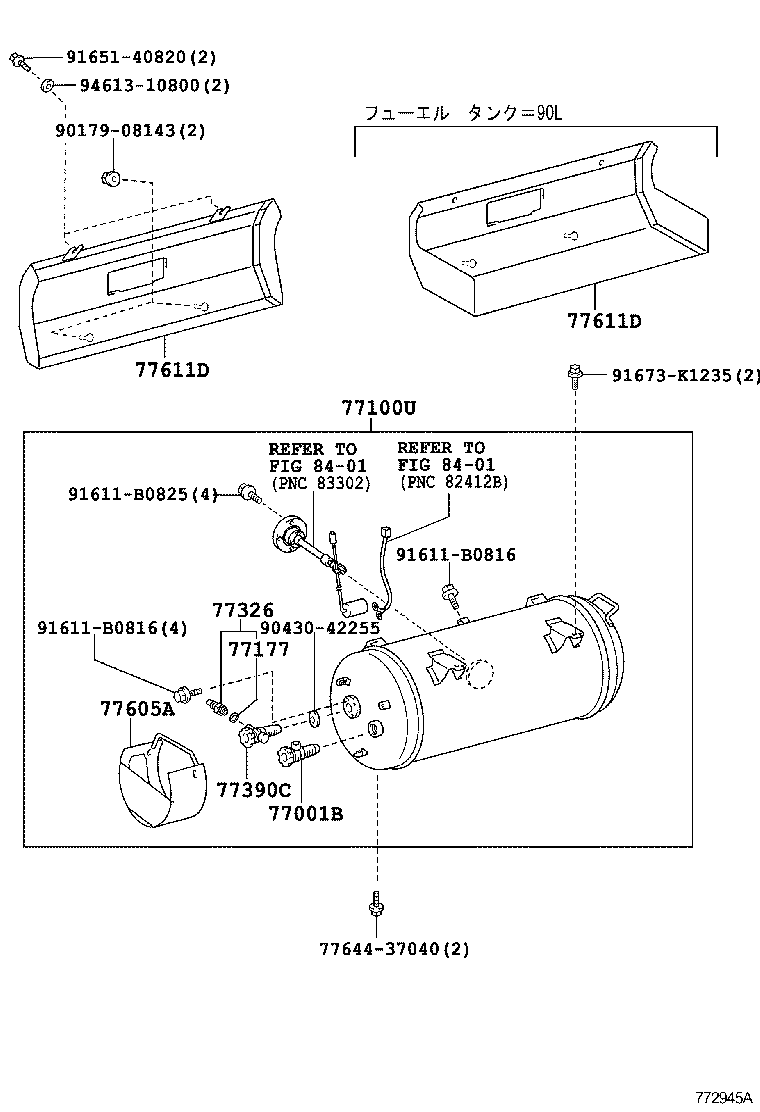

ILLUST NO. 1 OF 3(1107- )BZU600

Click highlighted areas on diagram

ﾌｭｰｴﾙﾀﾝｸ

diagram 77001B 77100U 77177 77326 77390C 77605A 77611D 77611D 7764437040 8401 8401 9017908143 9043042255 91611B0816 91611B0816 91611B0825 9165140820 91673K1235 9461310800
Part # Description Qty Price
77001B - VALVE (FOR LPG TANK)
90977-01024

BZU600

 1
77100U - TANK SUB-ASSY, FUEL
77001-37590

BZU600..T4..20T

 1
77001-37591

BZU600..T4..20T

 1
77177 - GASKET, CHECK VALVE
77177-25030

BZU600

 1
77326 - CONNECTOR, AUXILIARY FUEL TANK CAP
77326-36010

BZU600

 1
77390C - VALVE, FUEL TANK INLET
90977-01016

BZU600

 1
77605A - COVER SUB-ASSY, FUEL TANK VALVE HANDLE
77605-25010

BZU600

 1
77611D - COVER, FUEL TANK, RH
77611-37030

BZU600..T4..20T

 1
77611D - COVER, FUEL TANK, RH
77611-37030

BZU600..T4..20T

 1
Common parts
77644-37040
90179-08143
90430-42255
91611-B0816
91611-B0825
91651-40820
91673-K1235
94613-10800
Linked diagrams
8401

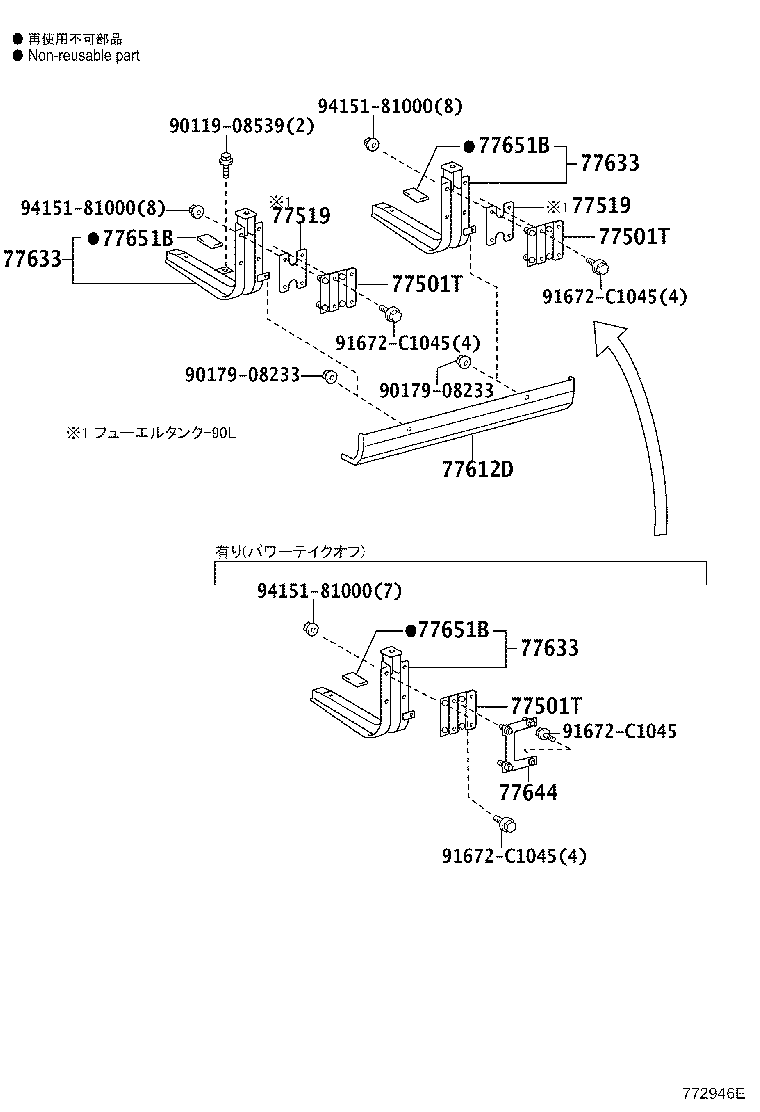

ILLUST NO. 2 OF 3(1107- )BZU600

Click highlighted areas on diagram

ﾌｭｰｴﾙﾀﾝｸｽﾃｰ

diagram 77501T 77501T 77501T 77519 77519 77612D 77633 77633 77633 77644 77651B 77651B 77651B 9011908539 9017908233 9017908233 91672C1045 91672C1045 91672C1045 91672C1045 9415181000 9415181000 9415181000
Part # Description Qty Price
77501T - BRACKET SUB-ASSY, FUEL TANK
77501-37150

BZU600

 2
77501-37151

BZU600

 2
77501T - BRACKET SUB-ASSY, FUEL TANK
77501-37150

BZU600

 2
77501-37151

BZU600

 2
77501T - BRACKET SUB-ASSY, FUEL TANK
77501-37150

BZU600

 2
77501-37151

BZU600

 2
77519 - SPACER, FUEL TANK BRACKET
77519-37110

BZU600..T4..20T

 2
77519 - SPACER, FUEL TANK BRACKET
77519-37110

BZU600..T4..20T

 2
77612D - COVER, FUEL TANK, LH
77612-37050

BZU600..T4..20T

 1
77633 - STAY, FUEL TANK
77609-37041

BZU600..T4..20T

 2
77633 - STAY, FUEL TANK
77609-37041

BZU600..T4..20T

 2
77633 - STAY, FUEL TANK
77609-37041

BZU600..T4..20T

 2
77644 - BOLT, FUEL TANK
77644-37101

BZU600..CBU,IV3

ﾊﾟﾜｰﾃｲｸｵﾌ−ﾊﾞｷｭｰﾑ式 25KG

 1
77644-37102

BZU600..CBU,IV3

ﾊﾟﾜｰﾃｲｸｵﾌ−ﾊﾞｷｭｰﾑ式 25KG

 1
77651B - CUSHION, FUEL TANK
77651-36120

BZU600

 4
77651B - CUSHION, FUEL TANK
77651-36120

BZU600

 4
77651B - CUSHION, FUEL TANK
77651-36120

BZU600

 4
Common parts
90119-08539
90179-08233
91672-C1045
94151-81000

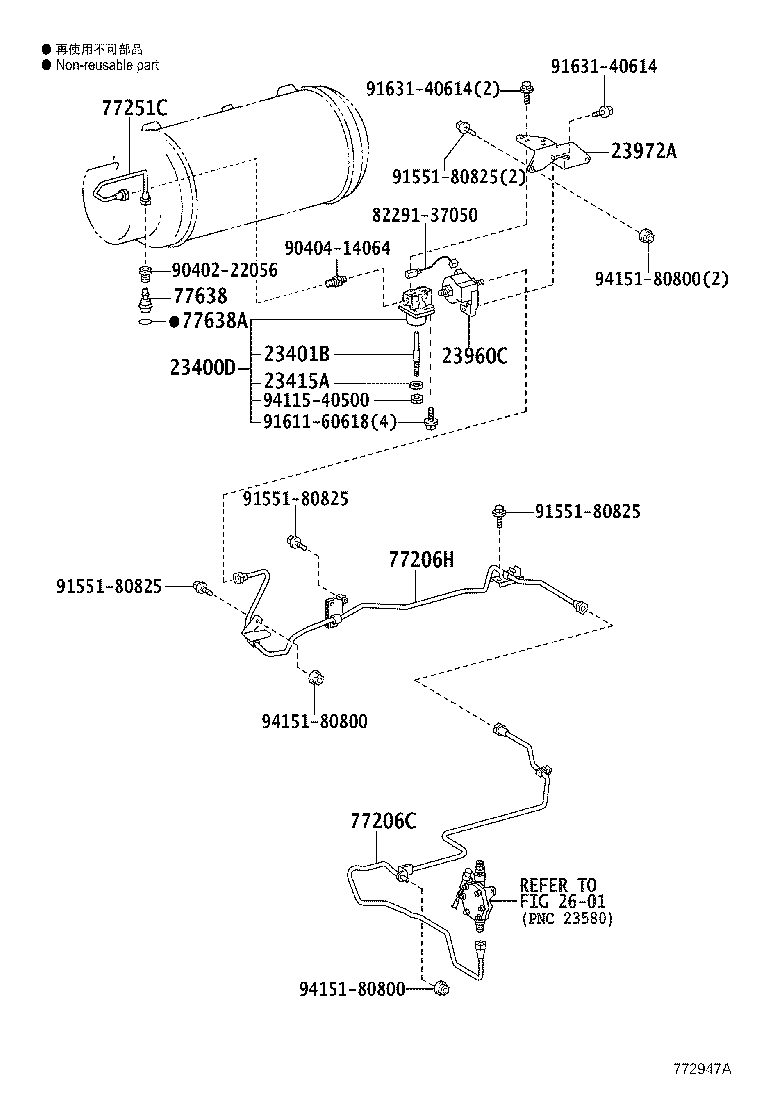

ILLUST NO. 3 OF 3(1107- )BZU600

Click highlighted areas on diagram

ﾌｭｰｴﾙﾁｭｰﾌﾞ

diagram 23400D 23401B 23415A 23960C 23972A 2601 77206C 77206H 77251C 77638 77638A 8229137050 9040222056 9040414064 9155180825 9155180825 9155180825 9155180825 9161160618 9163140614 9163140614 9411540500 9415180800 9415180800 9415180800
Part # Description Qty Price
23400D - FILTER ASSY, LPG
23400-40024

1BZFPE..BZU600

 1
23401B - BOLT
23401-40020

1BZFPE..BZU600

 1
23415A - PLATE
23415-40010

1BZFPE..BZU600

 1
23960C - VALVE ASSY, SOLENOID LPG
23960-78012

1BZFPE..BZU600

 1
23972A - BRACKET, FILTER & SOLENOID VALVE
23972-78011

1BZFPE..BZU600

 1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-37G70

BZU600

 1
77206H - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-37J40

BZU600

 1
77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE)
77251-37610

BZU600..T4..20T

 1
77638 - SLEEVE, TANK VALVE JOINT
77638-20011

BZU600

 1
77638A - RING, O (FOR TANK VALVE JOINT SLEEVE)
96712-24011

BZU600

 1
Common parts
82291-37050
90402-22056
90404-14064
91551-80825
91611-60618
91631-40614
94115-40500
94151-80800
Linked diagrams
2601

ILLUST NO. 2 OF 2(1905- )XZU605,655..SCB..T3,T4..20T..DCRWD..CBU ; (1905- )XZC675,XZU642,652,6

Click highlighted areas on diagram

ﾌｭｰｴﾙﾁｭｰﾌﾞ

diagram 2202 2202 2202 2202 2202 2202 2302 77206C 77242B 77259C 77278B 77281G 77281N 9046616004 9046616004 9046616004 9046616004 9155180825 9155281030 9415180800 9415181000 9613341301 9613341301
Part # Description Qty Price
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-37G70

BZU600

 1
77206-37G70

BZU600

 1
77206-37G70

BZU600

 1
Common parts
90466-16004
91551-80825
91552-81030
94151-80800
94151-81000
96133-41301
Linked diagrams
2202
2302
