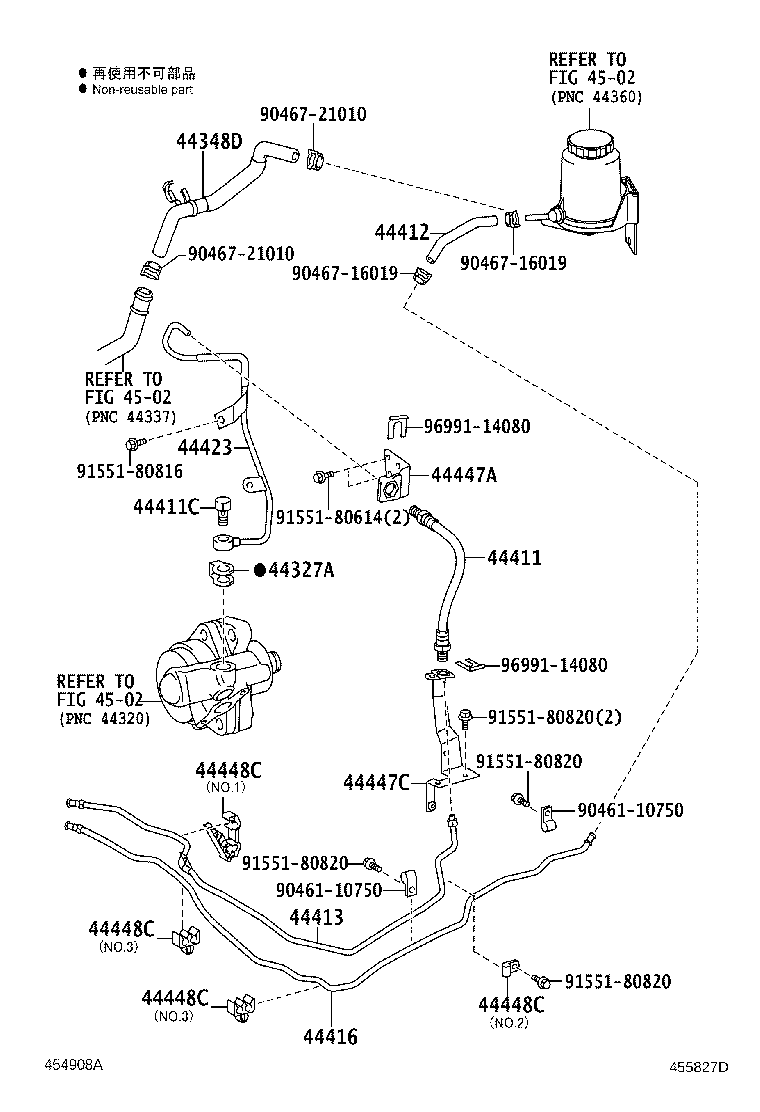

Toyota Dyna/toyoace BZU600 POWER STEERING TUBE

Part #	Description	Period	Qty
44327A - GASKET, PRESSURE PORT, NO.1
44327-30030	BZU600	07/2011 - 12/2999	1
44348D - HOSE, OIL RESERVOIR TO PUMP, NO.2
44348-37440	BZU600	07/2011 - 12/2999	1
44411 - HOSE, PRESSURE FEED
44411-37141	BZU600	07/2011 - 01/2016	1
44411-37142	BZU600	02/2016 - 12/2999	1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
90404-16024	BZU600	07/2011 - 12/2999	1
44412 - HOSE, RETURN
44412-37460	BZU600	07/2011 - 12/2999	1
44413 - TUBE, PRESSURE FEED, NO.1
44413-37290	BZU600	07/2011 - 12/2999	1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-37690	BZU600	07/2011 - 12/2999	1
44423 - TUBE, OIL PUMP TO GEAR BOX
44423-37060	BZU600	07/2011 - 12/2999	1
44447A - BRACKET, HOSE SUPPORT, NO.1
44447-37020	BZU600	07/2011 - 12/2999	1
44447C - BRACKET, HOSE SUPPORT NO.2
44447-37290	BZU600	07/2011 - 12/2999	1
44448C - CLAMP, PRESSURE FEED, NO.2
44448-37060	BZU600 NO.2	07/2011 - 12/2999	1
44448-37080	BZU600 NO.3	07/2011 - 12/2999	2
44448-37030	BZU600 NO.1	07/2011 - 12/2999	1
44448C - CLAMP, PRESSURE FEED, NO.2
44448-37060	BZU600 NO.2	07/2011 - 12/2999	1
44448-37080	BZU600 NO.3	07/2011 - 12/2999	2
44448-37030	BZU600 NO.1	07/2011 - 12/2999	1
44448C - CLAMP, PRESSURE FEED, NO.2
44448-37060	BZU600 NO.2	07/2011 - 12/2999	1
44448-37080	BZU600 NO.3	07/2011 - 12/2999	2
44448-37030	BZU600 NO.1	07/2011 - 12/2999	1
44448C - CLAMP, PRESSURE FEED, NO.2
44448-37060	BZU600 NO.2	07/2011 - 12/2999	1
44448-37080	BZU600 NO.3	07/2011 - 12/2999	2
44448-37030	BZU600 NO.1	07/2011 - 12/2999	1
Common parts
90461-10750
90467-16019
90467-21010
91551-80614
91551-80816
91551-80820
96991-14080
Linked diagrams
4502

BZU600-TQMMP3 (2011)

(1107- )BZU600
