Toyota Dyna/toyoace BZU600 VANE PUMP & RESERVOIR (POWER STEERING)

Part #	Description	Period	Qty
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-37030	BZU600,XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695	07/2011 - 12/2011	1
44305-37031	BZU600	01/2012 - 12/2999	1
44310C - RING, O(FOR VANE PUMP)
90301-60002	BZU600	07/2011 - 12/2999	1
44316 - GEAR, VANE PUMP
44316-36020	BZU600	07/2011 - 12/2999	1
44316A - RING
96150-01700	BZU600	07/2011 - 12/2999	1
44320 - PUMP ASSY, VANE
44310-37030	BZU600	07/2011 - 12/2999	1
44337 - UNION, POWER STEERING SUCTION PORT
44337-37070	BZU600	07/2011 - 12/2999	1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-37220	BZU600	07/2011 - 12/2999	1
44457A - BRACKET, TUBE SUPPORT, VANE PUMP
44457-36040	BZU600	07/2011 - 12/2999	1
Common parts
91551-80816
91551-80820
91611-G0612
91612-61035
96711-19019

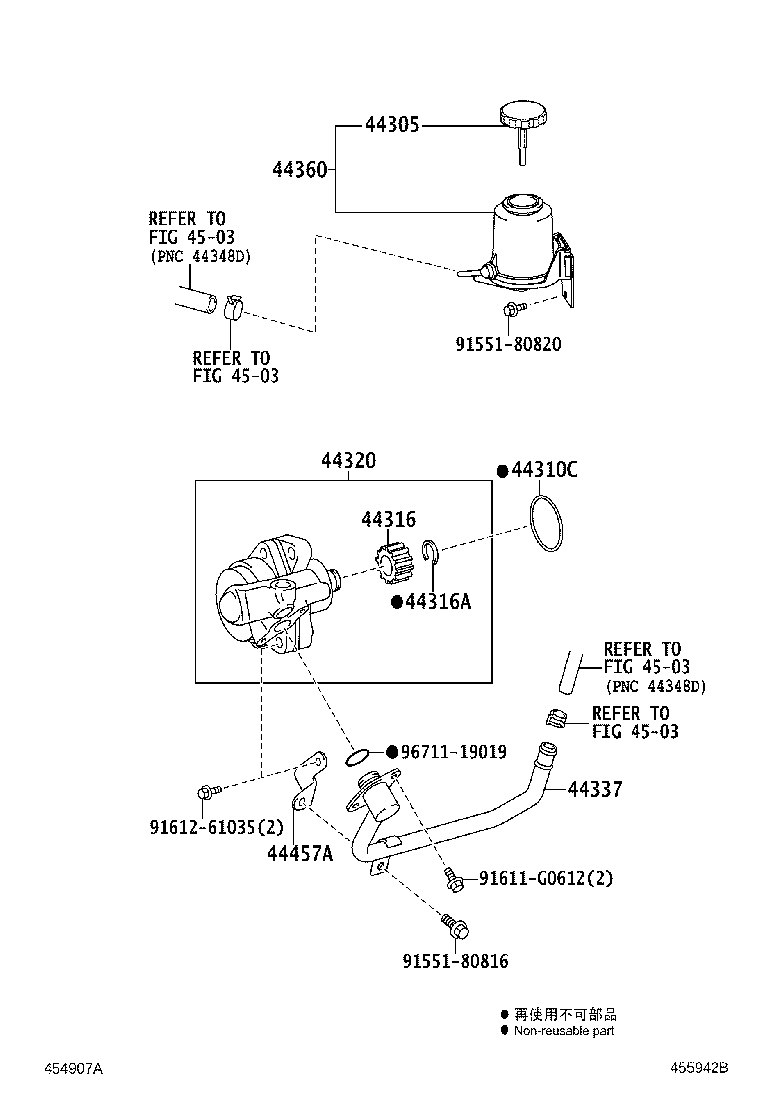

Linked diagrams
4503

BZU600-TKMQP3 (2011)
