BZU600-TKMQP3 (2011)
Toyota Dyna/Toyoace
Production
Jul 2011
-
Sep 9999
Engine
1BZFPE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

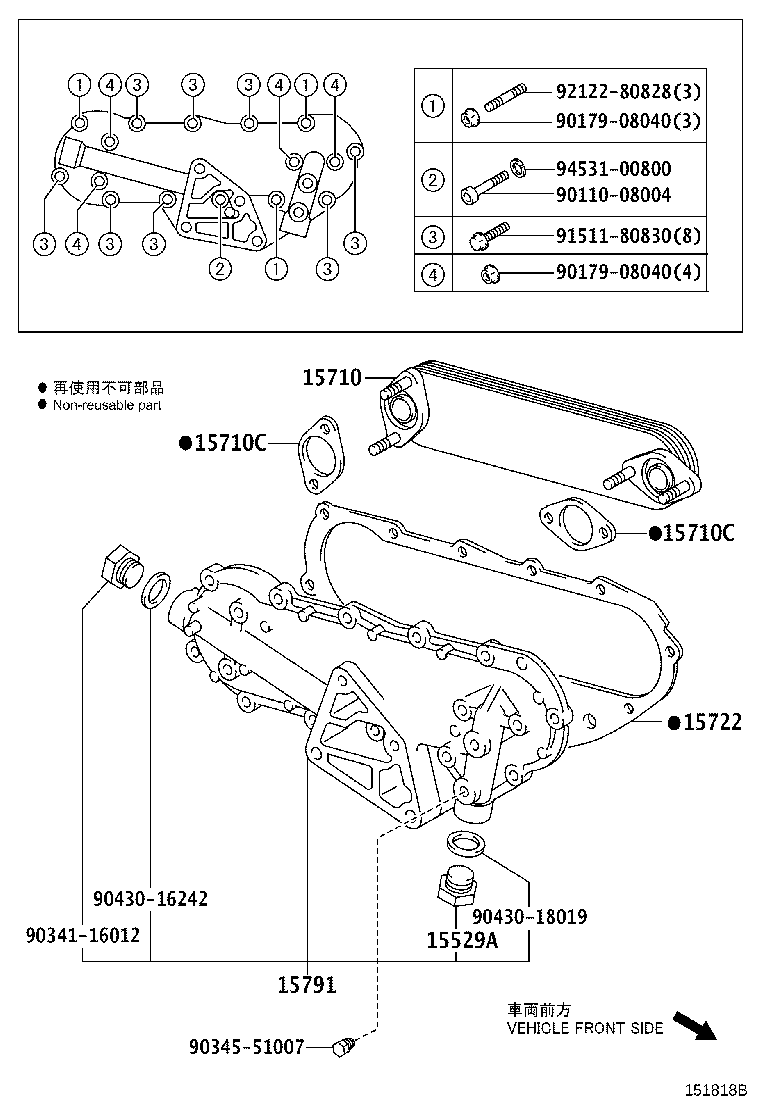

(1107- )1BZFPE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15529A - PLUG | ||||
| 90341-18006 |
1BZFPE..BZU600 |
1 | ||
| 15710 - COOLER ASSY, OIL | ||||
| 15710-58030 |
1BZFPE..BZU600 |
1 | ||
| 15710C - GASKET(FOR OIL COOLER) | ||||
| 15785-58010 |
1BZFPE..BZU600 |
2 | ||
| 15710C - GASKET(FOR OIL COOLER) | ||||
| 15785-58010 |
1BZFPE..BZU600 |
2 | ||
| 15722 - GASKET, OIL COOLER | ||||
| 15725-56020 |
1BZFPE..BZU600 |
1 | ||
| 15791 - CASE, OIL COOLER | ||||
| 15701-58050 |
1BZFPE..BZU600 |
1 | ||
| Common parts | ||||
| 90110-08004 | ||||
| 90179-08040 | ||||
| 90341-16012 | ||||
| 90345-51007 | ||||
| 90430-16242 | ||||
| 90430-18019 | ||||
| 91511-80830 | ||||
| 92122-80828 | ||||
| 94531-00800 | ||||
(1902- )N04C,1BZFPE..DCRTH,DCRTJ,DCRTK,LPG..CBU,IV3,IV5,IV6,IV7
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15710 - COOLER ASSY, OIL | ||||
| 15710-58030 |
1BZFPE..BZU600 |
1 | ||
| 15710-58030 |
1BZFPE..BZU600 |
1 | ||
| 15710C - GASKET(FOR OIL COOLER) | ||||
| 15785-58010 |
1BZFPE..BZU600 |
2 | ||
| 15785-58010 |
1BZFPE..BZU600 |
2 | ||
| Common parts | ||||
| SH552-10816 | ||||
| SH552-10832 | ||||
| SH552-10850 | ||||
| SH552-10870 | ||||
| SL511-00820 | ||||
| SL722-01415 | ||||
| SN460-01409 | ||||
| SZ105-08026 | ||||
| SZ170-08020 | ||||
| SZ209-09001 | ||||
| Linked diagrams | ||||
| 1502 | ||||
