BZU600-TKMQP (2011)
Toyota Dyna/Toyoace
Production
Jul 2011
-
Sep 9999
Engine
1BZFPE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1107- )1BZFPE

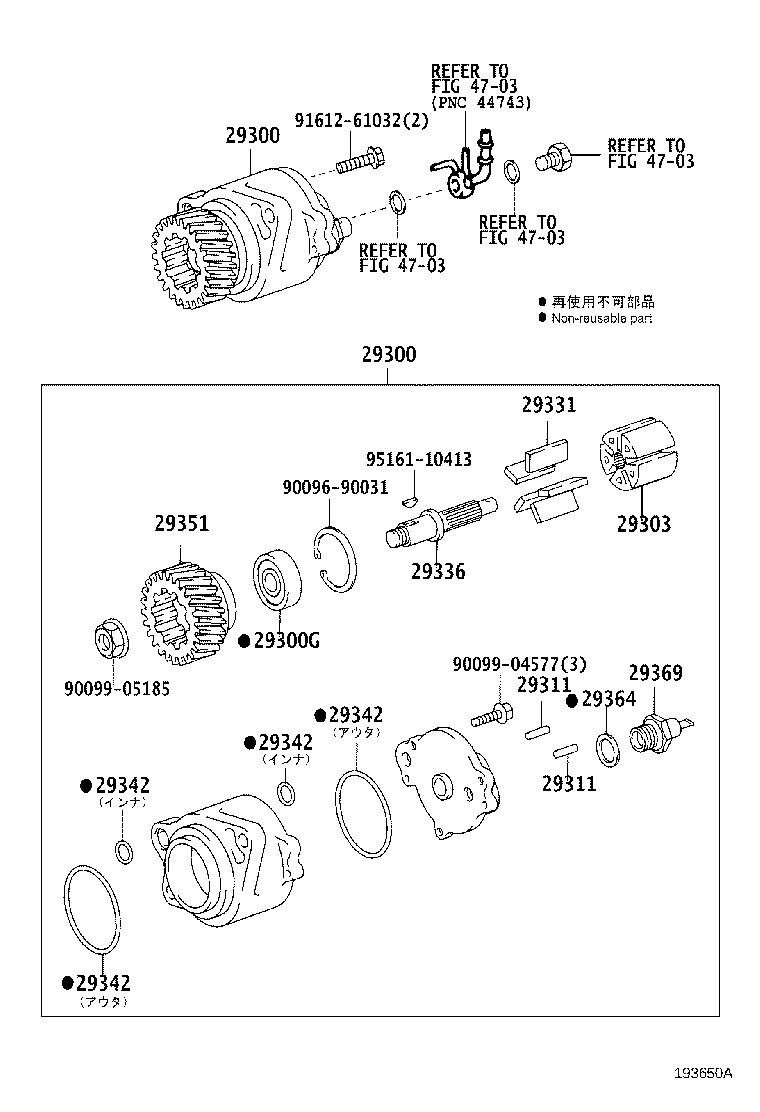

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 29300 - PUMP ASSY, VACUUM | ||||
| 29300-58060 |
1BZFPE..BZU600 |
1 | ||
| 29300 - PUMP ASSY, VACUUM | ||||
| 29300-58060 |
1BZFPE..BZU600 |
1 | ||
| 29300G - BEARING, BALL | ||||
| 90099-10185 |
1BZFPE..BZU600 |
1 | ||
| 29303 - ROTOR SUB-ASSY, VACUUM PUMP | ||||
| 29337-27010 |
1BZFPE..BZU600 |
1 | ||
| 29311 - PIN, VACUUM PUMP DOWEL, NO.1 | ||||
| 29311-76010 |
1BZFPE..BZU600 |
2 | ||
| 29311 - PIN, VACUUM PUMP DOWEL, NO.1 | ||||
| 29311-76010 |
1BZFPE..BZU600 |
2 | ||
| 29331 - BLADE, VACUUM PUMP, A | ||||
| 29331-27010 |
1BZFPE..BZU600 |
5 | ||
| 29336 - SHAFT, VACUUM PUMP | ||||
| 29336-58040 |
1BZFPE..BZU600 |
1 | ||
| 29342 - PACKING, VACUUM PUMP | ||||
| 29342-58010 |
1BZFPE..BZU600 外側 |
2 | ||
| 29342-64010 |
1BZFPE..BZU600 内側 |
2 | ||
| 29342 - PACKING, VACUUM PUMP | ||||
| 29342-58010 |
1BZFPE..BZU600 外側 |
2 | ||
| 29342-64010 |
1BZFPE..BZU600 内側 |
2 | ||
| 29342 - PACKING, VACUUM PUMP | ||||
| 29342-58010 |
1BZFPE..BZU600 外側 |
2 | ||
| 29342-64010 |
1BZFPE..BZU600 内側 |
2 | ||
| 29342 - PACKING, VACUUM PUMP | ||||
| 29342-58010 |
1BZFPE..BZU600 外側 |
2 | ||
| 29342-64010 |
1BZFPE..BZU600 内側 |
2 | ||
| 29351 - GEAR, VACUUM PUMP | ||||
| 29351-58050 |
1BZFPE..BZU600 |
1 | ||
| 29364 - WASHER, VACUUM PUMP | ||||
| 29364-66010 |
1BZFPE..BZU600 |
1 | ||
| 29369 - VALVE SUB-ASSY, CHECK | ||||
| 29369-64030 |
1BZFPE..BZU600 |
1 | ||
| Common parts | ||||
| 90096-90031 | ||||
| 90099-04577 | ||||
| 90099-05185 | ||||
| 91612-61032 | ||||
| 95161-10413 | ||||
| Linked diagrams | ||||
| 4703 | ||||
