BZU600-TKMQP (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - Sep 9999
Engine 1BZFPE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )1BZFPE..CBU,IV3

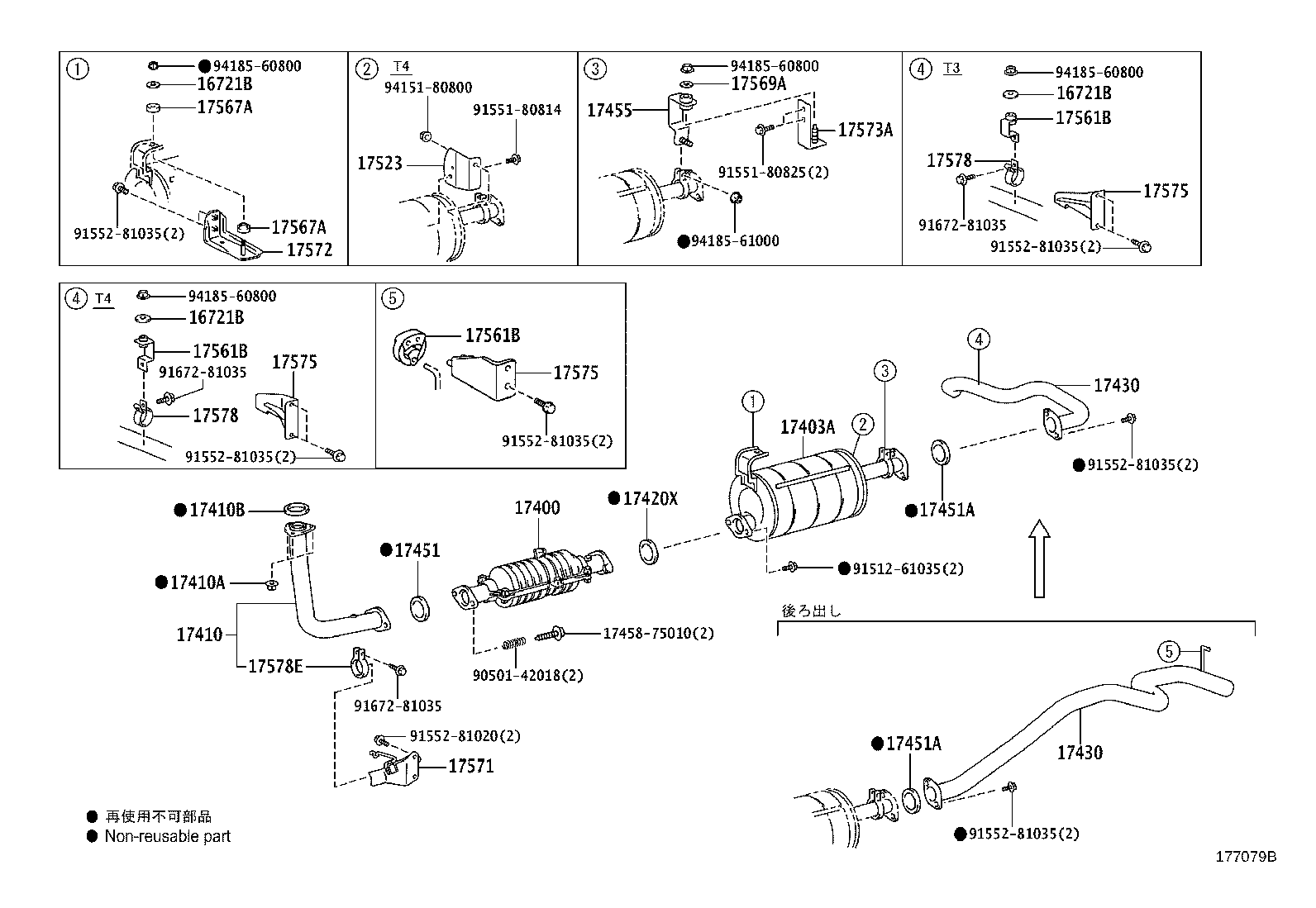

Click highlighted areas on diagram

diagram 16721B 16721B 16721B 17400 17403A 17410 17410A 17410B 17420X 17430 17430 17451 17451A 17451A 17455 1745875010 17523 17561B 17561B 17561B 17567A 17567A 17569A 17571 17572 17573A 17575 17575 17575 17578 17578 17578E 9050142018 9151261035 9155180814 9155180825 9155281020 9155281035 9155281035 9155281035 9155281035 9155281035 9155281035 9167281035 9167281035 9167281035 9415180800 9418560800 9418560800 9418560800 9418560800 9418561000
Part # Description Qty Price
16721B - PLATE, HOLDER
16721-78010

1BZFPE..BZU600

 1
16721B - PLATE, HOLDER
16721-78010

1BZFPE..BZU600

 1
16721B - PLATE, HOLDER
16721-78010

1BZFPE..BZU600

 1
17400 - CONVERTER ASSY, W/CATALYST
17406-58030

1BZFPE..BZU600

 1
17403A - PIPE SUB-ASSY, EXHAUST, CENTER NO.2
17403-58660

1BZFPE..BZU600..T3

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17401-58380

1BZFPE..BZU600

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1BZFPE..BZU600

 3
17410B - GASKET, EXHAUST PIPE
90917-06067

1BZFPE..BZU600

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06076

1BZFPE..BZU600

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-75720

1BZFPE..BZU600..T3

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17405-75720

1BZFPE..BZU600..T3

 1
17451 - GASKET, EXHAUST PIPE
17451-74040

1BZFPE..BZU600

 1
17451A - GASKET, EXHAUST PIPE, NO.2
90917-06076

1BZFPE..BZU600..CBU,IV3

 1
17451A - GASKET, EXHAUST PIPE, NO.2
90917-06076

1BZFPE..BZU600..CBU,IV3

 1
17455 - BRACKET, EXHAUST PIPE
17455-75080

1BZFPE..BZU600..CBU,IV3

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-78080

1BZFPE..BZU600

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-78080

1BZFPE..BZU600

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-78080

1BZFPE..BZU600

 1
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-78010

1BZFPE..BZU600

 2
17567A - CUSHION, EXHAUST PIPE SUPPORT, NO.2
17567-78010

1BZFPE..BZU600

 2
17569A - PLATE, EXHAUST PIPE SUPPORT
16721-78010

1BZFPE..BZU600

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-58460

1BZFPE..BZU600

 1
17572 - BRACKET, EXHAUST PIPE NO.1 SUPPORT
17572-78260

1BZFPE..BZU600

 1
17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3
17573-78050

1BZFPE..BZU600

 1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-75070

1BZFPE..BZU600..T3

 1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-75070

1BZFPE..BZU600..T3

 1
17575 - BRACKET, EXHAUST PIPE SUPPORT, NO.5
17575-75070

1BZFPE..BZU600..T3

 1
17578 - CLAMP, PIPE
17578-58050

1BZFPE..BZU600..CBU,IV3

 1
17578 - CLAMP, PIPE
17578-58050

1BZFPE..BZU600..CBU,IV3

 1
17578E - CLAMP, PIPE(FOR FRONT EXHAUST PIPE)
17578-78010

1BZFPE..BZU600

 1
Common parts
17458-75010
90501-42018
91512-61035
91551-80814
91551-80825
91552-81020
91552-81035
91672-81035
94151-80800
94185-60800
94185-61000
