Toyota Dyna/toyoace BZU410 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
BZU410-TQMQM3 (2003)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

BZU410-TQMQM3 (2003)

Toyota Dyna/Toyoace

Production Jun 2003 - May 2007

Engine 1BZFNE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9905-0406)XZU40#,410,411,412,42#,430

Click highlighted areas on diagram

ﾌﾛﾝﾄﾊﾟｲﾌﾟ

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	XZU400,410,420,430	05/1999 - 08/1999	1
88374-30010	BZU410,XZU40#,410,411,412,42#,430	06/2003 - 06/2004	1
88374-30010	BZU410	06/2004 - 05/2007	2
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	BU410,420,430,BZU410,XZU40#,410,411,412,42#,430	06/2003 - 06/2004	1
88375-30280	BZU410	06/2004 - 05/2007	1
88375-30280	XZU400,410,420;XZU412..4FC,5F;XZU421..T5..5F;XZU412,421..6F..30T;XZU421..T4..(4FC,5F);XZU411..(4FC,5F)..20T;XZU411,430..295T,30T,35T,40T;BU410,420,430,XZU401,402..20T,30T,35T	05/1999 - 06/2003	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290	BU410,420,430,BZU410,XZU40#,410,411,412,42#,430	06/2003 - 06/2004	1
88375-30290	XZU400,410,420,430	05/1999 - 08/1999	1
88453A - FAN, COOLING
88453-37010	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU401,402..20T,30T,35T	05/1999 - 06/2004	1
88453-37010	BZU410	06/2004 - 05/2007	1
88454B - SHROUD, FAN
88454-37040	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU401,402..20T,30T,35T	05/1999 - 06/2004	1
88454-37040	BZU410	06/2004 - 05/2007	1
88460 - CONDENSER ASSY, COOLER
88460-37471	BZU410	06/2004 - 05/2007	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-37260	BU400,410,420,430,XZU40#,41#,42#,430	05/1999 - 02/2001	1
88463-37261	BU410,420,430,BZU410,XZU40#,410,411,412,42#,430	06/2003 - 06/2004	1
88463-37261	BZU410	06/2004 - 05/2007	1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-37281	BU410,420,430,BZU410,XZU40#,410,411,412,42#,430	06/2003 - 06/2004	1
88463-37280	BU400,410,420,430,XZU40#,41#,42#,430	05/1999 - 07/2001	1
88463-37281	BZU410	06/2004 - 05/2007	1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-34010	BZU410,XZU414..CNG,DCR,LPG	06/2004 - 05/2007	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-37060	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);BU410,420,430,XZU401,402..20T,30T,35T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL	05/1999 - 06/2004	1
88550-37070	BZU410	06/2004 - 05/2007	1
88590 - BLOWER ASSY, W/SHROUD
88590-37150	BZU410	06/2004 - 05/2007	1
88645H - SWITCH, PRESSURE NO.1
88645-60030	XZU400,410,420;XZU412..4FC,5F;XZU421..T5..5F;XZU412,421..6F..30T;XZU421..T4..(4FC,5F);XZU411..(4FC,5F)..20T;XZU411,430..295T,30T,35T,40T;BU410,420,430,XZU401,402..20T,30T,35T	05/1999 - 06/2003	1
88645-60030	BU410,420,430,BZU410,XZU40#,410,411,412,42#,430	06/2003 - 06/2004	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-37670	XZU400,410,420;XZU430..35T,40T	05/1999 - 06/2004	1
88711-37730	BZU410	06/2004 - 05/2007	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-37890	BU400,410,420,430,XZU40#,41#,42#,430	05/1999 - 05/2000	1
88712-37892	BZU410,XZU401,411,421	06/2004 - 09/2004	1
88712-37893	BZU410	09/2004 - 05/2007	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-37890	BU400,410,420,430,XZU40#,41#,42#,430	05/1999 - 05/2000	1
88712-37892	BZU410,XZU401,411,421	06/2004 - 09/2004	1
88712-37893	BZU410	09/2004 - 05/2007	1
88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2
88712-37860	XZU400,410,420;XZU412..DCB..4FC;XZU411..T4..30T..DSLL;XZU411,412,421..5F..(DSL,DSLL);XZU401,430..(4FC,6F)..(30T,35T,40T)	05/1999 - 06/2004	1
88712-3V320	BZU410	06/2004 - 05/2007	1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-37550	BU400,410,420,430,XZU40#,41#,42#,430	05/1999 - 05/2000	1
88721-37552	BZU410	06/2004 - 05/2007	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-37780	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL)	05/1999 - 06/2004	1
88716-37780	BZU410	06/2004 - 05/2007	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20030	XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,XZU382,40#,410,412,42#,430	05/1999 - 02/2002	1
88733-22040	BZU410,XZU414..CNG,DCR,LPG	06/2004 - 05/2007	1
Common parts
88472-37190
88688-3V210
88688-3V260
88688-3V270
88688-3V272
88718-24060
88718-37690
88718-37730
88718-37750
90041-79141
90091-20609
90099-04119
90099-05192
90178-08003
90179-14038
91112-61435
91511-B0630
91511-G0814
91511-J0625
91513-60828
91651-60616
91651-60645
91651-B0814
94150-80800
Linked diagrams
8714
8719

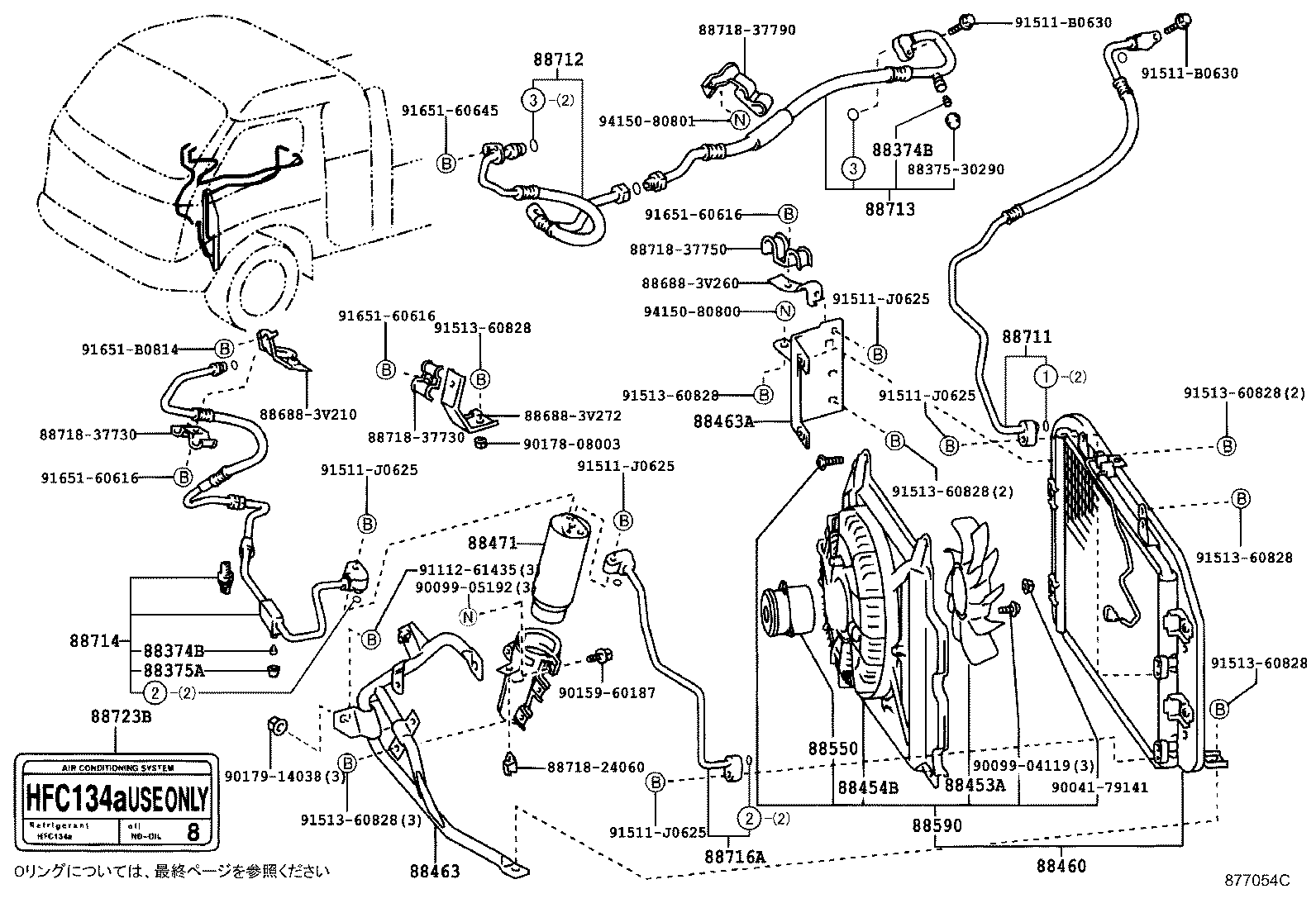

ILLUST NO. 1 OF 3(0406- )BZU410

Click highlighted areas on diagram

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	XZU400,410,420,430	05/1999 - 08/1999	1
88374-30010	BZU410,XZU40#,410,411,412,42#,430	06/2003 - 06/2004	1
88374-30010	BZU410	06/2004 - 05/2007	2
88374B - VALVE, SERVICE, NO.1
88374-30010	XZU400,410,420,430	05/1999 - 08/1999	1
88374-30010	BZU410,XZU40#,410,411,412,42#,430	06/2003 - 06/2004	1
88374-30010	BZU410	06/2004 - 05/2007	2
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	BU410,420,430,BZU410,XZU40#,410,411,412,42#,430	06/2003 - 06/2004	1
88375-30280	BZU410	06/2004 - 05/2007	1
88375-30280	XZU400,410,420;XZU412..4FC,5F;XZU421..T5..5F;XZU412,421..6F..30T;XZU421..T4..(4FC,5F);XZU411..(4FC,5F)..20T;XZU411,430..295T,30T,35T,40T;BU410,420,430,XZU401,402..20T,30T,35T	05/1999 - 06/2003	1
88453A - FAN, COOLING
88453-37010	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU401,402..20T,30T,35T	05/1999 - 06/2004	1
88453-37010	BZU410	06/2004 - 05/2007	1
88454B - SHROUD, FAN
88454-37040	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU401,402..20T,30T,35T	05/1999 - 06/2004	1
88454-37040	BZU410	06/2004 - 05/2007	1
88460 - CONDENSER ASSY, COOLER
88460-37471	BZU410	06/2004 - 05/2007	1
88463 - BRACKET, COOLER CONDENSER, NO.1
88463-37260	BU400,410,420,430,XZU40#,41#,42#,430	05/1999 - 02/2001	1
88463-37261	BU410,420,430,BZU410,XZU40#,410,411,412,42#,430	06/2003 - 06/2004	1
88463-37261	BZU410	06/2004 - 05/2007	1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-37281	BU410,420,430,BZU410,XZU40#,410,411,412,42#,430	06/2003 - 06/2004	1
88463-37280	BU400,410,420,430,XZU40#,41#,42#,430	05/1999 - 07/2001	1
88463-37281	BZU410	06/2004 - 05/2007	1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-34010	BZU410,XZU414..CNG,DCR,LPG	06/2004 - 05/2007	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-37060	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);BU410,420,430,XZU401,402..20T,30T,35T;XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL	05/1999 - 06/2004	1
88550-37070	BZU410	06/2004 - 05/2007	1
88590 - BLOWER ASSY, W/SHROUD
88590-37150	BZU410	06/2004 - 05/2007	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-37670	XZU400,410,420;XZU430..35T,40T	05/1999 - 06/2004	1
88711-37730	BZU410	06/2004 - 05/2007	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-37890	BU400,410,420,430,XZU40#,41#,42#,430	05/1999 - 05/2000	1
88712-37892	BZU410,XZU401,411,421	06/2004 - 09/2004	1
88712-37893	BZU410	09/2004 - 05/2007	1
88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2
88712-37860	XZU400,410,420;XZU412..DCB..4FC;XZU411..T4..30T..DSLL;XZU411,412,421..5F..(DSL,DSLL);XZU401,430..(4FC,6F)..(30T,35T,40T)	05/1999 - 06/2004	1
88712-3V320	BZU410	06/2004 - 05/2007	1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-37550	BU400,410,420,430,XZU40#,41#,42#,430	05/1999 - 05/2000	1
88721-37552	BZU410	06/2004 - 05/2007	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-37780	XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU421..T4..(4FC,5F);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU401,402..20T,30T,35T;XZU411,412,430..(295T,30T,35T,40T)..(DSL,DSLL)	05/1999 - 06/2004	1
88716-37780	BZU410	06/2004 - 05/2007	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20030	XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,XZU382,40#,410,412,42#,430	05/1999 - 02/2002	1
88733-22040	BZU410,XZU414..CNG,DCR,LPG	06/2004 - 05/2007	1
Common parts
88375-30290
88688-3V210
88688-3V260
88688-3V272
88718-24060
88718-37730
88718-37750
88718-37790
90041-79141
90099-04119
90099-05192
90159-60187
90178-08003
90179-14038
91112-61435
91511-B0630
91511-J0625
91513-60828
91651-60616
91651-60645
91651-B0814
94150-80800
94150-80801

BZU410-TQMQM3 (2003)

ILLUST NO. 1 OF 3(9905-0406)XZU40#,410,411,412,42#,430

ILLUST NO. 1 OF 3(0406- )BZU410
