BZU410-TQMMM3 (2003)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF11(9905-0406)BU400,410,420,430
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-37020 |
XZU411..30T..DSLL;XZU400,410,420,430;XZU421..(T3,T5)..4FC;XZU411,412,421..6F..20T |
1 | ||
| 83420-16040 |
BZU410 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-37030 |
XZU411..30T..DSLL;XZU400,410,420,430;XZU421..(T3,T5)..4FC;XZU411,412,421..6F..20T |
1 | ||
| 83530-28010 |
BZU410 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-37020 |
BZU410 |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 90430-27001 |
BZU410 |
1 | ||
| Common parts | ||||
| 91651-60614 | ||||
ILLUST NO. 2 OF11(9905-0406)BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430..MTM ; (0406-070
ﾄﾗﾝｽﾐﾂｼﾖﾝ & ﾄﾗﾝｽﾌｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
BZU410 |
1 | ||
| 84210-12040 |
XZU412,421..6F..30T;BU420..6F..(20T,35T);XZU411..T4..6F..(295T,30T);XZU411,412,421..5F..(DSL,DSLL);BU410,430,BZU410,XZU382,40#,410,420..MTM;XZU411,430..T3..6F..(295T,30T,35T,40T)..DSL |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
BZU410 |
1 | ||
| 84210-12040 |
XZU412,421..6F..30T;BU420..6F..(20T,35T);XZU411..T4..6F..(295T,30T);XZU411,412,421..5F..(DSL,DSLL);BU410,430,BZU410,XZU382,40#,410,420..MTM;XZU411,430..T3..6F..(295T,30T,35T,40T)..DSL |
1 | ||
| 84225A - SWITCH, SHIFT POSITION | ||||
| 84225-37020 |
XZU40#,41#,42#,430..MTM |
1 | ||
| 84225-37020 |
BU400,410,420,430..MTM |
1 | ||
| 84225A - SWITCH, SHIFT POSITION | ||||
| 84225-37020 |
XZU40#,41#,42#,430..MTM |
1 | ||
| 84225-37020 |
BU400,410,420,430..MTM |
1 | ||
| 84225A - SWITCH, SHIFT POSITION | ||||
| 84225-37020 |
XZU40#,41#,42#,430..MTM |
1 | ||
| 84225-37020 |
BU400,410,420,430..MTM |
1 | ||
| 84540C - SWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE) | ||||
| 84540-37020 |
XZU411..T3..6F..DSL;XZU411..(T2,T4,T5)..MTM;BU400,410,420,430,BZU410,XZU382,40#,410,412,42#,430..MTM |
1 | ||
| 84540-37020 |
BZU410 |
1 | ||
| 84540C - SWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE) | ||||
| 84540-37020 |
XZU411..T3..6F..DSL;XZU411..(T2,T4,T5)..MTM;BU400,410,420,430,BZU410,XZU382,40#,410,412,42#,430..MTM |
1 | ||
| 84540-37020 |
BZU410 |
1 | ||

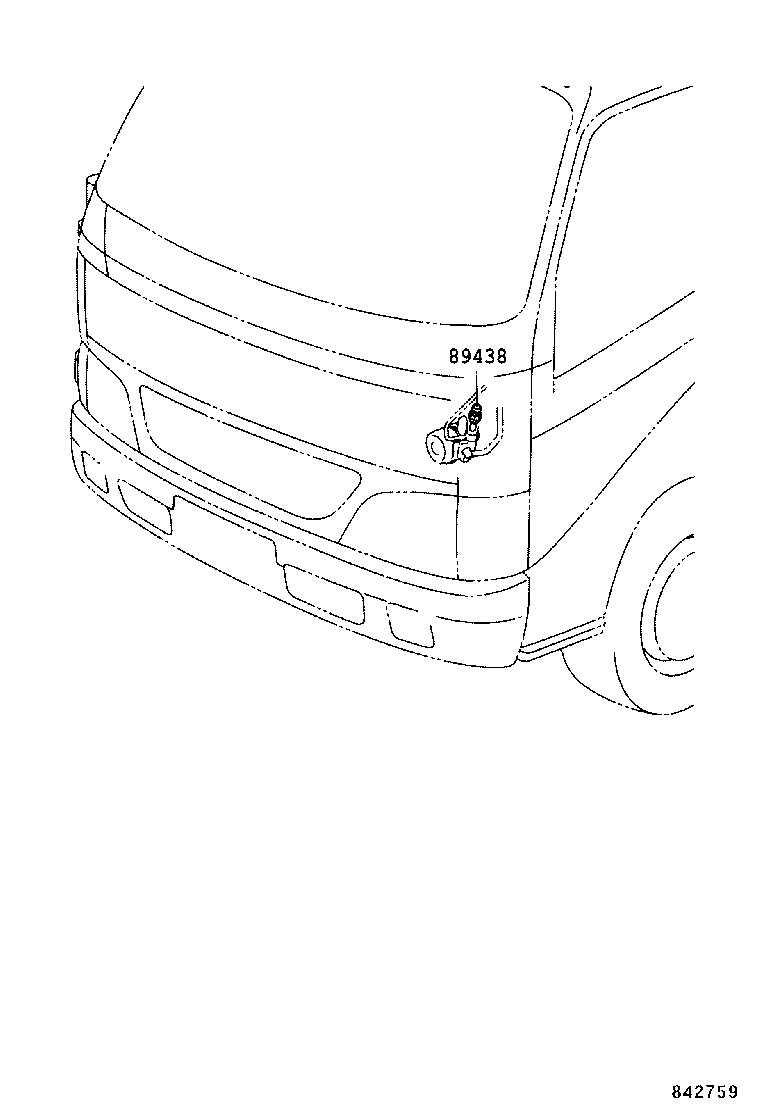

ILLUST NO. 3 OF11(9905-0705)CNG,LPG,TDEFI
ｴﾝｼﾞﾝﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89438 - SWITCH, POWER STEERING OIL PRESSURE | ||||
| 89438-30010 |
BZU410 |
1 | ||

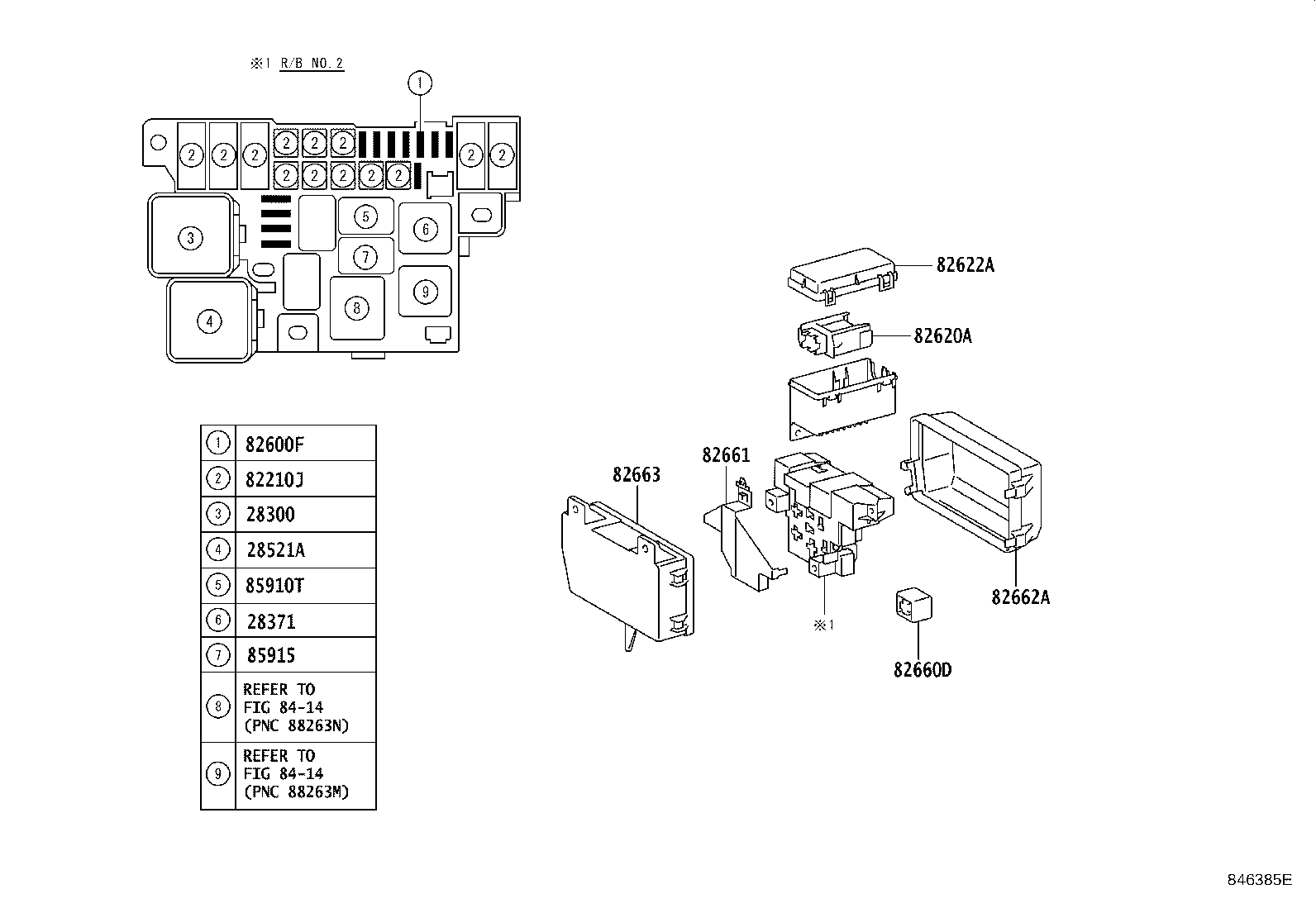

ILLUST NO. 4 OF11(9905-0406)BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430
R/B NO.2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 90987-02025 |
1BZ#..BZU410 |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 90987-02025 |
1BZ#..BZU410 |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 90987-02025 |
1BZ#..BZU410 |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 90987-02025 |
1BZ#..BZU410 |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02009 |
1BZ#..BZU410 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08203 |
BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08246 |
BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 100A,ｵｽ端子,青 |
1 | ||
| 90982-08281 |
BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08202 |
BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08280 |
BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08282 |
BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08280 |
BZU410,XZU388,40#,41#,42#,433..CNG,DCR,DCRL,DSL,DSLL,LPG 30A,ﾒｽ端子,桃 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09011 |
BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09009 |
BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09008 |
BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09009 |
BZU410,XZU388,40#,41#,42#,433..CNG,DCR,DCRL,DSL,DSLL,LPG 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09010 |
BZU410,XZU388,40#,41#,42#,433..CNG,DCR,DCRL,DSL,DSLL,LPG 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09008 |
BZU410,XZU388,40#,41#,42#,433..CNG,DCR,DCRL,DSL,DSLL,LPG 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09010 |
BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09011 |
BZU410,XZU388,40#,41#,42#,433..CNG,DCR,DCRL,DSL,DSLL,LPG 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-37180 |
BZU410 |
1 | ||
| 82622A - COVER, FUSIBLE LINK, UPPER, NO.2 | ||||
| 82622-37020 |
BZU410 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-37060 |
BZU410 |
1 | ||
| 82660-37070 |
XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU382,40#,410,420..CBU,IV3,IV5;XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-37060 |
BZU410 |
1 | ||
| 82660-37070 |
XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU382,40#,410,420..CBU,IV3,IV5;XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-37020 |
XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU400,410,420..CBU,IV3;XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T |
1 | ||
| 82661-37020 |
BZU410,XZU414..CNG,DCR,LPG |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-37020 |
XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU400,410,420..CBU,IV3;XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T |
1 | ||
| 82661-37020 |
BZU410,XZU414..CNG,DCR,LPG |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-37080 |
XZU430..35T,40T;XZU400,410,420..CBU,IV3 |
1 | ||
| 82662-37141 |
BZU410..CNG |
1 | ||
| 82662-37081 |
XZU400,410,420,430 |
1 | ||
| 82662-37141 |
BZU410..CNG |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-37080 |
XZU430..35T,40T;XZU400,410,420..CBU,IV3 |
1 | ||
| 82662-37141 |
BZU410..CNG |
1 | ||
| 82662-37081 |
XZU400,410,420,430 |
1 | ||
| 82662-37141 |
BZU410..CNG |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-37070 |
BU410,420,430,BZU410,XZU382,40#,410,411,412,42#,430..SCB |
1 | ||
| 82663-37040 |
XZU412..4FC,5F;XZU421..T5..5F;XZU412,421..6F..30T;XZU421..T4..(4FC,5F);XZU411..(4FC,5F)..20T;XZU411..T4..(295T,30T);XZU400,410,420..CBU,IV3;XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T |
1 | ||
| 82663-37070 |
BZU410,XZU414..CNG,DCR,LPG |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-37070 |
BU410,420,430,BZU410,XZU382,40#,410,411,412,42#,430..SCB |
1 | ||
| 82663-37040 |
XZU412..4FC,5F;XZU421..T5..5F;XZU412,421..6F..30T;XZU421..T4..(4FC,5F);XZU411..(4FC,5F)..20T;XZU411..T4..(295T,30T);XZU400,410,420..CBU,IV3;XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T |
1 | ||
| 82663-37070 |
BZU410,XZU414..CNG,DCR,LPG |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-37010 |
XZU402,411,412,421..DSL,DSLL;BU400,410,420,430,XZU400,401,410,420,430..MTM..(CBU,IV3) |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-37010 |
XZU402,411,412,421..DSL,DSLL;BU400,410,420,430,XZU400,401,410,420,430..MTM..(CBU,IV3) |
1 | ||
| 85910T - RELAY, LPG | ||||
| 90987-02012 |
BZU410 |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02012 |
BZU410 |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
| 90179-06171 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 8405 | ||||
| 8414 | ||||

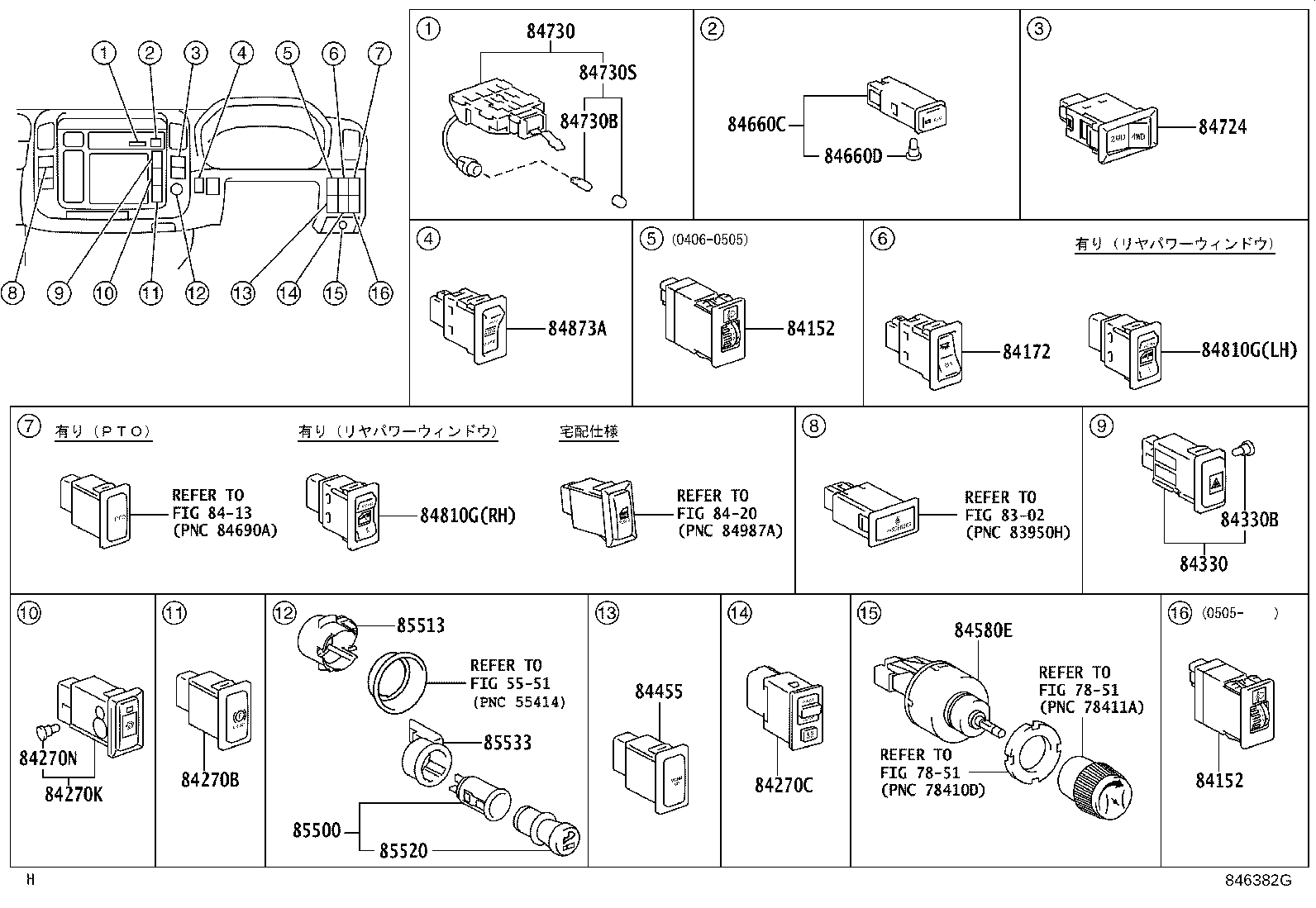

ILLUST NO. 6 OF11(9905-0406)BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ SW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-37020 |
BZU410,XZU414..CNG,DCR,LPG |
1 | ||
| 84172 - SWITCH, ROOM LAMP | ||||
| 84270-37010 |
XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU400,410,420..CBU,IV3;XZU411,430..T3..(295T,30T,35T,40T)..DSL;XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T |
1 | ||
| 84270-37010 |
BZU410,XZU414..CNG,DCR,LPG |
1 | ||
| 84270A - SWITCH ASSY, MIRROR HEATER | ||||
| 84270-37030 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T;XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 84270C - SWITCH ASSY, ES START MAIN | ||||
| 84270-37110 |
BU410,420,430,BZU410,XZU382,40#,410,411,412,42#,430..MTM |
1 | ||
| 84270-37050 |
XZU411,412,421..5F;XZU412,421..6F..30T;BU420..6F..(20T,35T);XZU411..T4..6F..(295T,30T);BU410,430,XZU382,40#,410,420..MTM;XZU411,430..T3..6F..(295T,30T,35T,40T)..DSL |
1 | ||
| 84270-37110 |
BZU410,XZU414..CNG,DCR,LPG |
1 | ||
| 84270C - SWITCH ASSY, ES START MAIN | ||||
| 84270-37110 |
BU410,420,430,BZU410,XZU382,40#,410,411,412,42#,430..MTM |
1 | ||
| 84270-37050 |
XZU411,412,421..5F;XZU412,421..6F..30T;BU420..6F..(20T,35T);XZU411..T4..6F..(295T,30T);BU410,430,XZU382,40#,410,420..MTM;XZU411,430..T3..6F..(295T,30T,35T,40T)..DSL |
1 | ||
| 84270-37110 |
BZU410,XZU414..CNG,DCR,LPG |
1 | ||
| 84270D - SWITCH ASSY, ES START TIMING | ||||
| 84270-37060 |
XZU411,412,421..5F;XZU412,421..6F..30T;BU420..6F..(20T,35T);XZU411..T4..6F..(295T,30T);BU410,430,XZU382,40#,410,420..MTM;XZU411,430..T3..6F..(295T,30T,35T,40T)..DSL |
1 | ||
| 84270E - SWITCH ASSY, TIRE LAMP | ||||
| 84270-37020 |
BU400,410,420,430,XZU382,40#,41#,42#,430 |
1 | ||
| 84270F - BULB, MIRROR HEATER SWITCH ASSY | ||||
| 84999-10570 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T;XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL) 28V 0.67W |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-25060 |
BZU410 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10860 |
BZU410 14V 0.91W |
1 | ||
| 84999-10570 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T 28V 0.67W |
1 | ||
| 84999-10860 |
BZU410 14V 0.91W |
1 | ||
| 84455 - SWITCH, WARM UP | ||||
| 84455-37040 |
XZU400,410,420;XZU430..35T,40T |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-37040 |
BZU410 |
1 | ||
| 84660-37010 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-16010 |
BZU410 14V 0.065A |
1 | ||
| 88607-37010 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T 28V 0.87W |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-37050 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T |
1 | ||
| 84732-37060 |
BZU410 |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
BZU410 14V 1.4W |
1 | ||
| 90981-11014 |
BZU410 14V 1.4W |
1 | ||
| 90981-16020 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T 24V 1.8W |
1 | ||
| 84730S - BULB, HEATER BLOWER SWITCH | ||||
| 90010-01153 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T 24V 1.8W,ｷｬｯﾌﾟ付き |
1 | ||
| 90010-01154 |
BZU410 14V 1.4W,ｷｬｯﾌﾟ付き |
1 | ||
| 90010-01154 |
BZU410 14V 1.4W,ｷｬｯﾌﾟ付き |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-22200 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T;XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL) |
1 | ||
| 84873A - SWITCH, RETRACTABLE OUTER MIRROR | ||||
| 84873-37020 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T |
1 | ||
| 84873-37020 |
BZU410,XZU414..CNG,DCR,LPG |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12240 |
BZU410 |
1 | ||
| 85500-36020 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
BZU410,XZU414..CNG,DCR,LPG |
1 | ||
| 85513-12020 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-95400 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T |
1 | ||
| 85520-28010 |
BZU410 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
BZU410,XZU414..CNG,DCR,LPG |
1 | ||
| Linked diagrams | ||||
| 5551 | ||||
| 8302 | ||||
| 8413 | ||||
| 8420 | ||||
ILLUST NO. 5 OF11(9905-0406)BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ & ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02025 |
1BZ#..BZU410 |
1 | ||
| 28371D - RELAY, IGNITION, NO.3 | ||||
| 90987-02009 |
1BZ#..BZU410 |
1 | ||
| 28371F - RELAY, IGNITION, NO.5 | ||||
| 90987-02025 |
1BZ#..BZU410 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-25100 |
BZU410 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08203 |
BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08246 |
BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 100A,ｵｽ端子,青 |
1 | ||
| 90982-08281 |
BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08202 |
BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08280 |
BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08282 |
BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08280 |
BZU410,XZU388,40#,41#,42#,433..CNG,DCR,DCRL,DSL,DSLL,LPG 30A,ﾒｽ端子,桃 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09011 |
BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09009 |
BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09008 |
BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09009 |
BZU410,XZU388,40#,41#,42#,433..CNG,DCR,DCRL,DSL,DSLL,LPG 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09010 |
BZU410,XZU388,40#,41#,42#,433..CNG,DCR,DCRL,DSL,DSLL,LPG 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09008 |
BZU410,XZU388,40#,41#,42#,433..CNG,DCR,DCRL,DSL,DSLL,LPG 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09010 |
BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09011 |
BZU410,XZU388,40#,41#,42#,433..CNG,DCR,DCRL,DSL,DSLL,LPG 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-37280 |
BZU410 |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-37030 |
BZU410 |
1 | ||
| 82660-37030 |
XZU410,420;XZU421..T5..5F;XZU411..T3..DSL;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU400,401,421,430..MTM..(30T,35T,40T);BU410,420,430,BZU410,XZU382,402..20T,30T,35T |
1 | ||
| 82660C - BLOCK ASSY, RELAY | ||||
| 82660-26150 |
XZU411..T3..DSL;XZU411..T2,T4,T5;BU400,410,420,430,BZU410,XZU382,40#,410,412,42#,430 |
2 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-37030 |
XZU410,420;XZU421..T5..5F;XZU411..T3..DSL;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU400,401,421,430..MTM..(30T,35T,40T);BU410,420,430,BZU410,XZU382,402..20T,30T,35T |
1 | ||
| 82663-37030 |
BZU410 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T |
1 | ||
| 90986-01005 |
BZU410,XZU414..CNG,DCR,LPG |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-37020 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T |
1 | ||
| 84340-37020 |
BZU410 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04010 |
BZU410 |
1 | ||
| 90987-04007 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02009 |
BZU410 |
1 | ||
| 90987-02018 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02009 |
BZU410 |
1 | ||
| 90987-02018 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
BZU410 |
1 | ||
| 90987-02019 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02012 |
BZU410 |
1 | ||
| 90987-02017 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T |
1 | ||
| 85927A - RELAY, COOLING FAN, NO.2 | ||||
| 90987-02017 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02018 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T |
1 | ||
| 90987-02009 |
BZU410 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02012 |
BZU410 |
1 | ||
| 90987-02017 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02009 |
BZU410 |
1 | ||
| 90987-02018 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T |
1 | ||
| 85985 - RELAY, KEY REMINDER | ||||
| 80590-37130 |
BZU410 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02012 |
BZU410 |
1 | ||
| 90987-02017 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T |
1 | ||
| 86650L - BUZZER ASSY, VACUUM WARNING | ||||
| 86650-37060 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T |
1 | ||
| 86650-37100 |
BZU410 |
1 | ||
| 89280 - SENSOR ASSY, CLUTCH PEDAL STROKE | ||||
| 89280-37010 |
XZU412,421..6F..30T;BU420..6F..(20T,35T);XZU411..T4..6F..(295T,30T);XZU411,412,421..5F..(DSL,DSLL);BU410,430,BZU410,XZU382,40#,410,420..MTM;XZU411,430..T3..6F..(295T,30T,35T,40T)..DSL |
1 | ||
| 89280-37010 |
BZU410,XZU414..CNG,DCR,LPG |
1 | ||
| 89380A - COMPUTER ASSY, ES START | ||||
| 89380-37070 |
BZU410 |
1 | ||
| 89380-37021 |
XZU412,421..6F..30T;BU420..6F..(20T,35T);XZU411..T4..6F..(295T,30T);XZU411,412,421..5F..(DSL,DSLL);BU410,430,XZU382,40#,410,420..MTM;XZU411,430..T3..6F..(295T,30T,35T,40T)..DSL |
1 | ||
| 89551 - COMPUTER, EMISSION CONTROL | ||||
| 89550-37090 |
XZU400,410,420,430 |
1 | ||
| 89661B - COMPUTER, ENGINE CONTROL | ||||
| 89661-37210 |
BZU410..CNG |
1 | ||
| 89661-37210 |
BZU410..CNG |
1 | ||
| 89667B - BRACKET, ENGINE CONTROL COMPUTER, NO.1 | ||||
| 89667-37010 |
BZU410..CNG |
1 | ||
| 89668B - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-37010 |
BZU410..CNG |
1 | ||
| Common parts | ||||
| 91611-B0816 | ||||
| 91621-J0814 | ||||
| 91651-B0820 | ||||
| 93319-15010 | ||||
| 93568-55016 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 3102 | ||||
ILLUST NO. 6 OF11(0406-0705)CNG,DCR,DCRL,DSL,DSLL,LPG
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ SW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-37020 |
BZU410,XZU414..CNG,DCR,LPG |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-37020 |
BZU410,XZU414..CNG,DCR,LPG |
1 | ||
| 84172 - SWITCH, ROOM LAMP | ||||
| 84270-37010 |
XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU400,410,420..CBU,IV3;XZU411,430..T3..(295T,30T,35T,40T)..DSL;XZU411,412..SCB..(4FC,5F)..20T..(DSL,DSLL);BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T |
1 | ||
| 84270-37010 |
BZU410,XZU414..CNG,DCR,LPG |
1 | ||
| 84270C - SWITCH ASSY, ES START MAIN | ||||
| 84270-37110 |
BU410,420,430,BZU410,XZU382,40#,410,411,412,42#,430..MTM |
1 | ||
| 84270-37050 |
XZU411,412,421..5F;XZU412,421..6F..30T;BU420..6F..(20T,35T);XZU411..T4..6F..(295T,30T);BU410,430,XZU382,40#,410,420..MTM;XZU411,430..T3..6F..(295T,30T,35T,40T)..DSL |
1 | ||
| 84270-37110 |
BZU410,XZU414..CNG,DCR,LPG |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-25060 |
BZU410 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10860 |
BZU410 14V 0.91W |
1 | ||
| 84999-10570 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T 28V 0.67W |
1 | ||
| 84999-10860 |
BZU410 14V 0.91W |
1 | ||
| 84455 - SWITCH, WARM UP | ||||
| 84455-37040 |
XZU400,410,420;XZU430..35T,40T |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-37040 |
BZU410 |
1 | ||
| 84660-37010 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-16010 |
BZU410 14V 0.065A |
1 | ||
| 88607-37010 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T 28V 0.87W |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-37050 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T |
1 | ||
| 84732-37060 |
BZU410 |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
BZU410 14V 1.4W |
1 | ||
| 90981-11014 |
BZU410 14V 1.4W |
1 | ||
| 90981-16020 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T 24V 1.8W |
1 | ||
| 84730S - BULB, HEATER BLOWER SWITCH | ||||
| 90010-01153 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T 24V 1.8W,ｷｬｯﾌﾟ付き |
1 | ||
| 90010-01154 |
BZU410 14V 1.4W,ｷｬｯﾌﾟ付き |
1 | ||
| 90010-01154 |
BZU410 14V 1.4W,ｷｬｯﾌﾟ付き |
1 | ||
| 84873A - SWITCH, RETRACTABLE OUTER MIRROR | ||||
| 84873-37020 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T |
1 | ||
| 84873-37020 |
BZU410,XZU414..CNG,DCR,LPG |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12240 |
BZU410 |
1 | ||
| 85500-36020 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
BZU410,XZU414..CNG,DCR,LPG |
1 | ||
| 85513-12020 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-95400 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T |
1 | ||
| 85520-28010 |
BZU410 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
BZU410,XZU414..CNG,DCR,LPG |
1 | ||
| Linked diagrams | ||||
| 5551 | ||||
| 7851 | ||||
| 8302 | ||||
| 8413 | ||||
| 8420 | ||||

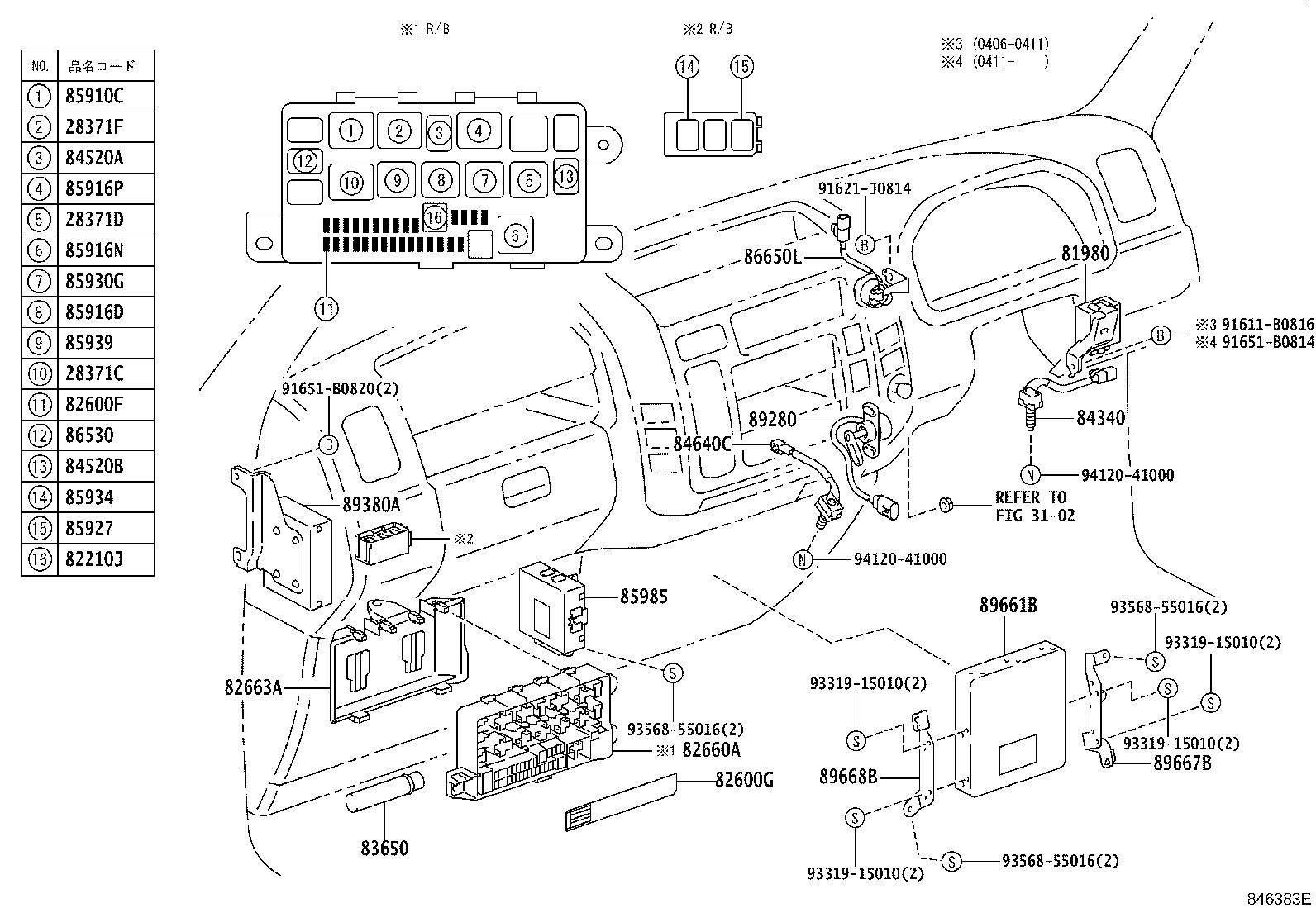

ILLUST NO. 5 OF11(0406- )BZU410
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ & ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02025 |
1BZ#..BZU410 |
1 | ||
| 28371D - RELAY, IGNITION, NO.3 | ||||
| 90987-02009 |
1BZ#..BZU410 |
1 | ||
| 28371F - RELAY, IGNITION, NO.5 | ||||
| 90987-02025 |
1BZ#..BZU410 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-25100 |
BZU410 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08203 |
BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08246 |
BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 100A,ｵｽ端子,青 |
1 | ||
| 90982-08281 |
BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08202 |
BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08280 |
BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08282 |
BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08280 |
BZU410,XZU388,40#,41#,42#,433..CNG,DCR,DCRL,DSL,DSLL,LPG 30A,ﾒｽ端子,桃 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09011 |
BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09009 |
BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09008 |
BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09009 |
BZU410,XZU388,40#,41#,42#,433..CNG,DCR,DCRL,DSL,DSLL,LPG 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09010 |
BZU410,XZU388,40#,41#,42#,433..CNG,DCR,DCRL,DSL,DSLL,LPG 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09008 |
BZU410,XZU388,40#,41#,42#,433..CNG,DCR,DCRL,DSL,DSLL,LPG 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09010 |
BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09011 |
BZU410,XZU388,40#,41#,42#,433..CNG,DCR,DCRL,DSL,DSLL,LPG 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-37280 |
BZU410 |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-37030 |
BZU410 |
1 | ||
| 82660-37030 |
XZU410,420;XZU421..T5..5F;XZU411..T3..DSL;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU400,401,421,430..MTM..(30T,35T,40T);BU410,420,430,BZU410,XZU382,402..20T,30T,35T |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-37030 |
XZU410,420;XZU421..T5..5F;XZU411..T3..DSL;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU400,401,421,430..MTM..(30T,35T,40T);BU410,420,430,BZU410,XZU382,402..20T,30T,35T |
1 | ||
| 82663-37030 |
BZU410 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T |
1 | ||
| 90986-01005 |
BZU410,XZU414..CNG,DCR,LPG |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-37020 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T |
1 | ||
| 84340-37020 |
BZU410 |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04010 |
BZU410 |
1 | ||
| 90987-04007 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02009 |
BZU410 |
1 | ||
| 90987-02018 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02009 |
BZU410 |
1 | ||
| 90987-02018 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
BZU410 |
1 | ||
| 90987-02019 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T |
1 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-02012 |
BZU410 |
1 | ||
| 90987-02017 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T |
1 | ||
| 85930G - RELAY, ACC | ||||
| 90987-02018 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T |
1 | ||
| 90987-02009 |
BZU410 |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02012 |
BZU410 |
1 | ||
| 90987-02017 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T |
1 | ||
| 85939 - RELAY, POWER WINDOW | ||||
| 90987-02009 |
BZU410 |
1 | ||
| 90987-02018 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T |
1 | ||
| 85985 - RELAY, KEY REMINDER | ||||
| 80590-37130 |
BZU410 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02012 |
BZU410 |
1 | ||
| 90987-02017 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T |
1 | ||
| 86650L - BUZZER ASSY, VACUUM WARNING | ||||
| 86650-37060 |
XZU400,410,420;XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T |
1 | ||
| 86650-37100 |
BZU410 |
1 | ||
| 89280 - SENSOR ASSY, CLUTCH PEDAL STROKE | ||||
| 89280-37010 |
XZU412,421..6F..30T;BU420..6F..(20T,35T);XZU411..T4..6F..(295T,30T);XZU411,412,421..5F..(DSL,DSLL);BU410,430,BZU410,XZU382,40#,410,420..MTM;XZU411,430..T3..6F..(295T,30T,35T,40T)..DSL |
1 | ||
| 89280-37010 |
BZU410,XZU414..CNG,DCR,LPG |
1 | ||
| 89380A - COMPUTER ASSY, ES START | ||||
| 89380-37070 |
BZU410 |
1 | ||
| 89380-37021 |
XZU412,421..6F..30T;BU420..6F..(20T,35T);XZU411..T4..6F..(295T,30T);XZU411,412,421..5F..(DSL,DSLL);BU410,430,XZU382,40#,410,420..MTM;XZU411,430..T3..6F..(295T,30T,35T,40T)..DSL |
1 | ||
| 89661B - COMPUTER, ENGINE CONTROL | ||||
| 89661-37210 |
BZU410..CNG |
1 | ||
| 89661-37210 |
BZU410..CNG |
1 | ||
| 89667B - BRACKET, ENGINE CONTROL COMPUTER, NO.1 | ||||
| 89667-37010 |
BZU410..CNG |
1 | ||
| 89668B - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-37010 |
BZU410..CNG |
1 | ||
| Common parts | ||||
| 91611-B0816 | ||||
| 91621-J0814 | ||||
| 91651-B0814 | ||||
| 91651-B0820 | ||||
| 93319-15010 | ||||
| 93568-55016 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 3102 | ||||
ILLUST NO. 4 OF11(0406-0705)BZU410
R/B NO.2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 90987-02025 |
1BZ#..BZU410 |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02009 |
1BZ#..BZU410 |
1 | ||
| 82210J - FUSIBLE LINK | ||||
| 90982-08203 |
BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08246 |
BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 100A,ｵｽ端子,青 |
1 | ||
| 90982-08281 |
BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 40A,ﾒｽ端子,緑 |
1 | ||
| 90982-08202 |
BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 60A,ｵｽ端子,黄 |
1 | ||
| 90982-08280 |
BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08282 |
BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08280 |
BZU410,XZU388,40#,41#,42#,433..CNG,DCR,DCRL,DSL,DSLL,LPG 30A,ﾒｽ端子,桃 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09011 |
BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09009 |
BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09008 |
BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09009 |
BZU410,XZU388,40#,41#,42#,433..CNG,DCR,DCRL,DSL,DSLL,LPG 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09010 |
BZU410,XZU388,40#,41#,42#,433..CNG,DCR,DCRL,DSL,DSLL,LPG 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09008 |
BZU410,XZU388,40#,41#,42#,433..CNG,DCR,DCRL,DSL,DSLL,LPG 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09010 |
BU400,410,420,430,BZU410,XZU382,40#,410,411,412,42#,430 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09011 |
BZU410,XZU388,40#,41#,42#,433..CNG,DCR,DCRL,DSL,DSLL,LPG 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-37180 |
BZU410 |
1 | ||
| 82622A - COVER, FUSIBLE LINK, UPPER, NO.2 | ||||
| 82622-37020 |
BZU410 |
1 | ||
| 82660D - BLOCK ASSY, RELAY | ||||
| 82660-37060 |
BZU410 |
1 | ||
| 82660-37070 |
XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU382,40#,410,420..CBU,IV3,IV5;XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-37020 |
XZU421..T5..5F;XZU421..6F..30T;XZU412..30T..DSL;XZU421..T4..(4FC,5F);XZU411..T4..(295T,30T);XZU400,410,420..CBU,IV3;XZU411,412..(4FC,5F)..20T..(DSL,DSLL);XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,BZU410,XZU382,401,402..20T,30T,35T |
1 | ||
| 82661-37020 |
BZU410,XZU414..CNG,DCR,LPG |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-37080 |
XZU430..35T,40T;XZU400,410,420..CBU,IV3 |
1 | ||
| 82662-37141 |
BZU410..CNG |
1 | ||
| 82662-37081 |
XZU400,410,420,430 |
1 | ||
| 82662-37141 |
BZU410..CNG |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-37070 |
BU410,420,430,BZU410,XZU382,40#,410,411,412,42#,430..SCB |
1 | ||
| 82663-37040 |
XZU412..4FC,5F;XZU421..T5..5F;XZU412,421..6F..30T;XZU421..T4..(4FC,5F);XZU411..(4FC,5F)..20T;XZU411..T4..(295T,30T);XZU400,410,420..CBU,IV3;XZU411,430..T3..(295T,30T,35T,40T)..DSL;BU410,420,430,XZU382,401,402..20T,30T,35T |
1 | ||
| 82663-37070 |
BZU410,XZU414..CNG,DCR,LPG |
1 | ||
| 85910T - RELAY, LPG | ||||
| 90987-02012 |
BZU410 |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-02012 |
BZU410 |
1 | ||
| Linked diagrams | ||||
| 8414 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
