BZU410-TQMMC (2003)
Toyota Dyna/Toyoace
(0306- )1BZFPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17109 - TANK SUB-ASSY, INTAKE AIR SURGE | ||||
| 17109-58010 |
1BZ#..BZU410 |
1 | ||
| 17109-58010 |
1BZ#..BZU410 |
1 | ||
| 23271P - HOSE, FUEL, NO.1(FOR REGULATOR TO FUEL PIPE) | ||||
| 23271-78080 |
1BZFPE..BZU410 |
1 | ||
| 23271-78080 |
1BZFPE..BZU410 |
1 | ||
| 23273L - HOSE, FUEL, NO.5 | ||||
| 23273-78080 |
1BZ#..BZU410 |
1 | ||
| 23273-78080 |
1BZ#..BZU410 |
1 | ||
| 23273N - HOSE, FUEL, NO.7 | ||||
| 23273-78190 |
1BZFPE..BZU410 |
2 | ||
| 23273-78190 |
1BZFPE..BZU410 |
2 | ||
| 23273N - HOSE, FUEL, NO.7 | ||||
| 23273-78190 |
1BZFPE..BZU410 |
2 | ||
| 23273-78190 |
1BZFPE..BZU410 |
2 | ||
| 23500A - HOSE, NO.1(FOR LPG REGULATOR TO LPG CARBURETOR) | ||||
| 23271-78150 |
1BZFPE..BZU410 |
1 | ||
| 23271-78150 |
1BZFPE..BZU410 |
1 | ||
| 23500E - HOSE, WATER(FOR LPG REGULATOR INLET) | ||||
| 16281-78010 |
1BZFPE..BZU410 |
2 | ||
| 16281-78010 |
1BZFPE..BZU410 |
2 | ||
| 23500E - HOSE, WATER(FOR LPG REGULATOR INLET) | ||||
| 16281-78010 |
1BZFPE..BZU410 |
2 | ||
| 16281-78010 |
1BZFPE..BZU410 |
2 | ||
| 23580 - PREHEATER ASSY, LPG | ||||
| 23587-75040 |
1BZFPE..BZU410 |
1 | ||
| 23587-75040 |
1BZFPE..BZU410 |
1 | ||
| 23813A - PIPE, LPG FUEL | ||||
| 23813-78080 |
1BZFPE..BZU410 NO.1 |
1 | ||
| 23813-78030 |
1BZFPE..BZU410 NO.2 |
1 | ||
| 23813-78030 |
1BZFPE..BZU410 NO.2 |
1 | ||
| 23813-78080 |
1BZFPE..BZU410 NO.1 |
1 | ||
| 23813A - PIPE, LPG FUEL | ||||
| 23813-78080 |
1BZFPE..BZU410 NO.1 |
1 | ||
| 23813-78030 |
1BZFPE..BZU410 NO.2 |
1 | ||
| 23813-78030 |
1BZFPE..BZU410 NO.2 |
1 | ||
| 23813-78080 |
1BZFPE..BZU410 NO.1 |
1 | ||
| 23925B - STAY, FUEL FILTER SUPPORT | ||||
| 23925-78050 |
1BZFPE..BZU410 |
1 | ||
| 23925-78050 |
1BZFPE..BZU410 |
1 | ||
| 23954 - BRACKET, LPG REGULATOR | ||||
| 23954-78040 |
1BZ#..BZU410 NO.2 |
1 | ||
| 23954-78080 |
1BZFPE..BZU410 NO.1 |
1 | ||
| 23954-78080 |
1BZFPE..BZU410 NO.1 |
1 | ||
| 23954-78040 |
1BZ#..BZU410 NO.2 |
1 | ||
| 23954 - BRACKET, LPG REGULATOR | ||||
| 23954-78040 |
1BZ#..BZU410 NO.2 |
1 | ||
| 23954-78080 |
1BZFPE..BZU410 NO.1 |
1 | ||
| 23954-78080 |
1BZFPE..BZU410 NO.1 |
1 | ||
| 23954-78040 |
1BZ#..BZU410 NO.2 |
1 | ||
| 23974 - BRACKET, PREHEATER | ||||
| 23974-78010 |
1BZFPE..BZU410 |
1 | ||
| 23974-78010 |
1BZFPE..BZU410 |
1 | ||
| Common parts | ||||
| 90119-08676 | ||||
| 90467-19022 | ||||
| 91641-80825 | ||||
| 94130-00802 | ||||
| 94150-81000 | ||||
| 95332-10030 | ||||
| 96134-51500 | ||||
| 96134-52600 | ||||
| 96135-51300 | ||||

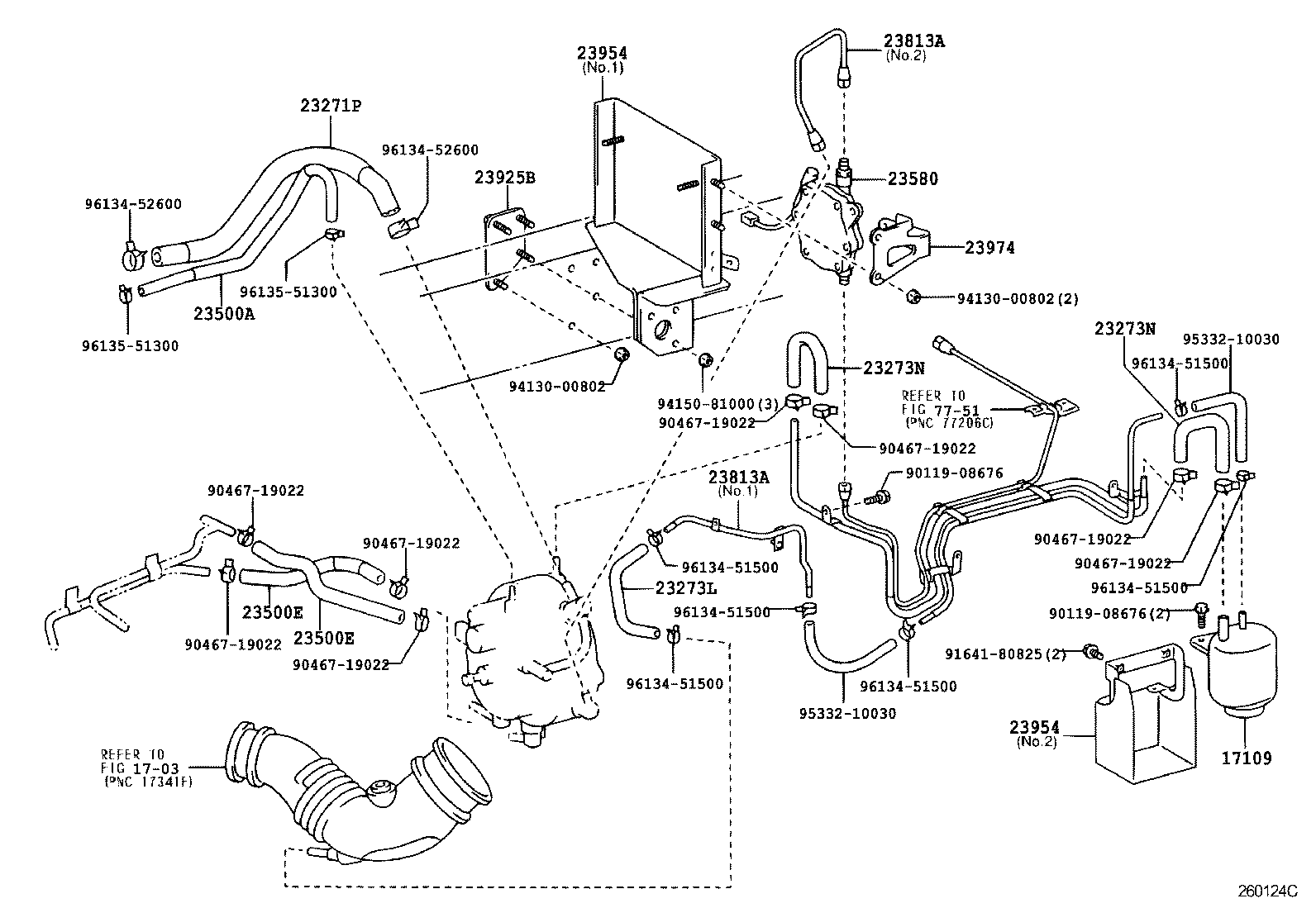

| Linked diagrams | ||||
| 1703 | ||||
| 7751 | ||||
