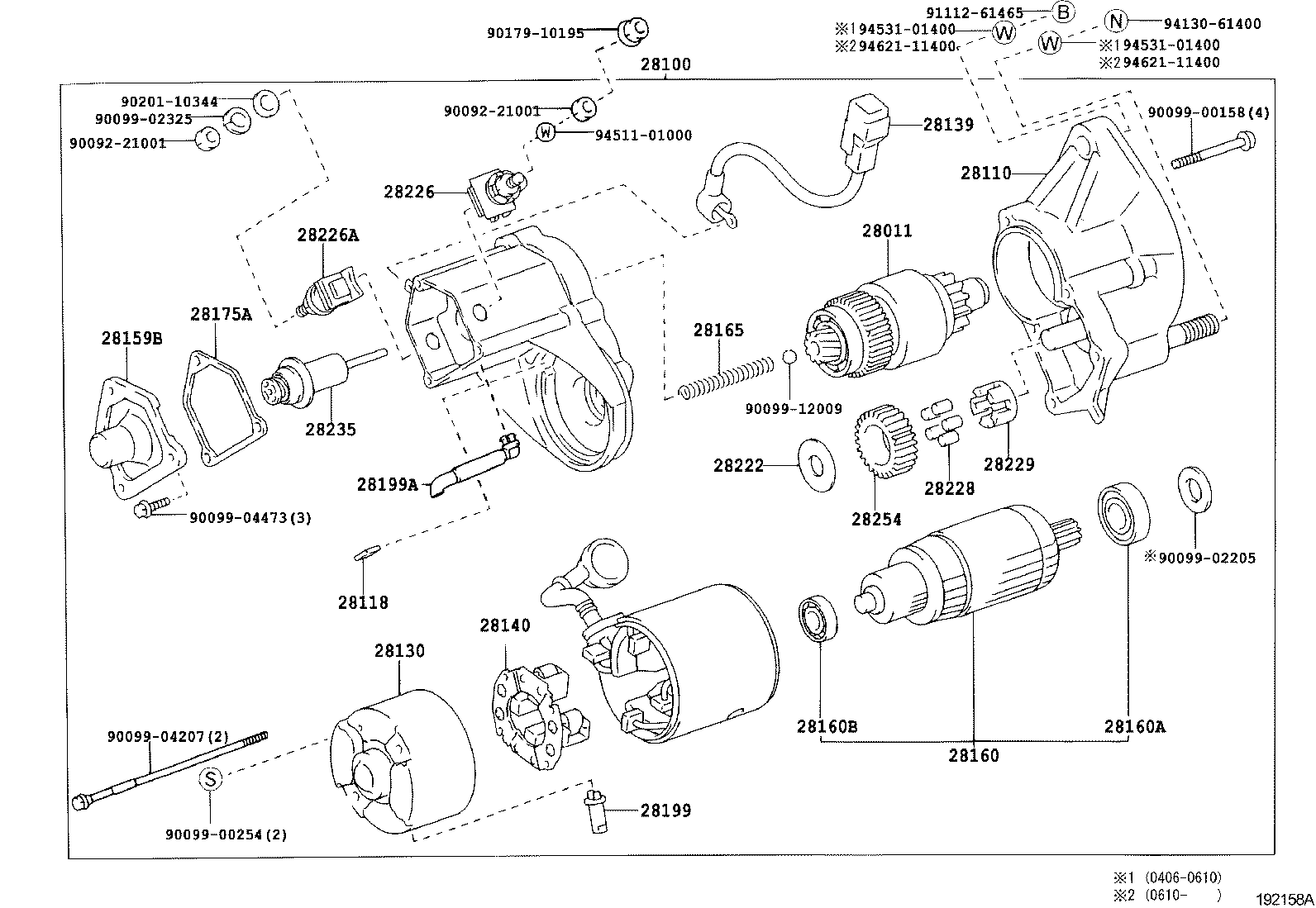

BZU340-TQMMC3 (2003)
Toyota Dyna/Toyoace
(9905-0406)S05D..XZU301..IV6..1NO ; (9905-0406)S05D..XZU341,351..DSLL ; (9905-0406)
24V 4.5KW, ﾀｸﾊｲ ｼﾖｳ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-54010 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28011-54010 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28011-54010 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-56350 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28100-56350 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28100-56350 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-56331 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28110-56331 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28110-56331 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28118A - PLATE(FOR STARTER YOKE) | ||||
| 28118-77090 |
1BZ#..BZU300,340 |
1 | ||
| 28118-77090 |
1BZ#..BZU300,340 |
1 | ||
| 28118-77090 |
1BZ#..BZU300,340 |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-56260 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28130-56260 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28130-56260 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28130-56260 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28130-56260 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28130-56260 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28139 - WIRE, LEAD, NO.1(FOR STARTER) | ||||
| 28139-56310 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28139-56310 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28139-56310 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-77090 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28140-77090 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28140-77090 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-54160 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28160-54160 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28160-54160 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-54120 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 90099-54120 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 90099-54120 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28160B - BEARING, STARTER ARMATURE, NO.2 | ||||
| 90099-10131 |
1BZ#,4B..BU30#,346,BZU300,340 |
1 | ||
| 90099-10131 |
1BZ#,4B..BU30#,346,BZU300,340 |
1 | ||
| 90099-10131 |
1BZ#,4B..BU30#,346,BZU300,340 |
1 | ||
| 90099-10131 |
1BZ#..BZU300,340 |
1 | ||
| 90099-10131 |
1BZ#..BZU300,340 |
1 | ||
| 90099-10131 |
1BZ#..BZU300,340 |
1 | ||
| Common parts | ||||
| 28112-89102 | ||||
| 28112-89103 | ||||
| 28182-89101 | ||||
| 82702-37070 | ||||
| 82711-1E360 | ||||
| 90031-05033 | ||||
| 90178-14005 | ||||
| 90179-08204 | ||||
| 91651-60816 | ||||
| Linked diagrams | ||||
| 1106 | ||||
(0310- )N04C..XZU304..SCB..DSLL ; (0310- )S05D..XZU341..5F..30T..IV3 ; (0310-
24V 5.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-54010 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28011-54010 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28011-54010 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-56350 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28100-56350 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28100-56350 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-56350 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28100-56350 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28100-56350 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-77090 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28140-77090 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28140-77090 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-54160 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28160-54160 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28160-54160 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-58020 |
1BZ#,4B..BU30#,346,BZU300,340 |
1 | ||
| 28199-58020 |
1BZ#,4B..BU30#,346,BZU300,340 |
1 | ||
| 28199-58020 |
1BZ#,4B..BU30#,346,BZU300,340 |
1 | ||
| 28199-58020 |
1BZ#..BZU300,340 |
1 | ||
| 28199-58020 |
1BZ#..BZU300,340 |
1 | ||
| 28199-58020 |
1BZ#..BZU300,340 |
1 | ||
| Common parts | ||||
| 90031-05033 | ||||
| 90179-08204 | ||||
| 90179-14007 | ||||
| 91651-40612 | ||||
| Linked diagrams | ||||
| 1106 | ||||
(0310- )N04C..XZU304..T4..DCRL..CBU ; (0310-)N04C..XZU304..30T..DCRL..4NO ;
24V 5.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-54010 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28011-54010 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28011-54010 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-56350 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28100-56350 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28100-56350 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-56350 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28100-56350 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28100-56350 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-77090 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28140-77090 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28140-77090 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-54160 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28160-54160 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28160-54160 |
1BZ#..BZU300,340 12V 2.5KW |
1 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-58020 |
1BZ#,4B..BU30#,346,BZU300,340 |
1 | ||
| 28199-58020 |
1BZ#,4B..BU30#,346,BZU300,340 |
1 | ||
| 28199-58020 |
1BZ#,4B..BU30#,346,BZU300,340 |
1 | ||
| 28199-58020 |
1BZ#..BZU300,340 |
1 | ||
| 28199-58020 |
1BZ#..BZU300,340 |
1 | ||
| 28199-58020 |
1BZ#..BZU300,340 |
1 | ||
| Common parts | ||||
| 90031-05033 | ||||
| 90179-08204 | ||||
| 90179-14007 | ||||
| 91651-40612 | ||||
| Linked diagrams | ||||
| 1106 | ||||
(0406- )1BZ#
12V 2.5KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90092-21001 | ||||
| 90099-00158 | ||||
| 90099-00254 | ||||
| 90099-02205 | ||||
| 90099-02325 | ||||
| 90099-04207 | ||||
| 90099-04473 | ||||
| 90099-12009 | ||||
| 90179-10195 | ||||
| 90201-10344 | ||||
| 91112-61465 | ||||
| 94130-61400 | ||||
| 94511-01000 | ||||
| 94531-01400 | ||||
| 94621-11400 | ||||
