BZU340-TQMMC3 (2003)
Toyota Dyna/Toyoace
(0306- )1BZ#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-49387 |
1BZFPE..BZU300,340 |
1 | ||
| 11101-49387 |
1BZFPE..BZU300,340 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02084 |
1BZ#,4B..BU30#,346,BZU300,340 |
18 | ||
| 90910-02084 |
1BZ#..BZU300,340 |
18 | ||
| 11101G - UNION(FOR CYLINDER HEAD) | ||||
| 90404-54044 |
1BZ#..BZU300,340 |
1 | ||
| 90404-54044 |
1BZ#..BZU300,340 |
1 | ||
| 11114A - PIN, STRAIGHT | ||||
| 90250-09007 |
1BZ#..BZU300,340 長さ=53.5,外径=9 |
8 | ||
| 90250-09007 |
1BZ#..BZU300,340 長さ=53.5,外径=9 |
8 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-58131 |
1BZ#..BZU300,340 厚さ=1.20 |
1 | ||
| 11115-58131 |
1BZ#..BZU300,340 厚さ=1.20 |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 90331-14006 |
1BZ#..BZU300,340 |
4 | ||
| 11116B - PLUG, TIGHT, NO.2 | ||||
| 96411-62500 |
1BZ#..BZU300,340 |
8 | ||
| 11116B - PLUG, TIGHT, NO.2 | ||||
| 96411-62500 |
1BZ#..BZU300,340 |
8 | ||
| 11116B - PLUG, TIGHT, NO.2 | ||||
| 96411-62500 |
1BZ#..BZU300,340 |
8 | ||
| 11116C - PLUG, TIGHT, NO.3 | ||||
| 96411-63000 |
1BZ#..BZU300,340 |
4 | ||
| 11116D - PLUG, TIGHT, NO.4 | ||||
| 96411-64000 |
1BZ#..BZU300,340 |
1 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-58020 |
1BZ#..BZU300,340 STD |
8 | ||
| 11122-58020 |
1BZ#..BZU300,340 STD |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-58020 |
1BZ#..BZU300,340 STD |
8 | ||
| 11122-58020 |
1BZ#..BZU300,340 STD |
8 | ||
| 11193 - GASKET, SPARK PLUG TUBE | ||||
| 11193-15010 |
1BZ#..BZU300,340 |
4 | ||
| 11193-15010 |
1BZ#..BZU300,340 |
4 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-48040 |
1BZ#..BZU300,340 |
1 | ||
| 11201-48040 |
1BZ#..BZU300,340 |
1 | ||
| 11201A - NUT, CAP(FOR CYLINDER HEAD COVER) | ||||
| 90179-08040 |
1BZ#,4B..BU30#,346,BZU300,340 |
2 | ||
| 90179-08040 |
1BZ#..BZU300,340 |
2 | ||
| 11201E - BOLT, STUD(FOR CYLINDER HEAD COVER SET) | ||||
| 92112-80835 |
1BZ#..BZU300,340 |
2 | ||
| 92112-60835 |
1BZ#..BZU300,340 |
2 | ||
| 92112-80835 |
1BZ#..BZU300,340 |
2 | ||
| 11201H - BOLT(FOR CYLINDER HEAD COVER) | ||||
| 91511-B0835 |
1BZ#..BZU300,340 |
4 | ||
| 91511-B0835 |
1BZ#..BZU300,340 |
4 | ||
| 11212A - CUSHION, CYLINDER HEAD COVER | ||||
| 11228-56010 |
1BZ#,4B..BU30#,346,BZU300,340 |
6 | ||
| 11228-56010 |
1BZ#..BZU300,340 |
6 | ||
| 11212A - CUSHION, CYLINDER HEAD COVER | ||||
| 11228-56010 |
1BZ#,4B..BU30#,346,BZU300,340 |
6 | ||
| 11228-56010 |
1BZ#..BZU300,340 |
6 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-58021 |
1BZ#..BZU300,340 |
1 | ||
| 11213-58021 |
1BZ#..BZU300,340 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-55010 |
1BZ#,4B..BU30#,346,BZU300,340 |
1 | ||
| 12180-55010 |
1BZ#..BZU300,340 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
1BZ#..BZU300,340 |
1 | ||
| 90430-37140 |
1BZ#,4B..BU30#,346,BZU300,340 |
1 | ||

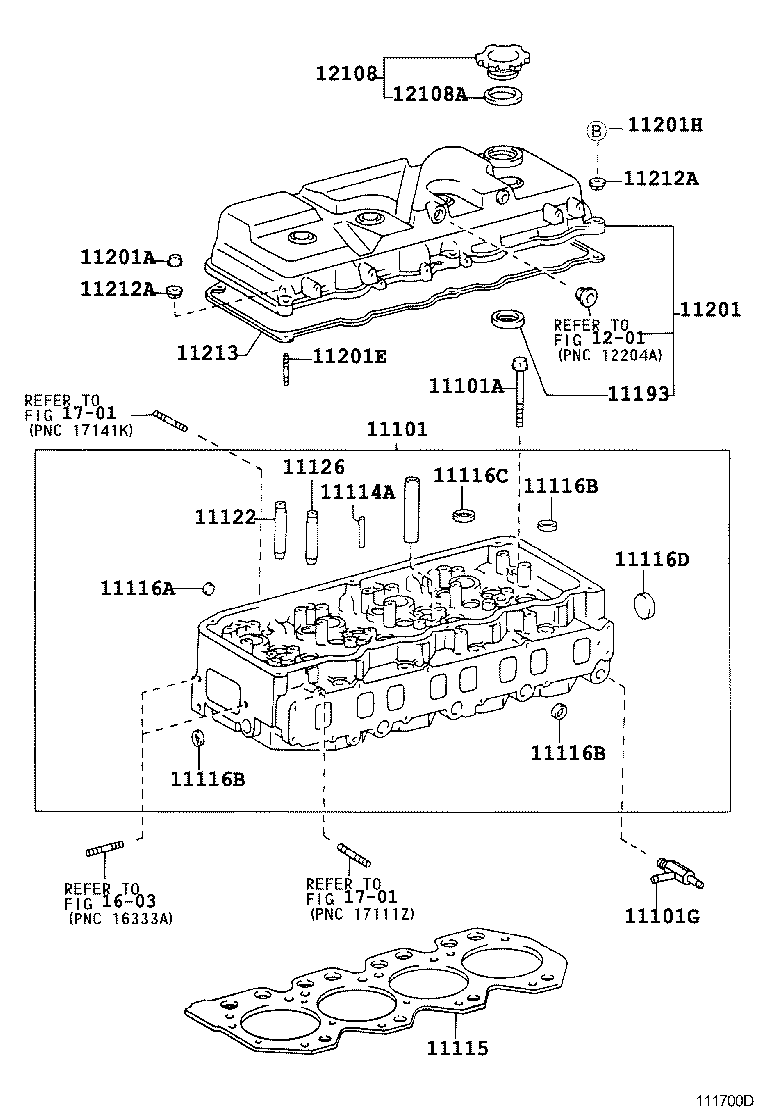

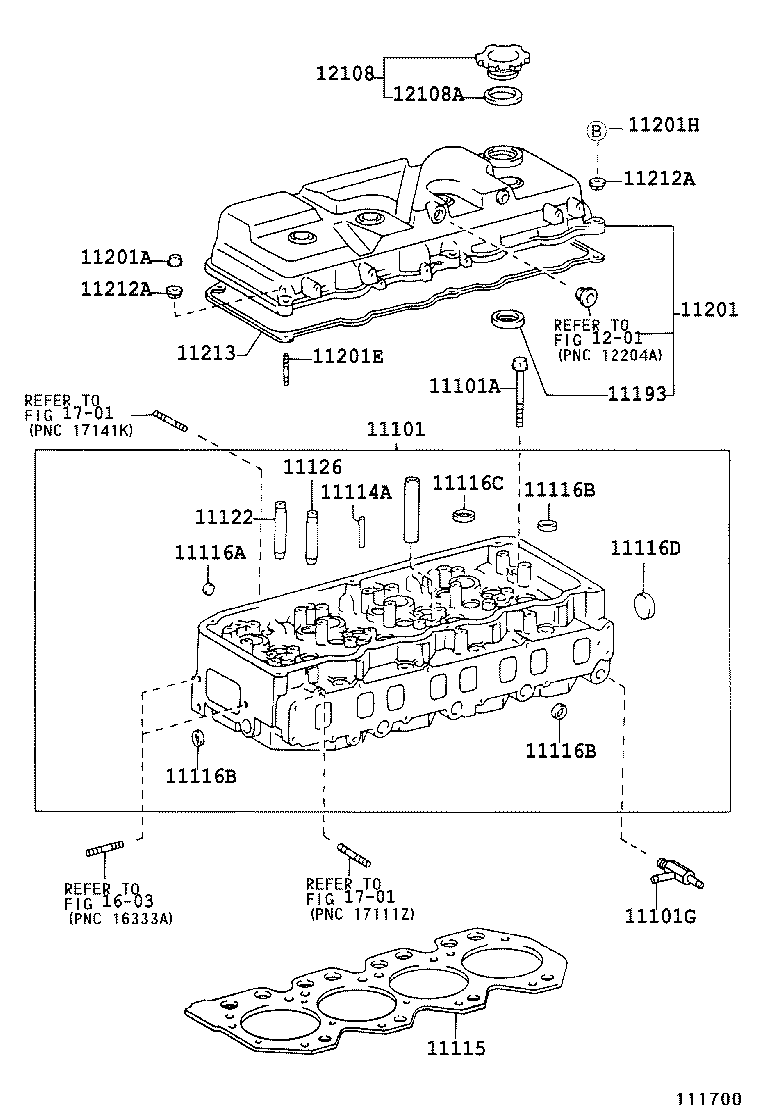

| Linked diagrams | ||||
| 1201 | ||||
| 1603 | ||||
| 1701 | ||||
(0306- )1BZ#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 1201 | ||||
| 1603 | ||||
| 1701 | ||||
