Toyota Dyna/toyoace BZU340 HEATING & AIR CONDITIONING - COMPRESSOR

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
BZU340-TQMMC3 (2007)
8719 - HEATING & AIR CONDITIONING - COMPRESSOR

BZU340-TQMMC3 (2007)

Toyota Dyna/Toyoace

Production May 2007 - Jun 2011

Engine 1BZFPE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(0705- )TRU300,340,500

Click highlighted areas on diagram

Part #	Description	Period	Qty
88320 - COMPRESSOR ASSY, COOLER
88320-37070	BZU300,340	05/2007 - 06/2011	1
88320-25130	TRU300,340,500	05/2007 - 06/2011	1
88320-37110	XZU30#,314,324,33#,34#,354,50#,524,538,548,554	10/2006 - 06/2011	1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 06/2011	1
88410 - CLUTCH ASSY, MAGNET
88410-17100	XZU30#,314,324,33#,34#,354,50#,524,538,548,554	10/2006 - 06/2011	1
88410-37100	BZU300,340	05/2007 - 06/2011	1
88410-35400	TRU300,340,500	05/2007 - 06/2011	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-37130	XZU30#,314,324,33#,34#,354,50#,524,538,548,554	10/2006 - 12/2999	1
88431-37090	BZU300,340	05/2007 - 12/2999	1
88431-37190	TRU300,340,500	05/2007 - 12/2999	1
88440B - PULLEY ASSY, IDLE
88440-37120	XZU30#,314,324,33#,34#,354,50#,524,538,548,554	10/2006 - 06/2011	1
88440-25070	TRU300,340,500	05/2007 - 06/2011	1
88440-26070	BZU300,340	05/2007 - 06/2011	1
88688K - BRACKET, COOLER COMPRESSOR
88688-2D770	BZU300,340	05/2007 - 06/2011	1
88688-25430	TRU300,340,500	05/2007 - 06/2011	1
88688-3V580	XZU30#,314,324,33#,34#,354,50#,524,538,548,554	10/2006 - 06/2011	1
Common parts
90099-04349
90099-07065
90099-07114
90105-08403
90105-10362
90119-08B42
91512-81035
93319-15008

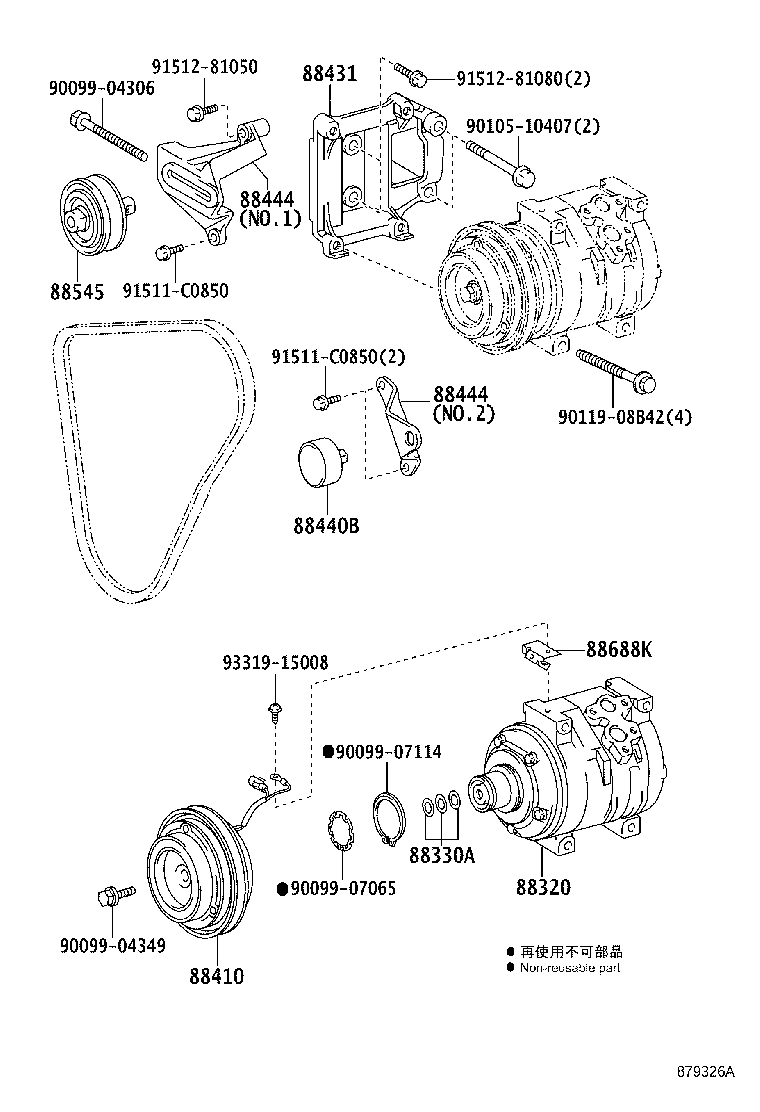

(0705- )BZU300,340

Click highlighted areas on diagram

Part #	Description	Period	Qty
88320 - COMPRESSOR ASSY, COOLER
88320-37070	BZU300,340	05/2007 - 06/2011	1
88320-25130	TRU300,340,500	05/2007 - 06/2011	1
88320-37110	XZU30#,314,324,33#,34#,354,50#,524,538,548,554	10/2006 - 06/2011	1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 06/2011	1
88410 - CLUTCH ASSY, MAGNET
88410-17100	XZU30#,314,324,33#,34#,354,50#,524,538,548,554	10/2006 - 06/2011	1
88410-37100	BZU300,340	05/2007 - 06/2011	1
88410-35400	TRU300,340,500	05/2007 - 06/2011	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-37130	XZU30#,314,324,33#,34#,354,50#,524,538,548,554	10/2006 - 12/2999	1
88431-37090	BZU300,340	05/2007 - 12/2999	1
88431-37190	TRU300,340,500	05/2007 - 12/2999	1
88440B - PULLEY ASSY, IDLE
88440-37120	XZU30#,314,324,33#,34#,354,50#,524,538,548,554	10/2006 - 06/2011	1
88440-25070	TRU300,340,500	05/2007 - 06/2011	1
88440-26070	BZU300,340	05/2007 - 06/2011	1
88444 - BRACKET, IDLE PULLEY
88444-37030	BZU300,340 NO.1	05/2007 - 12/2999	1
88444-37160	XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
88444-37040	BZU300,340 NO.2	05/2007 - 12/2999	1
88444-37060	BZU300,340..(T3,T4)..IV3	05/2007 - 12/2999	1
88444 - BRACKET, IDLE PULLEY
88444-37030	BZU300,340 NO.1	05/2007 - 12/2999	1
88444-37160	XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
88444-37040	BZU300,340 NO.2	05/2007 - 12/2999	1
88444-37060	BZU300,340..(T3,T4)..IV3	05/2007 - 12/2999	1
88545 - PULLEY ASSY, IDLE
88440-26090	BZU300,340	05/2007 - 12/2999	1
88688K - BRACKET, COOLER COMPRESSOR
88688-2D770	BZU300,340	05/2007 - 06/2011	1
88688-25430	TRU300,340,500	05/2007 - 06/2011	1
88688-3V580	XZU30#,314,324,33#,34#,354,50#,524,538,548,554	10/2006 - 06/2011	1
Common parts
90099-04306
90099-04349
90099-07065
90099-07114
90105-10407
90119-08B42
91511-C0850
91512-81050
91512-81080
93319-15008

BZU340-TQMMC3 (2007)

(0705- )TRU300,340,500

(0705- )BZU300,340
