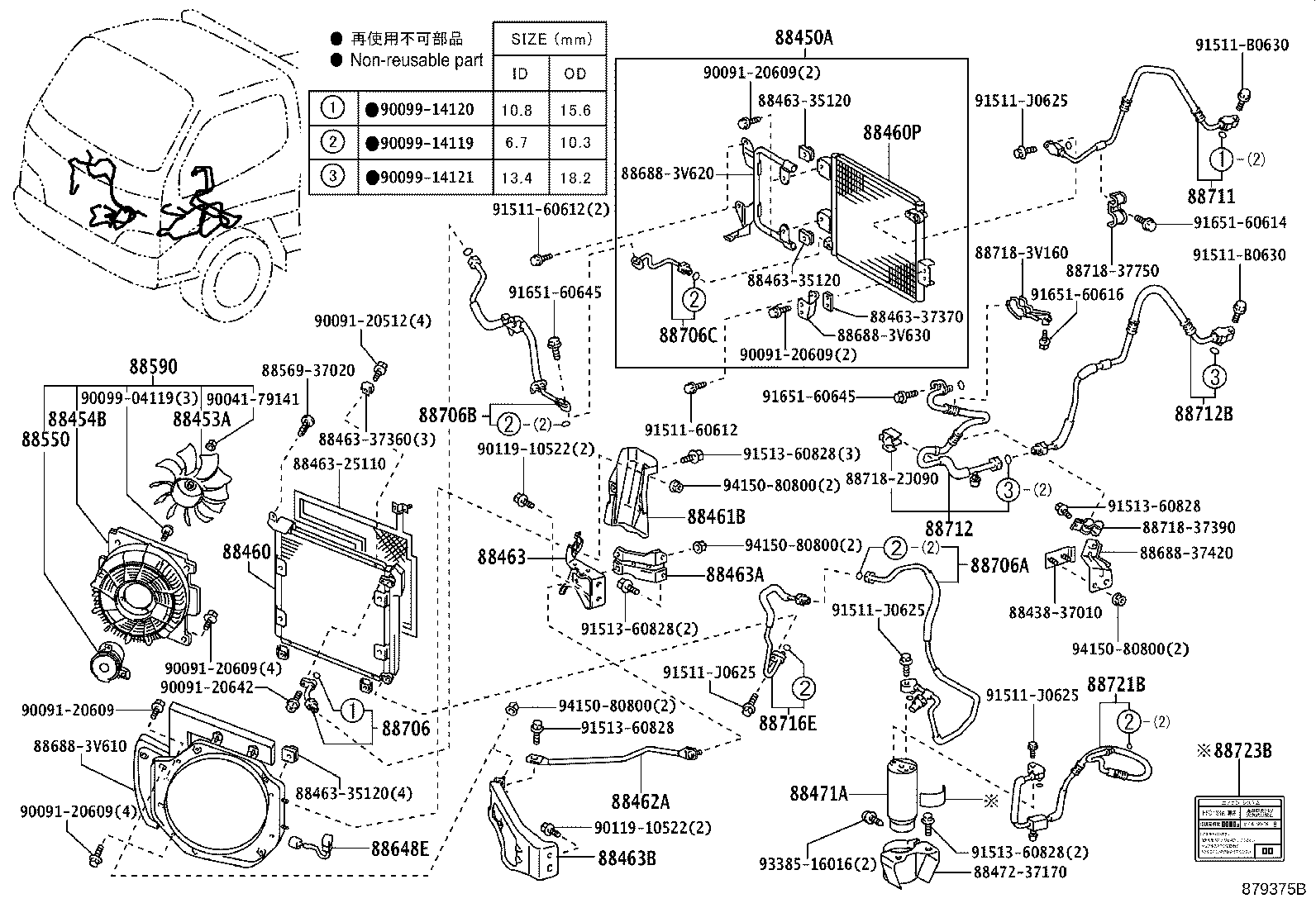

BZU340-TQMMC3 (2007)
Toyota Dyna/Toyoace
(0705- )TRU300,340,500
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88450A - SUB CONDENSER ASSY | ||||
| 88450-37120 |
BZU300,340 |
1 | ||
| 88453A - FAN, COOLING | ||||
| 88453-37010 |
BZU300,340,TRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI,LPG |
1 | ||
| 88454B - SHROUD, FAN | ||||
| 88454-37031 |
TRU300,340,500 |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-37730 |
BZU300,340 |
1 | ||
| 88460P - CONDENSER ASSY, COOLER NO.2 | ||||
| 88461-37120 |
BZU300,340 |
1 | ||
| 88461B - COVER, COOLER CONDENSER | ||||
| 53715-37180 |
BZU300,340,TRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI,LPG |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-37140 |
BZU300,340,TRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI,LPG |
1 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-37150 |
BZU300,340,TRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI,LPG |
1 | ||
| 88463B - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88463-37160 |
BZU300,340,TRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI,LPG |
1 | ||
| 88471A - TANK, RECEIVER | ||||
| 88471-34010 |
XZU368,378,388,568;XZU348,508..DCB,VAN;XZU348..DCRTK,DCRTM;XZU308..DCB..(DCRTJ,DCRUE);BZU300,340,TRU300,340,500,XZU30#,314,334,344,354..DCRTH,DCRTK,DCRTM,EFI,LPG |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-37070 |
BZU300,340,TRU300,340,500 |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-37130 |
TRU300,340,500 |
1 | ||
| 88706 - PIPE SUB-ASSY, LIQUID | ||||
| 88706-37270 |
BZU300,340 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-3V120 |
TRU300,340,500 |
1 | ||
| 88711-3V130 |
BZU300,340 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-3V430 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,50#,524,538,548,554 |
1 | ||
| 88712B - HOSE, COOLER REFRIGERANT SUCTION | ||||
| 88712-3V750 |
TRU300,340,500 |
1 | ||
| 88712-3V760 |
BZU300,340 |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88733-27010 |
XZU308,348,508..DCB,VAN;BZU300,340,TRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI,LPG |
1 | ||
| Common parts | ||||
| 88438-37010 | ||||
| 88463-25110 | ||||
| 88463-35120 | ||||
| 88463-37360 | ||||
| 88463-37370 | ||||
| 88472-37170 | ||||
| 88569-37020 | ||||
| 88688-37420 | ||||
| 88688-3V610 | ||||
| 88688-3V620 | ||||
| 88688-3V630 | ||||
| 88718-2J090 | ||||
| 88718-37390 | ||||
| 88718-37750 | ||||
| 88718-3V160 | ||||
| 90041-79141 | ||||
| 90091-20512 | ||||
| 90091-20609 | ||||
| 90091-20642 | ||||
| 90099-04119 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-10522 | ||||
| 91511-60612 | ||||
| 91511-B0630 | ||||
| 91511-J0625 | ||||
| 91513-60828 | ||||
| 91651-60614 | ||||
| 91651-60616 | ||||
| 91651-60645 | ||||
| 93385-16016 | ||||
| 94150-80800 | ||||

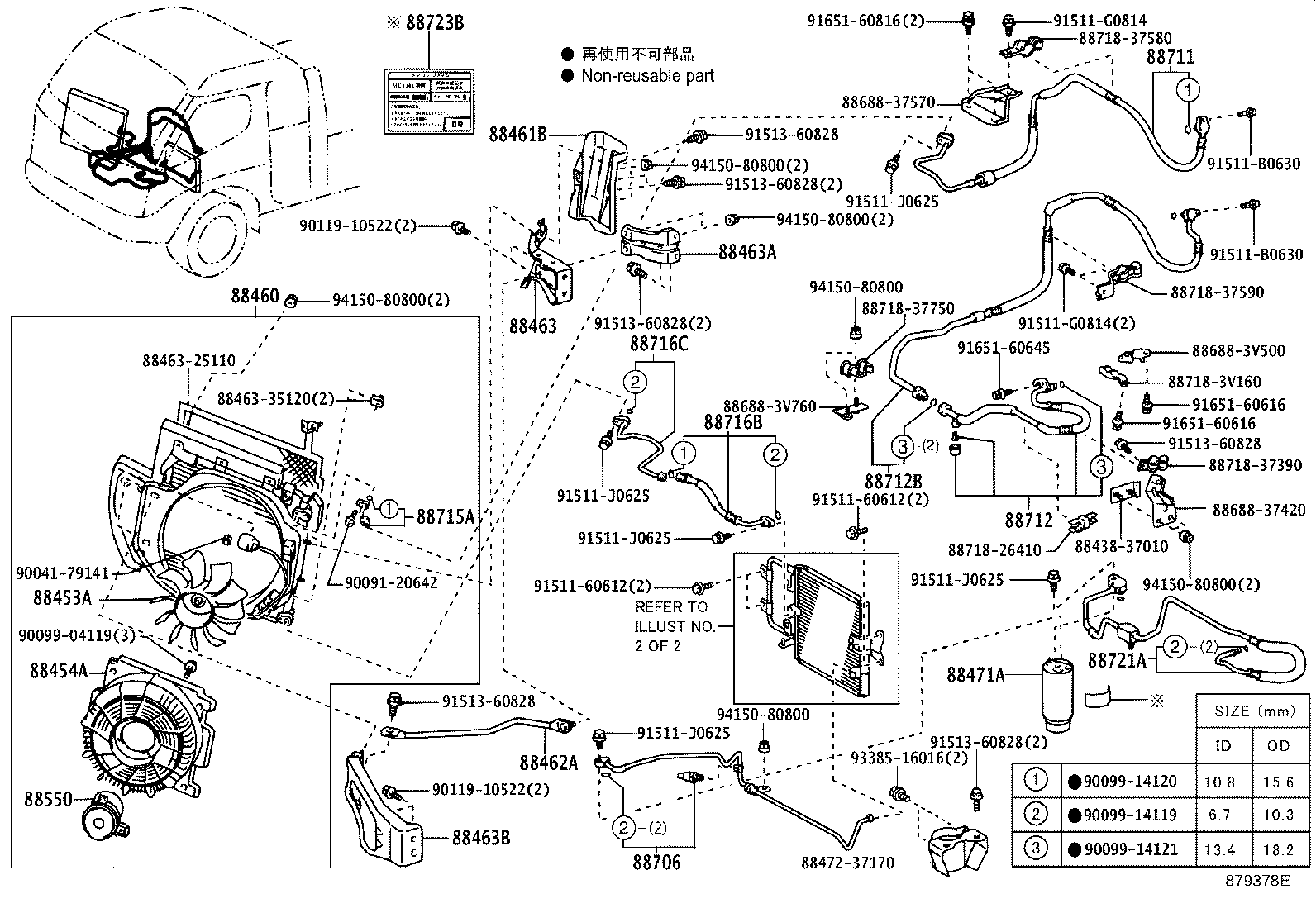

ILLUST NO. 1 OF 2(0705- )BZU300,340
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88453A - FAN, COOLING | ||||
| 88453-37010 |
BZU300,340,TRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI,LPG |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-37031 |
BZU300,340,XZU304,314,334,344,354..DCRTK,DCRTM,LPG |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-37730 |
BZU300,340 |
1 | ||
| 88461B - COVER, COOLER CONDENSER | ||||
| 53715-37180 |
BZU300,340,TRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI,LPG |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-37140 |
BZU300,340,TRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI,LPG |
1 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-37150 |
BZU300,340,TRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI,LPG |
1 | ||
| 88463B - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88463-37160 |
BZU300,340,TRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI,LPG |
1 | ||
| 88471A - TANK, RECEIVER | ||||
| 88471-34010 |
XZU368,378,388,568;XZU348,508..DCB,VAN;XZU348..DCRTK,DCRTM;XZU308..DCB..(DCRTJ,DCRUE);BZU300,340,TRU300,340,500,XZU30#,314,334,344,354..DCRTH,DCRTK,DCRTM,EFI,LPG |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-37070 |
BZU300,340,TRU300,340,500 |
1 | ||
| 88706 - PIPE SUB-ASSY, LIQUID | ||||
| 88706-37270 |
BZU300,340 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-3V120 |
TRU300,340,500 |
1 | ||
| 88711-3V130 |
BZU300,340 |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-3V430 |
BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,50#,524,538,548,554 |
1 | ||
| 88712B - HOSE, COOLER REFRIGERANT SUCTION | ||||
| 88712-3V750 |
TRU300,340,500 |
1 | ||
| 88712-3V760 |
BZU300,340 |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-37450 |
BZU300,340 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-37A30 |
BZU300,340 |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-3V570 |
BZU300,340 |
1 | ||
| 88721A - HOSE, LIQUID, A | ||||
| 88721-3V030 |
BZU300,340 |
1 | ||
| 88723B - LABEL, COOLER SERVICE CAUTION | ||||
| 88733-27010 |
XZU308,348,508..DCB,VAN;BZU300,340,TRU300,340,500,XZU304,314,334,344,354..DCRTK,DCRTM,EFI,LPG |
1 | ||
| Common parts | ||||
| 88438-37010 | ||||
| 88463-25110 | ||||
| 88463-35120 | ||||
| 88472-37170 | ||||
| 88688-37420 | ||||
| 88688-37570 | ||||
| 88688-3V500 | ||||
| 88688-3V760 | ||||
| 88718-26410 | ||||
| 88718-37390 | ||||
| 88718-37580 | ||||
| 88718-37590 | ||||
| 88718-37750 | ||||
| 88718-3V160 | ||||
| 90041-79141 | ||||
| 90091-20642 | ||||
| 90099-04119 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-10522 | ||||
| 91511-60612 | ||||
| 91511-B0630 | ||||
| 91511-G0814 | ||||
| 91511-J0625 | ||||
| 91513-60828 | ||||
| 91651-60616 | ||||
| 91651-60645 | ||||
| 91651-60816 | ||||
| 93385-16016 | ||||
| 94150-80800 | ||||

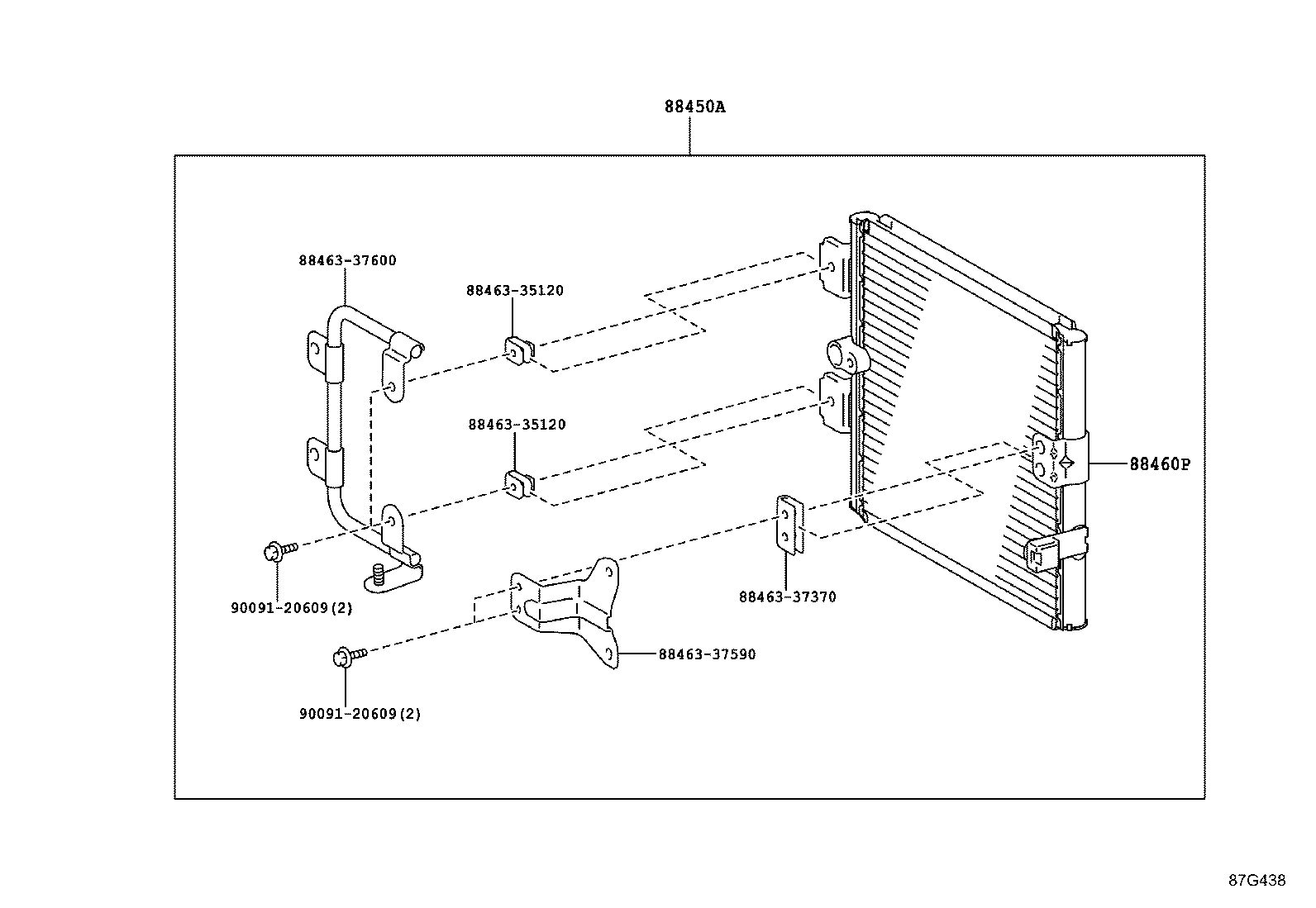

ILLUST NO. 2 OF 2(0705- )BZU300,340
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88450A - SUB CONDENSER ASSY | ||||
| 88450-37120 |
BZU300,340 |
1 | ||
| 88460P - CONDENSER ASSY, COOLER NO.2 | ||||
| 88461-37120 |
BZU300,340 |
1 | ||
| Common parts | ||||
| 88463-35120 | ||||
| 88463-37370 | ||||
| 88463-37590 | ||||
| 88463-37600 | ||||
| 90091-20609 | ||||
