BZU340-TQMMC3 (2007)

Toyota Dyna/Toyoace

Production May 2007 - Jun 2011
Engine 1BZFPE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )TRU300,340,500

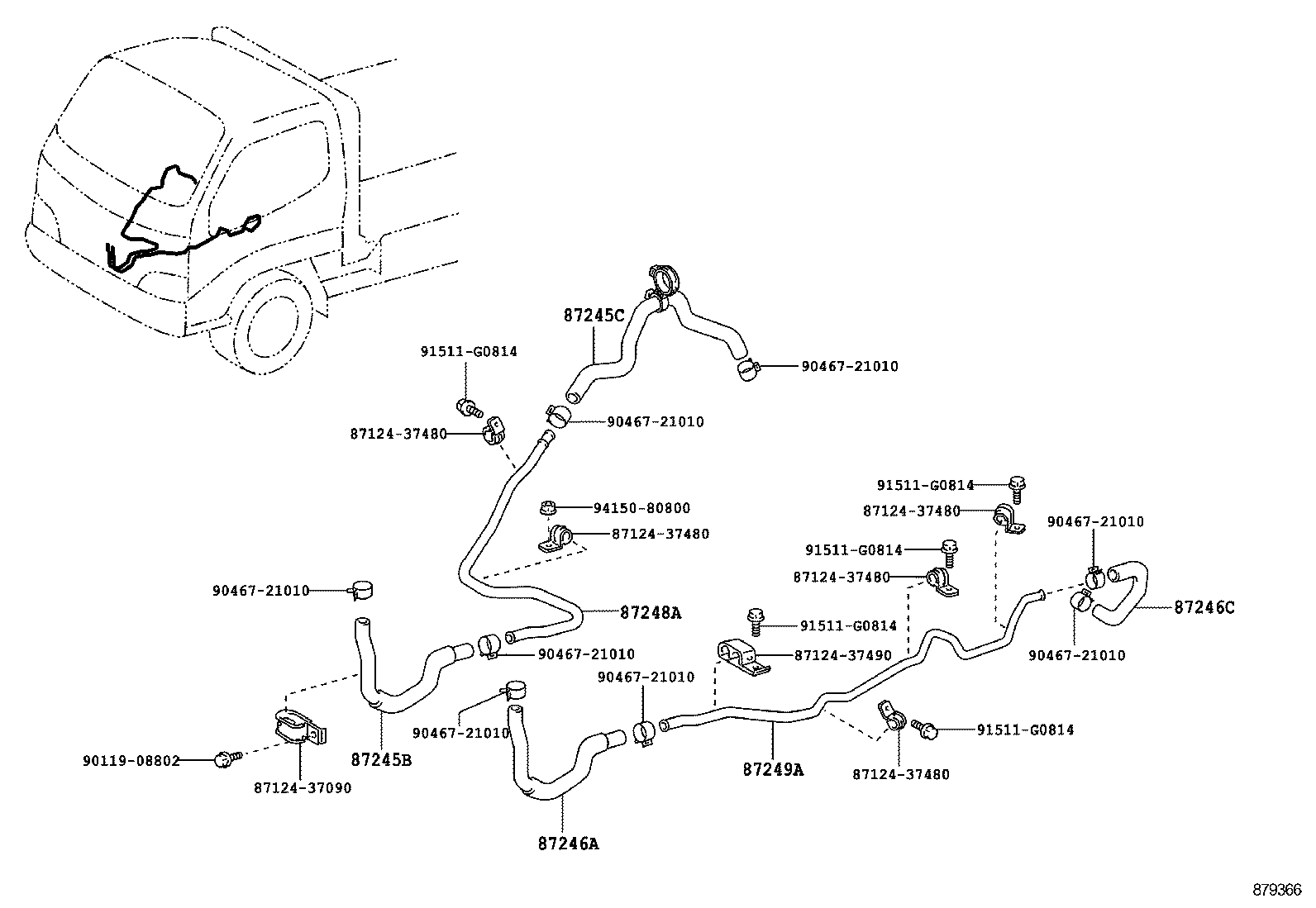

Click highlighted areas on diagram

diagram 8712437090 8712437480 8712437480 8712437480 8712437480 8712437480 8712437490 87245B 87245C 87246A 87246C 87248A 87249A 9011908802 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 91511G0814 91511G0814 91511G0814 91511G0814 91511G0814 9415080800
Part # Description Qty Price
87245B - HOSE, HEATER WATER, INLET B
87245-37A00

XZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,50#,524,538,548,554,568

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-3V450

BZU300,340

 1
87245-37D11

TRU300,340,500

 1
87245-37D10

TRU300,340,500

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-37A00

XZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,50#,524,538,548,554,568

 1
87246C - HOSE, HEATER WATER, OUTLET C
87246-37710

TRU300,340,500

 1
87246-37390

BZU300,340

 1
87248A - PIPE, HEATER WATER INLET, A
87248-37451

TRU300,340,500,XZU30#,314,324,33#,34#,354,50#,524,538,548,554

 1
87248-37A70

BZU300,340

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-37A10

XZU378,388..SCB;XZU30#,314,324,33#,34#,354,368,50#,524,538,548,554,568

 1
87248-37A80

BZU300,340

 1
87248-37A40

TRU300,340,500

 1
Common parts
87124-37090
87124-37480
87124-37490
90119-08802
90467-21010
91511-G0814
94150-80800

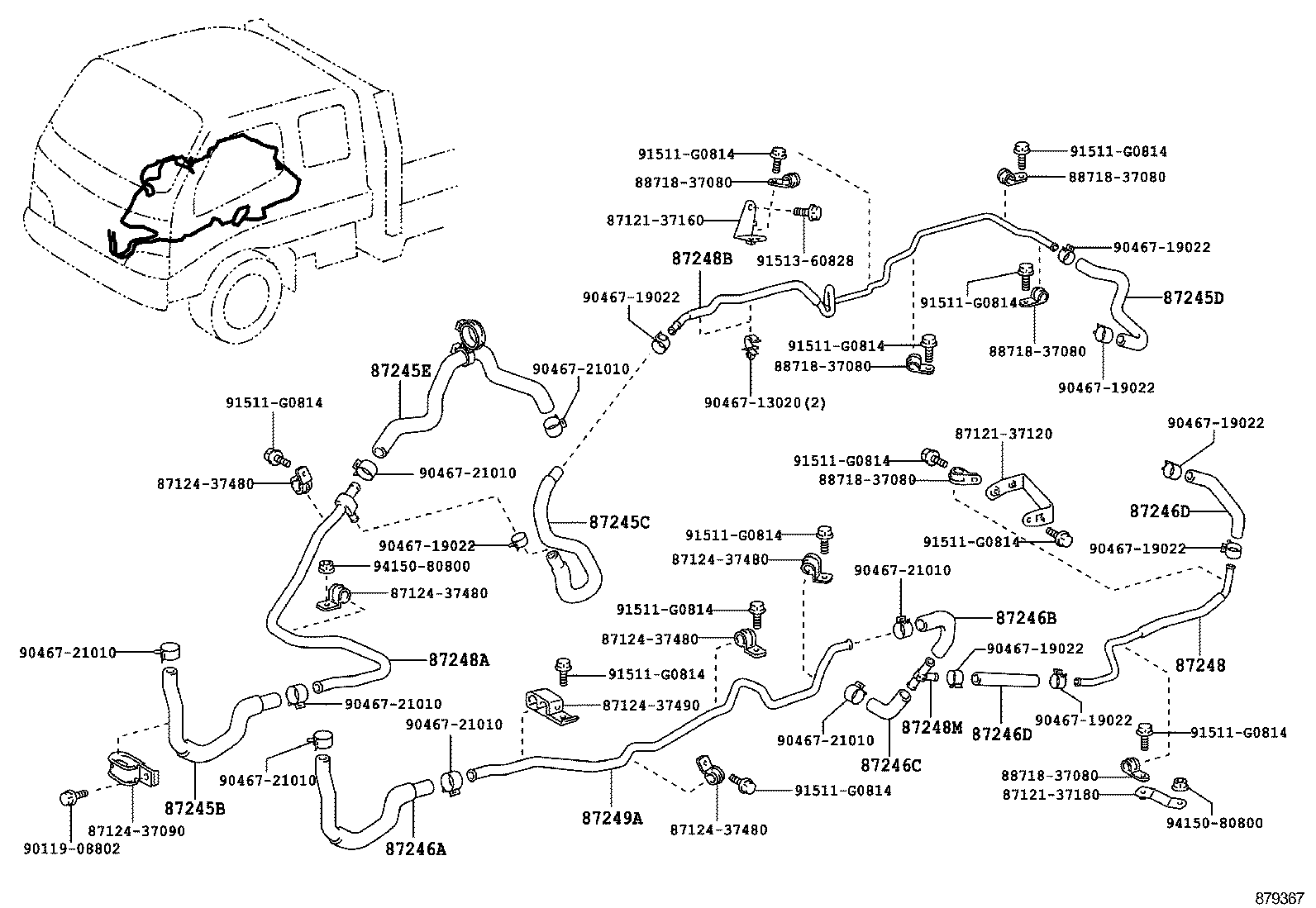

(0705- )TRU300,340,500

Click highlighted areas on diagram

ｱﾘ(ﾘﾔ ﾋｰﾀ)

diagram 8712137120 8712137160 8712137180 8712437090 8712437480 8712437480 8712437480 8712437480 8712437480 8712437490 87245B 87245C 87245D 87245E 87246A 87246B 87246C 87246D 87246D 87248 87248A 87248B 87248M 87249A 8871837080 8871837080 8871837080 8871837080 8871837080 8871837080 9011908802 9046713020 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046719022 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 91511G0814 91511G0814 91511G0814 91511G0814 91511G0814 91511G0814 91511G0814 91511G0814 91511G0814 91511G0814 91511G0814 91511G0814 9151360828 9415080800 9415080800
Part # Description Qty Price
87245B - HOSE, HEATER WATER, INLET B
87245-37A00

XZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,50#,524,538,548,554,568

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-3V450

BZU300,340

 1
87245-37D11

TRU300,340,500

 1
87245-37D10

TRU300,340,500

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-37A00

XZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,50#,524,538,548,554,568

 1
87246B - HOSE, HEATER WATER, OUTLET B
87246-37690

XZU30#,314,324,33#,34#,354,50#,524,538,548,554

 1
87246C - HOSE, HEATER WATER, OUTLET C
87246-37710

TRU300,340,500

 1
87246-37390

BZU300,340

 1
87246D - HOSE, HEATER WATER, OUTLET D
87246-37430

BZU300,340

 1
87246D - HOSE, HEATER WATER, OUTLET D
87246-37430

BZU300,340

 1
87248A - PIPE, HEATER WATER INLET, A
87248-37451

TRU300,340,500,XZU30#,314,324,33#,34#,354,50#,524,538,548,554

 1
87248-37A70

BZU300,340

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-37A10

XZU378,388..SCB;XZU30#,314,324,33#,34#,354,368,50#,524,538,548,554,568

 1
87248-37A80

BZU300,340

 1
87248-37A40

TRU300,340,500

 1
Common parts
87121-37120
87121-37160
87121-37180
87124-37090
87124-37480
87124-37490
88718-37080
90119-08802
90467-13020
90467-19022
90467-21010
91511-G0814
91513-60828
94150-80800

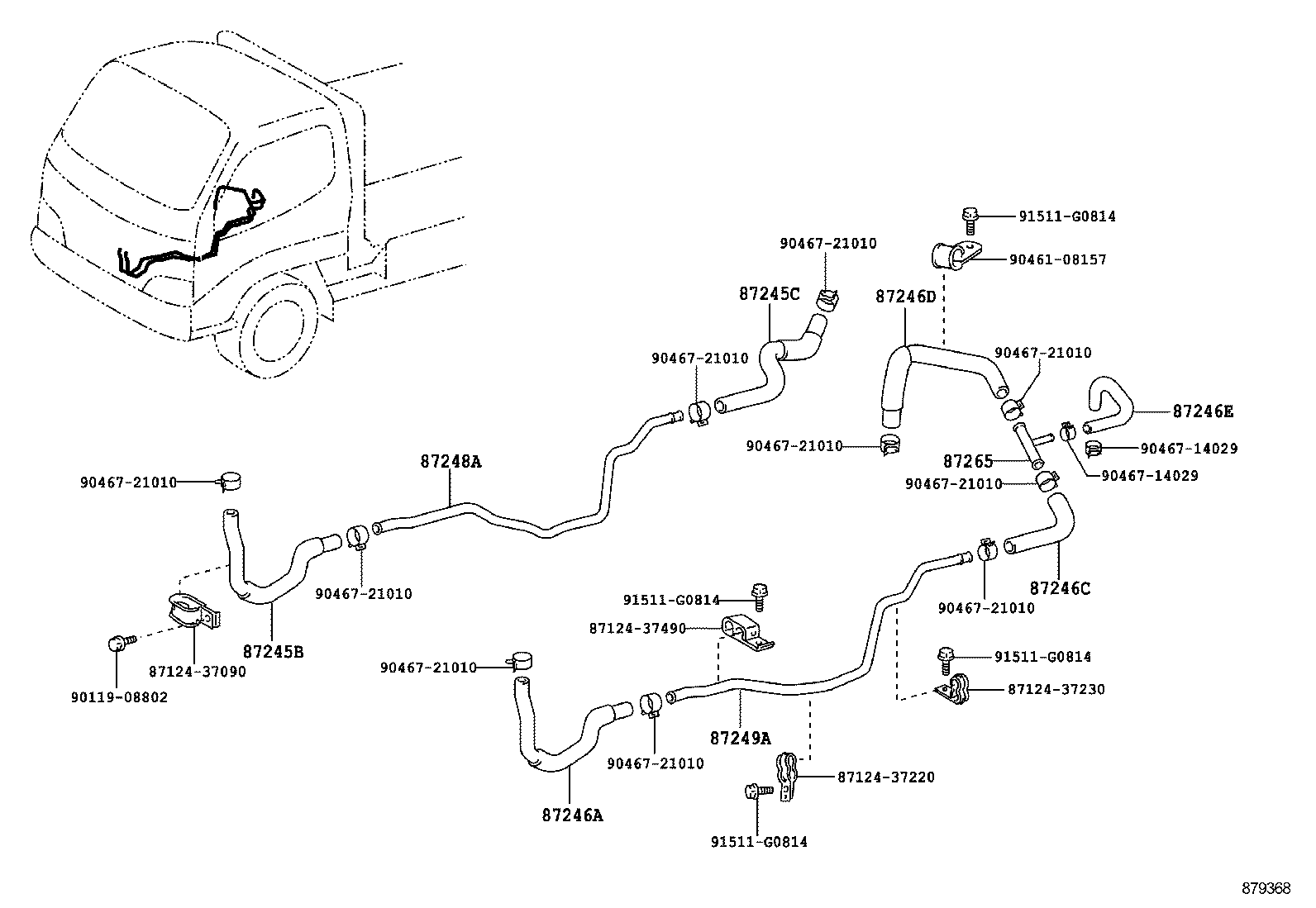

(0705- )BZU300,340

Click highlighted areas on diagram

diagram 8712437090 8712437220 8712437230 8712437490 87245B 87245C 87246A 87246C 87246D 87246E 87248A 87249A 87265 9011908802 9046108157 9046714029 9046714029 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 9046721010 91511G0814 91511G0814 91511G0814 91511G0814
Part # Description Qty Price
87245B - HOSE, HEATER WATER, INLET B
87245-37A00

XZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,50#,524,538,548,554,568

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-3V450

BZU300,340

 1
87245-37D11

TRU300,340,500

 1
87245-37D10

TRU300,340,500

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-37A00

XZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,50#,524,538,548,554,568

 1
87246C - HOSE, HEATER WATER, OUTLET C
87246-37710

TRU300,340,500

 1
87246-37390

BZU300,340

 1
87246D - HOSE, HEATER WATER, OUTLET D
87246-37430

BZU300,340

 1
87246E - HOSE, HEATER WATER, OUTLET E
87246-37400

BZU300,340

 1
87248A - PIPE, HEATER WATER INLET, A
87248-37451

TRU300,340,500,XZU30#,314,324,33#,34#,354,50#,524,538,548,554

 1
87248-37A70

BZU300,340

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-37A10

XZU378,388..SCB;XZU30#,314,324,33#,34#,354,368,50#,524,538,548,554,568

 1
87248-37A80

BZU300,340

 1
87248-37A40

TRU300,340,500

 1
87265 - CONNECTOR, HEATER WATER HOSE
87265-89110

BZU300,340

 1
Common parts
87124-37090
87124-37220
87124-37230
87124-37490
90119-08802
90461-08157
90467-14029
90467-21010
91511-G0814
