BZU340-TQMMC3 (2007)

Toyota Dyna/Toyoace

Production May 2007 - Jun 2011
Engine 1BZFPE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

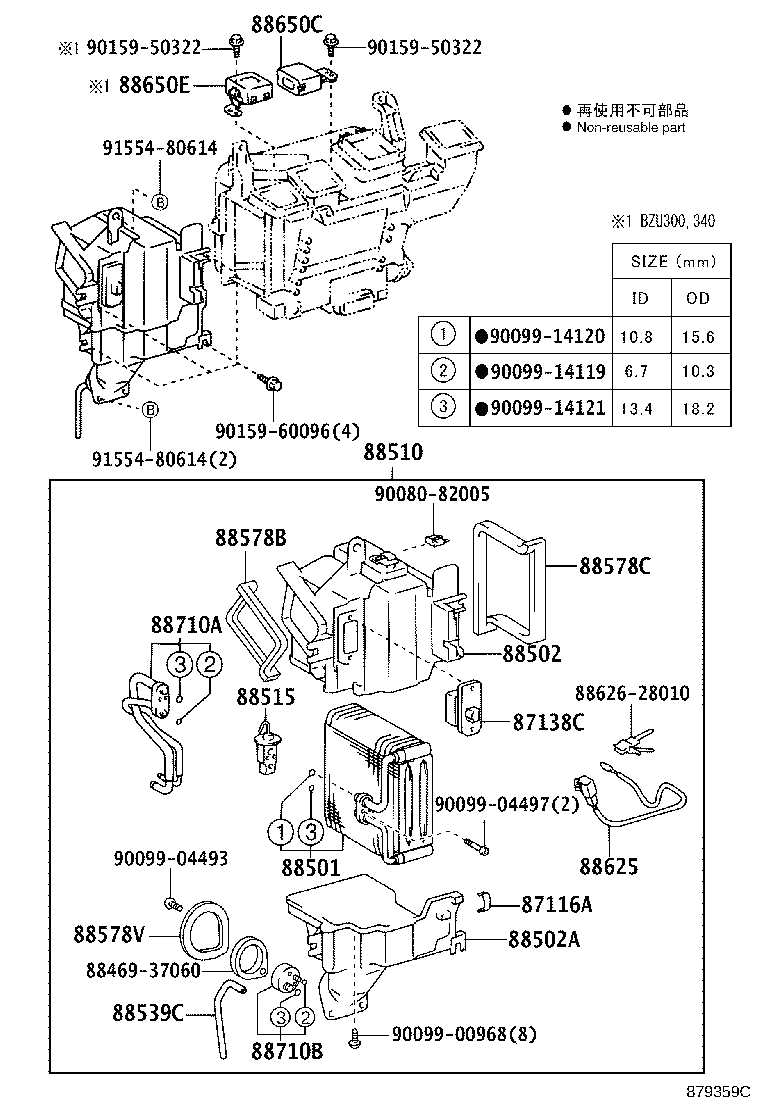

ILLUST NO. 1 OF 2(0610-1003)XZU368,378,388,568..SCB ; (0610-1003)XZU30#,314,334,34#,354..SCB..DCRTK,

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 87138C 8846937060 88501 88502 88502A 88510 88510F 88515 88539C 88625 88650C 88710A 88710B 9009914119 9009914120 9009914121 9015950322 9015960096 9155480614 9155480614
Part # Description Qty Price
87138C - RESISTOR, BLOWER
87138-37220

XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
87138-37190

BZU300,340,TRU300,340,500

 1
87138-37090

XZU504..ST;XZU50#,538,548,554..6FC;XZU508..(03S,06S,T2)..5F;XZU30#,314,324,33#,34#,354,368,378,388,568

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-37060

BZU300,340,TRU300,340,500;XZU30#,334,348,378,388,508..DCB,VAN

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-37050

BZU300,340,TRU300,340,500;XZU30#,334,348,378,388,508..DCB,VAN

 1
88502A - CASE SUB-ASSY, COOLING UNIT
88502-37040

BZU300,340,TRU300,340,500;XZU30#,334,348,378,388,508..DCB,VAN

 1
88510 - UNIT ASSY, COOLER
88510-37180

BZU300,340,TRU300,340,500

 1
88515 - VALVE, COOLER EXPANSION
88515-28160

BZU300,340,TRU300,340,500;XZU30#,334,348,378,388,508..DCB,VAN

 1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-37060

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
88625 - THERMISTOR, COOLER, NO.1
88625-32150

BZU300,340,TRU300,340,500;XZU30#,334,348,378,388,508..DCB,VAN

 1
88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER
88650-37210

BZU300,340

 1
88650-25120

TRU300,340,500

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-37340

BZU300,340,TRU300,340,500;XZU30#,334,348,378,388,508..DCB,VAN

 1
88710B - TUBE ASSY, AIR CONDITIONER
88710-37350

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
Common parts
88469-37060
90099-14119
90099-14120
90099-14121
90159-50322
90159-60096
91554-80614

ILLUST NO. 1 OF 2(0705- )BZU300,340,TRU300,340,500

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 87116A 87138C 8846937060 88501 88502 88502A 88510 88515 88539C 88578B 88578C 88578V 88625 8862628010 88650C 88650E 88710A 88710B 9008082005 9009900968 9009904493 9009904497 9009914119 9009914120 9009914121 9015950322 9015950322 9015960096 9155480614 9155480614
Part # Description Qty Price
87116A - SPRING, HOLDING (FOR COOLER UNIT CASE)
87116-14010

BZU300,340,TRU300,340,500

 3
87138C - RESISTOR, BLOWER
87138-37220

XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
87138-37190

BZU300,340,TRU300,340,500

 1
87138-37090

XZU504..ST;XZU50#,538,548,554..6FC;XZU508..(03S,06S,T2)..5F;XZU30#,314,324,33#,34#,354,368,378,388,568

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-37060

BZU300,340,TRU300,340,500;XZU30#,334,348,378,388,508..DCB,VAN

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-37050

BZU300,340,TRU300,340,500;XZU30#,334,348,378,388,508..DCB,VAN

 1
88502A - CASE SUB-ASSY, COOLING UNIT
88502-37040

BZU300,340,TRU300,340,500;XZU30#,334,348,378,388,508..DCB,VAN

 1
88510 - UNIT ASSY, COOLER
88510-37180

BZU300,340,TRU300,340,500

 1
88515 - VALVE, COOLER EXPANSION
88515-28160

BZU300,340,TRU300,340,500;XZU30#,334,348,378,388,508..DCB,VAN

 1
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-37060

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
88578B - PACKING, COOLING UNIT, NO.1
88578-37130

BZU300,340,TRU300,340,500

 1
88578C - PACKING, COOLING UNIT, NO.2
88578-37140

BZU300,340,TRU300,340,500

 1
88578V - PACKING, COOLING UNIT, NO.3
88578-37150

BZU300,340,TRU300,340,500

 1
88625 - THERMISTOR, COOLER, NO.1
88625-32150

BZU300,340,TRU300,340,500;XZU30#,334,348,378,388,508..DCB,VAN

 1
88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER
88650-37210

BZU300,340

 1
88650-25120

TRU300,340,500

 1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-37220

BZU300,340

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-37340

BZU300,340,TRU300,340,500;XZU30#,334,348,378,388,508..DCB,VAN

 1
88710B - TUBE ASSY, AIR CONDITIONER
88710-37350

BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568

 1
Common parts
88469-37060
88626-28010
90080-82005
90099-00968
90099-04493
90099-04497
90099-14119
90099-14120
90099-14121
90159-50322
90159-60096
91554-80614
