BZU340-TQMMC3 (2007)

Toyota Dyna/Toyoace

Production May 2007 - Jun 2011
Engine 1BZFPE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0705- )TRU300,340,500

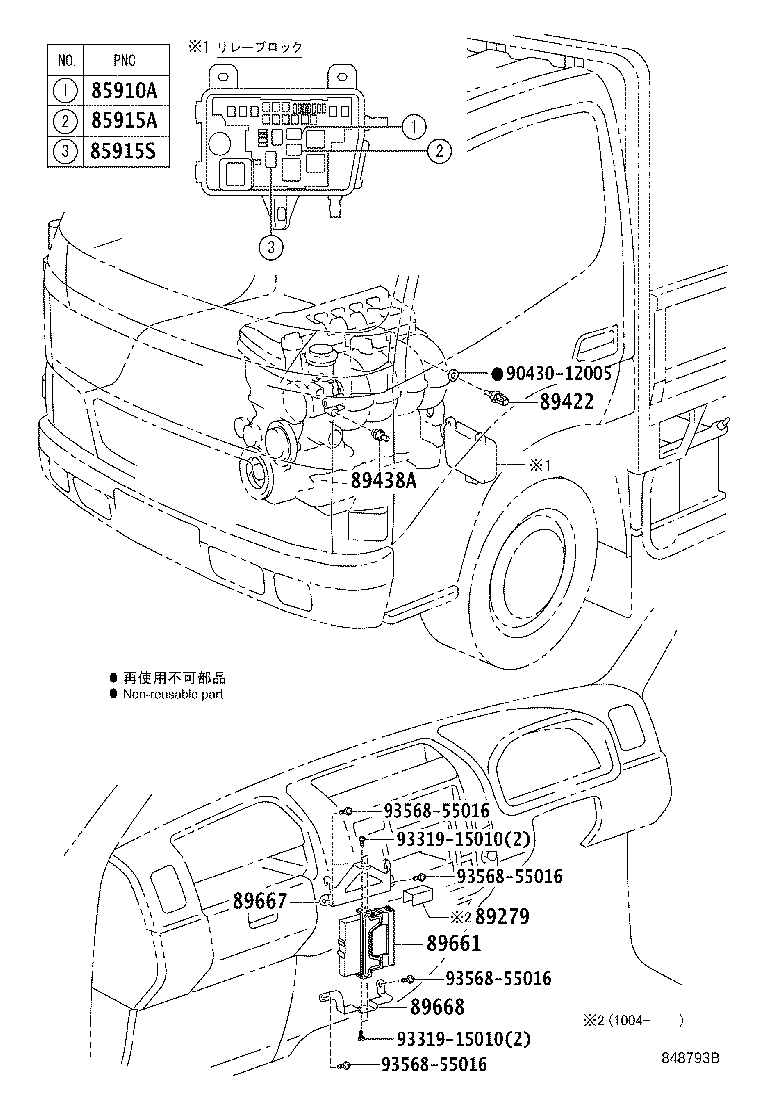

Click highlighted areas on diagram

diagram 85910A 85915A 85915S 89279 89422 89438A 89661 89667 89668 9043012005 9331915010 9331915010 9356855016 9356855016 9356855016 9356855016
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02012

TRU300,340,500

 1
85915A - RELAY, MAIN
90987-02012

TRU300,340,500

 1
85915S - RELAY, HEATER (FOR AIR FUEL RATIO SENSOR)
90987-02012

TRU300,340,500

 1
89279 - COVER, ENGINE CONTROL COMPUTER
89279-37070

TRU300,340,500

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

TRU300,340,500

 1
89438A - SWITCH, POWER STEERING OIL PRESSURE
89438-33010

TRU300,340,500

 1
89661 - COMPUTER, ENGINE CONTROL
89661-37780

TRU300,340,500

DENSO

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-37110

TRU300,340,500

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-37100

TRU300,340,500

 1
Common parts
90430-12005
93319-15010
93568-55016
