BZU340-TQMMC3 (2007)
Toyota Dyna/Toyoace

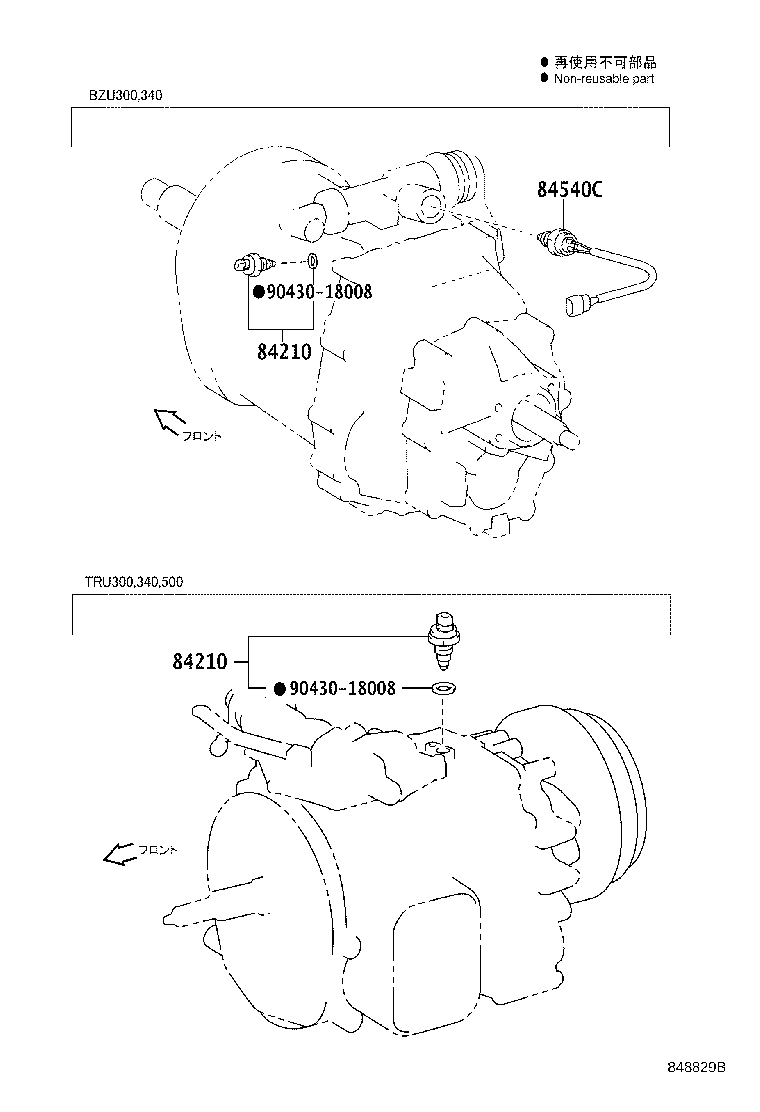

ILLUST NO. 2 OF10(0705- )BZU300,340,TRU300,340,500
ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
BZU300,340,TRU300,340,500 |
1 | ||
| 84210-37020 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV4,IV6) |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
BZU300,340,TRU300,340,500 |
1 | ||
| 84210-37020 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV4,IV6) |
1 | ||
| 84540C - SWITCH ASSY, NEUTRAL (FOR EXHAUST BRAKE) | ||||
| 84540-37070 |
XZU30#,33#,34#,354,50#,538,548..(03S,06S,DM3,DM6,T2,T3,T4,T5)..5F..(CBU,IV3,IV4,IV6) |
1 | ||
| 84540-37020 |
BZU300,340,TRU300,340,500 |
1 | ||
| Common parts | ||||
| 90430-18008 | ||||

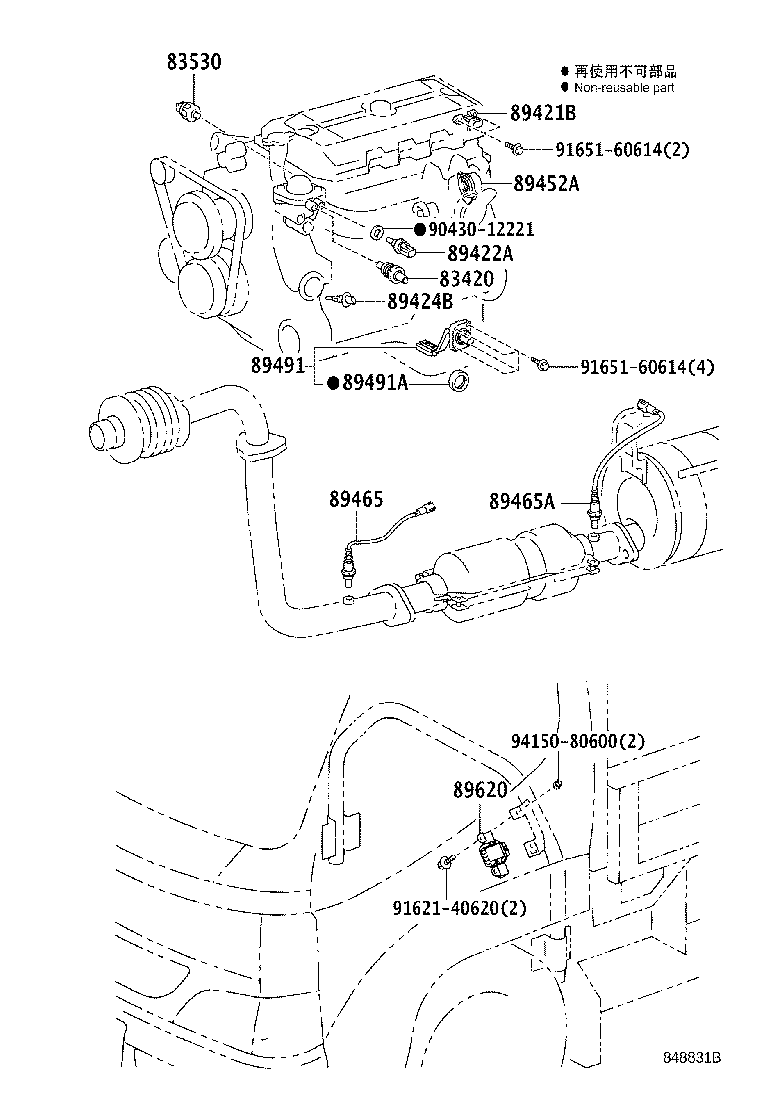

ILLUST NO. 1 OF10(0705- )BZU300,340
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-37020 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 83420-16040 |
BZU300,340 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
TRU300,340,500 DENSO |
1 | ||
| 83530-60020 |
TRU300,340,500 YAZAKI |
1 | ||
| 83530-37040 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 83530-60010 |
BZU300,340 YAZAKI |
1 | ||
| 83530-28010 |
BZU300,340 DENSO |
1 | ||
| 89421B - SENSOR, VACUUM | ||||
| 89421-20190 |
BZU300,340 |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-20010 |
BZU300,340 |
1 | ||
| 89424B - SWITCH, INLET AIR TEMPERATURE | ||||
| 89424-12010 |
BZU300,340 |
1 | ||
| 89452A - SENSOR, THROTTLE POSITION | ||||
| 89452-32060 |
BZU300,340 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-37150 |
TRU300,340,500 |
1 | ||
| 89465-37140 |
BZU300,340 |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-37150 |
BZU300,340 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-25030 |
TRU300,340,500 |
1 | ||
| 89491-37020 |
BZU300,340 |
1 | ||
| 89491A - GASKET, ENGINE OIL LEVEL SENSOR | ||||
| 90430-27001 |
BZU300,340 |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-37050 |
BZU300,340 |
1 | ||
| Common parts | ||||
| 90430-12221 | ||||
| 91621-40620 | ||||
| 91651-60614 | ||||
| 94150-80600 | ||||

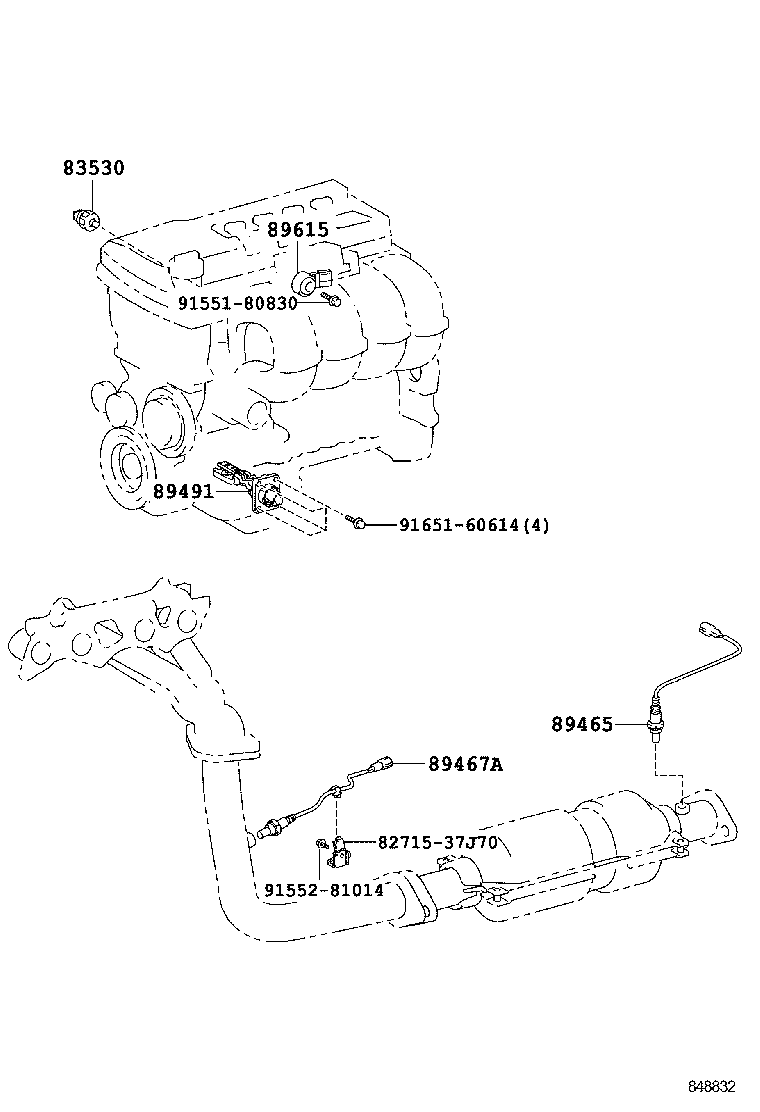

ILLUST NO. 1 OF10(0705- )TRU300,340,500
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
TRU300,340,500 DENSO |
1 | ||
| 83530-60020 |
TRU300,340,500 YAZAKI |
1 | ||
| 83530-37040 |
XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 83530-60010 |
BZU300,340 YAZAKI |
1 | ||
| 83530-28010 |
BZU300,340 DENSO |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-37150 |
TRU300,340,500 |
1 | ||
| 89465-37140 |
BZU300,340 |
1 | ||
| 89467A - SENSOR, WIDE RANGE AIR FUEL RATIO | ||||
| 89467-37060 |
TRU300,340,500 |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-25030 |
TRU300,340,500 |
1 | ||
| 89491-37020 |
BZU300,340 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20090 |
TRU300,340,500 |
1 | ||
| Common parts | ||||
| 82715-37J70 | ||||
| 91551-80830 | ||||
| 91552-81014 | ||||
| 91651-60614 | ||||

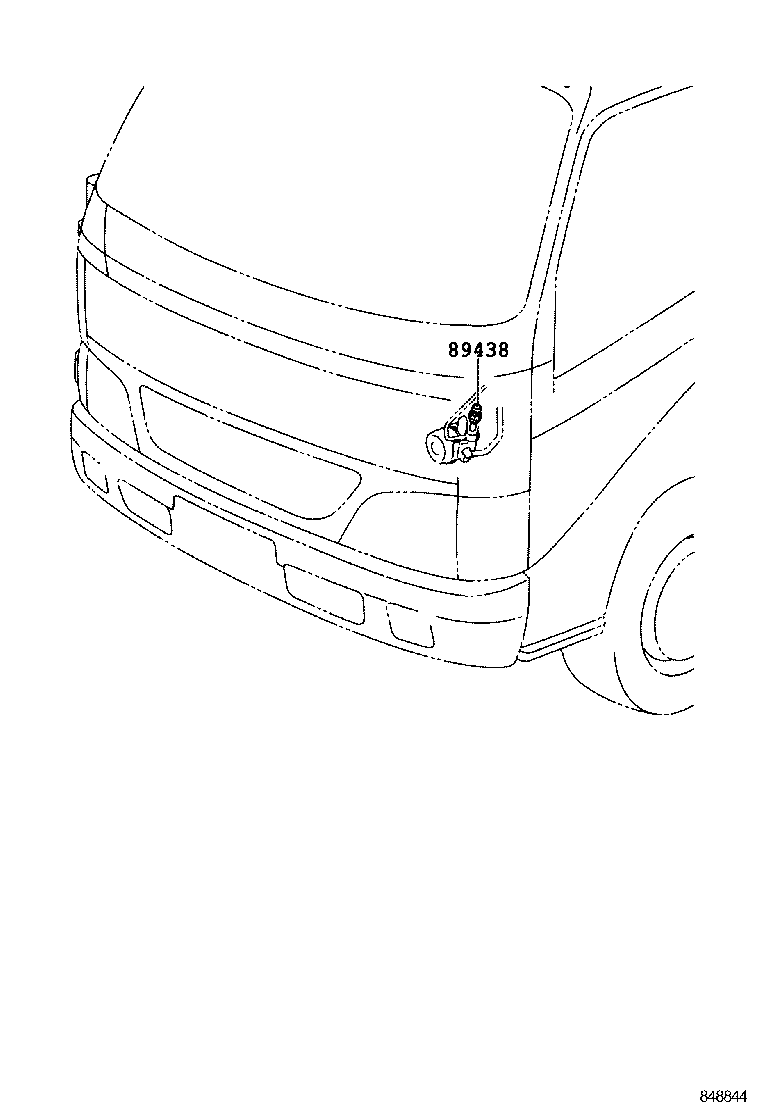

ILLUST NO. 4 OF10(0705- )BZU300,340
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89438 - SWITCH, POWER STEERING OIL PRESSURE | ||||
| 89438-30010 |
BZU300,340 |
1 | ||
