Toyota Dyna/toyoace BZU340 WIRING & CLAMP

BZU340-TQMMC3 (2007)

Toyota Dyna/Toyoace

Production May 2007 - Jun 2011

Engine 1BZFPE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

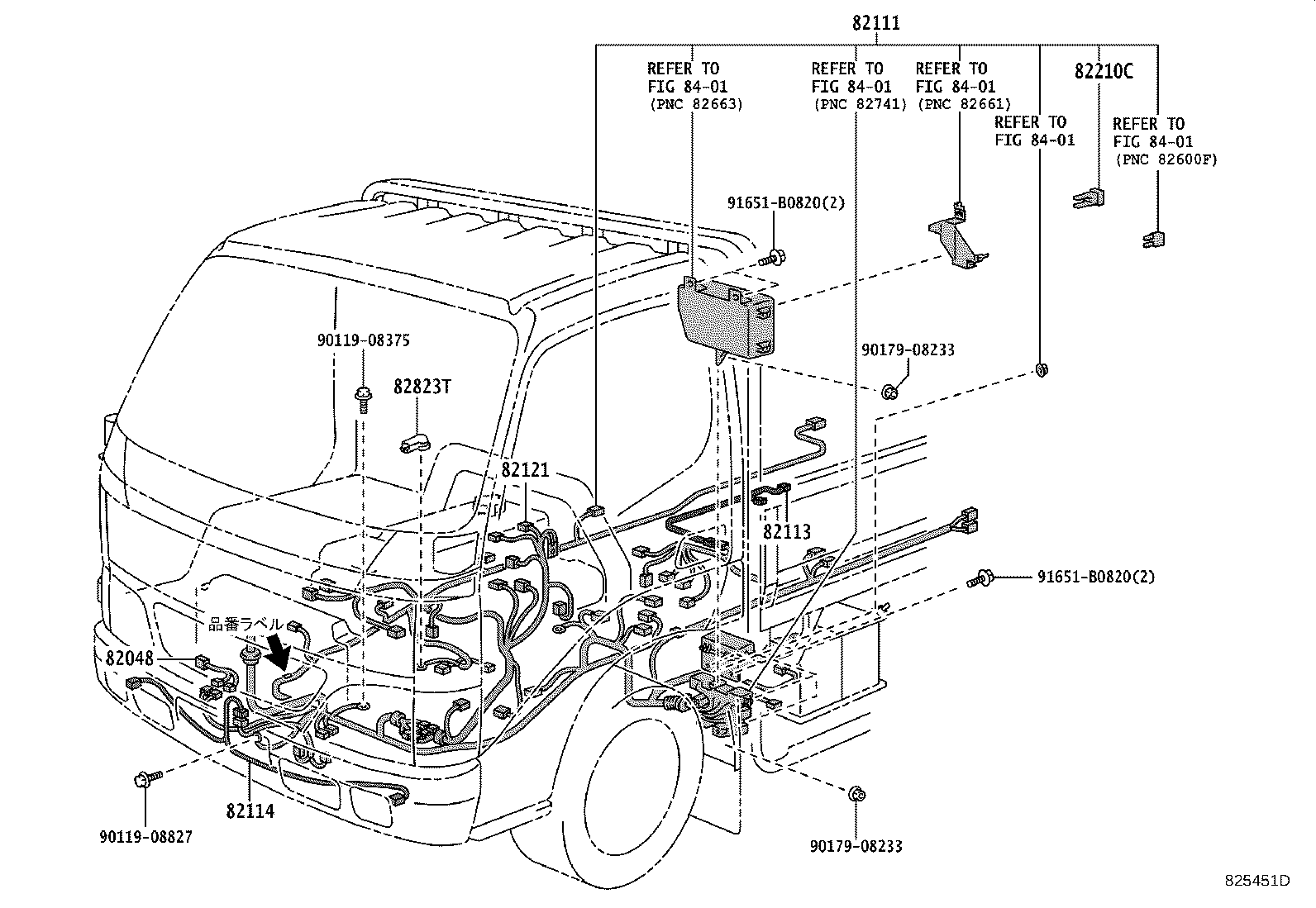

ILLUST NO. 1 OF 8(0705- )BZU300,340

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙｰﾑ

Part #	Description	Period	Qty
82048 - WIRING SUB-ASSY, FRONT DRIVE INDICATOR LAMP SWITCH
82048-37040	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
82111 - WIRE, ENGINE ROOM MAIN
82111-3VZ40	BZU300,340 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-3VZ40	05/2007 - 11/2007	1
82111-3VZ20	TRU300,340,500..SCB ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-3VZ20	05/2007 - 11/2007	1
82111-3VZ41	BZU300,340 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-3VZ41	12/2007 - 06/2011	1
82111-3VZ21	TRU300,340,500..SCB ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-3VZ21	12/2007 - 06/2011	1
82113 - WIRE, ENGINE ROOM, NO.3
82113-37630	TRU300,340,500..SCB	05/2007 - 12/2999	1
82113-37670	BZU300,340	05/2007 - 12/2999	1
82114 - WIRE, ENGINE ROOM, NO.4
82114-37070	XZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,50#,524,538,548,554,568	10/2006 - 12/2999	1
82121 - WIRE, ENGINE
82121-37C70	TRU300,340,500	05/2007 - 08/2010	1
82121-37C80	BZU300,340	05/2007 - 06/2011	1
82121-37C71	TRU300,340,500	08/2010 - 06/2011	1
82121-37B30	XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 06/2011	1
82210C - FUSIBLE LINK
90982-08246	XZU30#..DCRUE..IV6;XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV7 100A,ｵｽ端子,青	10/2006 - 06/2011	1
90982-08281	XZU30#..DCRUE..IV6;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV7 40A,ﾒｽ端子,緑	10/2006 - 06/2011	1
90982-08203	XZU30#..DCRUE..IV6;XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV7 80A,ｵｽ端子,黒	10/2006 - 06/2011	1
90982-08280	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 30A,ﾒｽ端子,桃	10/2006 - 06/2011	1
90982-08223	XZU30#..DCRUE..IV6;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV7 30A,ｵｽ端子,ﾋﾟﾝｸ	10/2006 - 06/2011	1
90982-08228	XZU30#..DCRUE..IV6;XZU308,348,378,388..SCB..(CBU,IV3);BZU300,340,TRU300,340,500,XZU304,314,324,33#,344,354,368,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV7) 50A,ｵｽ端子,赤	10/2006 - 06/2011	1
90982-08282	XZU30#..DCRUE..IV6;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV7 50A,ﾒｽ端子,赤	10/2006 - 06/2011	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 06/2011	1
Common parts
90119-08375
90119-08827
90179-08233
91651-B0820
Linked diagrams
8401

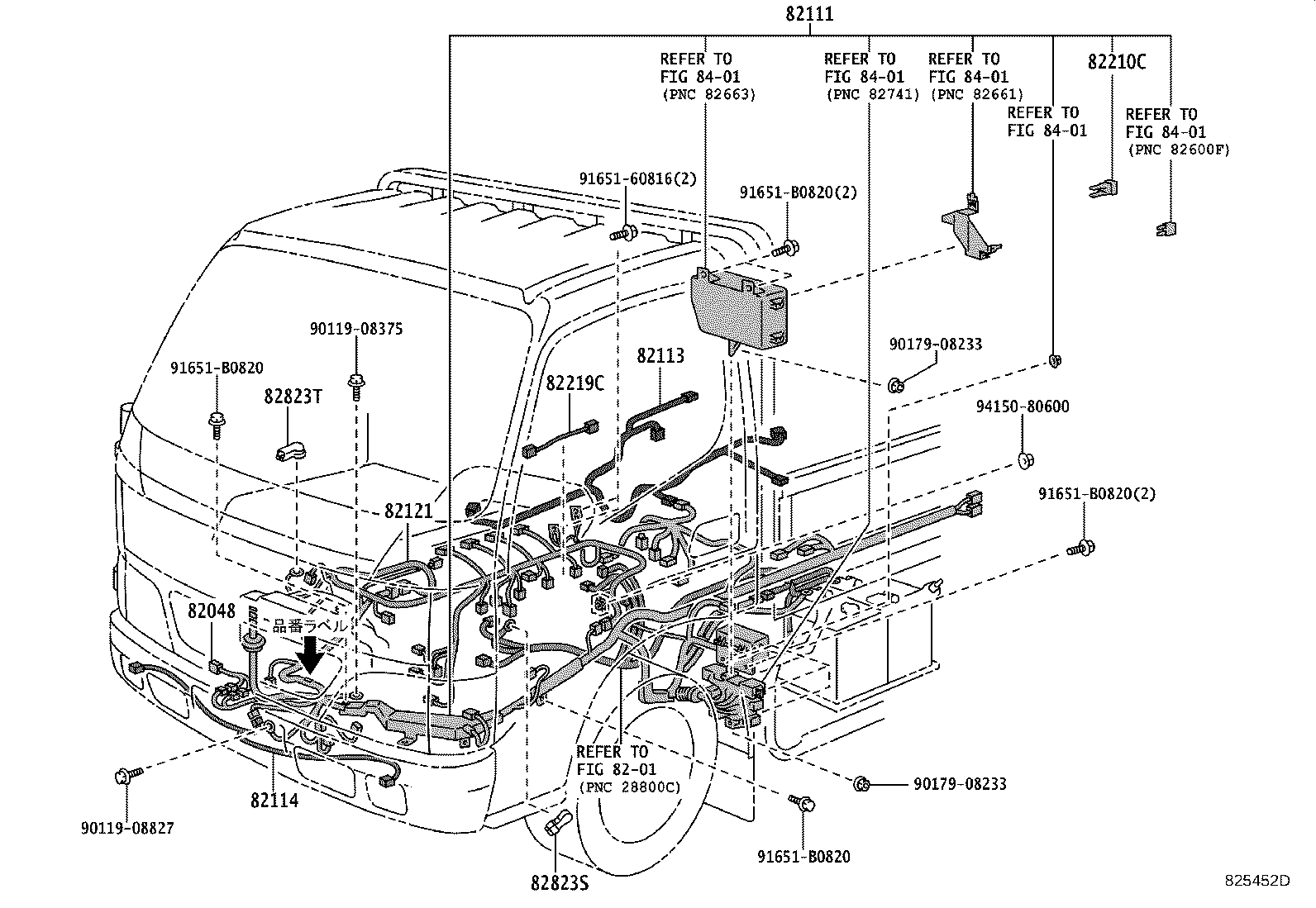

ILLUST NO. 1 OF 8(0705- )TRU300,340,500

Click highlighted areas on diagram

ｴﾝｼﾞﾝﾙｰﾑ

Part #	Description	Period	Qty
82048 - WIRING SUB-ASSY, FRONT DRIVE INDICATOR LAMP SWITCH
82048-37040	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 12/2999	1
82111 - WIRE, ENGINE ROOM MAIN
82111-3VZ40	BZU300,340 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-3VZ40	05/2007 - 11/2007	1
82111-3VZ20	TRU300,340,500..SCB ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-3VZ20	05/2007 - 11/2007	1
82111-3VZ41	BZU300,340 ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-3VZ41	12/2007 - 06/2011	1
82111-3VZ21	TRU300,340,500..SCB ﾋﾝﾊﾞﾝﾗﾍﾞﾙ=82111-3VZ21	12/2007 - 06/2011	1
82113 - WIRE, ENGINE ROOM, NO.3
82113-37630	TRU300,340,500..SCB	05/2007 - 12/2999	1
82113-37670	BZU300,340	05/2007 - 12/2999	1
82114 - WIRE, ENGINE ROOM, NO.4
82114-37070	XZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,50#,524,538,548,554,568	10/2006 - 12/2999	1
82121 - WIRE, ENGINE
82121-37C70	TRU300,340,500	05/2007 - 08/2010	1
82121-37C80	BZU300,340	05/2007 - 06/2011	1
82121-37C71	TRU300,340,500	08/2010 - 06/2011	1
82121-37B30	XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 06/2011	1
82210C - FUSIBLE LINK
90982-08246	XZU30#..DCRUE..IV6;XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV7 100A,ｵｽ端子,青	10/2006 - 06/2011	1
90982-08281	XZU30#..DCRUE..IV6;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV7 40A,ﾒｽ端子,緑	10/2006 - 06/2011	1
90982-08203	XZU30#..DCRUE..IV6;XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV7 80A,ｵｽ端子,黒	10/2006 - 06/2011	1
90982-08280	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 30A,ﾒｽ端子,桃	10/2006 - 06/2011	1
90982-08223	XZU30#..DCRUE..IV6;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV7 30A,ｵｽ端子,ﾋﾟﾝｸ	10/2006 - 06/2011	1
90982-08228	XZU30#..DCRUE..IV6;XZU308,348,378,388..SCB..(CBU,IV3);BZU300,340,TRU300,340,500,XZU304,314,324,33#,344,354,368,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV7) 50A,ｵｽ端子,赤	10/2006 - 06/2011	1
90982-08282	XZU30#..DCRUE..IV6;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568..CBU,IV3,IV4,IV7 50A,ﾒｽ端子,赤	10/2006 - 06/2011	1
82219C - WIRE, SENSOR
82219-35050	TRU300,340,500	05/2007 - 12/2999	1
82823S - CAP, STARTER TERMINAL
82823-35040	TRU300,340,500	05/2007 - 06/2011	1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050	BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568	10/2006 - 06/2011	1
Common parts
90119-08375
90119-08827
90179-08233
91651-60816
91651-B0820
94150-80600
Linked diagrams
8201
8401

BZU340-TQMMC3 (2007)

ILLUST NO. 1 OF 8(0705- )BZU300,340

ILLUST NO. 1 OF 8(0705- )TRU300,340,500
