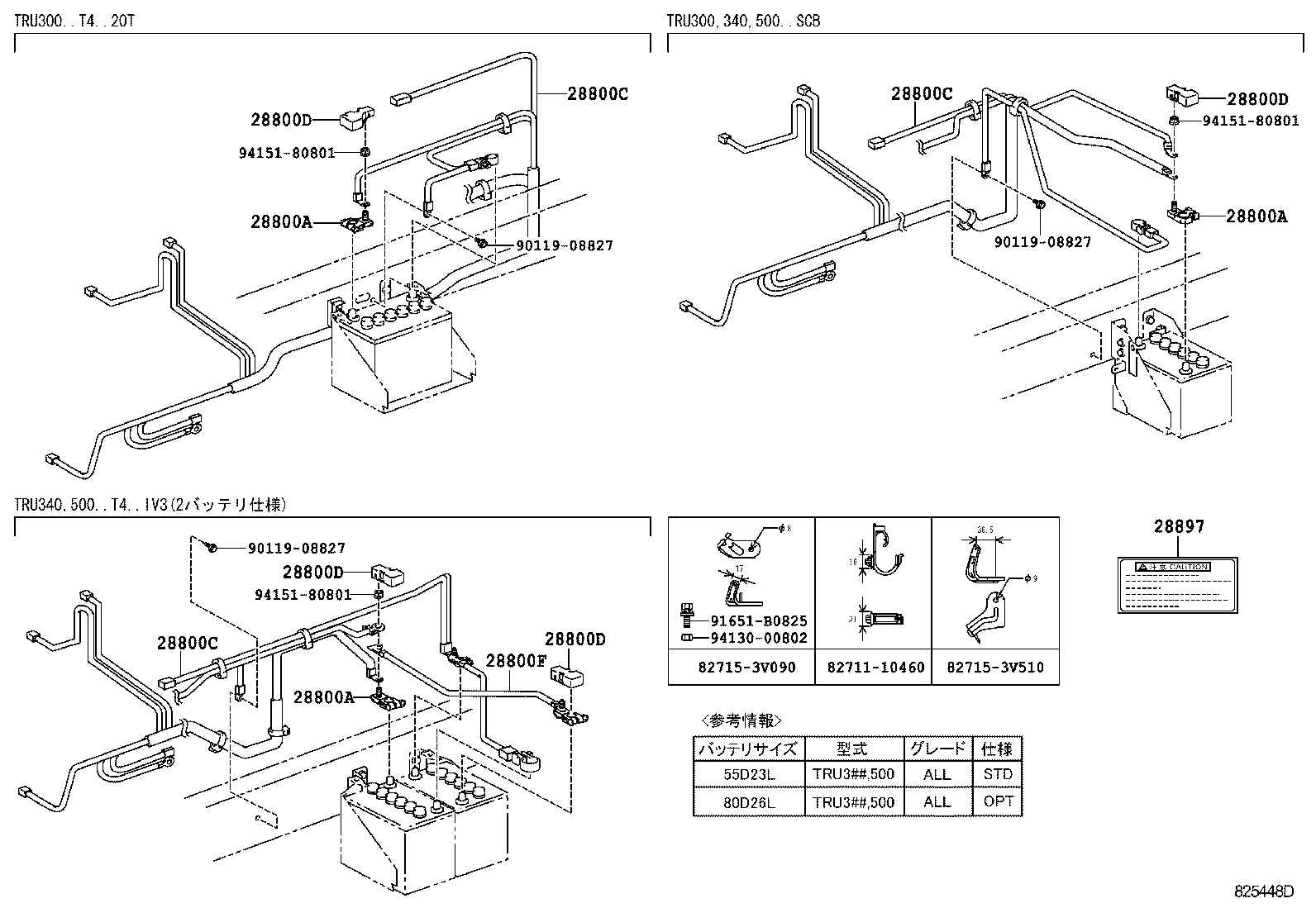

BZU340-TQMMC3 (2007)
Toyota Dyna/Toyoace
(0705- )TRU300,340,500
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05056 |
1BZFPE..BZU340;1BZFPE..BZU300..T3;1BZFPE,2TRFE..BZU300,TRU340,500..T4..20T..IV3 ｱﾘ(2ﾊﾞﾂﾃﾘ) |
1 | ||
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05056 |
1BZFPE..BZU340;1BZFPE..BZU300..T3;1BZFPE,2TRFE..BZU300,TRU340,500..T4..20T..IV3 ｱﾘ(2ﾊﾞﾂﾃﾘ) |
1 | ||
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05056 |
1BZFPE..BZU340;1BZFPE..BZU300..T3;1BZFPE,2TRFE..BZU300,TRU340,500..T4..20T..IV3 ｱﾘ(2ﾊﾞﾂﾃﾘ) |
1 | ||
| 28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH) | ||||
| 82122-37D90 |
1BZFPE..BZU340;1BZFPE..BZU300..T3;1BZFPE..BZU300..T4..20T..IV3 ｱﾘ(2ﾊﾞﾂﾃﾘ) |
1 | ||
| 28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH) | ||||
| 82122-37D90 |
1BZFPE..BZU340;1BZFPE..BZU300..T3;1BZFPE..BZU300..T4..20T..IV3 ｱﾘ(2ﾊﾞﾂﾃﾘ) |
1 | ||
| 28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH) | ||||
| 82122-37D90 |
1BZFPE..BZU340;1BZFPE..BZU300..T3;1BZFPE..BZU300..T4..20T..IV3 ｱﾘ(2ﾊﾞﾂﾃﾘ) |
1 | ||
| 28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL) | ||||
| 82821-37071 |
1BZFPE..BZU340;N04C,1BZFPE..BZU300,XZU508..03S,06S,T3;1BZFPE,2TRFE..BZU300,TRU340,500..T4..20T..IV3 ｱﾘ(2ﾊﾞﾂﾃﾘ) |
2 | ||
| 28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL) | ||||
| 82821-37071 |
1BZFPE..BZU340;N04C,1BZFPE..BZU300,XZU508..03S,06S,T3;1BZFPE,2TRFE..BZU300,TRU340,500..T4..20T..IV3 ｱﾘ(2ﾊﾞﾂﾃﾘ) |
2 | ||
| 28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL) | ||||
| 82821-37071 |
1BZFPE..BZU340;N04C,1BZFPE..BZU300,XZU508..03S,06S,T3;1BZFPE,2TRFE..BZU300,TRU340,500..T4..20T..IV3 ｱﾘ(2ﾊﾞﾂﾃﾘ) |
2 | ||
| 28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL) | ||||
| 82821-37071 |
1BZFPE..BZU340;N04C,1BZFPE..BZU300,XZU508..03S,06S,T3;1BZFPE,2TRFE..BZU300,TRU340,500..T4..20T..IV3 ｱﾘ(2ﾊﾞﾂﾃﾘ) |
2 | ||
| 28800F - CABLE, BATTERY TO BATTERY | ||||
| 82123-37190 |
1BZFPE..BZU340;1BZFPE..BZU300..T3;1BZFPE..BZU300..T4..20T..IV3 |
1 | ||
| 28897 - PLATE, BATTERY CAUTION | ||||
| 28897-54030 |
1BZFPE..BZU340;1BZFPE..BZU300..T3;1BZFPE,2TRFE..BZU300,TRU340,500..T4..20T..IV3 |
1 | ||
| Common parts | ||||
| 82711-10460 | ||||
| 82715-3V090 | ||||
| 82715-3V510 | ||||
| 90119-08827 | ||||
| 91651-B0825 | ||||
| 94130-00802 | ||||
| 94151-80801 | ||||

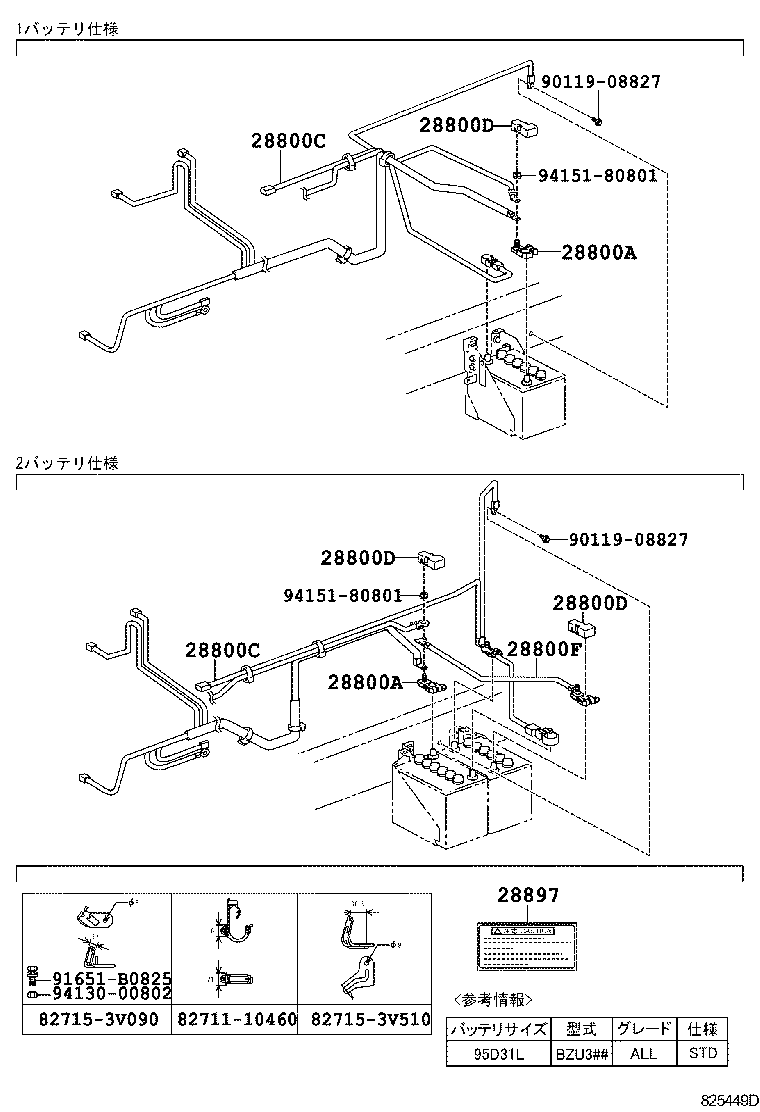

(0705- )BZU300,340
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05056 |
1BZFPE..BZU340;1BZFPE..BZU300..T3;1BZFPE,2TRFE..BZU300,TRU340,500..T4..20T..IV3 ｱﾘ(2ﾊﾞﾂﾃﾘ) |
1 | ||
| 28800A - TERMINAL, BATTERY POSITIVE | ||||
| 90982-05056 |
1BZFPE..BZU340;1BZFPE..BZU300..T3;1BZFPE,2TRFE..BZU300,TRU340,500..T4..20T..IV3 ｱﾘ(2ﾊﾞﾂﾃﾘ) |
1 | ||
| 28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH) | ||||
| 82122-37D90 |
1BZFPE..BZU340;1BZFPE..BZU300..T3;1BZFPE..BZU300..T4..20T..IV3 ｱﾘ(2ﾊﾞﾂﾃﾘ) |
1 | ||
| 28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH) | ||||
| 82122-37D90 |
1BZFPE..BZU340;1BZFPE..BZU300..T3;1BZFPE..BZU300..T4..20T..IV3 ｱﾘ(2ﾊﾞﾂﾃﾘ) |
1 | ||
| 28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL) | ||||
| 82821-37071 |
1BZFPE..BZU340;N04C,1BZFPE..BZU300,XZU508..03S,06S,T3;1BZFPE,2TRFE..BZU300,TRU340,500..T4..20T..IV3 ｱﾘ(2ﾊﾞﾂﾃﾘ) |
2 | ||
| 28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL) | ||||
| 82821-37071 |
1BZFPE..BZU340;N04C,1BZFPE..BZU300,XZU508..03S,06S,T3;1BZFPE,2TRFE..BZU300,TRU340,500..T4..20T..IV3 ｱﾘ(2ﾊﾞﾂﾃﾘ) |
2 | ||
| 28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL) | ||||
| 82821-37071 |
1BZFPE..BZU340;N04C,1BZFPE..BZU300,XZU508..03S,06S,T3;1BZFPE,2TRFE..BZU300,TRU340,500..T4..20T..IV3 ｱﾘ(2ﾊﾞﾂﾃﾘ) |
2 | ||
| 28800F - CABLE, BATTERY TO BATTERY | ||||
| 82123-37190 |
1BZFPE..BZU340;1BZFPE..BZU300..T3;1BZFPE..BZU300..T4..20T..IV3 |
1 | ||
| 28897 - PLATE, BATTERY CAUTION | ||||
| 28897-54030 |
1BZFPE..BZU340;1BZFPE..BZU300..T3;1BZFPE,2TRFE..BZU300,TRU340,500..T4..20T..IV3 |
1 | ||
| Common parts | ||||
| 82711-10460 | ||||
| 82715-3V090 | ||||
| 82715-3V510 | ||||
| 90119-08827 | ||||
| 91651-B0825 | ||||
| 94130-00802 | ||||
| 94151-80801 | ||||
