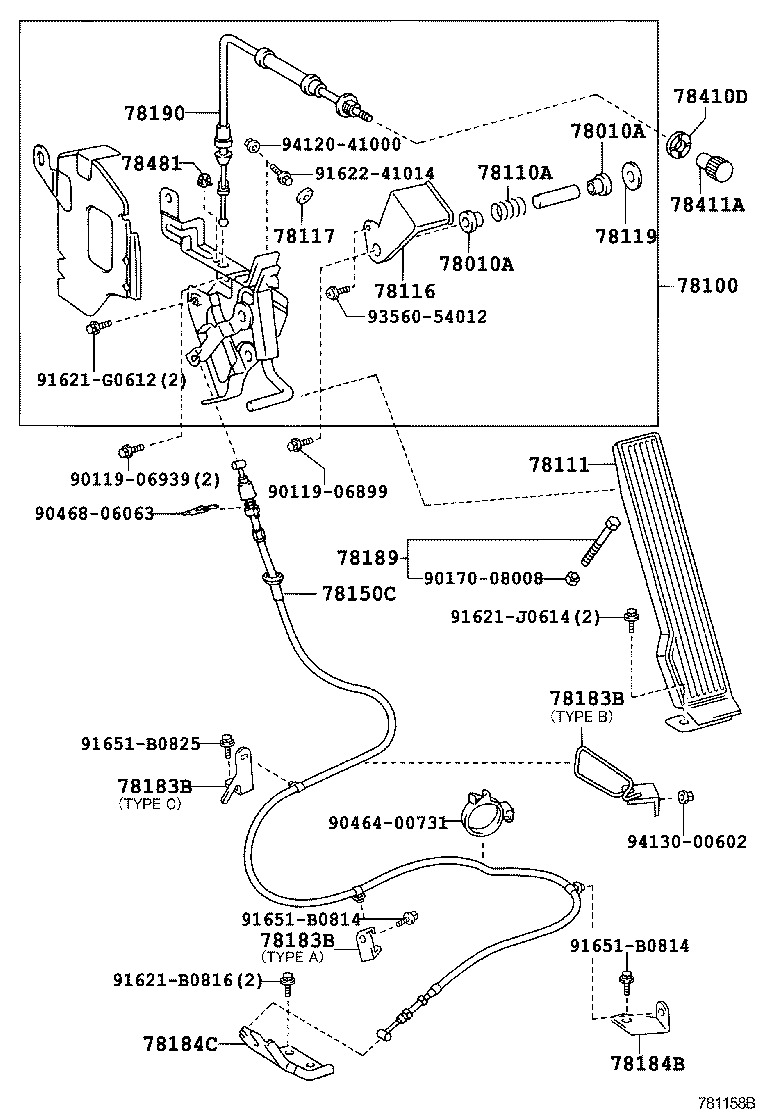

BZU340-TQMMC3 (2007)
Toyota Dyna/Toyoace
(0705- )BZU300,340
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78010A - BUSH (FOR ACCELERATOR LINK) | ||||
| 90386-08065 |
BZU300,340 |
2 | ||
| 78010A - BUSH (FOR ACCELERATOR LINK) | ||||
| 90386-08065 |
BZU300,340 |
2 | ||
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-37700 |
BZU300,340 |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90959-03243 |
BZU300,340 |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78110-95410 |
BZU300,340 |
1 | ||
| 78116 - COVER, ACCELERATOR PEDAL ROD | ||||
| 78116-37010 |
BZU300,340 |
1 | ||
| 78117 - CUSHION (FOR ACCELERATOR ROD) | ||||
| 90541-06038 |
BZU300,340 |
1 | ||
| 78119 - STOPPER, ACCELERATOR PEDAL ROD | ||||
| 78119-37010 |
BZU300,340 |
1 | ||
| 78119-95J00 |
BZU300,340 |
1 | ||
| 78150C - WIRE ASSY, ACCELERATOR FLEXIBLE | ||||
| 78150-37760 |
BZU300,340 |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-37270 |
BZU300,340 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 78184-37460 |
BZU300,340 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 78184-37450 |
BZU300,340 TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 78184-37461 |
BZU300,340 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-37270 |
BZU300,340 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 78184-37460 |
BZU300,340 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 78184-37450 |
BZU300,340 TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 78184-37461 |
BZU300,340 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-37270 |
BZU300,340 TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 78184-37460 |
BZU300,340 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 78184-37450 |
BZU300,340 TYPE C:ｲﾗｽﾄ参照 |
1 | ||
| 78184-37461 |
BZU300,340 TYPE A:ｲﾗｽﾄ参照 |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-37470 |
BZU300,340 |
1 | ||
| 78184C - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-37050 |
BZU300,340 |
1 | ||
| 78189 - BOLT, ACCELERATOR PEDAL STOPPER | ||||
| 78208-37060 |
BZU300,340 |
1 | ||
| 78190 - CABLE ASSY, ACCEL CONTROL W/THROTTLE | ||||
| 78190-37010 |
BZU300,340 |
1 | ||
| 78410D - NUT, THROTTLE | ||||
| 78314-95010 |
BZU300,340,XZU30#,314,324,33#,34#,354..DCRUE,LPG |
1 | ||
| 78413-95J00 |
XZU508..T2..5F;XZU504..DCRTJ,DCRUD;XZU508,538,548..DCRUD,DCRUE;XZU50#,538,548,554..SCB..6FC;XZU30#,314,324,33#,34#,354,368,378,388,568;XZU504,524,554..(DM5,DM7,T5)..(DCRTH,DCRUE) |
1 | ||
| 78411A - KNOB, THROTTLE CONTROL CABLE | ||||
| 78411-95J01 |
BZU300,340,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 78481 - CLAMP, THROTTLE WIRE | ||||
| 78481-37010 |
BZU300,340 |
1 | ||
| Common parts | ||||
| 90119-06899 | ||||
| 90119-06939 | ||||
| 90170-08008 | ||||
| 90464-00731 | ||||
| 90468-06063 | ||||
| 91621-B0816 | ||||
| 91621-G0612 | ||||
| 91621-J0614 | ||||
| 91622-41014 | ||||
| 91651-B0814 | ||||
| 91651-B0825 | ||||
| 93560-54012 | ||||
| 94120-41000 | ||||
| 94130-00602 | ||||
