BZU340-TQMMC3 (2007)
Toyota Dyna/Toyoace

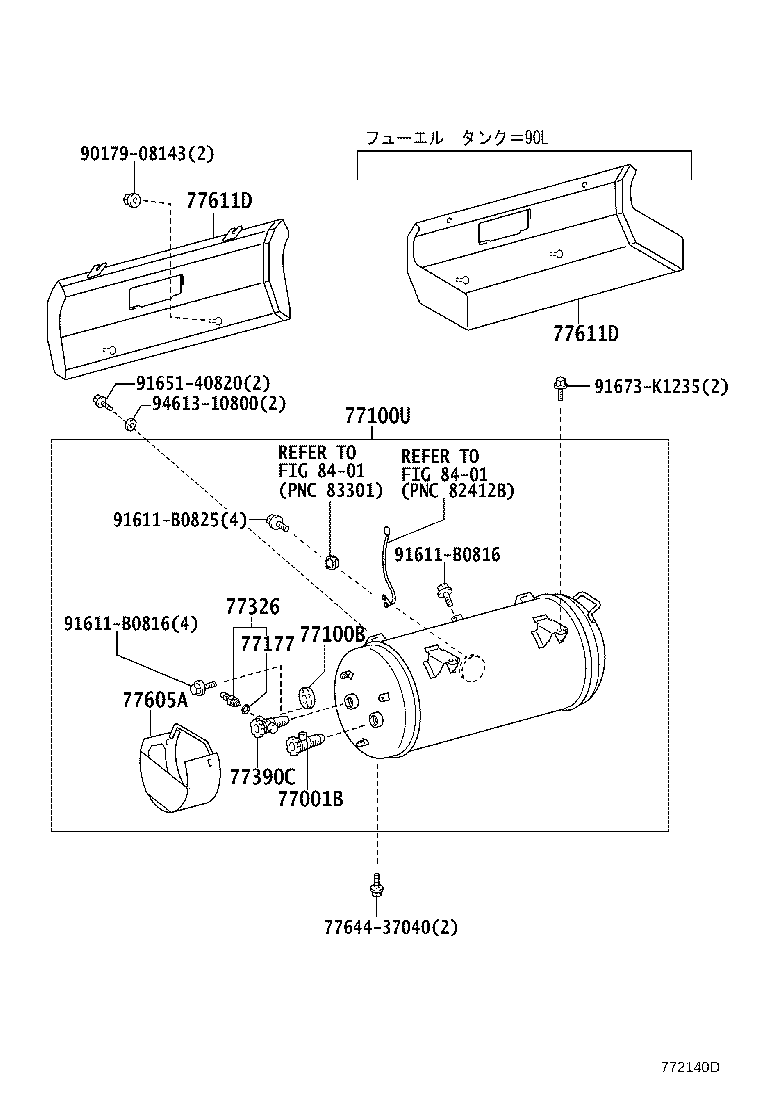

ILLUST NO. 1 OF 3(0705- )BZU300,340
ﾌｭｰｴﾙ ﾀﾝｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77001B - VALVE (FOR LPG TANK) | ||||
| 90977-01024 |
BZU300,340 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-42255 |
BZU300,340 |
1 | ||
| 90430-12245 |
TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 77100U - TANK SUB-ASSY, FUEL | ||||
| 77001-37372 |
BZU300,340..20T 1000 X (ｶﾞｲｹｲ=360),ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=90L) |
1 | ||
| 77001-37590 |
BZU300,340..20T 1000 X (ｶﾞｲｹｲ=360),ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=90L) |
1 | ||
| 77001-37362 |
TRU300,340..SCB 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L) |
1 | ||
| 77177 - GASKET, CHECK VALVE | ||||
| 77177-25030 |
BZU300,340 |
1 | ||
| 77326 - CONNECTOR, AUXILIARY FUEL TANK CAP | ||||
| 77326-36010 |
BZU300,340 |
1 | ||
| 77390C - VALVE, FUEL TANK INLET | ||||
| 90977-01016 |
BZU300,340 |
1 | ||
| 77605A - COVER SUB-ASSY, FUEL TANK VALVE HANDLE | ||||
| 77605-25010 |
BZU300,340 |
1 | ||
| 77611D - COVER, FUEL TANK, RH | ||||
| 77611-37030 |
BZU300,340..20T ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=90L) |
1 | ||
| 77611D - COVER, FUEL TANK, RH | ||||
| 77611-37030 |
BZU300,340..20T ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=90L) |
1 | ||
| Common parts | ||||
| 77644-37040 | ||||
| 90179-08143 | ||||
| 91611-B0816 | ||||
| 91611-B0825 | ||||
| 91651-40820 | ||||
| 91673-K1235 | ||||
| 94613-10800 | ||||
| Linked diagrams | ||||
| 8401 | ||||

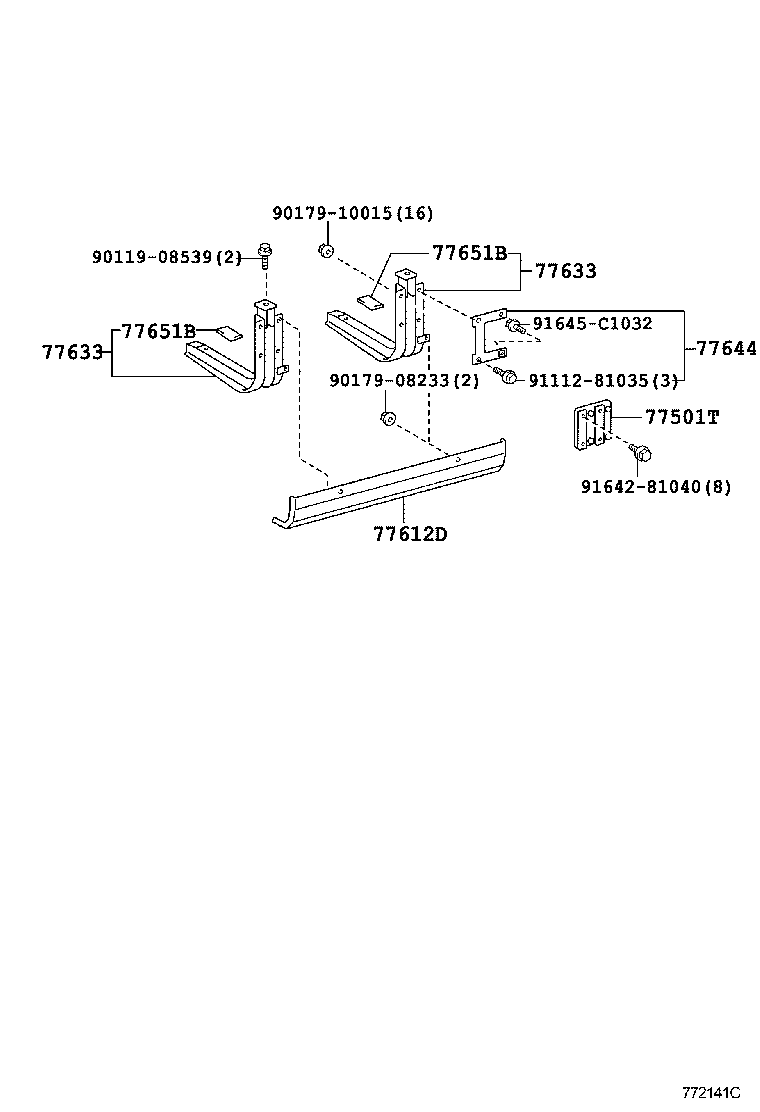

ILLUST NO. 2 OF 3(0705- )BZU300,340
ﾌｭｰｴﾙ ﾀﾝｸ ｽﾃｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77501T - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-37150 |
BZU300,340 |
2 | ||
| 77612D - COVER, FUEL TANK, LH | ||||
| 77612-37040 |
TRU300,340..SCB |
1 | ||
| 77612-37050 |
BZU300,340..20T ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=90L) |
1 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-37080 |
XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV6,IV7);XZU308,314,324,338,354,378,388,50#,524,538,554..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77609-37030 |
TRU300,340..SCB |
2 | ||
| 77609-37041 |
BZU300,340..20T ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=90L) |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-37080 |
XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV6,IV7);XZU308,314,324,338,354,378,388,50#,524,538,554..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77609-37030 |
TRU300,340..SCB |
2 | ||
| 77609-37041 |
BZU300,340..20T ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=90L) |
2 | ||
| 77651B - CUSHION, FUEL TANK | ||||
| 77651-36120 |
BZU300,340 |
4 | ||
| 77651B - CUSHION, FUEL TANK | ||||
| 77651-36120 |
BZU300,340 |
4 | ||
| Common parts | ||||
| 90119-08539 | ||||
| 90179-08233 | ||||
| 90179-10015 | ||||
| 91112-81035 | ||||
| 91642-81040 | ||||
| 91645-C1032 | ||||

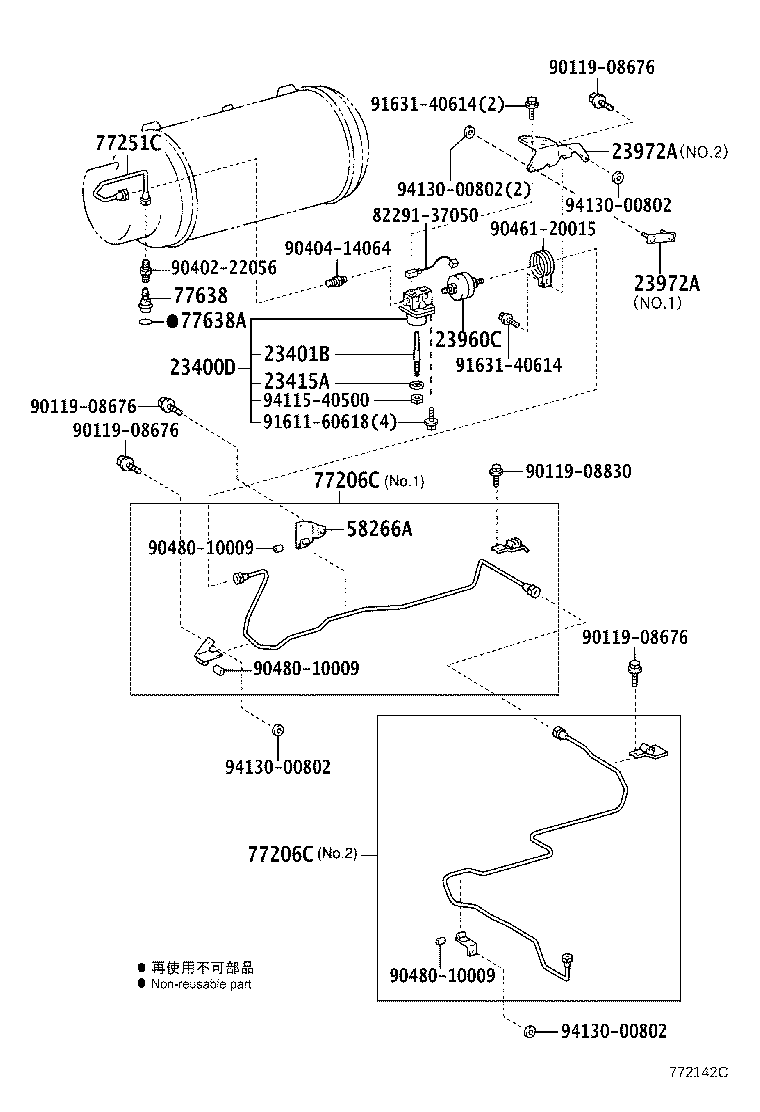

ILLUST NO. 3 OF 3(0705-1003)BZU300,340
ﾌｭｰｴﾙ ﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23400D - FILTER ASSY, LPG | ||||
| 23400-40024 |
1BZFPE..BZU300,340 |
1 | ||
| 23401B - BOLT | ||||
| 23401-40020 |
1BZFPE..BZU300,340 |
1 | ||
| 23415A - PLATE | ||||
| 23415-40010 |
1BZFPE..BZU300,340 |
1 | ||
| 23960C - VALVE ASSY, SOLENOID LPG | ||||
| 23960-78012 |
1BZFPE..BZU300,340 |
1 | ||
| 23960-78011 |
1BZFPE..BZU300,340 |
1 | ||
| 23960-78010 |
1BZFPE..BZU300,340 |
1 | ||
| 23972A - BRACKET, FILTER & SOLENOID VALVE | ||||
| 23972-78030 |
1BZFPE..BZU300,340 NO.1 |
1 | ||
| 23972-78010 |
1BZFPE..BZU300,340 NO.2 |
1 | ||
| 23972-78011 |
1BZFPE..BZU300,340 NO.2 |
1 | ||
| 23972A - BRACKET, FILTER & SOLENOID VALVE | ||||
| 23972-78030 |
1BZFPE..BZU300,340 NO.1 |
1 | ||
| 23972-78010 |
1BZFPE..BZU300,340 NO.2 |
1 | ||
| 23972-78011 |
1BZFPE..BZU300,340 NO.2 |
1 | ||
| 58266A - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-37290 |
BZU300,340 |
1 | ||
| 58266-37220 |
TRU300,340,500..SCB |
1 | ||
| 58266-37250 |
TRU300,340,500..SCB NO.3 |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-37D80 |
BZU300,340 NO.1 |
1 | ||
| 77206-37D60 |
TRU300,340,500..SCB |
1 | ||
| 77206-37650 |
BZU300,340 NO.2 |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-37D80 |
BZU300,340 NO.1 |
1 | ||
| 77206-37D60 |
TRU300,340,500..SCB |
1 | ||
| 77206-37650 |
BZU300,340 NO.2 |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 77251-37610 |
BZU300,340..20T ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=90L) |
1 | ||
| 77638 - SLEEVE, TANK VALVE JOINT | ||||
| 77638-20011 |
BZU300,340 |
1 | ||
| 77638A - RING, O (FOR TANK VALVE JOINT SLEEVE) | ||||
| 96712-24011 |
BZU300,340 |
1 | ||
| Common parts | ||||
| 82291-37050 | ||||
| 90119-08676 | ||||
| 90119-08830 | ||||
| 90402-22056 | ||||
| 90404-14064 | ||||
| 90461-20015 | ||||
| 90480-10009 | ||||
| 91611-60618 | ||||
| 91631-40614 | ||||
| 94115-40500 | ||||
| 94130-00802 | ||||

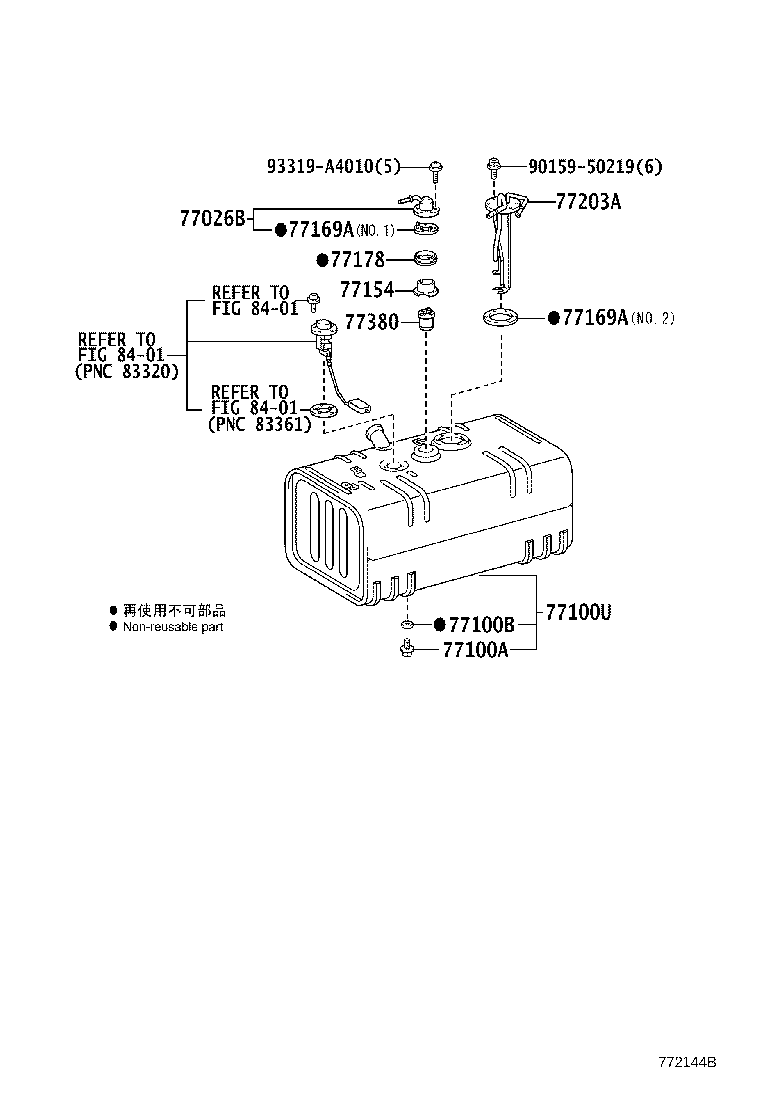

ILLUST NO. 1 OF 3(0705- )TRU300,340..SCB
ﾌｭｰｴﾙ ﾀﾝｸ(780X385X310)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77026B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-37010 |
XZU308,378..SCB;TRU300,340,500,XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90105-12116 |
TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-42255 |
BZU300,340 |
1 | ||
| 90430-12245 |
TRU300,340,500,XZU30#,314,324,33#,34#,354,368,378,388,50#,524,538,548,554,568 |
1 | ||
| 77100U - TANK SUB-ASSY, FUEL | ||||
| 77001-37372 |
BZU300,340..20T 1000 X (ｶﾞｲｹｲ=360),ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=90L) |
1 | ||
| 77001-37590 |
BZU300,340..20T 1000 X (ｶﾞｲｹｲ=360),ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=90L) |
1 | ||
| 77001-37362 |
TRU300,340..SCB 780X310X385,ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=80L) |
1 | ||
| 77154 - PLATE, FUEL TANK EVAP/VENT TUBE SUPPORT | ||||
| 77154-25010 |
XZU308,378..SCB;TRU300,340,500,XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-32010 |
TRU300,340,500 NO.2 |
1 | ||
| 77169-14020 |
TRU300,340,500 NO.1 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-32010 |
TRU300,340,500 NO.2 |
1 | ||
| 77169-14020 |
TRU300,340,500 NO.1 |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-44010 |
XZU308,378..SCB;TRU300,340,500,XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-37090 |
TRU300,340..SCB |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-26010 |
XZU308,378..SCB;TRU300,340,500,XZU304,314,324,33#,34#,354,368,388,50#,524,538,548,554,568..(DCB,SCB)..(CBU,IV3,IV6,IV7) |
1 | ||
| Common parts | ||||
| 90159-50219 | ||||
| 93319-A4010 | ||||
| Linked diagrams | ||||
| 8401 | ||||

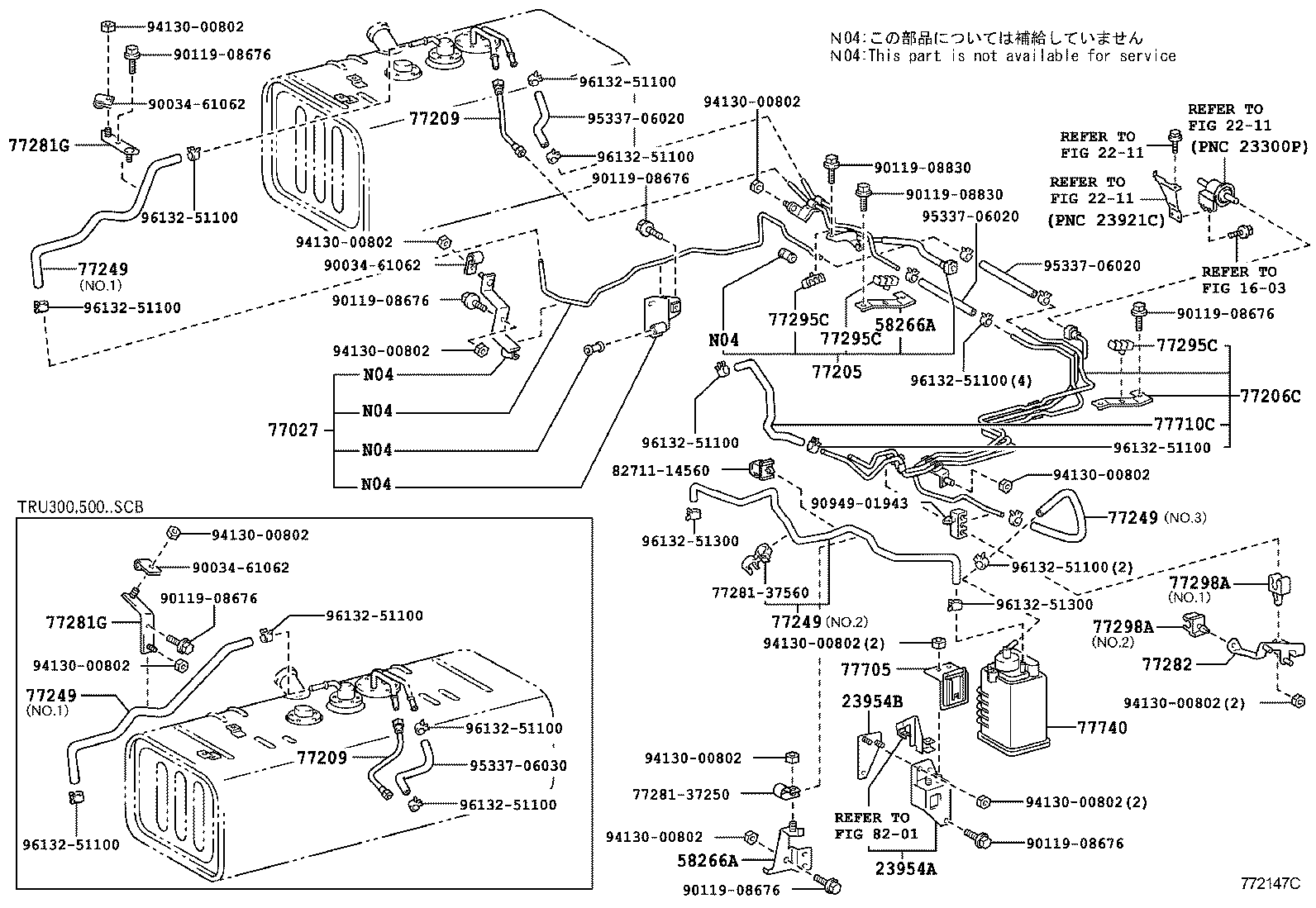

ILLUST NO. 3 OF 3(0705- )TRU300,340,500..SCB
ﾌｭｰｴﾙ ﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58266A - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-37290 |
BZU300,340 |
1 | ||
| 58266-37220 |
TRU300,340,500..SCB |
1 | ||
| 58266-37250 |
TRU300,340,500..SCB NO.3 |
1 | ||
| 58266A - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-37290 |
BZU300,340 |
1 | ||
| 58266-37220 |
TRU300,340,500..SCB |
1 | ||
| 58266-37250 |
TRU300,340,500..SCB NO.3 |
1 | ||
| 77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2 | ||||
| 77027-37130 |
TRU300,340,500..SCB |
1 | ||
| 77205 - TUBE SUB-ASSY, FUEL MAIN | ||||
| 77205-37B80 |
TRU300,340,500..SCB |
1 | ||
| 77205-37A80 |
XZU334..T4..DCRTJ..CBU;XZU334..(DCRTJ,DCRTK)..IV3;XZU304..(DM3,DM6,T4)..(5F,6FC);XZU30#,50#..(T3,T5)..(5F,6FC)..(IV3,IV6,IV7);XZU308,338,34#,354,50#,538,548..SCB..(T2,T3,T4)..(5F,6FC) |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-37D80 |
BZU300,340 NO.1 |
1 | ||
| 77206-37D60 |
TRU300,340,500..SCB |
1 | ||
| 77206-37650 |
BZU300,340 NO.2 |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-37200 |
TRU300,340,500..SCB NO.2 |
1 | ||
| 77249-37090 |
TRU300,340,500..SCB NO.3 |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-37200 |
TRU300,340,500..SCB NO.2 |
1 | ||
| 77249-37090 |
TRU300,340,500..SCB NO.3 |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-37200 |
TRU300,340,500..SCB NO.2 |
1 | ||
| 77249-37090 |
TRU300,340,500..SCB NO.3 |
1 | ||
| 77249 - HOSE, FUEL EMISSION | ||||
| 77249-37200 |
TRU300,340,500..SCB NO.2 |
1 | ||
| 77249-37090 |
TRU300,340,500..SCB NO.3 |
1 | ||
| 77282 - BRACKET, FUEL MAIN TUBE, NO.2 | ||||
| 77282-37010 |
TRU300,340,500 |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-37020 |
TRU300,340,500..SCB |
4 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-37020 |
TRU300,340,500..SCB |
4 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-37020 |
TRU300,340,500..SCB |
4 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-37020 |
TRU300,340,500 NO.2 |
1 | ||
| 77298-37070 |
TRU300,340,500 NO.1 |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-37020 |
TRU300,340,500 NO.2 |
1 | ||
| 77298-37070 |
TRU300,340,500 NO.1 |
1 | ||
| 77705 - BRACKET SUB-ASSY, CHARCOAL CANISTER | ||||
| 77705-37030 |
TRU300,340,500..SCB |
1 | ||
| 77710C - HOSE, FUEL | ||||
| 23273-78380 |
TRU300,340,500 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-52050 |
TRU300,340,500 |
1 | ||
| Common parts | ||||
| 77281-37250 | ||||
| 77281-37560 | ||||
| 82711-14560 | ||||
| 90034-61062 | ||||
| 90119-08676 | ||||
| 90119-08830 | ||||
| 90949-01943 | ||||
| 94130-00802 | ||||
| 95337-06020 | ||||
| 95337-06030 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 2211 | ||||
| 8201 | ||||

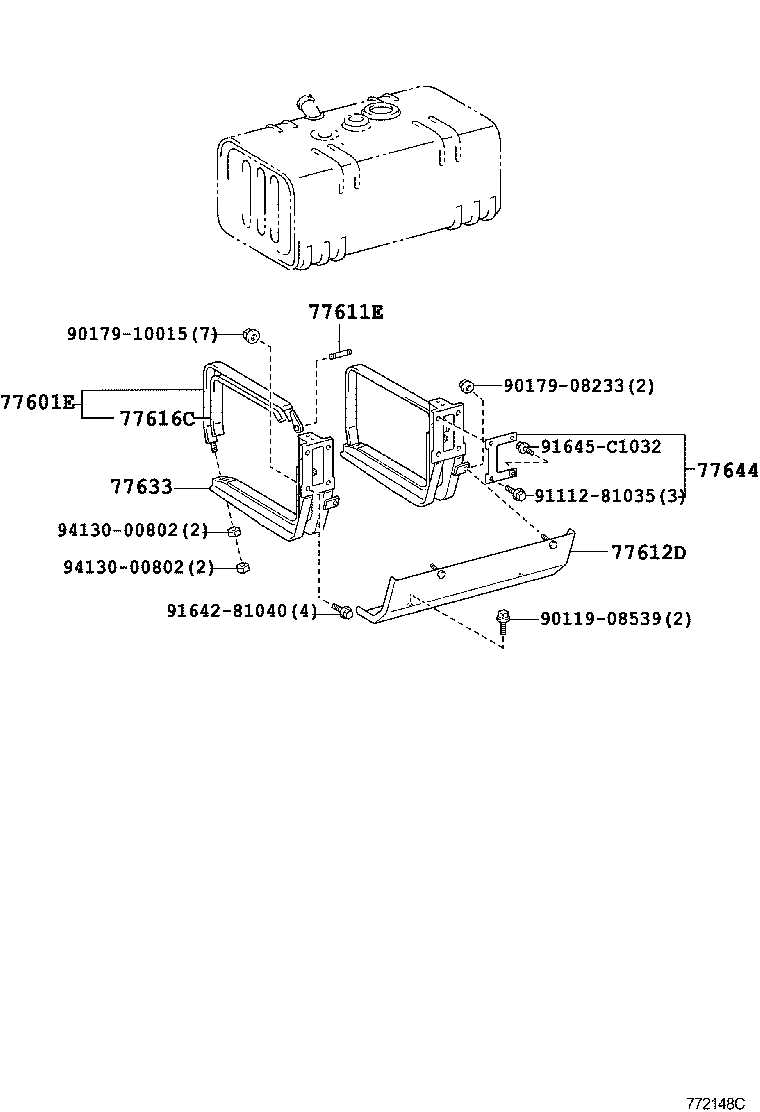

ILLUST NO. 2 OF 3(0705- )TRU300,340
ﾌｭｰｴﾙ ﾀﾝｸ ｽﾃｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77601E - BAND SUB-ASSY, FUEL TANK | ||||
| 77601-37041 |
TRU300,340..SCB |
2 | ||
| 77601-37040 |
TRU300,340..SCB |
2 | ||
| 77611E - PIN, FUEL TANK BAND | ||||
| 77629-36010 |
TRU300,340,500..SCB |
2 | ||
| 77612D - COVER, FUEL TANK, LH | ||||
| 77612-37040 |
TRU300,340..SCB |
1 | ||
| 77612-37050 |
BZU300,340..20T ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=90L) |
1 | ||
| 77616C - SEAT, FUEL TANK BAND | ||||
| 77616-36030 |
XZU378..IV4;XZU304,334,348,388;TRU300,340,XZU308,314,324,338,344,354,368,378,50#,524,538,548,554,568..SCB |
2 | ||
| 77633 - STAY, FUEL TANK | ||||
| 77501-37080 |
XZU388..T3..20T..IV3;XZU304,334,34#,548..DM3,DM6,T2,T4;XZU30#,334,34#,50#,548..(T3,T5)..(IV3,IV6,IV7);XZU308,314,324,338,354,378,388,50#,524,538,554..SCB..(DM5,DM7,T2,T3,T4) |
2 | ||
| 77609-37030 |
TRU300,340..SCB |
2 | ||
| 77609-37041 |
BZU300,340..20T ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=90L) |
2 | ||
| Common parts | ||||
| 90119-08539 | ||||
| 90179-08233 | ||||
| 90179-10015 | ||||
| 91112-81035 | ||||
| 91642-81040 | ||||
| 91645-C1032 | ||||
| 94130-00802 | ||||

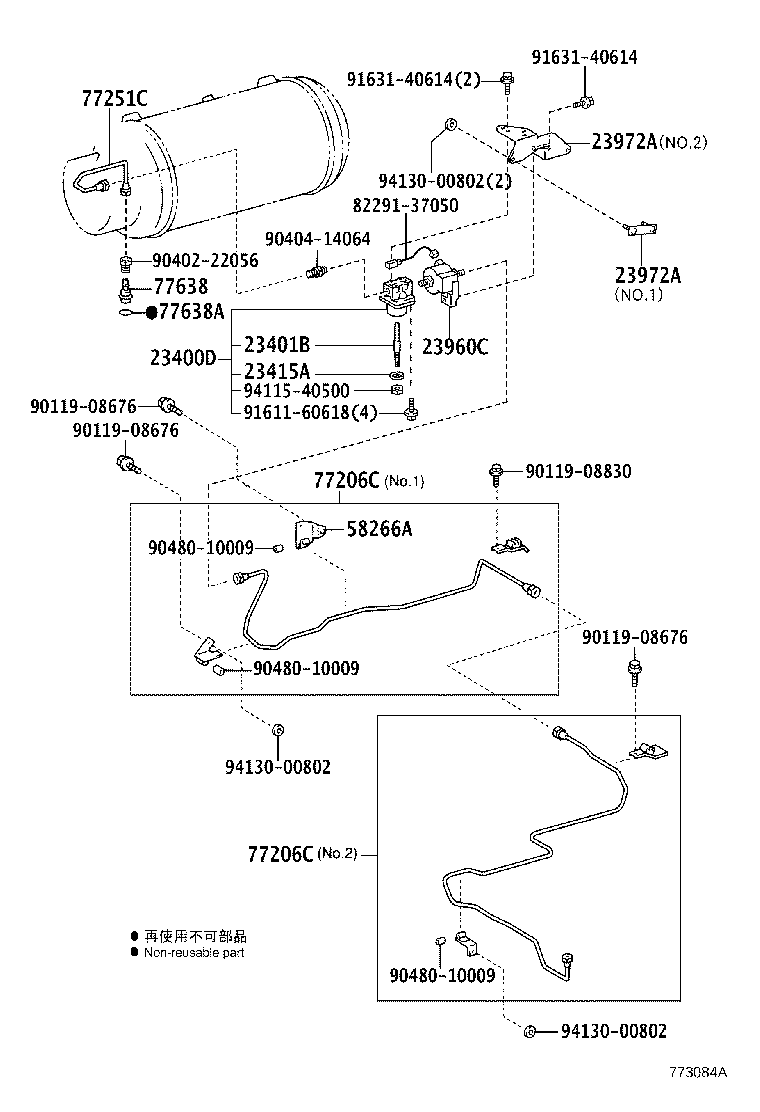

ILLUST NO. 3 OF 3(1003- )BZU300,340
ﾌｭｰｴﾙﾁｭｰﾌﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23400D - FILTER ASSY, LPG | ||||
| 23400-40024 |
1BZFPE..BZU300,340 |
1 | ||
| 23401B - BOLT | ||||
| 23401-40020 |
1BZFPE..BZU300,340 |
1 | ||
| 23415A - PLATE | ||||
| 23415-40010 |
1BZFPE..BZU300,340 |
1 | ||
| 23960C - VALVE ASSY, SOLENOID LPG | ||||
| 23960-78012 |
1BZFPE..BZU300,340 |
1 | ||
| 23960-78011 |
1BZFPE..BZU300,340 |
1 | ||
| 23960-78010 |
1BZFPE..BZU300,340 |
1 | ||
| 23972A - BRACKET, FILTER & SOLENOID VALVE | ||||
| 23972-78030 |
1BZFPE..BZU300,340 NO.1 |
1 | ||
| 23972-78010 |
1BZFPE..BZU300,340 NO.2 |
1 | ||
| 23972-78011 |
1BZFPE..BZU300,340 NO.2 |
1 | ||
| 23972A - BRACKET, FILTER & SOLENOID VALVE | ||||
| 23972-78030 |
1BZFPE..BZU300,340 NO.1 |
1 | ||
| 23972-78010 |
1BZFPE..BZU300,340 NO.2 |
1 | ||
| 23972-78011 |
1BZFPE..BZU300,340 NO.2 |
1 | ||
| 58266A - BRACKET, FUEL TUBE CLAMP | ||||
| 58266-37290 |
BZU300,340 |
1 | ||
| 58266-37220 |
TRU300,340,500..SCB |
1 | ||
| 58266-37250 |
TRU300,340,500..SCB NO.3 |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-37D80 |
BZU300,340 NO.1 |
1 | ||
| 77206-37D60 |
TRU300,340,500..SCB |
1 | ||
| 77206-37650 |
BZU300,340 NO.2 |
1 | ||
| 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 | ||||
| 77206-37D80 |
BZU300,340 NO.1 |
1 | ||
| 77206-37D60 |
TRU300,340,500..SCB |
1 | ||
| 77206-37650 |
BZU300,340 NO.2 |
1 | ||
| 77251C - HOSE, FUEL, NO.1(FOR FUEL MAIN TUBE) | ||||
| 77251-37610 |
BZU300,340..20T ｱﾘ(ﾌﾕ-ｴﾙﾀﾝｸ=90L) |
1 | ||
| 77638 - SLEEVE, TANK VALVE JOINT | ||||
| 77638-20011 |
BZU300,340 |
1 | ||
| 77638A - RING, O (FOR TANK VALVE JOINT SLEEVE) | ||||
| 96712-24011 |
BZU300,340 |
1 | ||
| Common parts | ||||
| 82291-37050 | ||||
| 90119-08676 | ||||
| 90119-08830 | ||||
| 90402-22056 | ||||
| 90404-14064 | ||||
| 90480-10009 | ||||
| 91611-60618 | ||||
| 91631-40614 | ||||
| 94115-40500 | ||||
| 94130-00802 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
