BZU340-TQMMC3 (2007)
Toyota Dyna/Toyoace

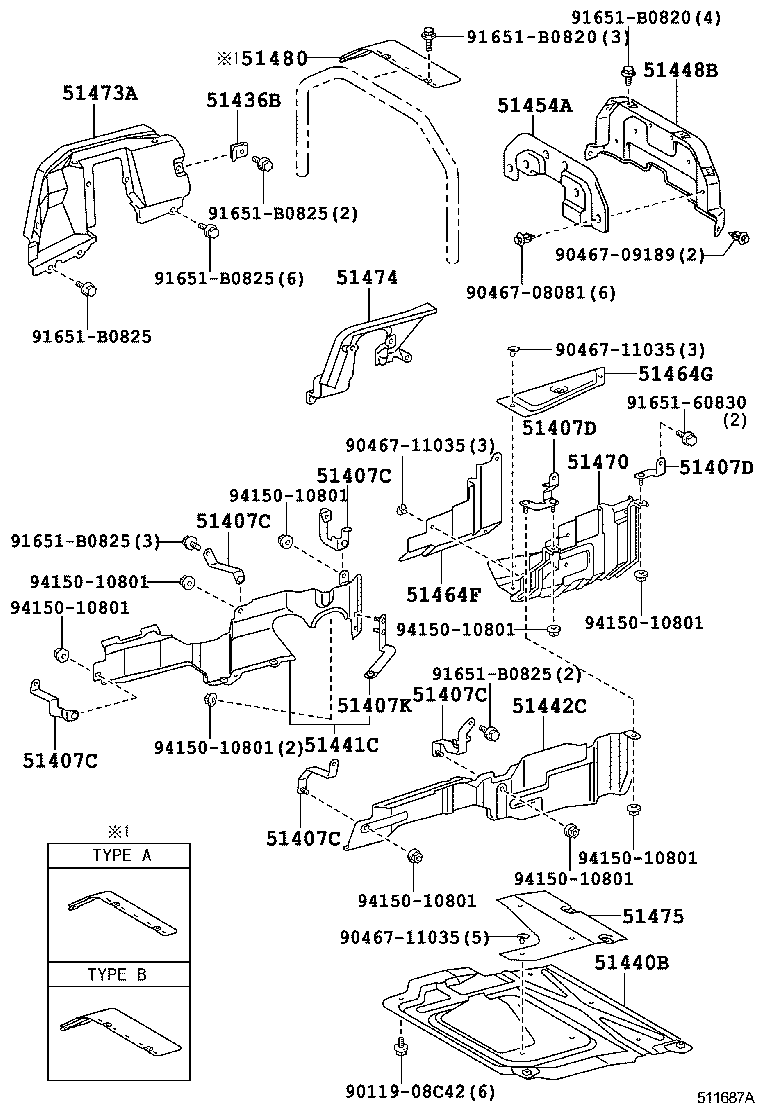

ILLUST NO. 1 OF 2(0705- )SCB..DCRTM,EFI,LPG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51407C - BRACKET SUB-ASSY, ENGINE UNDER COVER | ||||
| 51407-37190 |
TRU300,340,500 右側ﾌﾛﾝﾄ |
1 | ||
| 51407-37320 |
TRU300,340,500..SCB 右側ﾘﾔ |
1 | ||
| 51407-37220 |
TRU300,340,500 左側ﾌﾛﾝﾄ |
1 | ||
| 51407-37200 |
TRU300,340,500..SCB 右側 ｾﾝﾀｰ |
1 | ||
| 51407-37440 |
TRU300,340,500..SCB 左側 ｾﾝﾀｰ |
1 | ||
| 51407C - BRACKET SUB-ASSY, ENGINE UNDER COVER | ||||
| 51407-37190 |
TRU300,340,500 右側ﾌﾛﾝﾄ |
1 | ||
| 51407-37320 |
TRU300,340,500..SCB 右側ﾘﾔ |
1 | ||
| 51407-37220 |
TRU300,340,500 左側ﾌﾛﾝﾄ |
1 | ||
| 51407-37200 |
TRU300,340,500..SCB 右側 ｾﾝﾀｰ |
1 | ||
| 51407-37440 |
TRU300,340,500..SCB 左側 ｾﾝﾀｰ |
1 | ||
| 51407C - BRACKET SUB-ASSY, ENGINE UNDER COVER | ||||
| 51407-37190 |
TRU300,340,500 右側ﾌﾛﾝﾄ |
1 | ||
| 51407-37320 |
TRU300,340,500..SCB 右側ﾘﾔ |
1 | ||
| 51407-37220 |
TRU300,340,500 左側ﾌﾛﾝﾄ |
1 | ||
| 51407-37200 |
TRU300,340,500..SCB 右側 ｾﾝﾀｰ |
1 | ||
| 51407-37440 |
TRU300,340,500..SCB 左側 ｾﾝﾀｰ |
1 | ||
| 51407C - BRACKET SUB-ASSY, ENGINE UNDER COVER | ||||
| 51407-37190 |
TRU300,340,500 右側ﾌﾛﾝﾄ |
1 | ||
| 51407-37320 |
TRU300,340,500..SCB 右側ﾘﾔ |
1 | ||
| 51407-37220 |
TRU300,340,500 左側ﾌﾛﾝﾄ |
1 | ||
| 51407-37200 |
TRU300,340,500..SCB 右側 ｾﾝﾀｰ |
1 | ||
| 51407-37440 |
TRU300,340,500..SCB 左側 ｾﾝﾀｰ |
1 | ||
| 51407C - BRACKET SUB-ASSY, ENGINE UNDER COVER | ||||
| 51407-37190 |
TRU300,340,500 右側ﾌﾛﾝﾄ |
1 | ||
| 51407-37320 |
TRU300,340,500..SCB 右側ﾘﾔ |
1 | ||
| 51407-37220 |
TRU300,340,500 左側ﾌﾛﾝﾄ |
1 | ||
| 51407-37200 |
TRU300,340,500..SCB 右側 ｾﾝﾀｰ |
1 | ||
| 51407-37440 |
TRU300,340,500..SCB 左側 ｾﾝﾀｰ |
1 | ||
| 51407D - BRACKET SUB-ASSY, ENGINE UNDER COVER | ||||
| 51407-37251 |
BZU300,340,TRU300,340,500 ﾌﾛﾝﾄ |
1 | ||
| 51407-37070 |
BZU300,340,TRU300,340,500..SCB ﾘﾔ |
1 | ||
| 51407D - BRACKET SUB-ASSY, ENGINE UNDER COVER | ||||
| 51407-37251 |
BZU300,340,TRU300,340,500 ﾌﾛﾝﾄ |
1 | ||
| 51407-37070 |
BZU300,340,TRU300,340,500..SCB ﾘﾔ |
1 | ||
| 51407K - BRACKET SUB-ASSY, ENGINE UNDER COVER | ||||
| 51407-37430 |
TRU300,340,500..SCB |
1 | ||
| 51436B - BRACKET, ENGINE SIDE COVER, NO.1 RH | ||||
| 51436-37080 |
XZU378,388..SCB;BZU300,340,TRU300,340,500,XZU30#,314,324,33#,34#,354,368,50#,524,538,548,554,568 |
2 | ||
| 51440B - COVER ASSY, ENGINE FRONT UNDER, CENTER | ||||
| 51440-37470 |
TRU300,340,500..SCB |
1 | ||
| 51441C - COVER, ENGINE UNDER, RH | ||||
| 51440-37560 |
TRU300,340,500..SCB |
1 | ||
| 51442C - COVER, ENGINE UNDER, LH | ||||
| 51440-37490 |
TRU300,340,500 |
1 | ||
| 51448B - SHUTTER, ENGINE REAR SIDE | ||||
| 51448-37030 |
TRU300,340,500..SCB |
1 | ||
| 51454A - SILENCER, ENGINE REAR COVER | ||||
| 51454-37140 |
TRU300,340,500..SCB |
1 | ||
| 51464F - SILENCER, TRANSMISSION UNDER | ||||
| 51464-37120 |
BZU300,340,TRU300,340,500..SCB |
1 | ||
| 51464G - SILENCER, TRANSMISSION UNDER | ||||
| 51464-37140 |
BZU300,340,TRU300,340,500..SCB |
1 | ||
| 51470 - COVER ASSY, TRANSMISSION UNDER | ||||
| 51470-37170 |
BZU300,340,TRU300,340,500..SCB |
1 | ||
| 51473A - COVER SUB-ASSY, ENGINE SIDE, RH | ||||
| 51473-37180 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554 |
1 | ||
| 51474 - COVER SUB-ASSY, ENGINE SIDE, LH | ||||
| 51474-37120 |
BZU300,340,TRU300,340,500,XZU304,314,324,334,344,354,504,524,554 |
1 | ||
| 51475 - SILENCER, ENGINE UNDER COVER, NO.5 | ||||
| 51475-37060 |
TRU300,340,500..SCB |
1 | ||
| 51480 - SHUTTER ASSY, ENGINE REAR SIDE, RH | ||||
| 51480-37110 |
XZU308,354..IV6;XZU304..(CBU,IV6)..1NO;XZU33#,34#,538,548..SCB;XZU304..30T..DCRUE..IV3..4NO TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| Common parts | ||||
| 90119-08C42 | ||||
| 90467-08081 | ||||
| 90467-09189 | ||||
| 90467-11035 | ||||
| 91651-60830 | ||||
| 91651-B0820 | ||||
| 91651-B0825 | ||||
| 94150-10801 | ||||
