BZU340-TQMMC3 (2007)

Toyota Dyna/Toyoace

Production May 2007 - Jun 2011
Engine 1BZFPE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

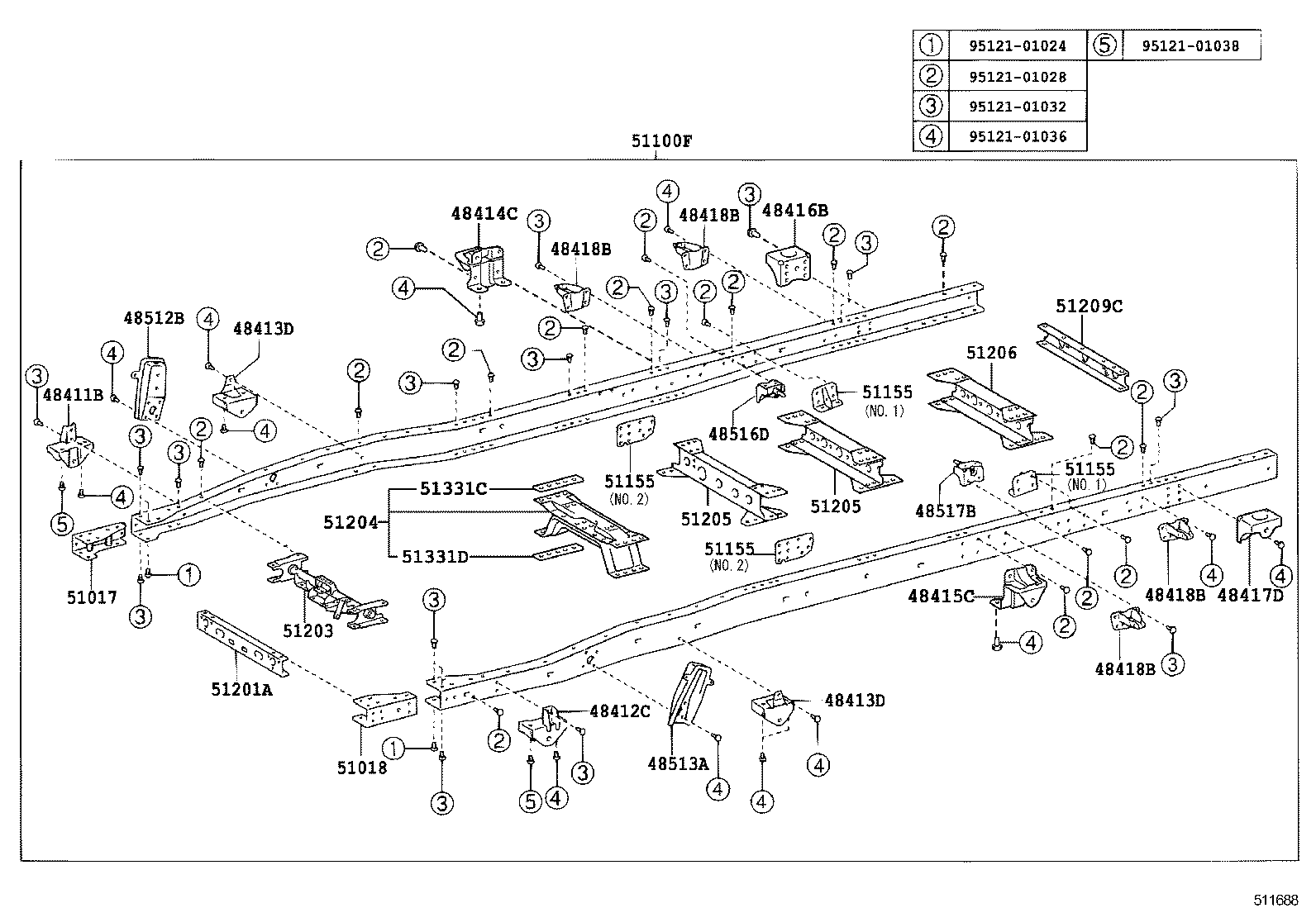

ILLUST NO. 2 OF 4(0705- )BZU340,TRU340

Click highlighted areas on diagram

diagram 48411B 48412C 48413D 48413D 48414C 48415C 48416B 48417D 48418B 48418B 48418B 48418B 48512B 48513A 48516D 48517B 51017 51018 51100F 51155 51155 51155 51155 51201A 51203 51204 51205 51205 51206 51209C 51331C 51331D 9512101024 9512101028 9512101032 9512101036 9512101038
Part # Description Qty Price
48411B - BRACKET, SPRING, NO.1 RH
48411-37070

XZU354..1NO;BZU300,340,TRU300,340,500,XZU304,334,344,504

 1
48412C - BRACKET, SPRING, NO.1 LH
48412-37060

XZU354..1NO;BZU300,340,TRU300,340,500,XZU304,334,344,504

 1
48413D - BRACKET, SPRING, NO.2
48413-37060

XZU344..35T;XZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,340,TRU300,340,500,XZU334,354..1NO

 2
48413D - BRACKET, SPRING, NO.2
48413-37060

XZU344..35T;XZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,340,TRU300,340,500,XZU334,354..1NO

 2
48414C - BRACKET, SPRING, NO.3 RH
48414-37100

BZU300,TRU300,XZU304..T3;BZU340,TRU340,XZU334,34#,378,388,548..20T,30T

 1
48415C - BRACKET, SPRING, NO.3 LH
48415-37020

BZU300,TRU300,XZU304..T3;BZU340,TRU340,XZU334,34#,378,388,548..20T,30T

 1
48416B - BRACKET, SPRING, NO.4 RH
48416-37100

BZU300,TRU300,XZU304..T3;BZU340,TRU340,XZU334,34#,378,388,548..20T,30T

 1
48417D - BRACKET, SPRING, NO.4 LH
48416-37100

BZU300,TRU300,XZU304..T3;BZU340,TRU340,XZU334,34#,378,388,548..20T,30T

 1
48418B - BRACKET, SPRING, NO.6
48418-36090

BZU300,TRU300,XZU304,354..T3;BZU340,TRU340,XZU334,34#,378,388,548

 4
48418B - BRACKET, SPRING, NO.6
48418-36090

BZU300,TRU300,XZU304,354..T3;BZU340,TRU340,XZU334,34#,378,388,548

 4
48418B - BRACKET, SPRING, NO.6
48418-36090

BZU300,TRU300,XZU304,354..T3;BZU340,TRU340,XZU334,34#,378,388,548

 4
48418B - BRACKET, SPRING, NO.6
48418-36090

BZU300,TRU300,XZU304,354..T3;BZU340,TRU340,XZU334,34#,378,388,548

 4
48512B - BRACKET, FRONT SHOCK ABSORBER, UPPER RH
48512-37050

BZU340;BZU300..DM6;BZU300..T4..30T

 2
48512-37050

BZU300..T3;BZU300..T4..20T;TRU300,340,500,XZU304,314,324,334,344,354,504,524,554

 1
48513A - BRACKET, FRONT SHOCK ABSORBER, UPPER LH
48512-37130

TRU300,340,500,XZU304,314,324,334,344,354,504,524,554

 1
48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH
48505-37010

XZU354,368,568..T3,T4;BZU300,340,TRU300,340,500,XZU30#,33#,34#,378,388,50#,538,548..WT

 1
48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH
48505-37010

XZU354,368,568..T3,T4;BZU300,340,TRU300,340,500,XZU30#,33#,34#,378,388,50#,538,548..WT

 1
51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH
51017-37130

XZU344..35T;XZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,340,TRU300,340,500,XZU334,354..1NO

 1
51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH
51018-37021

XZU368,568;XZU344..35T;XZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,340,TRU300,340,500,XZU334,354,378,388..1NO

 1
51018-37140

XZU304..(T4,T5)..20T;XZU308,338,34#,50#,538,548..20T,30T

 1
51100F - FRAME SUB-ASSY
51001-37N42

BZU340

 1
51155 - STIFFENER, FRAME SIDE RAIL, REAR RH
51155-37060

XZU338,368,568..T4;BZU300,340,TRU300,340,500,XZU30#,334,378,388,50#,538..(20T,30T)..WT

 2
51155 - STIFFENER, FRAME SIDE RAIL, REAR RH
51155-37060

XZU338,368,568..T4;BZU300,340,TRU300,340,500,XZU30#,334,378,388,50#,538..(20T,30T)..WT

 2
51155 - STIFFENER, FRAME SIDE RAIL, REAR RH
51155-37060

XZU338,368,568..T4;BZU300,340,TRU300,340,500,XZU30#,334,378,388,50#,538..(20T,30T)..WT

 2
51155 - STIFFENER, FRAME SIDE RAIL, REAR RH
51155-37060

XZU338,368,568..T4;BZU300,340,TRU300,340,500,XZU30#,334,378,388,50#,538..(20T,30T)..WT

 2
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51211-37090

XZU354..1NO;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-37210

XZU354..1NO;BZU300,340,TRU300,340,500,XZU30#,33#,34#,50#,538,548

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-37130

XZU304..T5..30T..DCRUE;XZU304..(DM3,DM6,T3,T4)..6F;BZU300,340,XZU334..DCRUE,LPG

 1
51203-37360

TRU300,340,500

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51205-37140

XZU344..35T;BZU340,TRU340,XZU388

 2
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51205-37140

XZU344..35T;BZU340,TRU340,XZU388

 2
51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51206-37030

XZU368,568..T4;XZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,340,TRU300,340,500,XZU334,34#,354,378,388,548..1NO

 1
51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR
51291-37040

BZU340,TRU340,XZU33#,34#,378,388,538,548

 1
51331C - GUSSET, FRAME NO.3 CROSSMEMBER
51331-37020

XZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,340,TRU300,340,500,XZU334..20T,30T

 2
51331D - GUSSET, FRAME NO.3 CROSSMEMBER
51331-37030

XZU304..30T..4NO;XZU304..DM3,DM6,T3;BZU300,340,TRU300,340,500,XZU334..20T,30T

 2
Common parts
95121-01024
95121-01028
95121-01032
95121-01036
95121-01038
